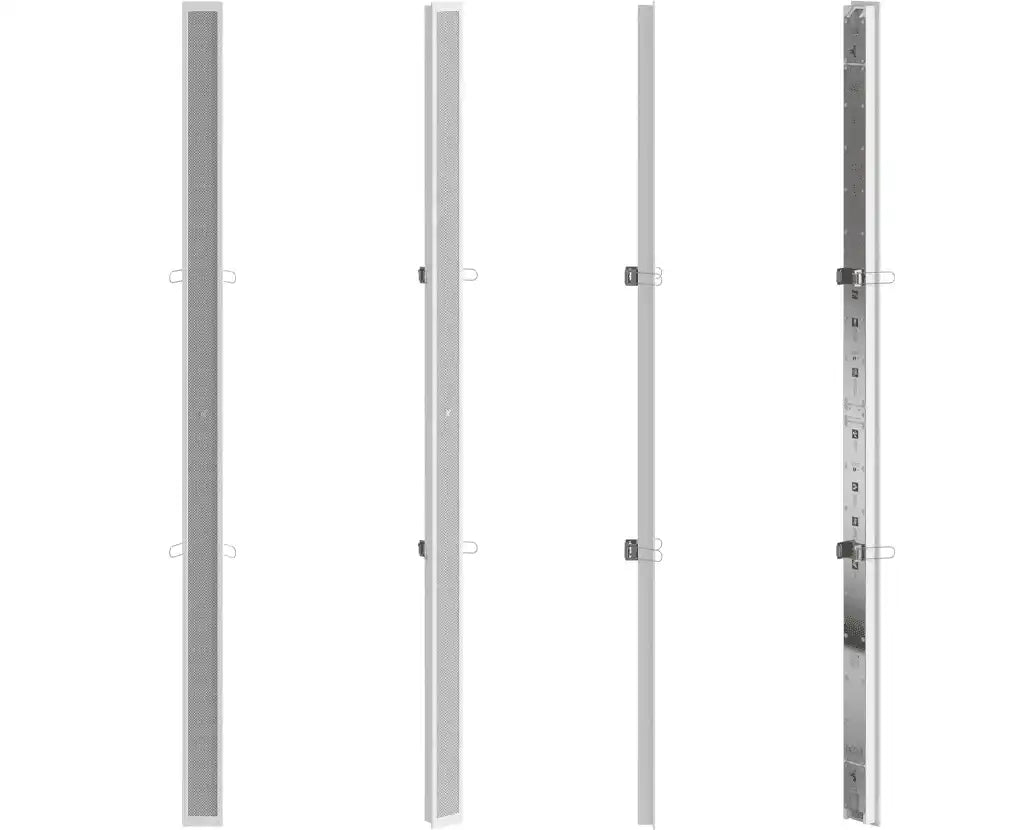

K-Array Vyper KV102RW II – In-Wall 100cm Line Array Element (White)

Product Overview

The K-Array Vyper KV102RW II is a white in-wall line array speaker built for flush-mount installed audio in boardrooms, houses of worship, and architectural commercial spaces with light interior finishes. This recessed 100cm aluminum line array element carries sixteen 1" neodymium magnet drivers in a chassis purpose-designed for in-wall recessed installation, producing 120 dB peak SPL with true line array control from a slim white aperture. For integrators specifying invisible installed audio that matches white walls and ceilings, the KV102RW II is the white version of the recessed Vyper KV102R II.

Product Description

The KV102RW II mounts flush within a wall cavity so only a narrow white slot remains visible — the most discreet deployment in the Vyper family for light-colored rooms. Its sixteen closely spaced 1" neodymium cone drivers deliver the defining line array characteristics of phase coherence, low distortion, and focused listening in both the near field and at distance, with a controlled 7-degree vertical by 140-degree horizontal pattern that keeps sound on the audience and off reflective ceilings and floors. That pattern control translates directly into speech intelligibility in reverberant conference and worship rooms.

Selectable 8-ohm or 32-ohm impedance supports efficient distributed system design: at 32 ohms, up to eight KV102 II-series elements can share one 4-ohm amplifier channel, removing 70V transformer lines while retaining full low-impedance fidelity. Connections land on the included 2-pin Euroblock connector, and dedicated DSP presets apply when the speaker is driven by K-Array electronics such as the Prisma KPRA02+ matrix processing platform. This recessed model is offered in black as the KV102R II, and a white surface-mount version is available as the KV102W II. Browse the complete K-Array collection for matched subwoofers and electronics.

Key Features

• White In-Wall Recessed Chassis — The 50 x 1010 x 37 mm aluminum housing installs flush inside the wall, leaving only a slim white aperture in finished light-colored surfaces.
• Sixteen 1" Neodymium Drivers — Sixteen closely spaced neodymium magnet cone transducers form a true line source with phase coherence and low distortion at every listening distance.
• Controlled Vertical Coverage — The 7-degree vertical by 140-degree horizontal pattern aims energy at listeners and away from reflective surfaces, sustaining intelligibility in reverberant rooms.
• Selectable 8/32-Ohm Impedance — At 32 ohms, up to eight elements share one 4-ohm amplifier channel, eliminating 70V lines in wide distributed installed systems.
• 120 dB Peak Output — With 300 W rated power handling, a single recessed element covers substantial meeting and worship spaces from one wall position.
• 150 Hz – 18 kHz Response — Full vocal-range reproduction (-6 dB) handles speech alone and pairs with K-Array subwoofers when music programs require low-frequency extension.
• Lightweight Aluminum Build — At 1.8 kg, the element recesses into standard wall cavities without structural reinforcement.
• Euroblock Termination — The included 2-pin Euroblock connector gives installers secure, serviceable wiring inside the cavity.

Typical Applications

• Boardrooms with white millwork and finishes where the speaker must vanish into the wall
• Conference rooms and commercial meeting spaces requiring intelligible flush-mount audio
• Houses of worship preserving light architectural interiors with recessed reinforcement
• Government spaces and council chambers specifying discreet in-wall installed sound
• Auditoriums and all-hands rooms using distributed recessed column arrays
• Multi-purpose rooms and training rooms with zoned low-impedance speaker layouts

Technical Specifications

Frequently Asked Questions

How does the KV102RW II differ from the KV102W II?
The KV102RW II is the in-wall recessed version with a 50 x 1010 x 37 mm chassis that mounts flush inside a wall cavity. The KV102W II is the white surface-mount version with a slimmer 40 x 1000 x 22 mm frameless chassis for on-wall installation.

What does in-wall installation require?
The element recesses into a prepared wall opening with at least 37 mm of cavity depth plus wiring clearance. K-Array publishes a drilling/cut-out template and BIM files for the KV102R-series to support pre-construction coordination.

What amplifier should drive the KV102RW II?
Any quality low-impedance installation amplifier rated for the selected 8-ohm or 32-ohm load is suitable; K-Array electronics such as the Prisma KPRA02+ include dedicated Vyper presets for optimized tuning and driver protection.

How many speakers can share one amplifier channel?
Set to 32 ohms, up to eight KV102 II-series elements can run in parallel on a single 4-ohm amplifier channel — the Vyper approach to distributed coverage without 70V transformers.

Is a subwoofer required?
Not for speech reinforcement; the 150 Hz to 18 kHz response covers the vocal range. For program music, K-Array recommends its Truffle or Rumble subwoofer lines.

What warranty applies?
K-Array loudspeakers are covered by the manufacturer's 5-year warranty policy, and Creation Networks supports specification, ordering, and post-installation questions for commercial integrators.
