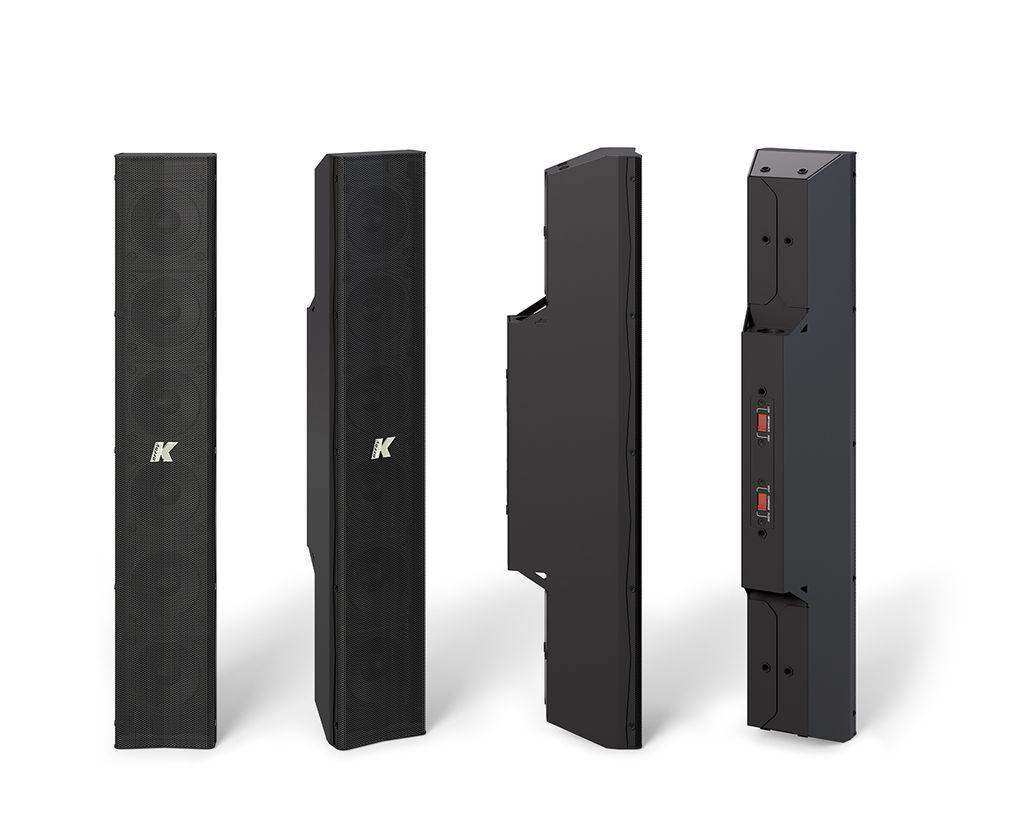

K-Array Python KP52 I – Compact Variable Beam Line Array

Product Overview

The K-Array Python KP52 I is a compact variable beam line array element built for commercial AV installations that demand articulate vocal reinforcement from a half-meter stainless steel column. Six 3.15-inch neodymium magnet woofers deliver 128 dB peak SPL with adjustable 10°–45° vertical by 90° horizontal coverage, making it a strong choice as a passive column speaker for houses of worship, auditoriums, and distributed audio systems. Selectable 8-ohm or 32-ohm impedance simplifies amplifier loading across multi-element designs. This is the black finish; the same element is available as the white Python KP52W I.

Product Description

The KP52 I is the half-meter member of K-Array's Python series, designed for refined installations where powerful mid-high performance and architectural discretion must coexist. Its six closely spaced 3.15-inch neodymium woofers behave as a true line source, reproducing the entire vocal range from 120 Hz to 18 kHz with high intelligibility for front fill, on-wall reinforcement, and distributed audio in small and medium-sized rooms. Variable beam control lets installers set vertical coverage between 10° and 45° to match listener depth, while the 90° horizontal pattern keeps level consistent across wide seating areas. Selectable 8/32-ohm impedance allows up to eight KP52 I elements on a single 4-ohm amplifier channel when set to 32 ohms, eliminating the need for 70V lines in wider distributed systems. SpeakON NL4 connectors carry signal in and loop through to the next element, and K-Array's rigging ecosystem — wall brackets, pole mounts, fly bars, and joining hardware, all sold separately — supports vertical and horizontal array configurations. For projects needing longer throw, step up to the one-meter Python KP102 I; for a portable package, the Pinnacle K-FOH2 system builds two KP52 I elements and an active subwoofer into a wheeled flight case. Browse the complete lineup in the K-Array collection.

Key Features

• Six 3.15-Inch Neodymium Woofers — Closely spaced drivers create true line source behavior for focused projection and high speech intelligibility.
• 128 dB Peak Output — The half-meter element delivers substantial headroom for speech and program reinforcement in small to medium venues.
• Variable Beam Vertical Coverage — Adjustable 10°–45° vertical dispersion lets installers match the beam to throw distance and audience depth without DSP steering.
• Selectable 8/32-Ohm Impedance — Switching to 32 ohms allows up to eight elements per 4-ohm amplifier channel, reducing amplifier count in distributed installations.
• SpeakON NL4 In and Through — Loop-through wiring supports clean daisy-chained vertical or horizontal array configurations.
• Slim Stainless Steel Enclosure — A column just 3.5 inches wide integrates discreetly into architecturally sensitive interiors.
• IP65 Sealing Accessories Available — Optional K-IP65KITA caps and K-IP65KITB connector boots prepare the element for outdoor and high-humidity locations.
• Modular Rigging Ecosystem — Dedicated K-Array hardware (sold separately) supports flying, wall mounting, pole mounting, stage bracing, and side-by-side coupling.
• Black, White, or Custom RAL Finishes — Finish options align the column with architectural and interior design specifications.

Typical Applications

• House of worship sanctuaries requiring intelligible, visually discreet speech and music reinforcement
• Auditoriums needing front fill or under-balcony coverage from a compact column element
• Government spaces such as chambers and hearing rooms with strict aesthetic requirements
• Multi-purpose rooms and all-hands rooms hosting varied speech and program events
• Commercial meeting spaces and training rooms using distributed column loudspeakers

Technical Specifications

Frequently Asked Questions

What amplifier should power the Python KP52 I?

The KP52 I is a passive element with selectable 8/32-ohm impedance. K-Array recommends Kommander amplifiers, which ship with dedicated KP52 factory presets, but any professional amplifier with appropriate power and DSP can drive it. At 32 ohms, up to eight elements can share one 4-ohm amplifier channel.

Is connecting and mounting hardware included?

No. Connecting hardware is sold separately so each project specifies exactly the K-Array accessories it needs — K-WALL2 wall brackets, K-PMOUNT pole adapters, K-FLY3 fly bars, K-JOINT3 joining hardware, K-STAGE2 stage brackets, or K-CPL2PY side-by-side couplers. Creation Networks can help build the correct rigging package for your design.

Does the KP52 I need a subwoofer?

For speech reinforcement, the KP52 I covers the full vocal range from 120 Hz with high intelligibility on its own. For music programs, K-Array recommends pairing it with Thunder or Rumble subwoofers to cover the complete musical frequency range.

Can the KP52 I be installed outdoors?

The stainless steel enclosure is built for durability, and optional IP65 sealing kits (K-IP65KITA caps and K-IP65KITB connector boots) protect the SpeakON connections in exposed or high-humidity locations. A marine version with anti-corrosion treatment is also offered for salt-air environments.

How does it integrate into a commercial AV system?

Driven by K-Array Kommander electronics, the system gains DSP presets, networked control, and integration with common control platforms used in commercial AV deployments, following standard installed-sound practice for distributed and column systems.

Is the KP52 I available in a complete portable system?

Yes. The K-Array Pinnacle K-FOH2 packages two KP52 I elements on stands with a KS2 I 18-inch active subwoofer in a wheeled flight case for portable front-of-house use.

What warranty applies to this product?

K-Array provides a 5-year manufacturer warranty, supported by Creation Networks as an authorized dealer. See the full range in our K-Array collection.
