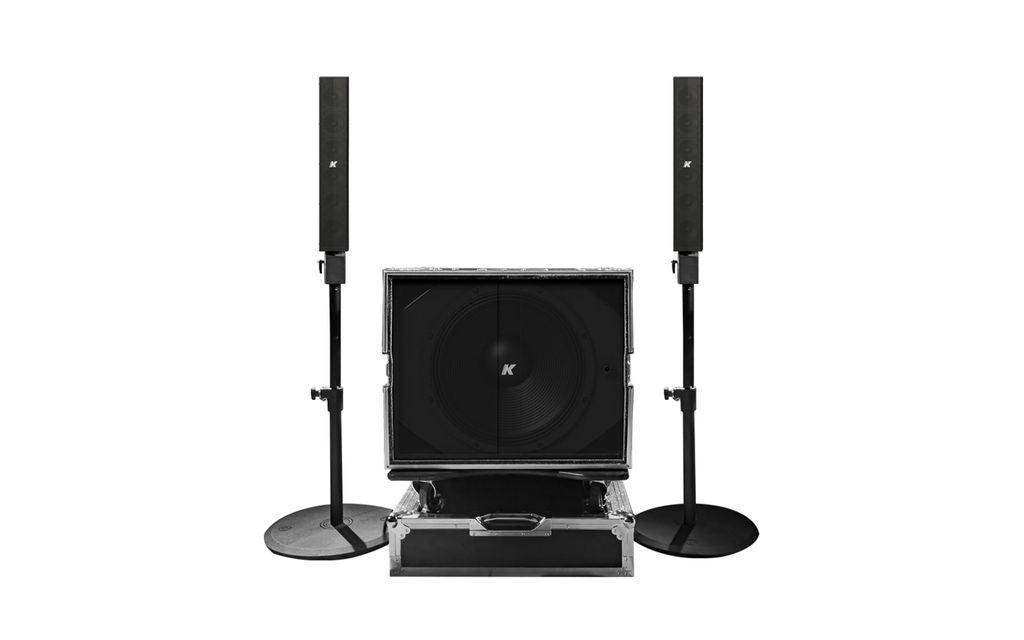

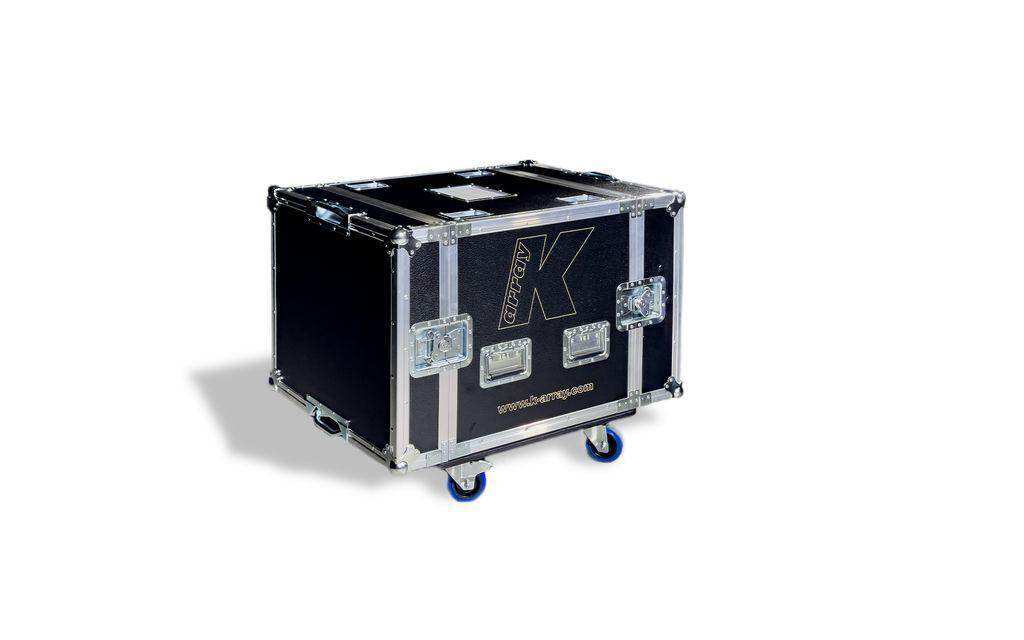

K-Array Pinnacle K-FOH2 Front of House monitoring system, including 2 KP52 I on stands and 1 KS2 I 18" active subwoofer, all conveniently integrated into a wheeled flight case

General

• Type:

  Line array

• Transducers:

  6 x 3.15" neodymium magnet woofers

• Frequency Response:

  120 Hz - 18 kHz (-6 dB)

   ⁽¹⁾

• Sensitivity (1W/1m):

  96 dB SPL

• Max SPL:



  128 dB (peak)



   ⁽²⁾

• Rated Power:



  360 W AES



• Coverage:

  V. 10° - 45° | H. 90°

• Connectors:



  SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)



• Nominal Impedance:

  8 Ω / 32 Ω selectable

• Max SPL (Full-Range preset):



  116 dB (peak)



   ⁽³⁾

• Frequency Response (Full-range preset):



  70 Hz - 18 kHz (-6dB)



   ⁽⁴⁾

Handling and Finishes

• Dimensions (W x H x D):

  89 x 520 x 118 mm (3.5 x 20.5 x 4.7 in)

• Weight:

  5.8 kg (12.78 lb)

• Material:

  Stainless Steel

• Colors:

  Black, White, Custom RAL

• Finishes:

  24K Gold, Polished, Brushed

Regulations

• IP Rating:



  IP64



   ⁽⁵⁾

• EN54-24:

  EN 54-24:2008 compliant

   ⁽⁶⁾

• (1) With dedicated preset.
• (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m
• (3) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m
• (4) With dedicated FULL-RANGE preset
• (5) More complete water protection with K-IP65KITA and K-IP65KITB accessories (IP65 compliant)
• (6) See specification for EN 54-24 applications in products user’s guide

• Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

• New materials and design are introduced into existing products without previous notice.

General

• Type:

  Active subwoofer

• Transducers:

  18" neodymium magnet woofer

• Frequency Response:

  35 Hz - 150/450 Hz (-6 dB) crossover dependant

   ⁽¹⁾

• Crossover:

  DSP-controlled, Low Pass @ 150 Hz, preset dependant

• Max SPL:



  137 dB



   ⁽²⁾

• Coverage:

  Omni

• Coverage:

  Line Input
  2x XLR-F analog / AES3
  Line Output
  2x XLR-M Link analog / AES3
  Speaker Output
  2x SpeakON NL4
  Mains
  powerCON TRUE1 TOP
  Networking and Data
  1x RJ45
  4x USB-A

• Nominal Impedance:

  8ohm subwoofer

• Controllers:



  Wi-Fi dedicated Mobile APP
  K-framework3 via wired Ethernet connection



Handling and Finishes

• Dimensions (W x H x D):

  650 x 500 x 580 mm
  (25.6 x 19.7 x 22.8 in)

   ⁽³⁾

• Weight:

  37,6 kg (82.9 lb)

• Material:

  Polyurea coated birch plywood

• Colors:

  Black/White/Custom RAL

Regulations

• IP Rating:



  IP53



   ⁽⁴⁾

Amplifier

• Amp Module:

  4-ch Class D

• Output Power:

  4 x 1500W @ 4ohm

   ⁽⁵⁾

• Power Consumption:

  600 W @ 8 Ω load, Pink noise, 1/4 rated power
