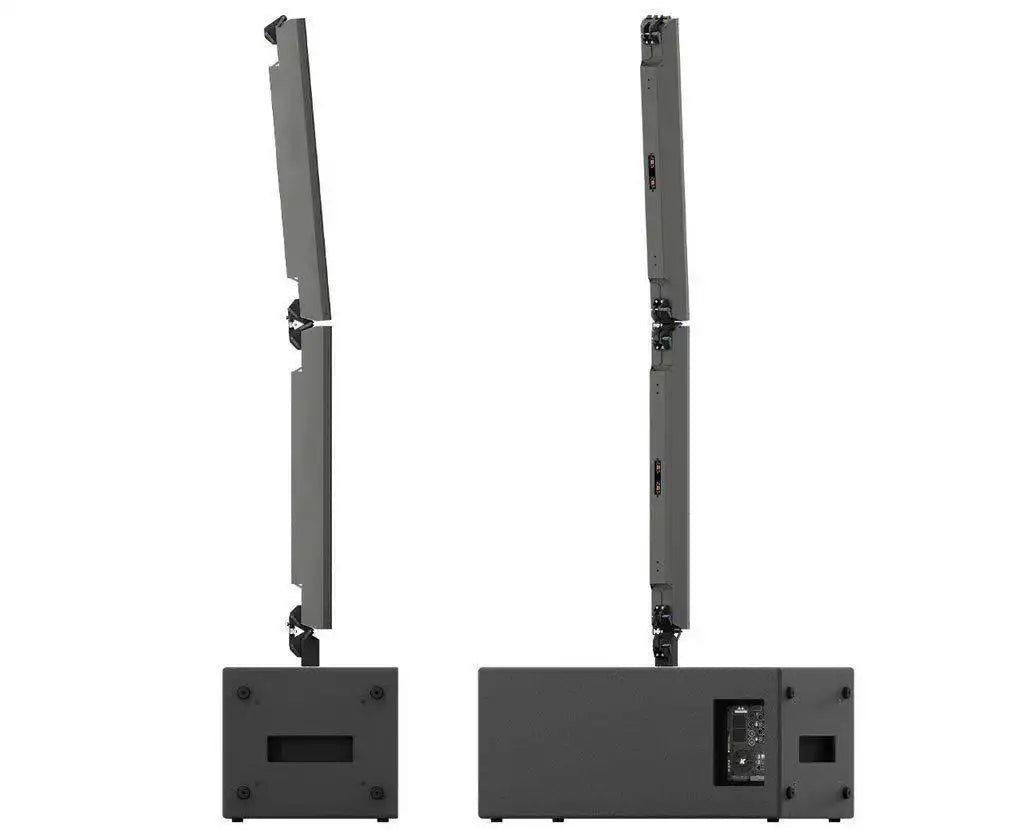

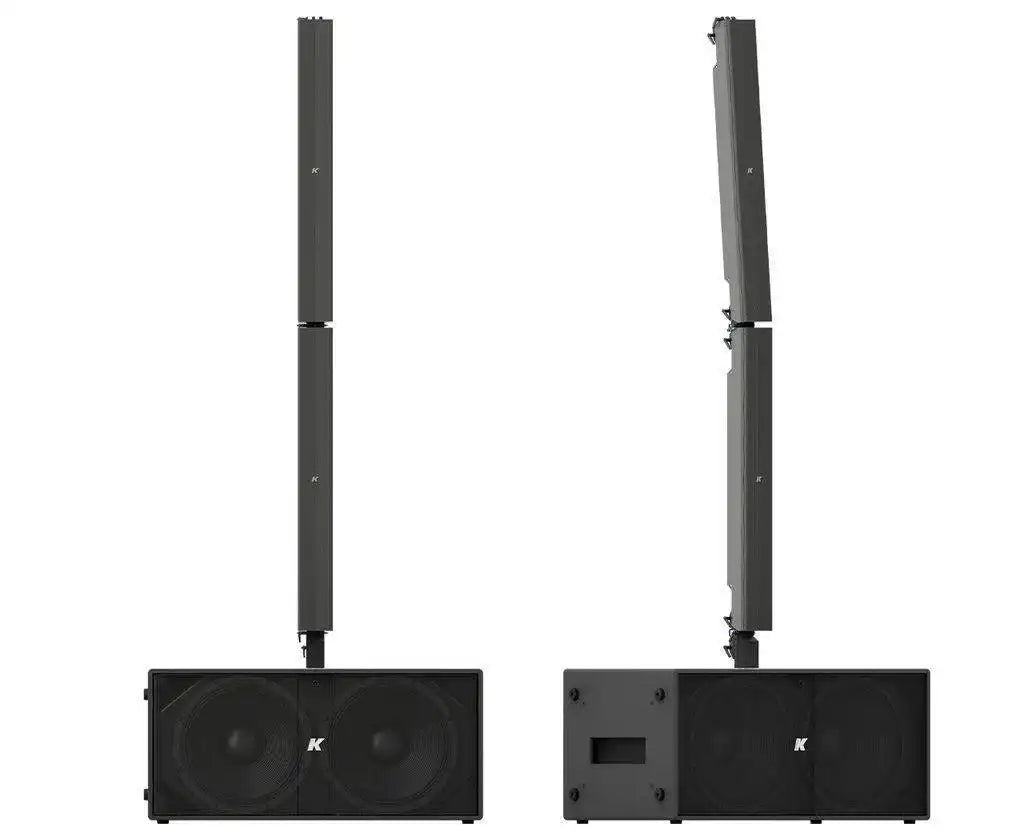

K-Array Pinnacle KR802 II Powered stereo system composed of 1 KS4 I + 1 KS4P I + 4 KY102 + mounting hardware (Black)

General

• Type:

  Line array

• Transducers:

  8 x 4" neodymium magnet woofers

• Frequency Response:

  120 Hz – 20 kHz (-6 dB)

   ⁽¹⁾

• Max SPL:

  138 dB (peak)

   ⁽²⁾

• Rated Power:

  1200 W

• Coverage:

  V. 7° - 30° | H. 90°

• Connectors:



  SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)



• Nominal Impedance:

  8 Ω / 32 Ω selectable

• Max SPL (Full-Range preset):



  126 dB (peak)



   ⁽³⁾

• Frequency Response (Full-range preset):



  70 Hz – 20 kHz (-6 dB)






   ⁽⁴⁾

Handling and Finishes

• Dimensions (W x H x D):

  116 x 1000 x 134 mm (4.6 x 39.4 x 5.3 in)

• Weight:



  14.9 kg (32.8 lb)



• Material:

  Stainless Steel

• Colors:

  Black, White, Custom RAL

• Finishes:

  24K Gold, Polished, Brushed

Regulations

• IP Rating:



  IP64



   ⁽⁵⁾

• (1) With dedicated preset.
• (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m
• (3) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m
• (4) With dedicated FULL-RANGE preset.
• (5) More complete water protection with K-IP65KITA and K-IP65KITB accessories (IP65 compliant)

• Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

• New materials and design are introduced into existing products without previous notice.

General

• Type:

  Passive subwoofer

• Transducers:

  2 x 18" neodymium magnet woofer

• Frequency Response:



  30 Hz – 150/450 Hz (-6 dB) crossover dependant



   ⁽¹⁾

• Crossover:

  DSP-controlled, Low Pass @ 150 Hz, preset dependant

• Max SPL:



  141dB



   ⁽²⁾

• Coverage:



  Omni



• Rated Power:



  2800W peak



• Connectors:



  2 x Speakon NL4



• Nominal Impedance:



  4ohm



Handling and Finishes

• Dimensions (W x H x D):

  1106 x 500 x 580 mm
  (43.5 x 19.7 x 22.8 in)

   ⁽³⁾

• Weight:

  53,2 kg (117.3 lb)

• Material:

  Polyurea coated birch plywood

• Colors:

  Black/White/Custom RAL

Regulations

• IP Rating:



  IP54



   ⁽⁴⁾

• (1) With dedicated preset
• (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m.
• (3) Included 17 mm (0.7 in) removable rubber feet
• (4) In case of permament, long lasting installation in critical environments (swimming pools, beaches, yachts..), we recommend to further protect the subwoofer. Contact K-array directly to discuss best protection practices.

• Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

• New materials and design are introduced into existing products without previous notice.

General

• Type:

  Active subwoofer

• Transducers:

  2 x 18" neodymium magnet woofer

• Frequency Response:



  30 Hz – 150/450 Hz (-6 dB) crossover dependant



   ⁽¹⁾

• Crossover:

  DSP-controlled, Low Pass @ 150 Hz, preset dependant

• Max SPL:



  141 dB



   ⁽²⁾

• Coverage:

  Omni

• Connectors:



  Line Input
  2x XLR-F analog / AES3
  Line Output
  2x XLR-M Link analog / AES3
  Speaker Output
  2x SpeakON NL4
  Mains
  powerCON TRUE1 TOP
  Networking and Data
  1x RJ45
  4x USB-A



• Nominal Impedance:

  4ohm subwoofer

• Controllers:



  Wi-Fi dedicated Mobile APP
  K-framework3 via wired Ethernet connection



• Built-in DSP:



  Input gain, routing matrix, delay, full parametric IIR filters (Peaking, Shelving, Hi/ Lo pass, Hi/Lo Butterworth), Onboard preset, Remote monitoring



Handling and Finishes

• Dimensions (W x H x D):

  1106 x 500 x 580 mm
  (43.5 x 19.7 x 22.8 in)

   ⁽³⁾

• Weight:

  60 kg (132.3 lb)

• Material:

  Polyurea coated birch plywood

• Colors:

  Black/White/Custom RAL

Regulations

• IP Rating:

  53

   ⁽⁴⁾

Amplifier

• Amp Module:

  4-ch Class D

• Output Power:

  4 x 2500W @ 4ohm

   ⁽⁵⁾

• Power Consumption:

  600 VA @ 8 Ω load, Pink noise, 1/8 rated power
