K-Array Lyzard KZ1RW I – Ultra-Mini White In-Wall Speaker

Product Overview

The K-Array Lyzard KZ1RW I is a white in-wall ultra-mini speaker engineered to vanish into light-colored walls and ceilings. The recessed white version of K-Array's smallest loudspeaker, it flush-mounts through a compact 28 x 43 mm faceplate using a metallic spring clip, leaving virtually nothing visible against white drywall or painted surfaces. With 140-degree coverage, IP64 protection, and a milled aluminum enclosure, this flush-mount white micro speaker serves boardrooms, conference rooms, and houses of worship where interior design takes priority.

Product Description

The Lyzard KZ1RW I houses a single 0.5-inch long-excursion neodymium magnet transducer in an ultra-resistant milled aluminum body measuring 28 x 43 x 11 mm and weighing 21 grams. It delivers a frequency response of 500 Hz to 18 kHz (-6 dB) at a peak SPL of 86 dB with minimum residual noise — clear, intelligible mid-high reproduction from a speaker smaller than a business card. Its defining feature is the metallic spring clip for recessed in-wall installation: integrators cut a small opening, land the wiring on the screw terminals, and snap the speaker flush in seconds.

The IP64 rating adds dust and splash protection for humid rooms and covered exterior zones. As a 16-ohm passive speaker, the KZ1RW I is designed for K-Array amplification with the dedicated Lyzard preset, such as the Kommander KA02 I DSP amplifier, and combines with the white Rumble KU44W subwoofer for a color-matched full-range system. The same speaker is available in black as the Lyzard KZ1R I, and surface-mount in white as the Lyzard KZ1W I.

Key Features

• White flush-mount design — The white finish and recessed installation make the speaker nearly invisible on light walls and ceilings.

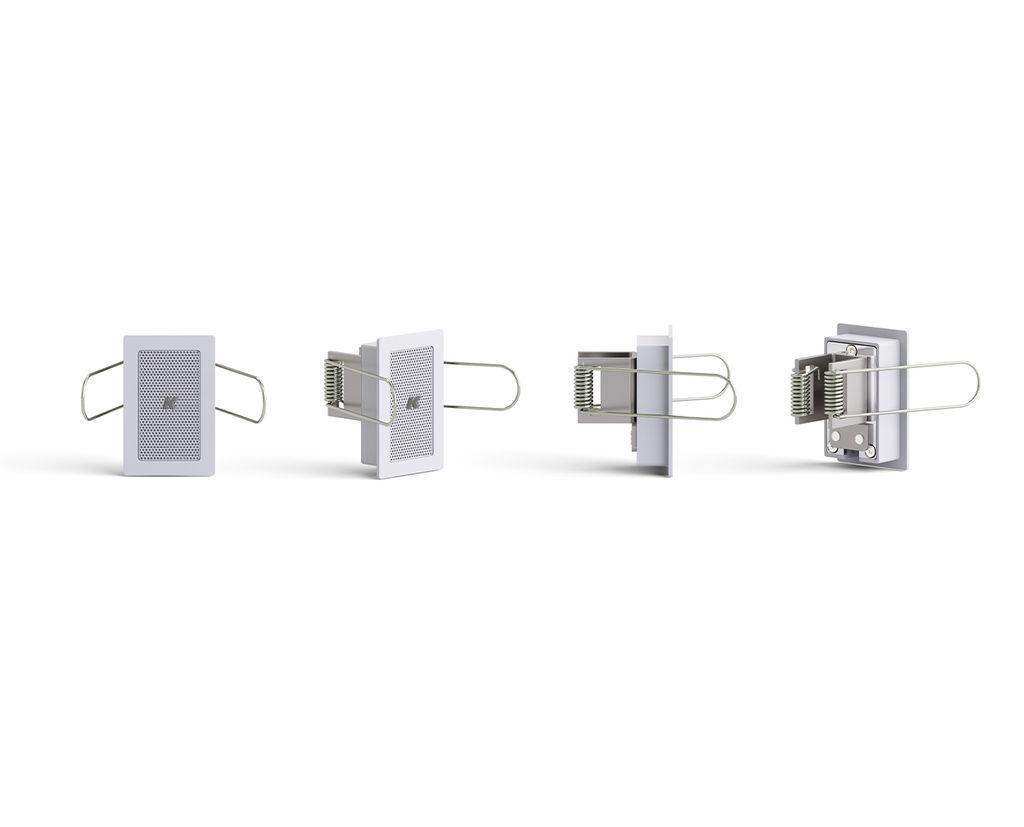

• Spring-clip installation — A metallic spring clip secures the speaker into its cutout in seconds without visible fasteners.
• IP64 rated — Dust-tight, splash-resistant construction supports humid interiors and covered outdoor spaces.
• 0.5-inch neodymium driver — A long-excursion transducer delivers clean mid-high output with minimum residual noise.
• 140 x 140 degree coverage — Wide conical dispersion provides even coverage from each recessed location.
• 16-ohm passive operation — Several units can share one K-Array amplifier channel in distributed designs.
• Milled aluminum enclosure — The machined body controls resonance and survives commercial installation handling.
• Custom RAL option — Beyond white and black, custom RAL colors are available for exact finish matching.

Typical Applications

• Boardrooms and conference rooms with white interiors
• Houses of worship preserving sanctuary sightlines
• Government spaces with architectural finish requirements
• Commercial meeting spaces and multi-purpose rooms
• Huddle rooms and training rooms with recessed audio
• Broadcast studios requiring zero-profile speakers

Technical Specifications

Frequently Asked Questions

Is the KZ1RW I the same speaker as the KZ1R I?
Yes, acoustically identical — only the finish differs. The black version is the Lyzard KZ1R I.

What does in-wall installation require?
A small cutout in the wall or ceiling surface and speaker wiring to the IN+/IN- terminals. The metallic spring clip then holds the speaker flush — no visible hardware.

Can it be painted to match a custom wall color?
K-Array offers factory custom RAL finishes for exact color matching; contact us to specify a RAL color at order time.

Which amplifier should drive it?
A K-Array amplifier with the dedicated Lyzard preset, such as the Kommander KA02 I. Add a Rumble KU44W subwoofer for frequencies below 500 Hz.

What warranty applies?
Full K-Array manufacturer warranty through Creation Networks, an authorized dealer, with system design and integration support included.

Browse the complete K-Array collection for amplifiers, subwoofers, and complete systems.
