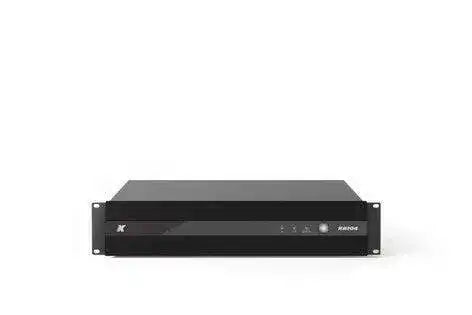

K-Array Kommander KA28 Class D, 2U-rack amplifier with DSP and remote control

K-Array SKU: KA28
No reviews

Description

Power your K-array system with the only amps created specifically for that purpose. K-array's KA series amps were designed to fully integrate into the K-array ecosystem. The Kommander KA28 8-Channel 8x 600W @ 2Ω power amp comes loaded with K-array DSP (Digital Signal Processing) that gives you full control over the amplifier and eliminates the need for external processors. You'll have access to EQ, channel levels, routing matrix, and delay via Wi-Fi and Ethernet dedicated apps or desktop software.

The lightweight stainless steel 2 rack unit KA28 offers high power density and is designed for the rigors of life on the road. Its diminutive footprint also makes the KA28 a great choice for space-limited permanent installations.

  • Class D audio amplifier module 8x 600W @ 2Ω.
  • Onboard DSP with
  • Channel Grouping: group controls over multiple channels
  • Input EQ: 3 bands fully parametric equalizer
  • Output EQ: 8 bands fully parametric selectable filters
  • Dynamic limiters
  • Signal routing: freely assignable input-to-output signal path with level adjustment
  • Channel delay up to 115 ms
  • Integrated Electronic Brain (IEB) with osKar custom operating system running on quad core 1.5 GHz internal processor
  • REST API for easy integration with third-party remote control systems
  • K-array Connect mobile app for easy wireless access to theDSP features
  • K-framework3 multiplatform software for loudspeaker system design, managing, tuning and control of multiple units in demanding applications
  • Type: 8ch switching mode, Class D Amplifier
  • Output Power: 8x 600 W @ 2 Ω
  • Impedance: minimum 2 Ω
  • Frequency Response: 20 Hz – 20 kHz (±1 dB)

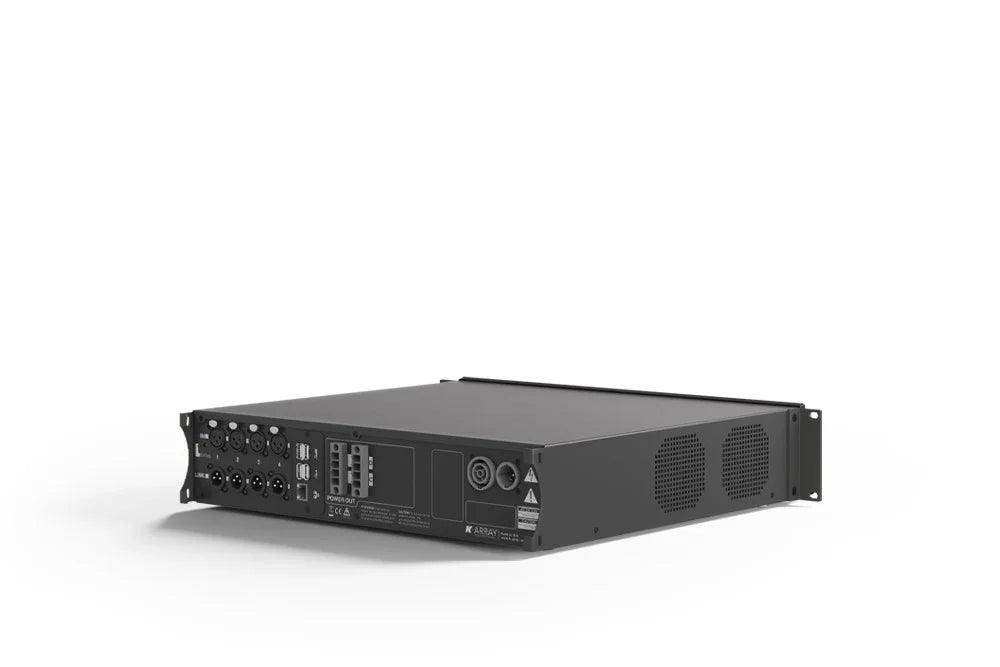

  • Connectors
    • Input: 8x XLR-F balanced input
    • Output: 4x PC 4/ 4-ST-7,62 speaker output
  • Remote connectivity
    • 1x Ethernet RJ45
    • 4x USB-A
    • Wi-Fi IEEE 802.11 b/g/n
  • Built-in DSP: Grouping, Input EQ, Output EQ, Signal Routing, Level adjustment, Dynamic Limiters, Delay
  • Remote control: Wi-Fi dedicated K-array Connect mobile app Ethernet wired K-framework3 multiplatform design and tuning software
  • MAINS Operating Range: 100-240V ~ AC, 50-60 Hz with PFC via powerCON TRUE connector with power link
  • Power Consumption: 800 W @ 4 Ω load, Pink noise, 1/8 rated power
  • Protections: Thermal protection, output short circuit, RMS output current protection, high frequency protection, power limiter, clip limiter
  • IP Rating: IP20
  • Dimensions: (WxHxD) 430 x 87 x 430 mm (17 x 3,4 x 17 in)
  • Weight: 7.4 kg (16,3 lb)
  • Material: Stainless Steel
