K-Array Kommander KA208 – 8-Channel Install Amplifier with DSP

Product Overview

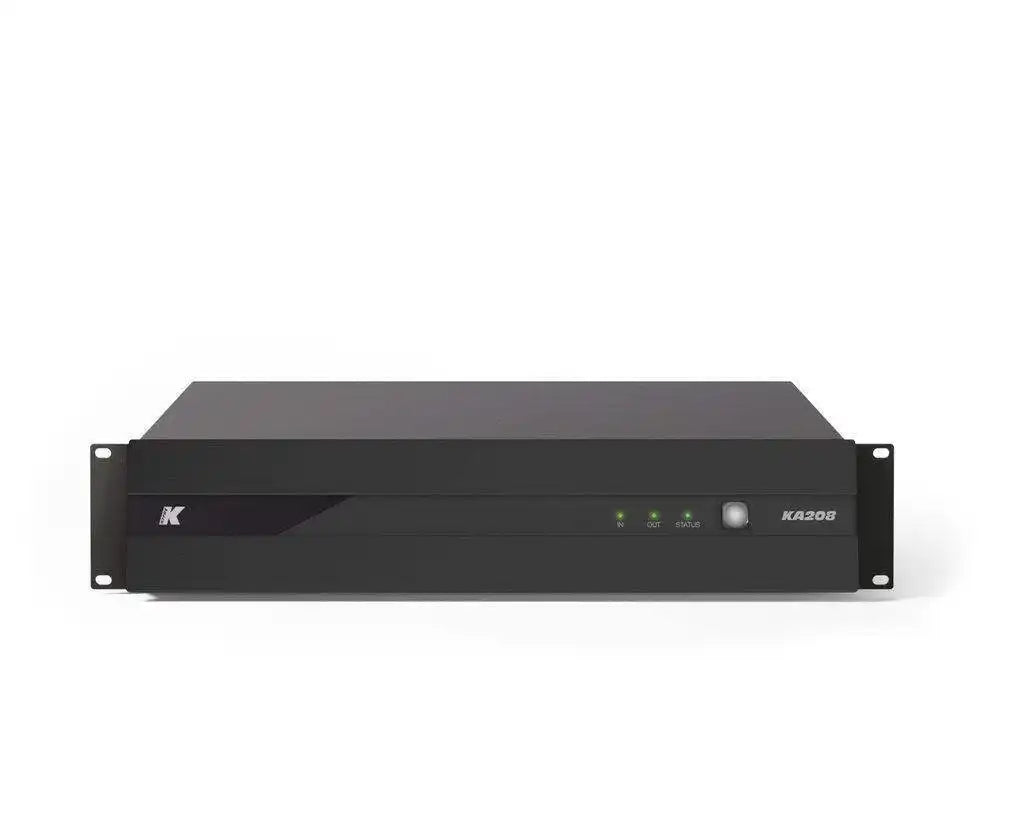

The K-Array Kommander KA208 install amplifier delivers eight channels of Class D power at 2500 watts each into 4 ohms, packing 20,000 watts and a complete DSP engine into a 2U rack chassis. Designed for rack-mount commercial installation, this 8-channel DSP amplifier drives K-array passive loudspeakers directly from factory presets, removing the need for an external loudspeaker processor. Phoenix-style terminal block outputs and linkable PowerCon TRUE mains make it a clean fit for permanent equipment rooms, while Ethernet and Wi-Fi remote control keep large multi-amplifier systems manageable from anywhere on the network. It is the flagship 2U rack power amplifier of the Kommander line for demanding fixed installations.

Product Description

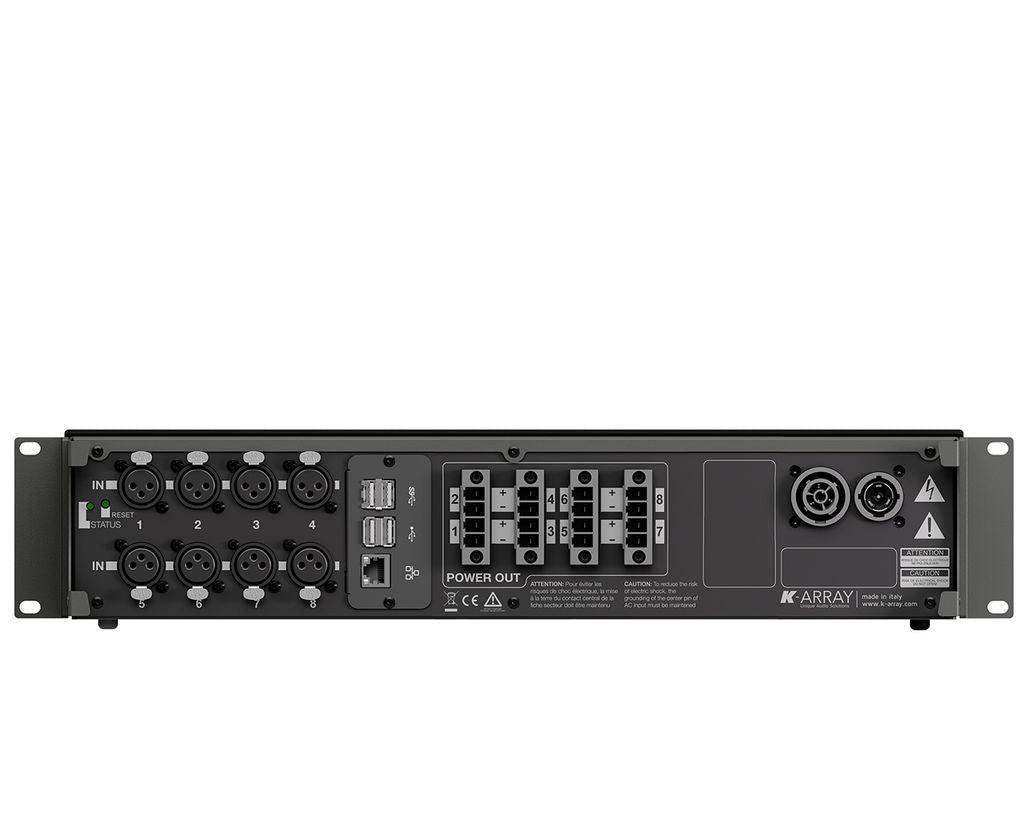

At the core of the KA208 is an eight-channel switching-mode Class D amplifier section fed by eight balanced XLR-F inputs and a freely assignable routing matrix. The onboard DSP provides channel grouping, equalization, dynamic limiters, signal routing, level control, and loudspeaker presets tuned for K-array passive speakers, so integrators can commission a complete system from a single rack unit. Four PC 4/4-ST-7.62 terminal block outputs provide secure, low-profile speaker wiring appropriate for conduit and plenum pathways in commercial buildings.

System management runs through the K-array Connect mobile app over built-in Wi-Fi for quick onsite adjustments, or through K-framework3 desktop software over wired Ethernet for full system design, tuning, and supervision of many amplifiers on one LAN. PowerCon TRUE IN and Link connectors allow mains power to chain across stacked Kommander amplifiers, and a universal 100-240V supply with PFC suits worldwide deployment. If your project requires touring-grade SpeakON and CA-COM connectors instead, see the Kommander KA208LIVE, or explore the complete K-array collection at Creation Networks.

Key Features

• 20,000 Watts in 2U — Eight Class D channels rated 2500W each at 4 ohms concentrate an entire amplifier room's worth of power into two rack spaces.
• Integrated DSP Processing — Onboard grouping, equalization, limiters, routing, and level control replace the external processor in most commercial AV system designs.
• K-array Speaker Presets — Factory loudspeaker presets match output behavior and protection to K-array passive speakers for predictable commissioning.
• Install-Grade Terminal Outputs — Four PC 4/4-ST-7.62 terminal block outputs support tidy, secure speaker wiring in permanent equipment racks.
• Ethernet and Wi-Fi Control — The K-array Connect app and K-framework3 software provide wireless and wired LAN management of single units or large amplifier networks.
• Linkable Mains Power — PowerCon TRUE IN and Link connectors daisy-chain power between amplifiers and reduce rack power distribution hardware.
• Full Protection Suite — Thermal, short-circuit, RMS output current, high-frequency, power limiter, and clip limiter protections preserve amplifier and loudspeaker health.
• 2-Ohm Tolerant Design — The minimum 4-ohm rating with 2-ohm tolerance accommodates paralleled loudspeaker loads in distributed designs.
• Lightweight Stainless Chassis — At 10 kg (22 lb), the stainless steel 2U enclosure eases rack loading and reduces structural requirements.

Typical Applications

• Auditorium
• House of worship
• Government space
• Multi-purpose room
• All-hands room
• Commercial meeting space

Technical Specifications

How It Compares

Frequently Asked Questions

Which K-array loudspeakers pair with the KA208?

The KA208 carries factory presets for K-array passive products, including Kobra and Python line elements, Vyper, and Thunder subwoofers. K-array publishes an amp-to-speaker matching table, and Creation Networks can help you size channel loading for your specific design.

How does the KA208 differ from the KA208LIVE?

Both share identical amplification and DSP. The KA208 uses terminal block speaker outputs suited to permanent installation wiring, while the KA208LIVE adds SpeakON NL4 and CA-COM connectors for touring use.

What does rack installation require?

The amplifier occupies 2U in a standard 19-inch rack at 430 mm deep and 10 kg. PowerCon TRUE Link output chains mains power to adjacent Kommander amplifiers, simplifying power distribution in multi-amp equipment rooms.

Can the KA208 integrate with my control system?

Yes. K-array offers control plugins for Q-SYS, Crestron, Crestron Home, Control4, Symetrix, RTI, and Kramer Control, and participates in a Dante licensing program through Audinate. Wired Ethernet and built-in Wi-Fi both support remote management.

Do I need an external loudspeaker processor?

In most K-array system designs, no. The onboard DSP supplies grouping, EQ, limiting, routing, level, and speaker presets, so the KA208 functions as amplifier and processor in one 2U unit.

What warranty and support come with this amplifier?

K-array provides a 5-year manufacturer warranty. As an authorized dealer, Creation Networks supports your purchase with commercial AV design assistance and post-sale technical help.
