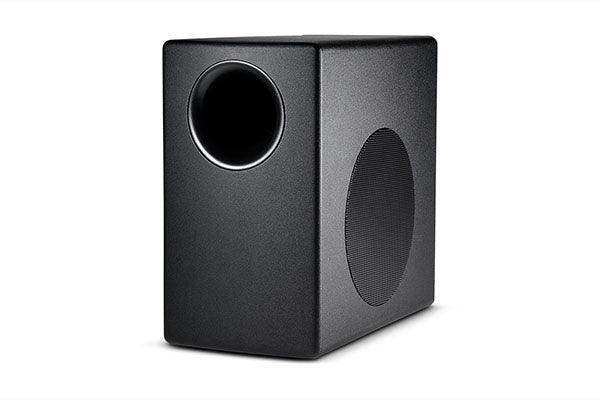

JBL Control 50S/T 8" Subwoofer (Black, Pair)

Product Overview

The JBL Control 50S/T is a compact 8-inch surface-mount subwoofer, sold as a pair, designed to add deep low-frequency extension to commercial subwoofer-satellite systems. Each cabinet houses a long-excursion 200 mm driver and a built-in 70V/100V transformer, so this distributed-audio subwoofer drops onto 70V/100V lines or runs at 8 ohms low-impedance. A single Control 50S/T can support two or four satellite speakers, letting integrators build full-range coverage with minimal hardware and visual impact. Two-piece wall-mount brackets are included for fast installation.

Product Description

The Control 50S/T is engineered as the bass foundation of a subwoofer-satellite loudspeaker system. Its high-power, long-excursion 200 mm (8 in) driver uses a high-mass polypropylene cone, butyl rubber half-roll surround, a 38 mm (1.5 in) 4-layer copper-clad voice coil, and a vented aluminum former for extended low-frequency output, quick transient response, and low distortion. As a 70V/100V subwoofer, it provides selectable transformer taps (80 W, 40 W, 20 W, and 10 W at 70V) plus an 8-ohm bypass/thru mode, and it handles 150 W continuous pink noise (300 W program, 600 W peak) across a 32 Hz–200 Hz range. Six removable locking 2-pin connectors with screw-down terminals simplify wiring and let the subwoofer feed and daisy-chain its satellites, supporting either two or four per system. The structural plywood cabinet reaches a rated maximum SPL of 115 dB (121 dB peak) near a corner, and an included two-piece easy-mount wall bracket with a self-guiding drop-in design speeds installation. It pairs naturally with the JBL Control 52 satellite loudspeaker to complete a full-range system. This black Control 50S/T is also available in white.

Key Features

• 8-inch long-excursion driver — A high-mass polypropylene cone with 4-layer copper-clad voice coil delivers extended, low-distortion bass.
• 70V/100V and 8-ohm operation — Selectable transformer taps (80/40/20/10 W at 70V) plus an 8-ohm bypass mode suit distributed and low-impedance systems.
• Drives 2 or 4 satellites — One subwoofer anchors a complete subwoofer-satellite system, reducing component count.
• 150 W power handling — 600 W peak capacity provides headroom for music and program bass.
• 115 dB maximum SPL — Strong low-frequency output (121 dB peak near corner) for commercial spaces.
• Daisy-chain wiring — Six removable locking 2-pin connectors with screw-down terminals streamline system wiring.
• Included wall brackets — A two-piece, self-guiding easy-mount bracket speeds secure surface installation.

Typical Applications

• Commercial meeting space — Adds low-frequency weight to distributed music and program audio.
• Multi-purpose room — Compact bass reinforcement for sub-satellite coverage.
• House of worship — Full-range support for speech and music systems.
• All-hands room — Even low-end coverage across large open assembly areas.
• Training room — Balanced full-range audio for presentations and media playback.

Technical Specifications

What's in the Box

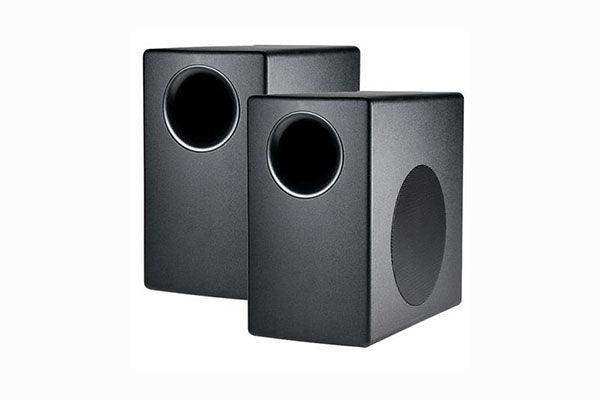

• 2 x JBL Control 50S/T 8" surface-mount subwoofer (black, sold as a pair)
• Two-piece wall-mount brackets
• Terminal cup cover
• Installation/spec documentation

Frequently Asked Questions

How many satellite speakers can one Control 50S/T support?
A single subwoofer can drive either two or four satellite speakers per system, such as the JBL Control 52, making it the bass anchor of a complete subwoofer-satellite layout.

Can it run on a 70V/100V distributed line?
Yes. It offers selectable 70V taps (80/40/20/10 W) and an 8-ohm bypass/thru mode for low-impedance systems.

Why are there six connectors on the subwoofer?
The six removable locking 2-pin connectors simplify wiring — the subwoofer accepts the incoming line and distributes filtered signal to its satellites, supporting clean daisy-chained system wiring.

What mounting hardware is included?
A two-piece, self-guiding easy-mount wall bracket is included: the multi-point wall portion attaches to the surface, and the speaker-mounted bracket drops into place for a secure connection.

What warranty and support apply?
The Control 50S/T carries JBL Professional's manufacturer warranty. For system design, tap selection, and integration support, contact our team at sales@creationnetworks.net or browse the full JBL Professional collection.
