JBL Control 52 Surface-Mount Satellite Loudspeaker (Pair, Black)

Product Overview

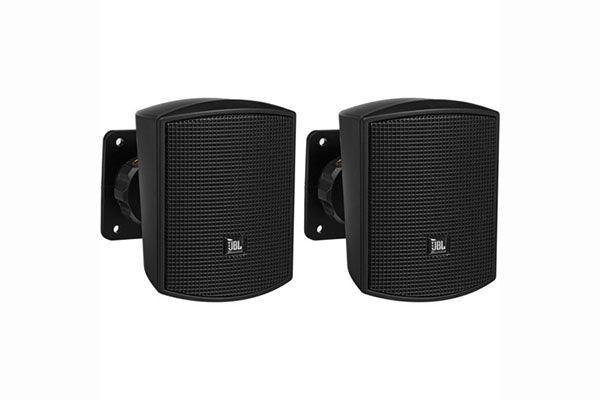

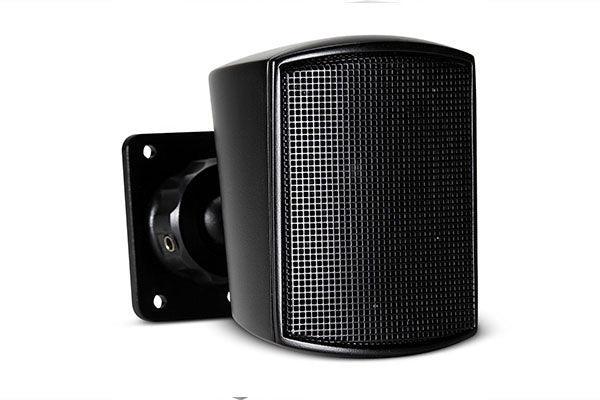

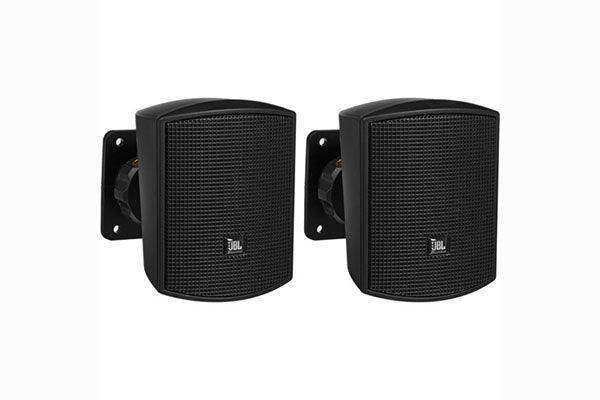

The JBL Control 52 is a surface-mount satellite loudspeaker, sold as a pair in black, that serves as the high-frequency component of a commercial subwoofer-satellite system. Its compact, low-distortion 2.5-inch driver delivers high-fidelity foreground music and speech from an unobtrusive enclosure suited to retail, hospitality, and corporate interiors. Designed to pair with JBL Control subwoofers, this surface-mount satellite speaker mounts on a wall bracket that angles each unit up to 45 degrees off-axis. Two or four Control 52 satellites can run from a single compatible subwoofer.

Product Description

The Control 52 produces high-fidelity sound from a low-distortion 60 mm (2.5 in) driver featuring a secondary bucking magnet for high efficiency, a rubber half-roll surround for enhanced bass, a 19 mm (0.75 in) copper-clad aluminum-wire voice coil on a vented Nomex former for fidelity and reliability, and a copper-capped pole piece for consistent impedance and extended high-frequency response. For full-range, wide-bandwidth performance, either two or four Control 52 satellites can be driven from a Control 50S/T pendant subwoofer, a Control 60PS/T pendant subwoofer, or a Control 40CS/T in-ceiling subwoofer; the system crossover resides in the subwoofer, and the system can be driven low-impedance or from a 70V/100V distributed line. The included wall bracket angles each speaker up to 45 degrees off-axis, and the 52 can be intermixed with Control 42C in-ceiling and Control 62P pendant satellites. Explore matching components in the JBL Professional installed audio collection. Available in black or white; sold as a pair.

Key Features

• 2.5-inch low-distortion driver — A secondary bucking magnet adds efficiency and a rubber half-roll surround enhances bass output.
• High-fidelity motor design — A copper-clad aluminum voice coil on a vented Nomex former and a copper-capped pole piece deliver consistent impedance and extended high-frequency response.
• Subwoofer-satellite operation — Two or four units run from a Control 50S/T, 60PS/T, or 40CS/T subwoofer, with the crossover housed in the subwoofer.
• 70V/100V or low-impedance — The system can be driven on a distributed line or low-impedance to suit the install.
• 16 ohms impedance — Standard satellite impedance simplifies system loading calculations.
• 45-degree adjustable bracket — The included wall bracket angles each speaker up to 45 degrees off-axis for precise aiming.
• Intermixable satellites — Compatible for mixing with Control 42C in-ceiling and Control 62P pendant satellites.
• Sold as a pair — Two matched units ship together; available in black or white.

Technical Specifications
