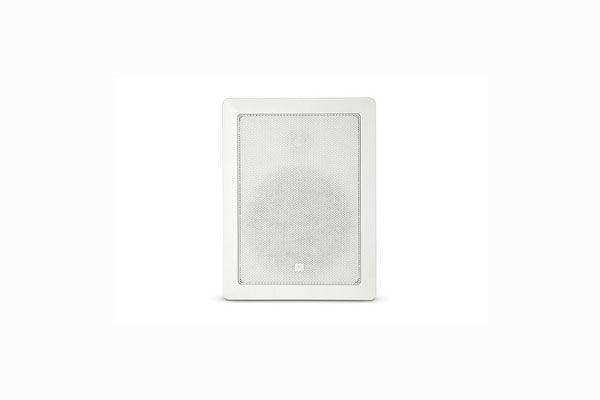

JBL CONTROL 128WT 8" 2-Way 120W In-Wall 70V/100V Installation Speakers (Pair, White)

Product Overview

The JBL Control 128WT is a premium 8-inch in-wall installation speaker, sold as a pair, built for foreground music and clear speech in finished commercial interiors. As a 70V/100V in-wall speaker with a multi-tap transformer, it integrates directly into distributed audio systems while preserving a minimal visual footprint. Part of the JBL Control Contractor line, it pairs an 8-inch aluminum-cone woofer with an aimable titanium-dome tweeter for full-range output from 30 Hz to 20 kHz. Its flush in-wall format suits boardrooms, meeting rooms, and other spaces where loudspeakers should be heard but not seen.

Product Description

The JBL Control 128WT in-wall speaker uses a 200 mm (8 in) polymer-coated aluminum-cone woofer with a pure butyl rubber surround and a 25 mm (1 in) pure-titanium dome tweeter on a low-diffraction, swivel-aimable EOS waveguide that allows the highs to be steered toward the listening area. A high-slope crossover preserves natural midrange tonality, and the system reproduces an extended 30 Hz to 20 kHz range with a broad 180° x 160° coverage pattern. As a 70V/100V in-wall speaker, its built-in transformer offers 70V taps of 50/25/12/6 W and 100V taps of 50/25/12 W, with 8-ohm bypass for low-impedance use — giving integrators flexible loading for distributed systems. A screw-down Euroblock connector, included cutout template, and paint shield streamline installation, while the optional WB8 rough-in frame supports new-construction stud mounting. For 8-ohm-only systems, the JBL Control 128W offers the same acoustic platform without the transformer.

Key Features

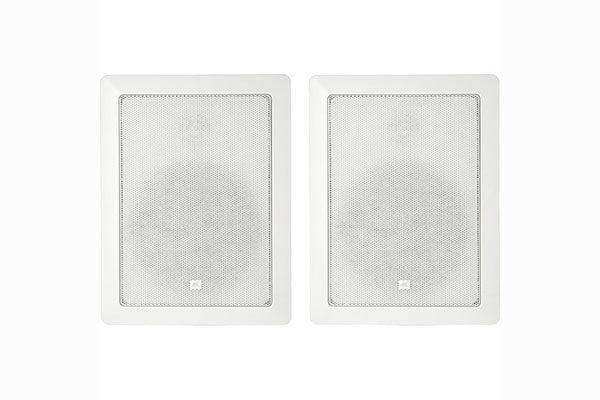

• Sold as a matched pair — Two Control 128WT in-wall speakers ship together.
• 8-inch aluminum-cone woofer — A polymer-coated cone with butyl surround delivers extended low-frequency output to 30 Hz.
• Aimable titanium tweeter — A 25 mm pure-titanium dome on a swivel EOS waveguide steers highs toward the audience for even coverage.
• Multi-tap 70V/100V transformer — 70V (50/25/12/6 W) and 100V (50/25/12 W) taps with 8-ohm bypass suit distributed and low-impedance systems.
• Extended 30 Hz – 20 kHz response — Full-range performance for foreground music as well as speech.
• Broad 180° x 160° coverage — Wide, even dispersion for general room fill.
• Install-friendly design — Screw-down Euroblock input, included cutout template, and paint shield speed installation.
• Minimal visual impact — Flush in-wall format for aesthetically sensitive interiors.

Typical Applications

• Boardroom — Discreet, full-range foreground audio for presentation and conferencing.
• Conference room — Clear speech reproduction with minimal visual intrusion.
• Commercial meeting space — Flush distributed audio for lobbies, reception, and gathering areas.
• Multi-purpose room — Wide-coverage in-wall sound for flexible-use spaces.

Technical Specifications

What's in the Box

• 2 x JBL Control 128WT 8" In-Wall Speaker (white)
• Cutout template
• Paint shield
• Product documentation

The optional WB8 rough-in frame for new-construction stud mounting is sold separately.

Frequently Asked Questions

Is the Control 128WT sold individually or as a pair?
It is sold as a pair — two in-wall speakers ship together.

Can it run on a 70V or 100V distributed line?
Yes. The built-in multi-tap transformer provides 70V taps (50/25/12/6 W) and 100V taps (50/25/12 W), and it can be bypassed for 8-ohm direct operation.

How does the 128WT differ from the Control 128W?
The 128WT adds a 70V/100V multi-tap transformer for distributed systems; the 128W is the 8-ohm-only version of the same speaker.

What is needed for installation?
The pair ships with a cutout template and paint shield and uses a screw-down Euroblock connector. For new construction, the optional WB8 rough-in frame mounts to wall studs. A behind-wall air cavity of 40–80 liters is recommended.

What warranty and support apply?
The Control 128WT carries JBL Professional's manufacturer warranty. For transformer-tap planning, rough-in frames, and technical support, contact our team at sales@creationnetworks.net or browse the full JBL Professional collection.
