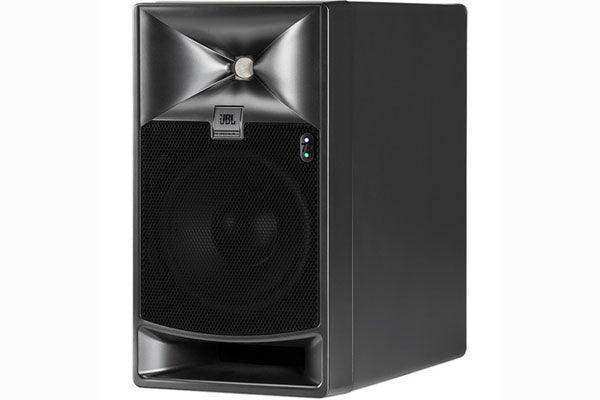

JBL 7-Series 705P 5" Bi-Amplified Master Reference Monitor (Single)

Product Overview

The JBL 705P master reference monitor is a 5-inch bi-amplified studio monitor built for critical music recording, film post-production, and broadcast applications where neutral, accurate reproduction is non-negotiable. As a self-powered reference monitor, it pairs JBL's patented Image Control Waveguide with next-generation drivers to deliver an unusually wide sweet spot and two to three times the output of comparably sized monitors. The compact two-way enclosure suits modern control rooms without obstructing displays or sight lines, making it a practical near-field monitor for post-production suites and mix rooms. The 705P is sold individually, so specify channel count when configuring stereo or multichannel installations.

Product Description

The JBL 705P powered reference monitor combines a 2409H high-frequency compression driver with a low-mass annular diaphragm and a 725G 5-inch low-frequency transducer rated for 14 mm peak-to-peak excursion, producing smooth response beyond 36 kHz and low-frequency output below 39 Hz. A built-in dual amplification system dedicates a 250W Class-D amplifier to each transducer, supporting the long working distances required in post-production and mastering rooms. Onboard 32-bit floating-point DSP running at 192 kHz provides 12 bands of Room EQ, 8 bands of User EQ, and digital delay for both room alignment and AV synchronization, so the monitor can be tuned to compensate for room acoustics and video latency. This Image Control Waveguide monitor also accepts an AES3 digital input with XLR pass-through alongside a balanced XLR analog input, making it a straightforward AES3 digital input studio monitor to integrate with DAWs, consoles, and digital playback hardware at sample rates up to 192 kHz. An RJ-45 HARMAN HiQnet connection and integrated mounting points support clean commercial deployment, and the 705P combines with additional 7 Series models, the flagship M2, and the Intonato 24 monitor controller to scale into multichannel and immersive systems. For larger rooms or greater output, the 8-inch JBL 708P master reference monitor shares the same platform and control set.

Key Features

• Bi-amplified dual 250W design — Separate 250W Class-D amplifiers for the HF and LF transducers deliver high SPL with the headroom needed for extended listening distances.
• Patented Image Control Waveguide — First developed for the JBL M2, the waveguide widens the usable sweet spot and maintains accurate imaging across on- and off-axis listening positions.
• 2409H high-frequency compression driver — A low-mass annular diaphragm reproduces detail beyond 36 kHz with very low distortion.
• 725G low-frequency transducer — 14 mm peak-to-peak excursion extends usable low-frequency output below 39 Hz from a compact 5-inch cone.
• Floating-point DSP with room correction — 192 kHz, 32-bit processing provides 12 bands of Room EQ, 8 bands of User EQ, and 6 factory plus 6 user presets for precise calibration.
• Room and AV-sync delay — Up to 18 ms of Room Delay and 150 ms of AV Sync Delay align speakers to the listening position and compensate for video latency.
• Analog and AES3 digital inputs — A balanced XLR analog input and an AES3 digital input with XLR pass-through accept sample rates up to 192 kHz for flexible signal routing.
• HARMAN HiQnet networking — An RJ-45 connection enables system configuration and firmware feature updates across larger installations.
• Versatile mounting — Reinforced birch plywood enclosure with top, bottom, and rear mounting points supports vertical or horizontal wall and ceiling installation.
• Scalable monitoring platform — Integrates with other JBL 7 Series models, the M2, and the Intonato 24 controller for multichannel and immersive audio rooms.

Typical Applications

• Recording and mixing studios — Neutral near-field reference for tracking and mixdown.
• Post-production and mastering suites — High output and accuracy at extended listening distances.
• Broadcast studios and control rooms — Compact footprint that preserves display sight lines.
• Immersive and Dolby Atmos rooms — Scalable with additional 7 Series and M2 monitors for multichannel configurations.

Technical Specifications

What's in the Box

• 1 x JBL 705P 5" Bi-Amplified Master Reference Monitor (single)
• AC power cord
• Product documentation

Frequently Asked Questions

Is the 705P sold as a single monitor or a pair?
It is sold individually. Order the quantity required for your configuration — two for stereo, or additional units for surround and immersive systems.

How does the 705P integrate with a DAW, console, or digital playback system?
It accepts a balanced XLR analog input and an AES3 format digital input with XLR pass-through at sample rates up to 192 kHz. User-enabled sample rate converters allow connection to sources with non-standard rates.

Can the 705P be wall- or ceiling-mounted in a control room?
Yes. The reinforced birch plywood enclosure includes top, bottom, and rear mounting points with a 2-hole pattern, supporting vertical or horizontal installation with appropriate JBL mounting hardware.

Does it provide room correction without an external processor?
Yes. Onboard DSP offers 12 bands of Room EQ, 8 bands of User EQ, factory and user presets, and Room and AV-sync delay, so the monitor can be calibrated to the room without additional hardware.

How does the 705P scale into a multichannel or immersive system?
It combines with other JBL 7 Series monitors and the flagship M2, and can be managed with the JBL Intonato 24 monitor controller. The HARMAN HiQnet RJ-45 connection supports system configuration across the install.

What warranty and support apply?
The 705P carries JBL Professional's manufacturer warranty. For warranty registration, firmware, and technical support, contact our team at sales@creationnetworks.net or browse the full JBL Professional collection.
