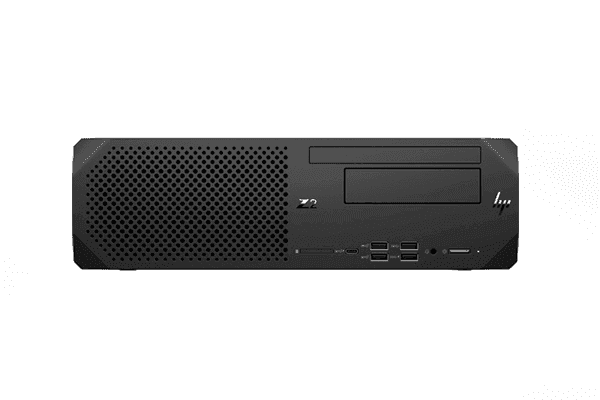

HP Z2 G5 Workstation - Intel Xeon Hexa-core (6 Core) W-1250 3.30 GHz - 16 GB -512GB - 644B0UT#ABA
HP Z2 G5 Workstation - Intel Xeon Hexa-core (6 Core) W-1250 3.30 GHz - 16 GB -512GB - 644B0UT#ABA is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
HP Z2 G5 Workstation - Intel Xeon Hexa-core (6 Core) W-1250 3.30 GH...
The Z2 G5 Small Form Factor Workstation 644B0UT#ABA from HP has been redesigned to pack more graphics and processing into a more compact space. Perfect for an architect, graphic designer, or STEAM educator. It will let you take on 3D design projects, work in multiple pro apps simultaneously, and is certified for single- and multi-threaded software, including Bentley MicroStation, AutoDesk AutoCAD, GRAPHISOFT ARCHICAD, Vectorworks, Autodesk Revit, and SolidWorks, along with Adobe titles including InDesign, Photoshop, Illustrator, Lightroom, and XD. With a wide array of configurations and upgrades to choose from, this system is a good fit for custom solutions.
The Z2 G5 SFF is powered by a 10th Gen 3.3 GHz Intel Xeon W-1250 Six-Core processor that will allow you to run multiple applications simultaneously and can be boosted up to 4.7 GHz. The 16GB of 3200 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. It is important to note that the current configuration of the RAM is one x 16GB, but there are four 288-pin DIMM memory slots that will allow you to upgrade the RAM to 128GB by using a 32GB module in each of the slots.
Features
- Designed for the Creative Professional
- 3.3 GHz Intel Xeon W 6-Core (10th Gen)
- 16GB of 3200 MHz DDR4 RAM
- NVIDIA T600 (4GB GDDR6)
- 512GB Z Turbo Drive M.2 PCIe SSD
- 1 x Gigabit Ethernet Port
- USB 3.2 Gen 2 | USB 3.2 Gen 1 | USB 2.0
- USB Keyboard & Mouse Included
- Windows 11 Pro (64-Bit)
Specification
| Operating System | Windows 11 Pro (64-Bit) |
| Chipset | Intel W480 |
| Processor | Intel Xeon W-1250 |
| CPU Socket | LGA 1200 |
| CPU | 3.3 to 4.7 GHz 6-Core |
| L3 Cache | 12 MB |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 1 x 16 GB (User-Replaceable) |
| Maximum Memory Capacity | 128 GB |
| Memory Slot Type | 288-Pin DIMM |
| Memory Slots | 4 (3 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Graphics Type | Dedicated |
| GPU | NVIDIA T600 with 4 GB GDDR6 VRAM |
| Total Drive Bays | 1 x 3.5" (External) 1 x 3.5" (Internal) 1 x 2.5" (Internal) 1 x Slim Optical Drive (External) |
| SSD Slots | 1 x M.2 2280 PCIe 3.0 x4 (In Use) 1 x M.2 2280 PCIe 3.0 x4 (Available) |
| Total Installed Capacity | 512 GB |
| Solid State Storage | 1 x 512 GB M.2 NVMe PCIe |
| PCI Expansion | 1 x PCIe 3.0 x16 [x16 Mechanical] 1 x PCIe 3.0 x16 [x4 Mechanical] 2 x PCIe 3.0 x1 [x1 Mechanical] 1 x M.2 2230 (E-Key) x1 (Available) |
| Optical Drive | None |

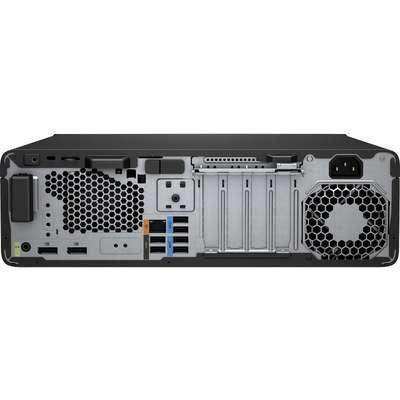

| Ports | 4 x USB-A 3.1/3.2 Gen 2 4 x USB-A 3.0 / 3.1/3.2 Gen 1 2 x USB-A 2.0 |
| USB Type-C | 1 x USB 3.1 / USB 3.2 Gen 2 |
| Display | 4 x Mini DisplayPort |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone/Microphone/Line Input/Output 1 x 1/8" / 3.5 mm Line Output |
| Built-In Speakers | None |
| Built-In Microphones | None |
| Media/Memory Card Slot | None |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | None |
| MU-MIMO Support | None |
| Bluetooth | None |
| NFC | No |
| Keyboard | USB Full-Size Keyboard with Number Pad |
| Pointing Device | USB Mouse |
| Security | Dedicated TPM Security Chip |
| Power Supply | 450 W with IEC |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 6 A |
| Operating Temperature | 40 to 95°F / 4 to 35°C |
| Operating Humidity | 10 to 85% (Non-Condensing) |
| Dimensions | 13.3 x 12.1 x 3.95" / 337.8 x 307.3 x 100.33 mm |
| Weight | 11.9 lb / 5.4 kg |
