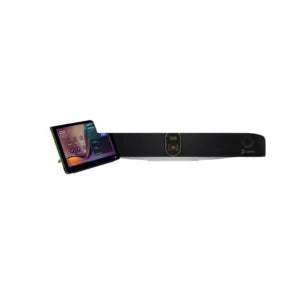

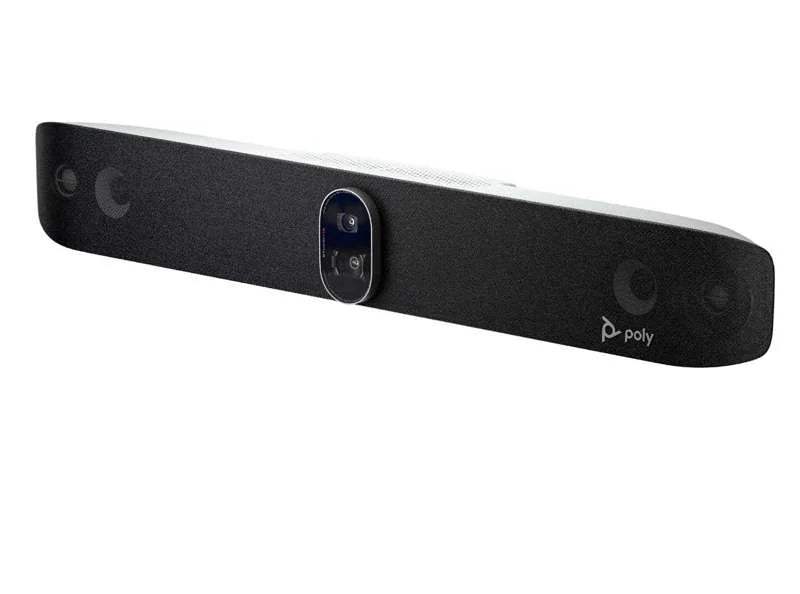

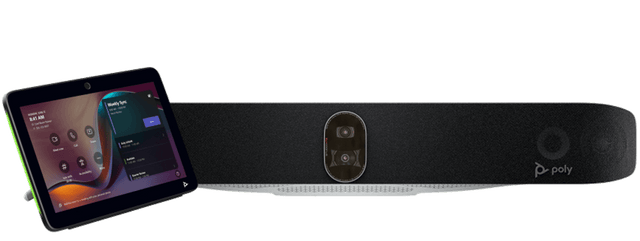

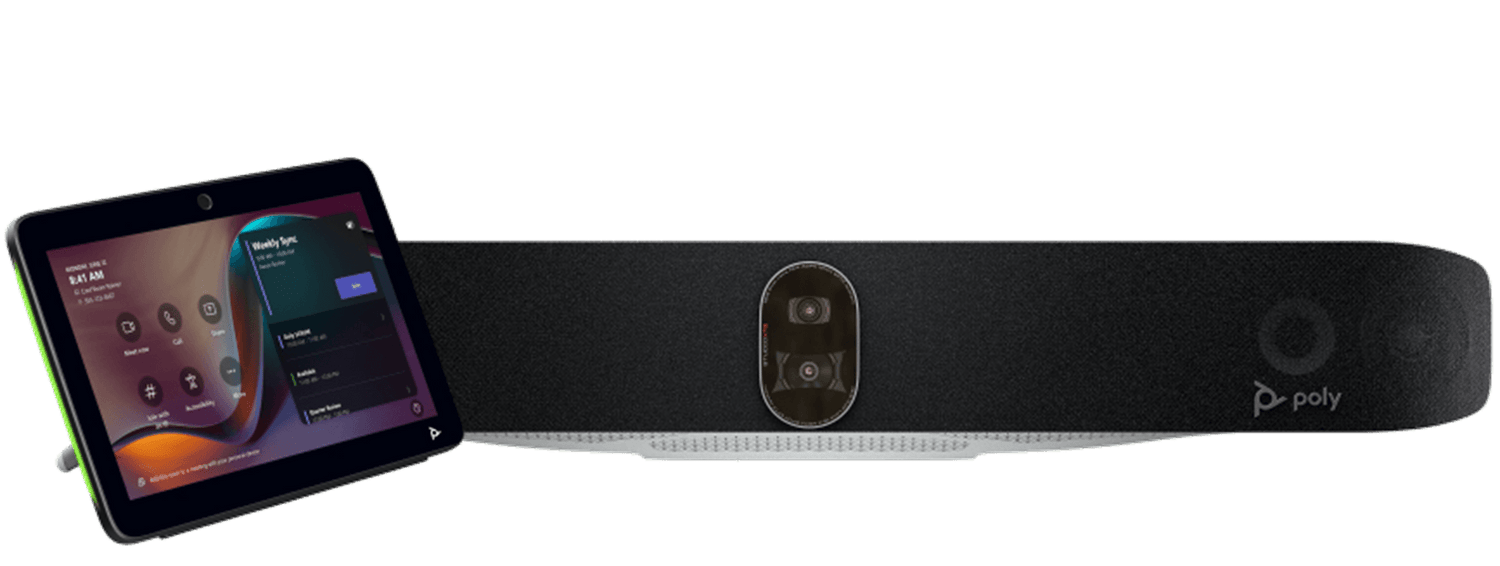

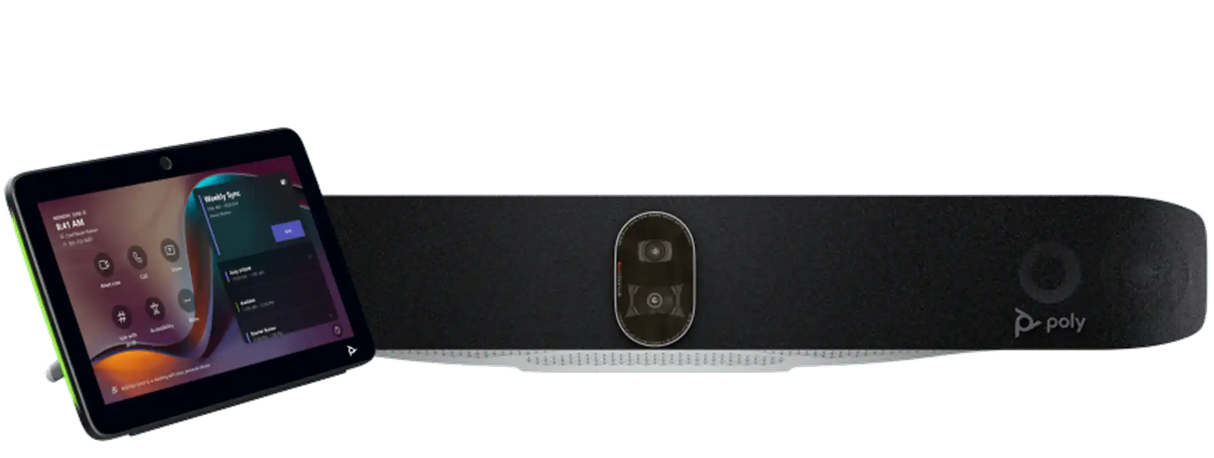

Poly Studio X72 – All-In-One 4K Video Bar with TC10

Product Overview

The Poly Studio X72 video bar with TC10 (A4MA7AA) is HP Poly's current-generation all-in-one 4K room system for large conference rooms, bundled with the 10.1-inch Poly TC10 touch controller. It carries dual 20MP 4K lenses, two-way stereo speakers, and a four-microphone array in a single wall-mounted unit, and adds HDMI 2.0 outputs, Wi-Fi 6, and Bluetooth 5.0 over the previous-generation large-room bar. Certified for Microsoft Teams and Zoom with full H.323 and SIP support, the built-in codec runs cloud video natively so no room PC is required. For integrators specifying new large rooms today, the X72 is the current large-room platform in the Studio X line.

Product Description

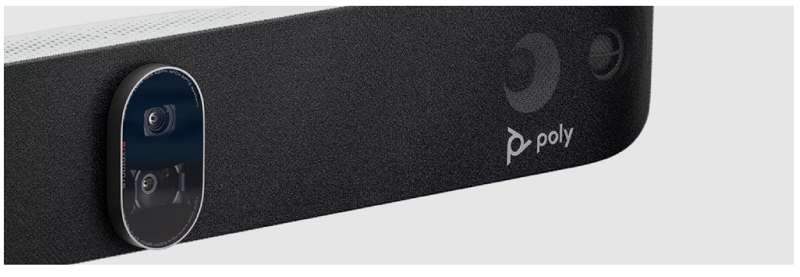

HP Poly recommends the Studio X72 for large rooms of roughly 28 ft. by 15 ft. Two 20 MP lenses capture 2160p 4K UHD, one at 120° horizontal for the full room and one at 70° horizontal for close framing, with 7.3x digital zoom. Poly DirectorAI performs people framing, group framing, and speaker framing by cutting between the two lenses rather than cropping a single sensor, so the far end sees a properly composed shot as conversation moves around the table. The X72 sits alongside the still-current Poly Studio X70 video bar in the catalog; the X70 remains a strong large-room system, and the X72 is the newer platform for sites standardizing on current hardware.

What the X72 changes is the interface and infrastructure layer. Two HDMI 2.0 outputs drive 4K at 30 Hz for dual-display rooms, with one HDMI 1.4 input for a local source or room PC. Networking runs on a 10/100/1G Ethernet interface with IPv4 and IPv6, and built-in Wi-Fi 802.11a/b/g/n/ac/ax MIMO and Bluetooth 5.0 give integrators an option for rooms where a new data drop is impractical. Zoom deployments can drive a third display with a supported adapter. Security-conscious deployments get AES 128-bit and AES 256-bit media encryption and a Kensington lock slot on the chassis.

Audio is tuned for a full-depth room: two-way stereo speakers with aluminum cone tweeters and advanced bass ports at 2 x 20 W RMS on the mid drivers and 2 x 15 W RMS on the tweeters, plus two MEMS microphones and two second-order gradient microphones picking up to 25 ft. down the table. Poly NoiseBlockAI and Acoustic Fence suppress keyboard noise and voices from outside the room, and Polycom Siren 22 carries audio to 22 kHz. The bundled Poly TC10 touch controller attaches over the network for one-touch join and in-room control. A wall mount kit, two HDMI cables, an Ethernet cable, and an AC power adapter ship in the box; the Poly Studio X70/X72/V72 table stand covers table or credenza placement. Poly Lens handles cloud monitoring, firmware distribution, and room analytics across the fleet.

Key Features

• Current-Generation Large-Room Platform — The X72 is HP Poly's newest all-in-one large-room bar, the right specification for sites standardizing on current hardware.
• Bundled Poly TC10 Controller — A 10.1-inch network-attached touch panel ships with the bar, so the room has one-touch join under a single part number.
• Dual 20MP 4K Lenses — Separate 120° wide and 70° narrow optics cover the whole room and the active speaker without a mechanical PTZ head.
• Poly DirectorAI Framing — People, group, and speaker framing cut between the two lenses automatically so no camera operator is needed.
• HDMI 2.0 Dual-Display Output — Two outputs drive 4K at 30 Hz for people-plus-content layouts, with a third display supported in Zoom using a compatible adapter.
• Wi-Fi 6 and Bluetooth 5.0 — Built-in wireless lets the bar deploy in rooms where running a new network drop is impractical.
• Four-Microphone Array — Two MEMS and two second-order gradient microphones pick up to 25 ft. down a large conference table.
• NoiseBlockAI and Acoustic Fence — Reject keyboard noise, HVAC, and corridor conversations instead of gating the entire audio channel.
• High-Output Stereo Speakers — Two-way drivers with aluminum cone tweeters and bass ports fill a large room without an external amplifier or DSP.
• AES Encryption and Kensington Lock — AES 128-bit and 256-bit media encryption plus a physical lock slot support IT and facilities security requirements.
• Built-In Codec, No Room PC — Microsoft Teams and Zoom run natively on the bar, with full H.323 and SIP support for standards-based estates.

Typical Applications

• Boardroom
• Conference room
• Training room
• All-hands room
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

How does the Studio X72 differ from the Studio X70?
Both are dual-lens 4K large-room bars with the same 120° and 70° optics and the same four-microphone array. The X72 is the newer platform and adds HDMI 2.0 outputs at 4K 30 Hz, built-in Wi-Fi 802.11ax and Bluetooth 5.0, AES 128/256-bit encryption, and a Kensington lock slot. The X70 remains a capable large-room system; the X72 is the current choice for new standardization.

What is included in this kit?
Part number A4MA7AA ships the Studio X72 video bar with the Poly TC10 10.1-inch touch controller, plus the AC power adapter, two HDMI cables, an Ethernet cable, and a wall mount kit.

What room size does the X72 cover?
HP Poly recommends the Studio X72 for large rooms of approximately 28 ft. by 15 ft., with microphone pickup to 25 ft. down the table. Poly peripheral microphones and cameras extend coverage in deeper spaces.

Can the X72 drive more than two displays?
Two HDMI 2.0 outputs support a standard dual-display room at 4K 30 Hz. Zoom deployments can add a third display using a supported adapter. One HDMI 1.4 input accepts a local source or a connected room PC.

Does the X72 need a wired network drop?
Wired 10/100/1G Ethernet with IPv4 and IPv6 is preferred for a permanent install, but built-in Wi-Fi 802.11a/b/g/n/ac/ax MIMO and Bluetooth 5.0 allow deployment in rooms where pulling a new drop is impractical.

How is the X72 mounted and cabled?
A wall mount kit ships in the box for mounting below or above the display, along with two HDMI cables and an Ethernet cable. The Poly Studio X70/X72/V72 table stand handles table or credenza placement where wall mounting is not an option.

How is a fleet of X72 bars managed?
Poly Lens provides cloud monitoring, configuration, firmware distribution, and room usage analytics. Integrators typically enroll each bar at commissioning so IT can manage every large room from one console.

What warranty and support are included?
The kit carries the Poly standard one-year limited warranty. Poly+ service agreements are available separately for extended coverage, advance hardware replacement, and technical support; contact Creation Networks for the tier that matches your deployment.
