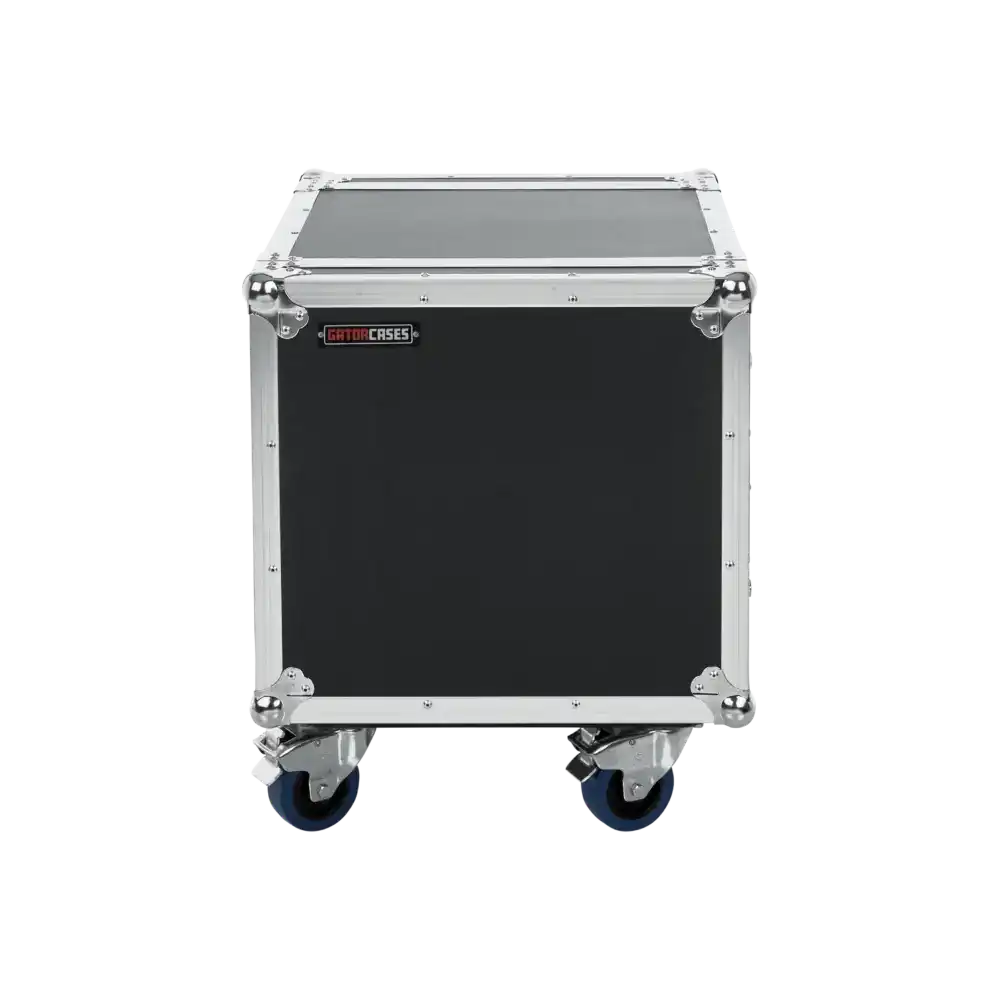

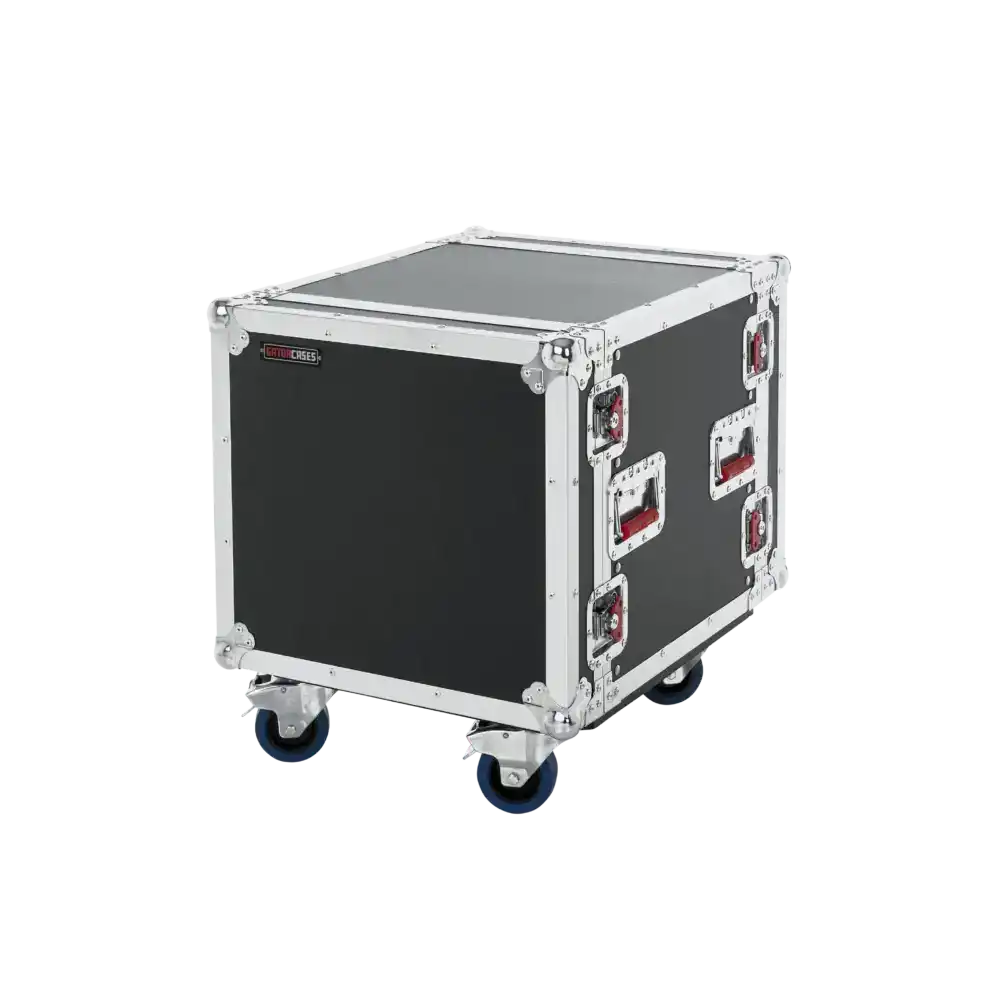

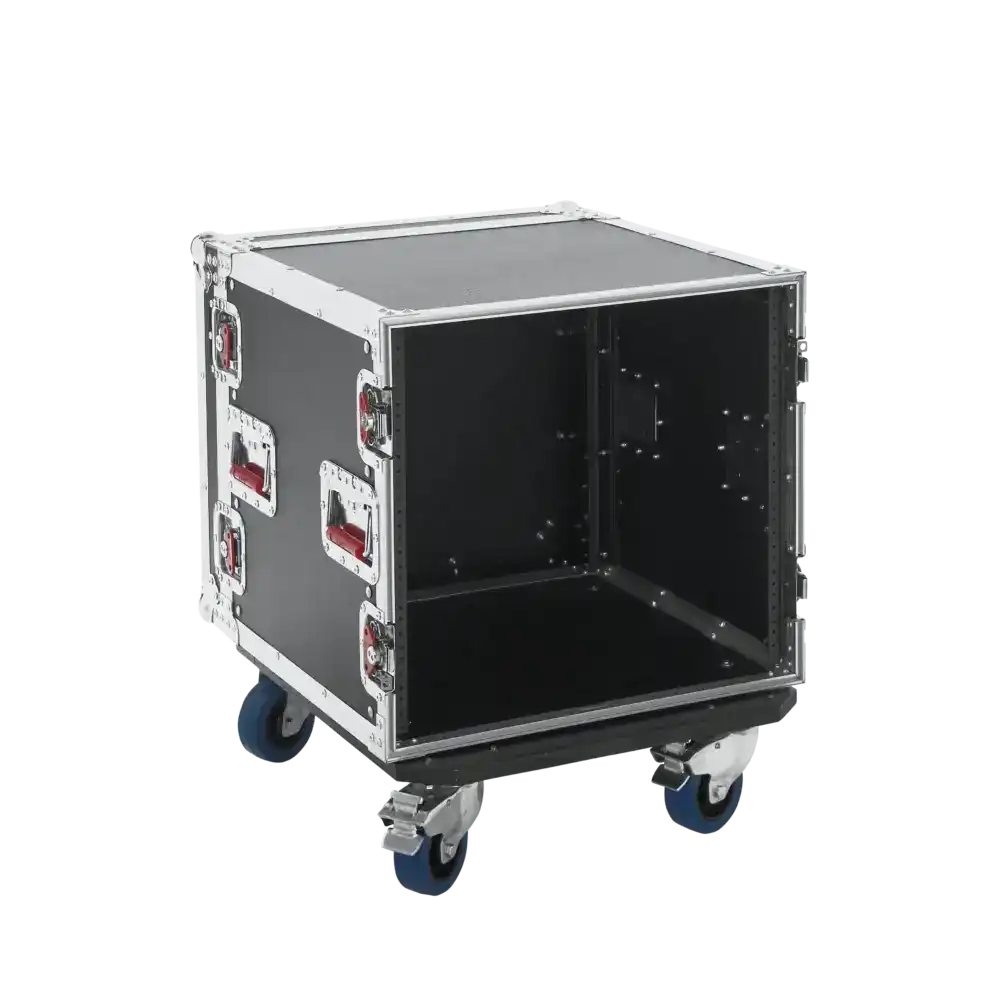

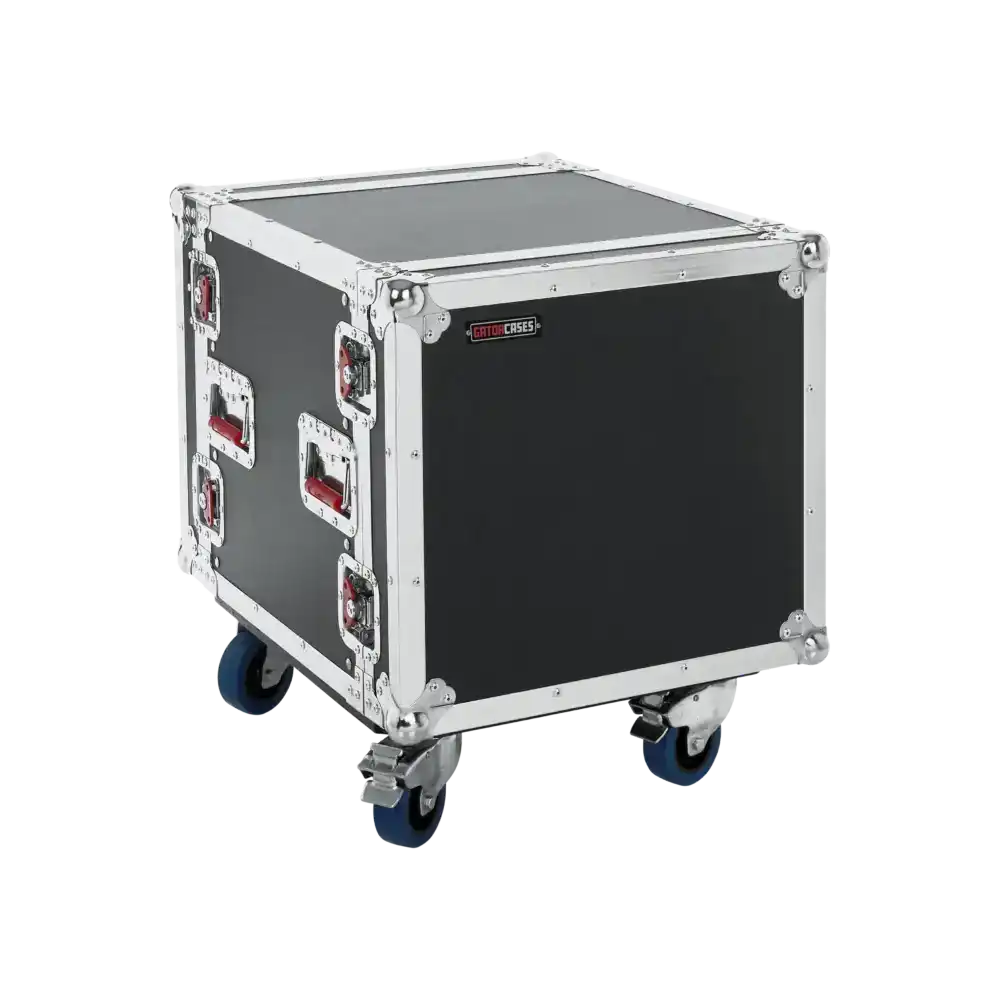

Gator G-TOUR 10U CAST – 10U ATA Rolling Rack Case

Product Overview

The Gator G-TOUR 10U CAST is a 10U ATA flight rack case built for touring, staging, and mobile production where rack-mounted AV gear is moved frequently. This rolling rack case combines 9mm plywood construction with four heavy-duty 4-inch casters, giving integrators and crews a transportable 19" rack for power amps, wireless systems, and signal processing. With 17" rackable depth and tour-grade hardware, it protects equipment racks between venues. It suits rental houses, houses of worship, and broadcast production carts.

Product Description

The G-TOUR Series is Gator's heavy-duty line of ATA wood flight rack cases, and the 10U CAST offers 10 rack spaces of protected, transportable capacity in a more compact footprint than the 16U model. The case is built from 9mm plywood with a laminated PVC exterior, reinforced stackable ball corners, and a tongue-and-groove extruded aluminum valance that guides the lids. Front and rear 3.2mm thick rack rails accept standard 19" rack-mount equipment and hold gear securely under road conditions. Recessed red twist latches and four spring-loaded, rubber-grip handles make loading and access fast for working crews. Four fixed 4-inch heavy-duty casters, two with locking brakes, let a loaded rack roll into position and stay put during setup. The gasketed lid adds water resistance for outdoor staging and transit. Common payloads include power amplifiers, EQs, compressors, wireless microphone systems, and effects units. For larger rigs, compare the G-TOUR 16U CAST, or browse the full Gator rack and case collection.

Key Features

• 9mm Plywood Construction — 9mm plywood with a laminated PVC exterior withstands repeated touring and transport.

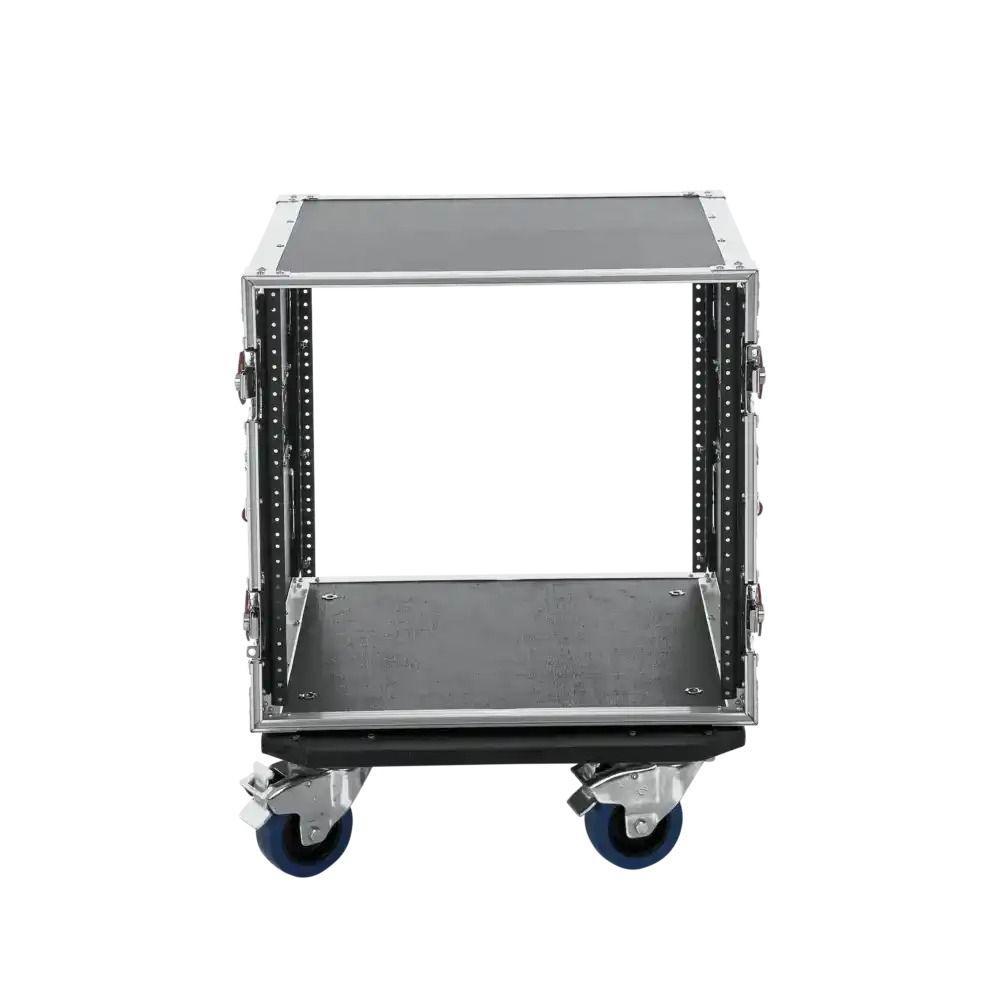

• 3.2mm Rack Rails — Heavy-duty front and rear 3.2mm thick rack rails secure 19" rack-mount equipment under road conditions.
• 17" Rackable Depth — Delivers 17" of rackable depth with the lid removed for standard audio and AV components.
• Locking Casters — Four fixed 4-inch heavy-duty casters, two with locking brakes, provide mobility and stable positioning.
• Tour-Grade Hardware — Red recessed twist latches, spring-loaded rubber-grip handles, plated hardware, and reinforced ball corners.
• Tongue-and-Groove Valance — Extruded aluminum valance guides the lids on and off cleanly.
• ATA Rated — Meets ATA standards for the demands of air and ground touring.

Typical Applications

• Touring and staging production rigs
• House of worship audio systems
• Broadcast studio and remote production carts
• Rental and staging house inventory
• Multi-purpose room and auditorium AV racks

Technical Specifications

Specifications sourced from the Gator Cases manufacturer listing.

Frequently Asked Questions

What equipment fits in the G-TOUR 10U CAST?
It accepts standard 19" rack-mount equipment across 10 rack units, with 17" of rackable depth — power amplifiers, EQs, compressors, wireless microphone systems, and effects units are typical payloads.

Does it use standard 19" rack rails?
Yes. Front and rear 3.2mm thick rails are sized to the standard 19" EIA rack-mount footprint, so standard rack screws and rack ears mount directly.

How is gear mounted and accessed?
Equipment mounts to the front and rear rails; the lids are removed via recessed twist latches for full access during installation and service.

Is it suitable for permanent AV system integration?
It is designed as a mobile transport rack rather than a fixed-install enclosure. For permanent installs a stationary 19" rack is usually preferred, but the 10U CAST fits well into mobile and touring AV systems.

Can a loaded rack be rolled and locked in place?
Yes. Four 4-inch heavy-duty casters allow a loaded rack to be rolled into position, and two locking casters hold it stationary during setup and operation.

What warranty applies?
It carries the Gator Cases Limited Lifetime Warranty against manufacturing defects. Moving parts such as wheels are covered for one year. The warranty excludes use in a rental capacity.

Where can I get support?
Creation Networks assists with product selection and integration questions, and Gator Cases provides warranty service and field-replaceable parts through its Tampa, Florida team.
