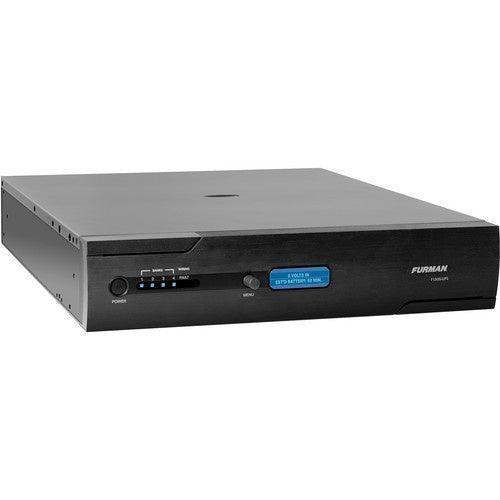

Furman F1500-UPS – 1500VA Rack Battery Backup & AVR

Product Overview

The Furman F1500-UPS is a 1500VA, 2U rack-mount uninterruptible power supply and automatic voltage regulator engineered specifically for commercial AV systems and critical control infrastructure. Unlike IT-grade battery backups, this rack-mount UPS power conditioner combines true sine wave battery backup with Furman's SMP surge protection and LiFT noise filtering, making it a reliable battery backup for AV systems in boardrooms, broadcast facilities, and house of worship installations. It delivers stable 120V power and graceful shutdown for media servers, control processors, and digital consoles when utility power fails.

Product Description

The Furman F1500-UPS was built from the ground up for audio/video professionals rather than re-tooled from an IT chassis. Traditional UPS units rely on antiquated surge suppression that can introduce ground contamination and lock-ups; the F1500-UPS instead uses Furman's non-sacrificial Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS) to protect connected equipment without degrading over time. This makes it a dependable uninterruptible power supply for home theater and commercial AV racks where signal integrity and uptime are critical.

For noise-sensitive devices such as DLP projectors and line-level signal processors, Furman applies its exclusive Linear Filtering Technology (LiFT) across isolated outlet banks, preserving wide dynamic range and high-definition clarity. When utility power drops, the unit provides true sine wave output, ensuring connected equipment continues running cleanly on battery rather than receiving a stepped or simulated waveform.

At 1500VA / 900W, the F1500-UPS supplies meaningful runtime for critical digital A/V components — roughly 12 minutes at full load and 32 minutes at half load — with transfer time under 4ms. Runtime can be extended up to four times using the optional BATT1500-EXT battery pack. Standard automatic voltage regulation (AVR) holds output near 120V despite brownouts and sags, while a front-panel LCD reports power quality and operational status for facilities and integration teams.

Control and monitoring are designed for installed systems: open-source RS-232 control addresses four independent AC outlet banks, dual learning IR blasters trigger safe shutdown of remote components during a blackout, and the optional BlueBOLT-CV1 card adds TCP/IP remote power management and monitoring over any internet connection. High-current loads such as power amplifiers and powered subwoofers are not recommended for battery backup; for those, pair the F1500-UPS with a Furman power conditioner from the Furman collection at Creation Networks. Buyers needing less capacity can also consider the Furman F1000-UPS.

Key Features

• 1500VA / 900W True Sine Wave Battery Backup — Delivers clean true sine wave output on battery, providing roughly 12 minutes at full load and 32 minutes at half load for graceful system shutdown.
• Non-Sacrificial SMP Surge Protection — Furman's Series Multi-Stage Protection clamps surges without degrading or contaminating ground, unlike the sacrificial MOV circuits used in typical IT UPS units.
• Extreme Voltage Shutdown (EVS) — Disconnects connected equipment when incoming voltage exceeds safe limits (150V fast-rise, 140V slow-rise), guarding against sustained overvoltage events.
• Linear Filtering Technology (LiFT) — Filters AC line noise across isolated outlet banks to preserve audio and video signal clarity for noise-sensitive AV components.
• Standard Automatic Voltage Regulation — Maintains a stable 120V output through brownouts and sags, with a regulation capture range down to 93V in Standard mode.
• RS-232 and BlueBOLT Control — Open-source RS-232 control of four outlet banks plus optional BlueBOLT-CV1 TCP/IP card for remote reboot, power switching, and power-quality monitoring.
• Dual Learning IR Blasters — Sends shutdown commands to remote components during a blackout, helping protect projector lamps and other sensitive devices.
• 2U Rack-Mount Chassis with Eight Outlets — Eight rear outlets across isolated banks fit a standard 19" rack with included rack ears for clean installation.
• Expandable Runtime — Optional BATT1500-EXT battery packs daisy-chain to increase backup time up to four times as the application demands.

Typical Applications

• Boardroom and conference room AV racks protecting control processors and media servers
• Broadcast studio infrastructure requiring uninterrupted power and clean shutdown
• House of worship AV systems with digital mixing consoles and video playback
• Government and commercial meeting spaces with critical control systems
• Auditorium and multi-purpose room racks housing lamp-based projectors and processors
• Training room AV systems managed remotely by IT or facilities teams

Technical Specifications

Frequently Asked Questions

What equipment should I connect to the Furman F1500-UPS?

The F1500-UPS is ideal for low- to moderate-current digital A/V components such as media servers, control systems, satellite/cable receivers, DVRs, digital mixing consoles, and lamp-based displays. High-current devices like power amplifiers and powered subwoofers are not recommended on battery backup; pair those with a Furman power conditioner instead.

How long will the F1500-UPS run on battery?

Runtime depends on load. At full load the unit provides approximately 12 minutes and at half load approximately 32 minutes — enough for a controlled, graceful shutdown. Runtime can be extended up to four times with optional BATT1500-EXT battery packs.

Does the F1500-UPS integrate with AV control systems?

Yes. It offers open-source RS-232 control over four independent outlet banks and dual learning IR blasters for remote shutdown. An optional BlueBOLT-CV1 card adds TCP/IP remote control and power-quality monitoring over any internet connection.

What circuit does the F1500-UPS require?

The unit is rated for a maximum of 12 amps on a standard 120V circuit and ships with a heavy-duty captive power cord. Ensure the circuit is properly grounded for full SMP protection effectiveness.

Why choose a true sine wave UPS for AV systems?

True sine wave output matches the clean waveform that sensitive AV electronics and power supplies expect, avoiding the buzzing, overheating, or shutdowns that stepped/simulated sine wave UPS units can cause with modern equipment.

What is the warranty on the Furman F1500-UPS?

The F1500-UPS carries a 3-year limited warranty with 2-year coverage on the batteries. Contact Creation Networks at creationnetworks.net for warranty registration assistance and authorized service information.
