Extron TLS 1035M – 10.1 inch Wall Mount TouchLink Scheduling Panel, White

Product Overview

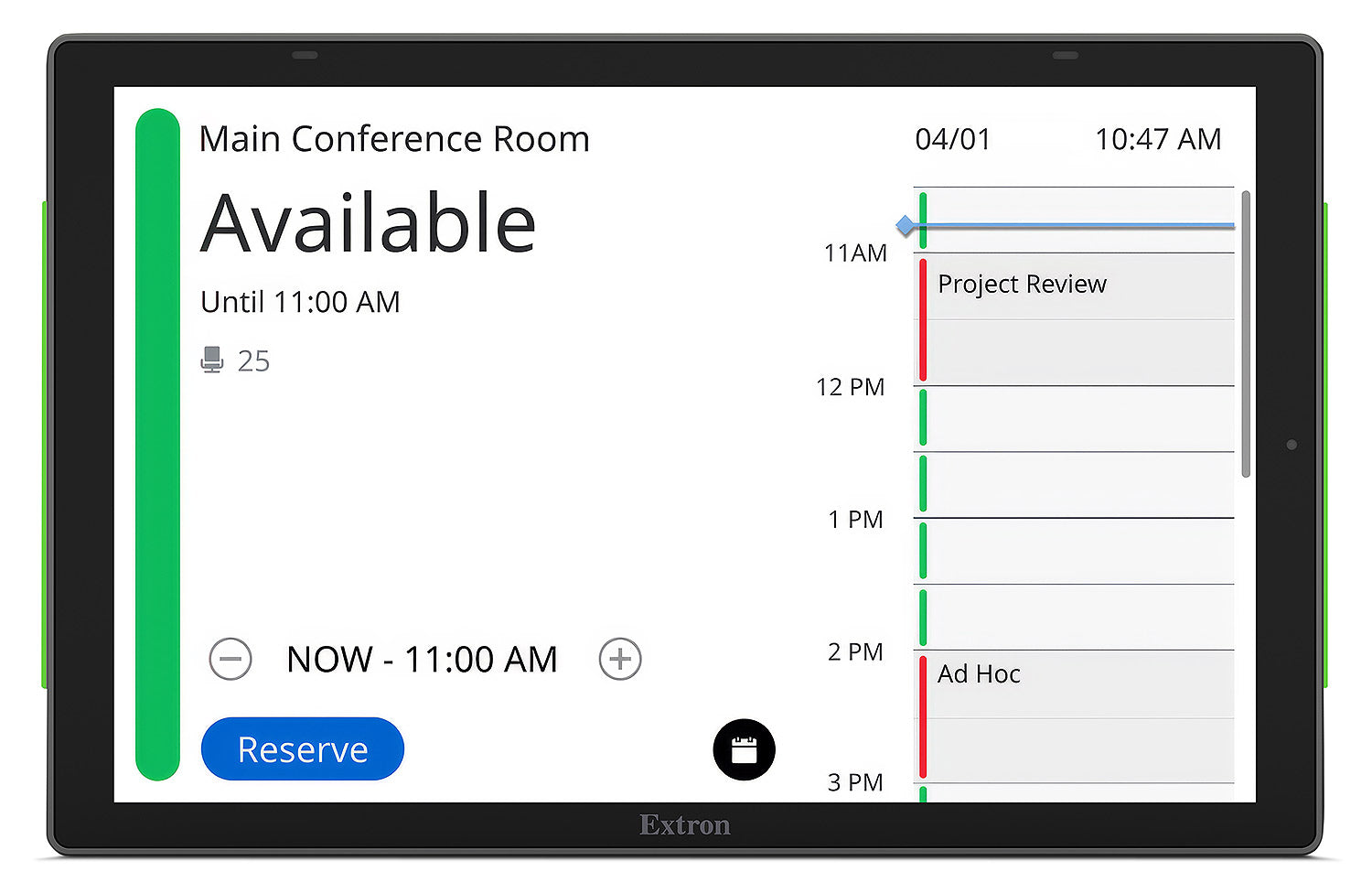

TLS 1035M (White), part number 60-1998-103. The Extron TLS 1035M is a 10.1 inch wall mount room scheduling panel built as part of a complete TouchLink scheduling system. It shows room status at the door and lets staff make, view, check in to, and extend reservations in real time from the panel or from any device connected to popular calendar systems. The 1280x800 IPS touchscreen delivers 24-bit color at 370 nits with a 900:1 contrast ratio and auto brightness control, so status remains legible in bright corridors. It integrates with Extron Wayfinding for organizations that need room finding as well as room booking.

Product Description

Scheduling panels are judged on two things: whether the status is unambiguous from ten feet away, and whether the booking actually reflects the calendar system of record. The TLS 1035M addresses both. The 10.1 inch IPS panel runs 1280x800 at 149.5 PPI with a 16:10 aspect ratio and 24-bit color depth, and viewing angles of plus or minus 80 degrees horizontal and vertical mean the status reads from an approach angle down the corridor rather than only head-on.

Brightness is 370 nits with LED backlighting and automatic brightness control, and contrast is 900:1. Auto brightness matters in practice because scheduling panels sit in circulation spaces where daylight varies through the day; a fixed-brightness panel is either washed out at noon or glaring at night.

Reservations can be created, viewed, checked into, and extended in real time from the panel itself or from any device that connects to the organization's calendar platform. That two-way behavior is what keeps the panel trustworthy: a room released at the panel frees up in the calendar system, and a booking made from a desk shows at the door.

Deployment was designed for scale. The panel is part of a complete scheduling platform rather than a standalone appliance, with setup, rollout, and serviceability handled consistently across a portfolio of rooms. Hardware includes 4 GB DDR4 RAM, 64 GB eMMC storage with 32 GB usable for projects, and two stereo speaker outputs. For glass-fronted rooms where the panel must mount to the door mullion rather than the wall, specify the Extron MMK 6 mullion mount kit. The 8 inch Extron TLS 835M covers the same function where a smaller panel suits the doorway.

Related products at Creation Networks: Extron TLP Pro 1035M control touchpanel.

Key Features

• 10.1 inch IPS touchscreen — A 1280x800 projected capacitive display with 24-bit color and 149.5 PPI for legible status at the door.
• Real-time calendar integration — Reservations can be made, viewed, checked into, and extended from the panel or any calendar-connected device.
• Auto brightness control — LED backlighting with automatic brightness adjustment keeps status readable as corridor lighting changes.
• Wide viewing angles — Plus or minus 80 degrees horizontal and vertical so the panel reads from an approach angle.
• Extron Wayfinding integration — Works with Extron Wayfinding for organizations that need room finding alongside room booking.
• Scalable deployment — Built as part of a complete scheduling system for consistent rollout across a room portfolio.
• Serviceable platform — Designed for straightforward setup and ongoing serviceability across many installed panels.
• Black and white finishes — Two color options so the panel matches door hardware and wall finishes.
• Onboard storage — 64 GB eMMC with 32 GB usable project storage and 4 GB DDR4 RAM.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Training room
• Commercial meeting space
• Multi-purpose room
• Government space
• All-hands room

Technical Specifications

Specifications sourced from Extron product documentation.

Frequently Asked Questions

Which calendar systems does the TLS 1035M work with?

It integrates natively with popular calendar platforms used in commercial and government environments. Confirm your specific platform and authentication model with us before deployment, since tenant configuration affects the integration path.

How is the panel powered?

TouchLink scheduling panels are network-connected devices designed for standard structured cabling. Confirm the PoE class and switch port budget for your quantity during design so the closet has adequate power.

Can it mount on a glass wall or door mullion?

Wall mounting is standard. For glass-fronted rooms where the panel must attach to the vertical mullion between the door and the glass, specify the Extron MMK 6 mullion mount kit, which is designed for the TLS 1035M and keeps the side LEDs visible.

What is the difference between the TLS 1035M and the TLS 835M?

Screen size and brightness. The TLS 1035M is 10.1 inches at 370 nits with 900:1 contrast; the TLS 835M is 8 inches at 420 nits with 1200:1 contrast. Both run 1280x800. Choose based on the door surround and viewing distance.

Do users have to book at the panel?

No. Bookings can originate at the panel or from any device connected to the calendar system, and the panel reflects them in real time. Check-in and extension work the same way in both directions.

Can the panel be managed remotely across many rooms?

Yes. It is built as part of a scheduling platform intended for portfolio deployment rather than as a standalone device, with centralized setup and serviceability.

What warranty and support are available?

Extron provides a manufacturer warranty. Creation Networks handles RMA coordination and can support system design and rollout planning for multi-room scheduling deployments.
