Extron TLP Pro 1035M Black Wall Mount TouchLink Pro Touchpanel
Product Description
The Extron TLP Pro 1035M is a 10.1" black wall mount TouchLink Pro touchpanel built for commercial AV control in conference rooms, classrooms, boardrooms, and corporate environments. It uses a high-brightness IPS display with optically bonded Corning Gorilla Glass, which improves viewing angles, touch accuracy, and durability compared with standard touchscreens, giving integrators a control surface suited to high-traffic shared rooms.
A defining feature of this Extron wall mount touchpanel is native H.264 streaming, which lets the panel display a live video preview from a camera or AV source over the same single PoE cable that carries power and network. That single-cable installation simplifies AV system integration and reduces the cabling AV designers and IT teams need to pull to each control point. Dual RGB LED status lightbars along the sides of the display provide immediate visual feedback for system state, alerts, or room availability.

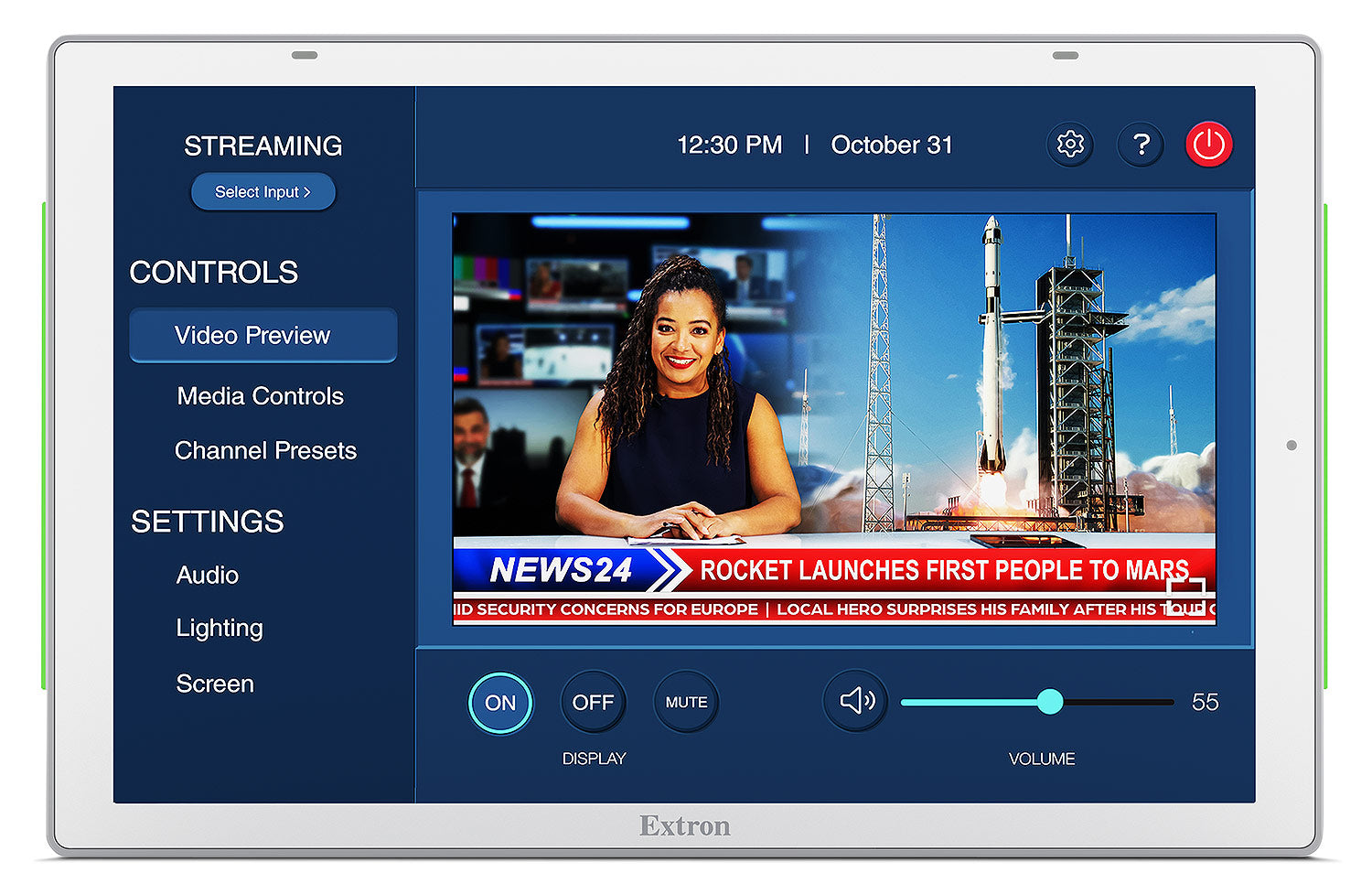

This commercial AV control panel works with any Extron IP Link Pro xi control processor and can become a standalone control system using the LinkLicense for TLP Control Processor paired with the TLCA 2 adapter. Built-in motion and light sensors automate wake-up and brightness, and the panel mounts in either landscape or portrait orientation for flexible installation. For other sizes and form factors, compare the white TLP Pro 1035M White, the wall-mount TLP Pro 1025M, or the tabletop TLP Pro 1025T, and browse the full Extron collection.
Key Features
- 10.1" IPS Touchscreen — The 1280x800 IPS display with 24-bit color delivers wide viewing angles and accurate touch for shared commercial rooms.
- Optically Bonded Gorilla Glass — Corning Gorilla Glass bonded directly to the display resists scratches and smudges while improving touch precision and clarity.

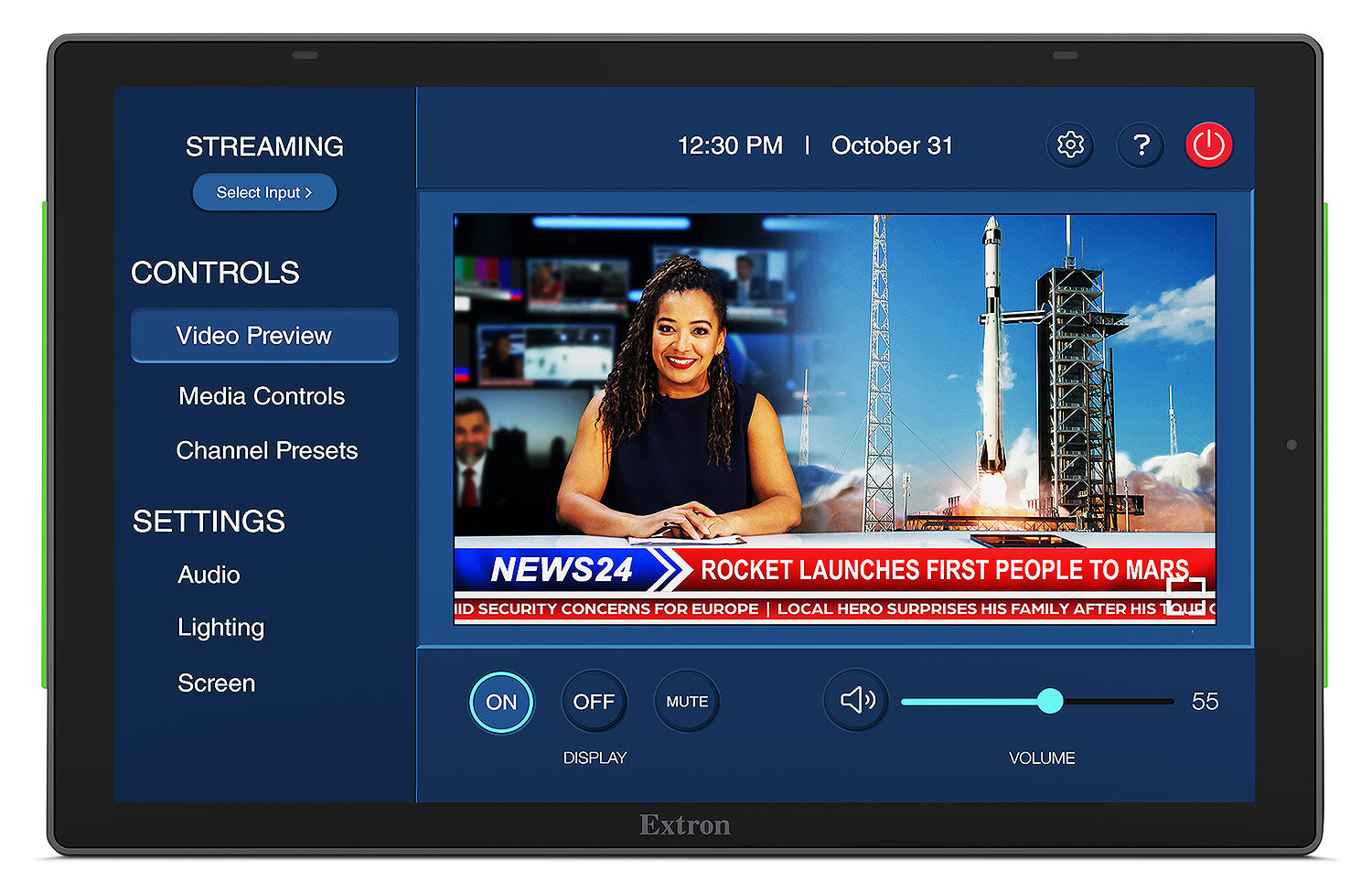

- Native H.264 Streaming Preview — The panel shows a live video preview from a camera or AV source over the same single PoE cable.
- Single-Cable PoE Installation — PoE (IEEE 802.3af) carries power, network, and video on one Ethernet cable to simplify installation.
- Dual RGB Status Lightbars — Two configurable RGB LED lightbars flank the display to signal system state, alerts, or room availability at a glance.

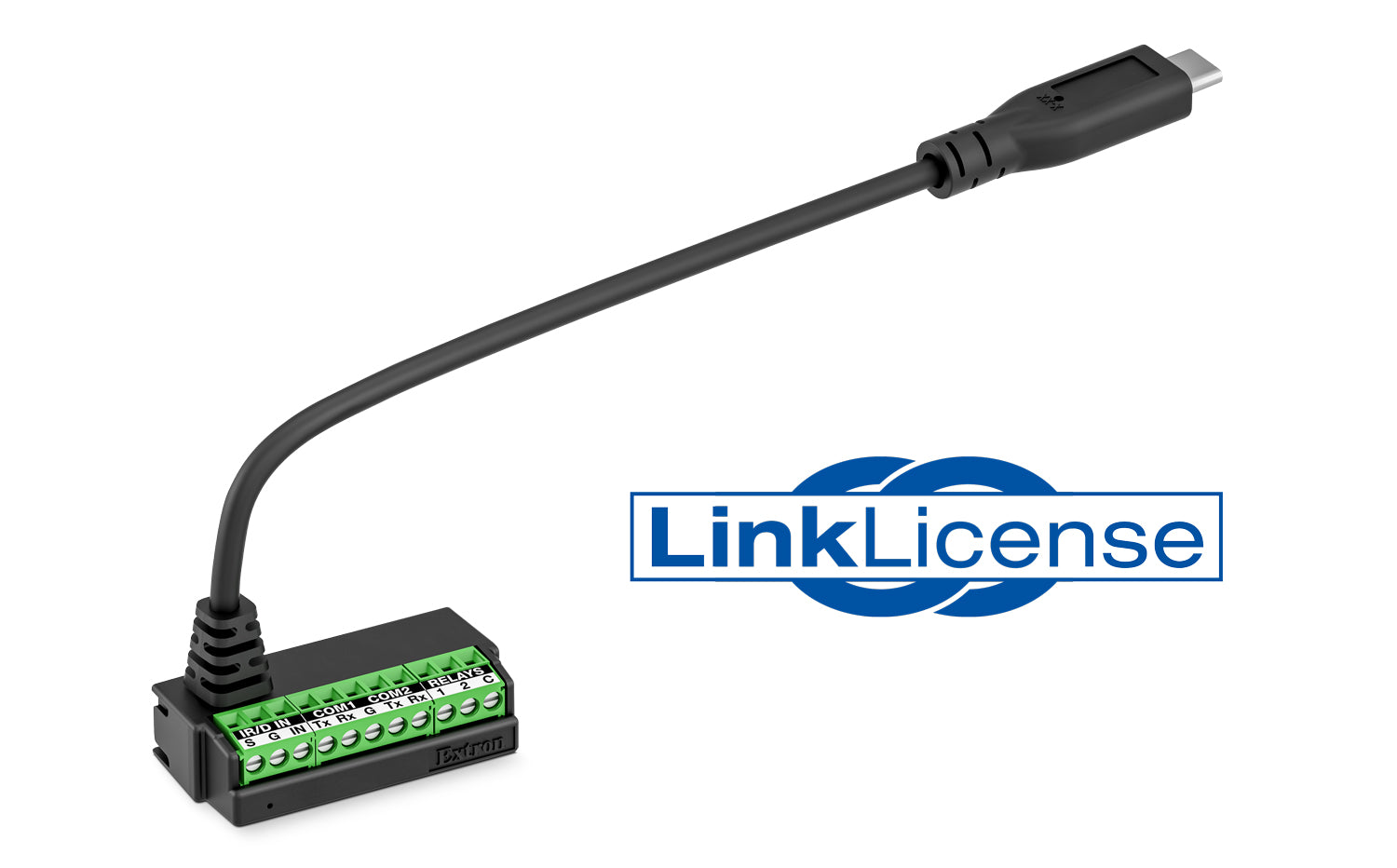

- Standalone Control Option — With the LinkLicense for TLP Control Processor and the TLCA 2 adapter, it becomes a standalone control system.
- Pro xi Compatibility — It works with any Extron IP Link Pro xi control processor for full interactive AV control.
- Built-In Sensors — Integrated motion and ambient light sensors automate wake-up and brightness adjustment for energy savings.
- Flexible Orientation — The panel mounts in landscape or portrait orientation on a wall, lectern, or flat surface.
- Expanded Memory — 4 GB RAM and 64 GB storage support faster page loads and larger GUI projects.
Technical Specifications
| Model | Extron TLP Pro 1035M (Black) |
|---|---|
| Type | 10.1" wall mount TouchLink Pro touchpanel |
| Display | 10.1" IPS capacitive touchscreen, 1280x800 resolution, 24-bit color |
| Glass | Optically bonded Corning Gorilla Glass |
| Color | Black |
| Streaming | Native H.264 streaming input (video preview) |
| Ethernet | 1 female RJ-45; 10/100/1000Base-T with PoE |
| Power | Power over Ethernet (PoE 802.3af) |
| Memory | 4 GB RAM, 64 GB storage |
| USB | 1 high-speed USB 2.0 (type C) |
| Audio | Dual built-in down-firing speakers |
| Status Indicators | 2 integrated RGB LED status lightbars (configurable) |
| Sensors | Motion sensor and ambient light sensor |

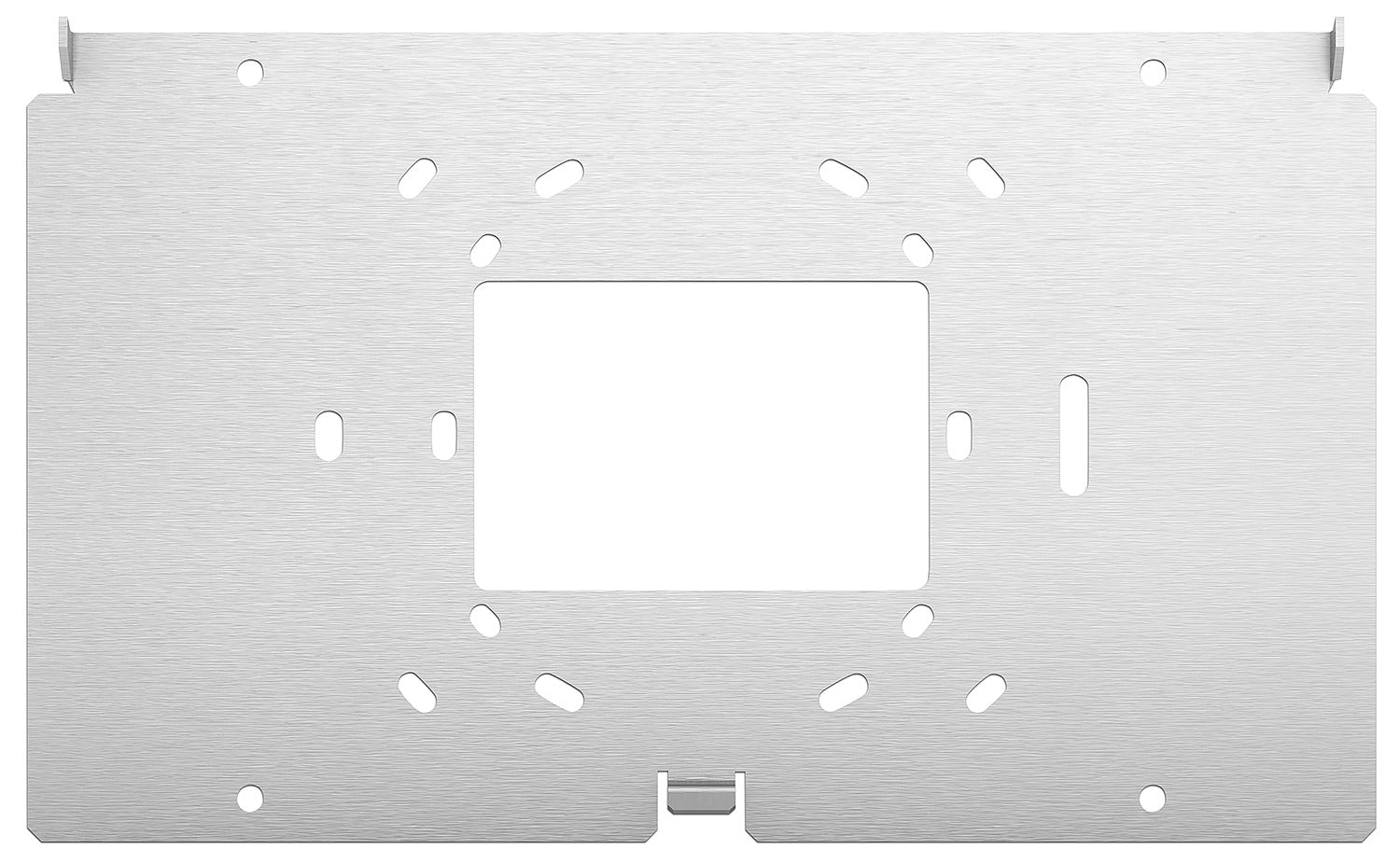

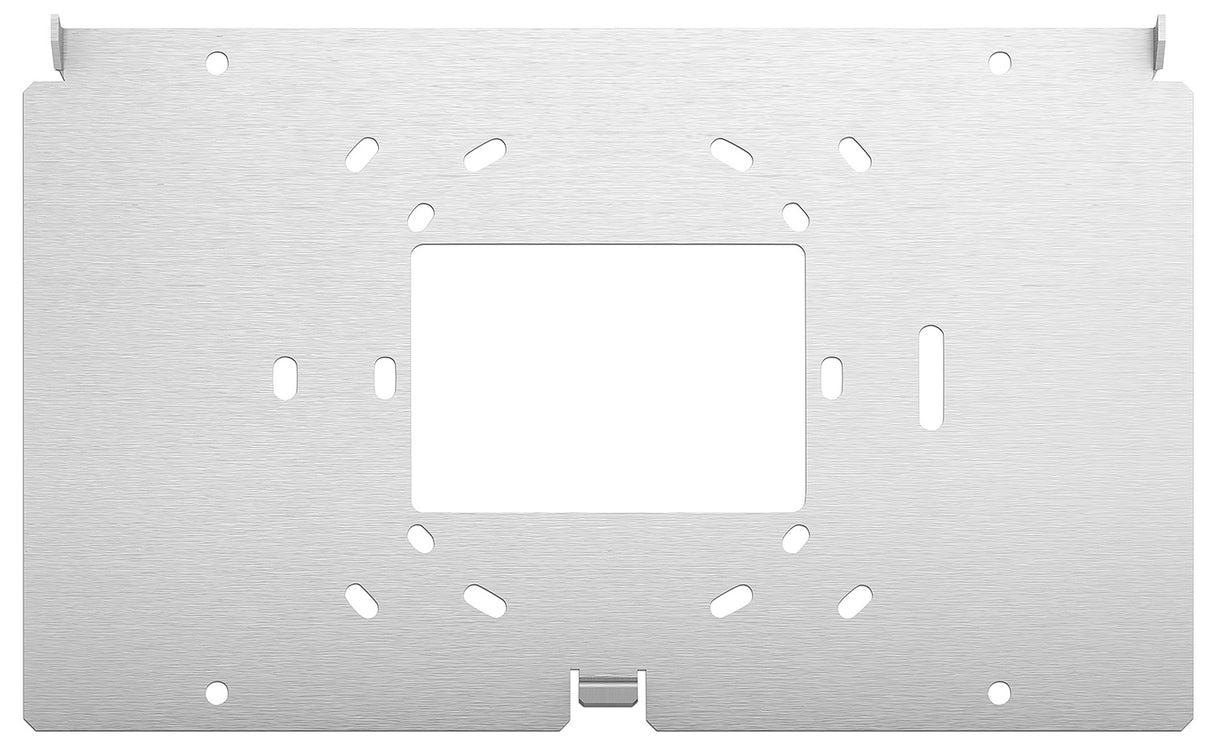

| Mounting | Wall, lectern, or flat surface; landscape or portrait orientation |
| Dimensions | 6.20" H x 9.74" W x 1.26" D |
Frequently Asked Questions
What is the screen size and resolution of the TLP Pro 1035M?
It uses a 10.1" IPS capacitive touchscreen at 1280x800 resolution with 24-bit color and optically bonded Gorilla Glass for accurate touch and wide viewing angles.
What control processors is it compatible with?
The TLP Pro 1035M works with any Extron IP Link Pro xi control processor. It can also operate as a standalone control system when paired with the LinkLicense for TLP Control Processor and the TLCA 2 adapter.
What video preview capabilities does it offer?
It supports native H.264 streaming input, so the panel can display a live preview from a camera or AV source over the same single PoE cable used for power and network.
How is it powered and installed?
It uses Power over Ethernet (IEEE 802.3af), delivering power, network, and video over one Ethernet cable. It mounts on a wall, lectern, or flat surface in landscape or portrait orientation.

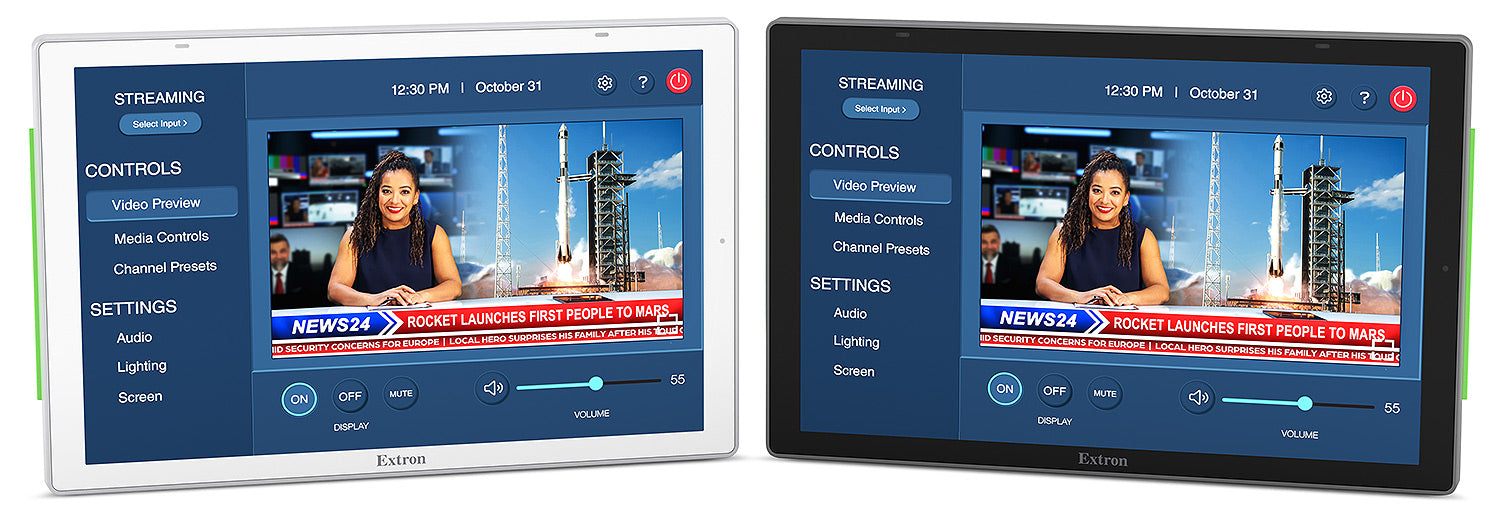

What is the difference between the black and white versions?
The black and white 1035M models are functionally identical and differ only in enclosure color, letting integrators match room aesthetics. Choose the finish that best fits the installation environment.
