Extron TLP Pro 835T 8" Tabletop Touchpanel

Product Description

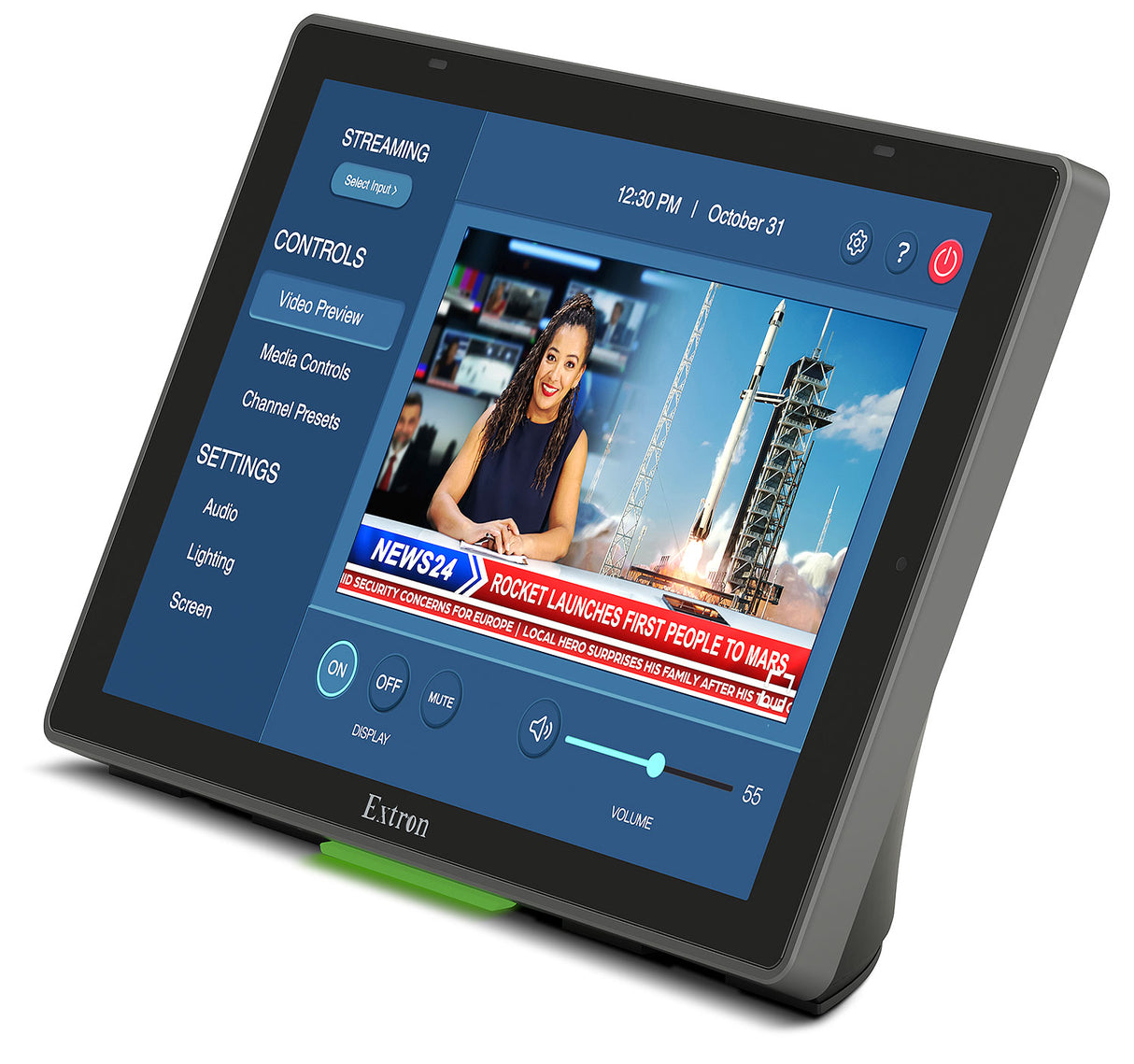

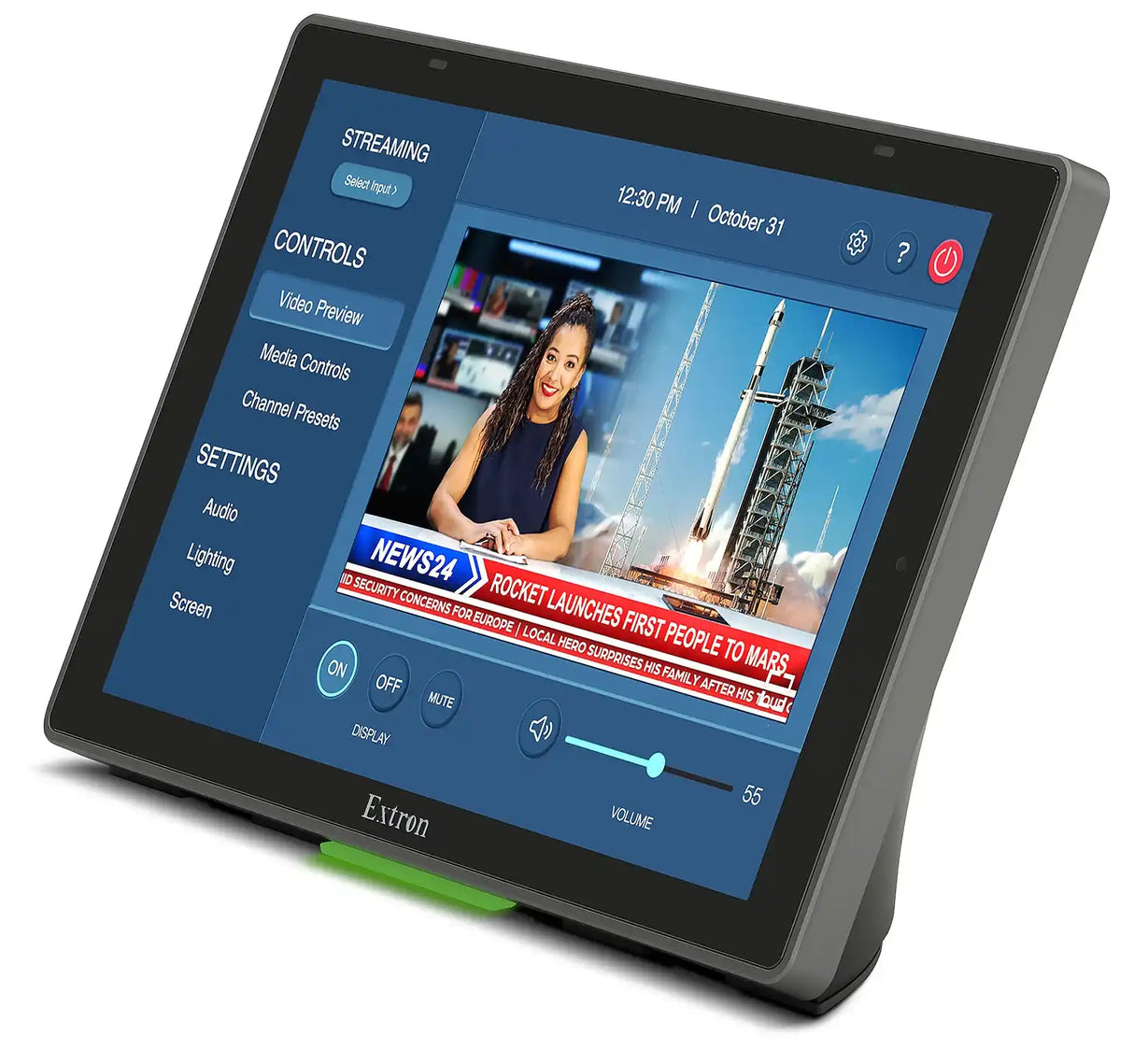

The Extron TLP Pro 835T is an 8" tabletop TouchLink Pro touchpanel built for interactive control of commercial AV systems from the conference table. Its IPS touchscreen delivers 1280x800 resolution with 24-bit color, high contrast, and wide viewing angles that remain readable from any seat around the table. An optically bonded Corning Gorilla Glass surface adds durability and scratch resistance while preserving precise touch response, making this 8-inch tabletop touchpanel well suited to high-use meeting rooms, boardrooms, and collaboration spaces.

This Extron tabletop TouchLink Pro touchpanel uses single-cable PoE installation that combines power, network connectivity, and video streaming over one Ethernet cable, simplifying deployment on standard network infrastructure. Native H.264 streaming preview lets operators monitor live IP camera and encoder feeds directly on the panel without additional hardware. Two RGB LED status lightbars, one on the front and one on the rear of the enclosure, provide clear visual feedback on system status or room availability, while a motion sensor wakes the panel on approach and an ambient light sensor adjusts brightness to room conditions.

The TLP Pro 835T integrates with any Extron IP Link Pro xi Series control processor and supports standalone operation through the optional LinkLicense for TLP Control Processor and TLCA 2 expansion adapter. For a wall-mounted control surface, pair it with the TLP Pro 725M 7" wall mount touchpanel, or browse the full Extron collection for control processors and accessories.

Key Features

• 8" IPS Touchscreen — The 1280x800 IPS capacitive display provides 24-bit color, high contrast, and wide viewing angles for clear operation from multiple seats around a table.
• Optically Bonded Gorilla Glass — The toughened, optically bonded Corning Gorilla Glass surface resists scratches and smudging while maintaining precise touch response in shared spaces.
• Single-Cable PoE Installation — Power over Ethernet delivers power, network connectivity, and video streaming over one Ethernet cable to simplify deployment.
• Native H.264 Streaming Preview — The panel displays live IP camera and encoder feeds directly over Ethernet without any additional hardware.
• Dual RGB Status Lightbars — Configurable RGB LED lightbars on the front and rear of the enclosure communicate system status, alerts, or room availability from any angle.
• Integrated Sensors — A motion detector wakes the panel on approach and an ambient light sensor adjusts screen brightness to match room lighting for consistent visibility and power savings.
• USB-C Expansion — A USB-C port supports accessories and adapters when paired with the LinkLicense for TLP Control Processor.
• Standalone Control Capability — With the optional LinkLicense for TLP Control Processor and the TLCA 2 adapter, the touchpanel operates as a standalone AV control system.
• Integrated Speakers — Built-in speakers provide audible confirmation of button presses and support audio playback from the panel.

Technical Specifications

Frequently Asked Questions

What control systems is the TLP Pro 835T compatible with?

The TLP Pro 835T integrates with any Extron IP Link Pro xi Series control processor. With the optional LinkLicense for TLP Control Processor and a TLCA 2 adapter, it can also operate as a standalone AV control system.

How is the touchpanel installed and powered?

Installation uses single-cable PoE, delivering power, network connectivity, and H.264 video streaming over one Ethernet cable. This reduces wiring and simplifies setup on standard network infrastructure.

Can the panel display live video feeds?

Yes. Native H.264 streaming preview lets the panel display live feeds from IP cameras or encoders directly over Ethernet, with no additional hardware required.

How do the status indicators help in a meeting room?

Two configurable RGB LED status lightbars, one on the front and one on the rear of the enclosure, provide immediate visual cues for system status, alerts, or room availability that are visible from any viewing angle.

What does the USB-C port support?

The USB-C port supports accessories and adapters when the panel is paired with the LinkLicense for TLP Control Processor, extending the panel's control capabilities.

How does the TLP Pro 835T differ from the wall-mount models?

The 835T is designed for tabletop placement on conference tables, while wall-mount models such as the TLP Pro 725M install in a junction box or on a flat surface. Contact Creation Networks for help selecting the right form factor and configuration for your room.
