Product Description

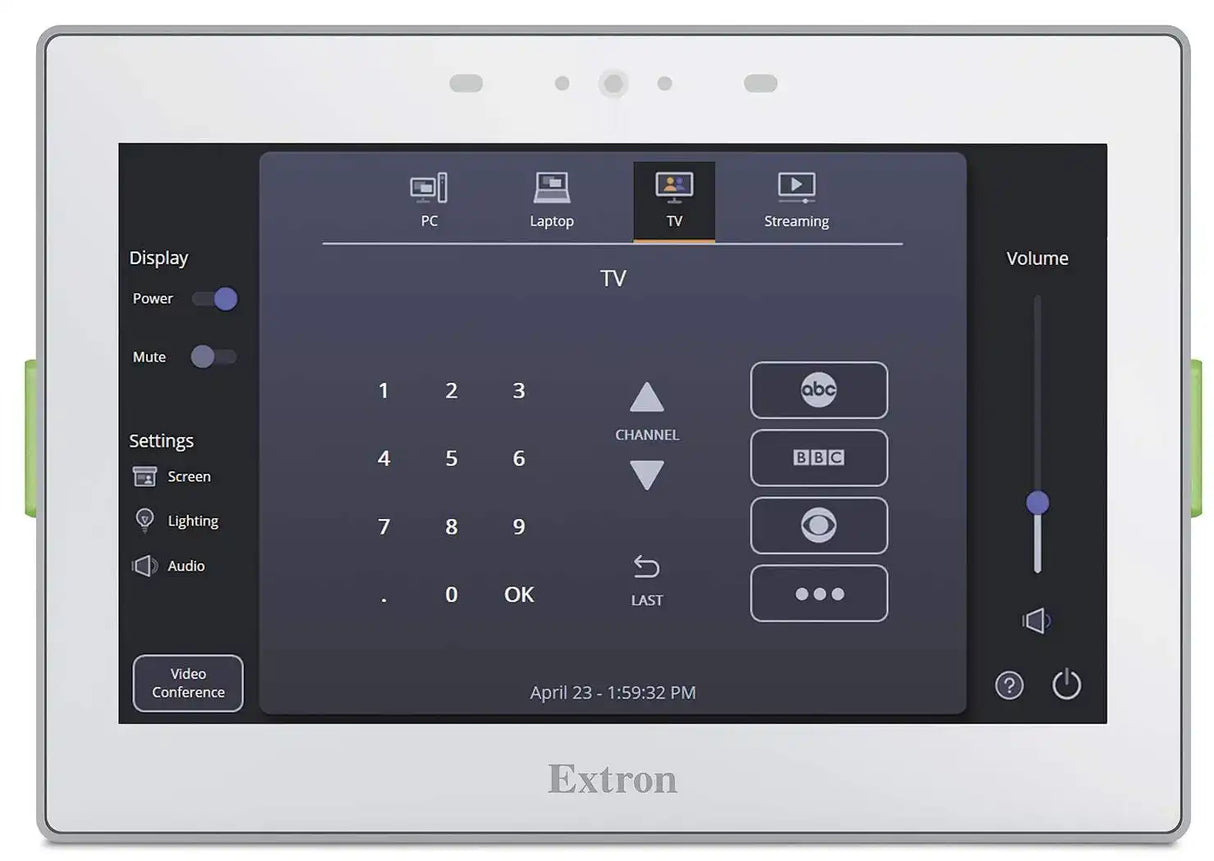

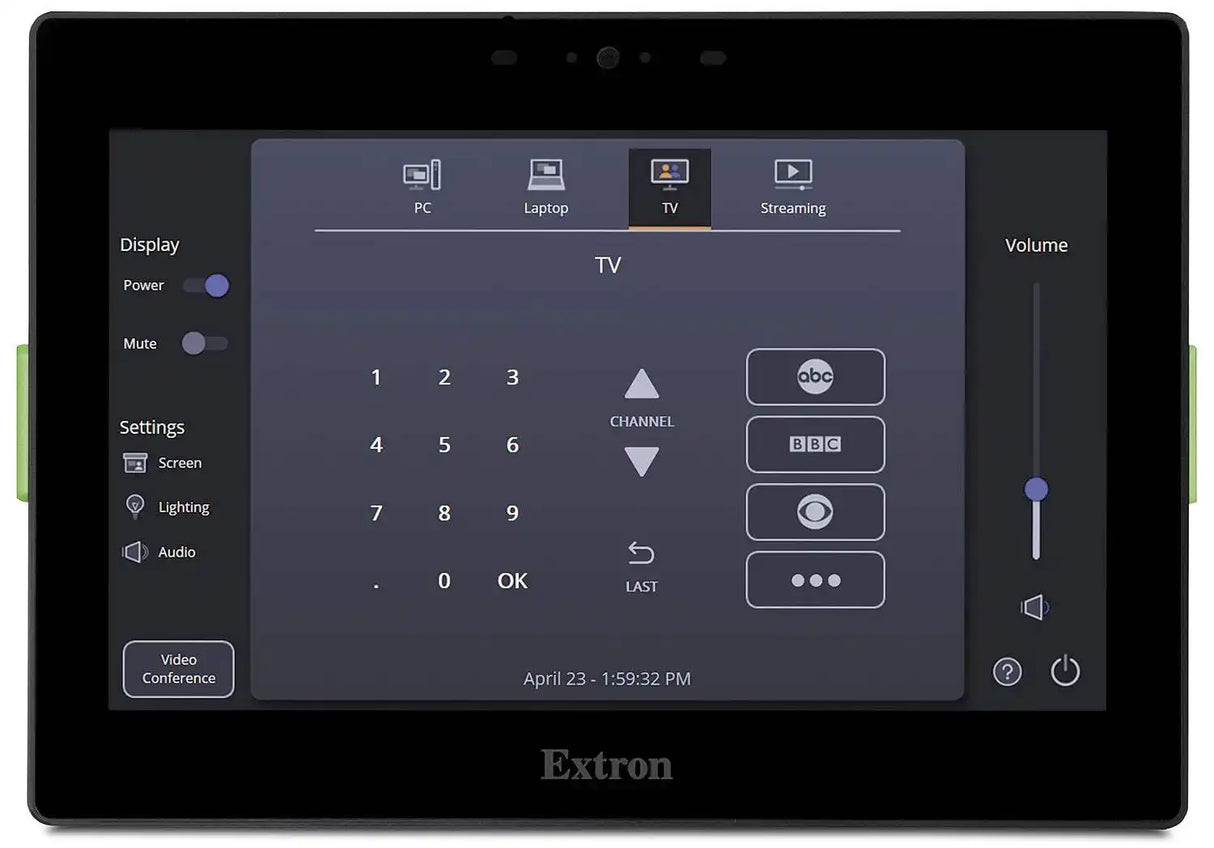

The Extron TLP Pro 725M is a 7" wall mount TouchLink Pro touchpanel engineered for complete, interactive control of commercial AV systems. Built around a high-performance quad-core processor with eight times the memory of previous models, it drives a 1024x600 capacitive touchscreen protected by scratch and smudge-resistant Corning Gorilla Glass. As a Power over Ethernet touchpanel, it receives both power and communication over a single Ethernet cable, simplifying installation in conference rooms, classrooms, lecture halls, and command-and-control environments.
This 7-inch wall mount TouchLink Pro touchpanel works with any Extron control processor and HC 400 Series system, operating over standard network infrastructure for reliable, cost-effective deployment. Using Extron GUI Designer software, integrators can build fully customizable interfaces from ready-to-use templates or design unique layouts for any presentation environment. With the optional LinkLicense for TLP Control Processor and a TLCA 1 TouchLink Control Port Expansion Adapter, this Extron PoE touchpanel converts into a standalone Pro xi Series AV control system capable of controlling sources directly from the panel.
The panel mounts in a two-gang junction box, on a wall, a lectern, or any flat surface including glass, making it a flexible choice for AV system integrators standardizing on a single control surface. For organizations building out a full Extron control ecosystem, pair it with the larger TLP Pro 835T 8" tabletop touchpanel or browse the complete Extron collection.
Key Features
- 7" Capacitive Touchscreen — The 1024x600 WSVGA display delivers 24-bit color across an edge-to-edge glass surface for a highly responsive control experience.
- Corning Gorilla Glass Protection — The toughened, scratch and smudge-resistant glass maintains touch sensitivity, color saturation, and brightness in high-traffic commercial environments.
- Quad-Core Processing — A high-performance quad-core processor with eight times more memory drives faster response and a smoother overall user experience.
- Power over Ethernet — PoE (802.3af, class 3) supplies both power and communication over a single Ethernet cable, reducing installation cabling and cost.

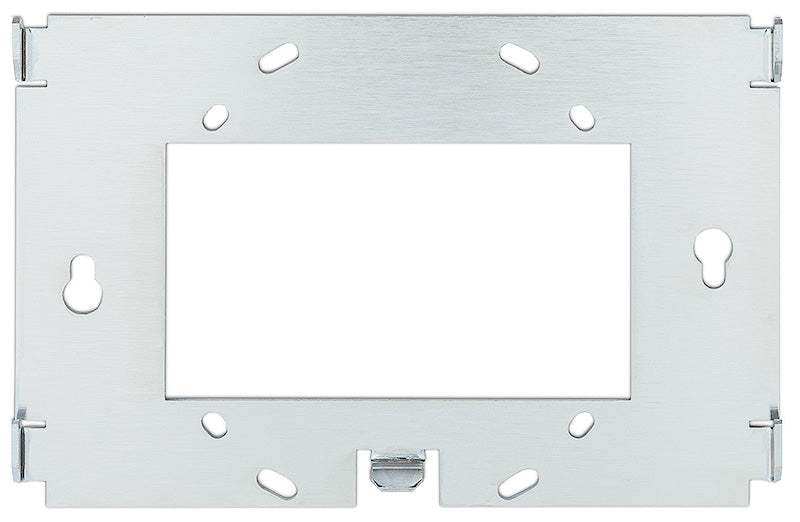

- Flexible Mounting — The panel installs in a two-gang junction box, on a wall, a lectern, or any flat surface including glass.
- Expandable Control System — With the LinkLicense for TLP Control Processor and the TLCA 1 adapter, the touchpanel becomes a standalone Pro xi Series AV control system.
- Integrated Sensors and Speaker — A light sensor adjusts brightness to ambient lighting, a motion detector wakes the panel, and a built-in speaker provides audible button feedback.
- Status Indicators — Configurable red and green status lights indicate room availability or call status, while a connection indicator flags any loss of communication with the control processor.
- Remote Management — GlobalViewer Enterprise resource management software lets administrators manage, monitor, and control the device across the network.
Technical Specifications
| Model | Extron TLP Pro 725M |
| Type | 7" Wall Mount TouchLink Pro Touchpanel |
| Screen Type | TFT active matrix color LCD, capacitive touch |
| Display Size | 7" (17.8 cm), measured diagonally |
| Resolution | 1024x600 (WSVGA) |
| Pixel Density | 170 PPI |
| Aspect Ratio | 17:10 |
| Color Depth | 24 bit, 16.7 million colors |
| Brightness | 420 nits (cd/m2) |
| Contrast | 700:1 |
| Backlight | LED |
| Viewing Angle | ±75° horizontal, +70°/-75° vertical |
| SDRAM / Flash | 2 GB / 8 GB |
| Ethernet | 1 female RJ-45, 10/100/1000Base-T, half/full duplex with autodetect |
| USB | 1 high-speed USB 2.0, Micro-B receptacle |
| Digital Input | 1 configurable digital input, 3.5 mm 2-pole captive screw |
| Audio Output | 1 mono speaker, 89 dB Max. SPL @ 0.1 m |
| Sensors | Motion sensor (on/off), light sensor (auto/manual) |
| Power Input | Power over Ethernet (PoE 802.3af, class 3) |
| Power Consumption | 8.5 watts (device) |
| Mounting | Wall, furniture, or rack |
| Enclosure | Plastic; 5.05" H x 7.24" W x 1.20" D (128 x 184 x 30 mm) |
| Product Weight | 1.10 lbs (0.50 kg) |
| Regulatory Compliance | BIS, CE, C-Tick, c-UL, FCC Class B, ICES, RoHS, UL, VCCI, WEEE |
| Warranty | 3 years parts and labor; display and overlay components covered for 1 year |
Frequently Asked Questions
What control systems is the TLP Pro 725M compatible with?
The TLP Pro 725M works with any Extron control processor and the HC 400 Series system. With the optional LinkLicense for TLP Control Processor and a TLCA 1 adapter, it can also operate as a standalone Pro xi Series AV control system.
How is the touchpanel powered?
The panel uses Power over Ethernet (PoE 802.3af, class 3), receiving both power and communication over a single Ethernet cable. No separate power supply is included, which simplifies installation on standard network infrastructure.
Where can the TLP Pro 725M be installed?
It mounts in a two-gang junction box, on a wall, a lectern, or any flat surface including glass, giving integrators flexibility across conference rooms, classrooms, and lecterns.
How are the interface and control logic configured?
Interfaces are designed with Extron GUI Designer software, while control logic is built using Global Configurator Plus, Global Configurator Professional, or ControlScript programming.
What warranty does the TLP Pro 725M include?
Extron covers the touchpanel with a 3-year parts and labor warranty; the display and overlay components are covered for 1 year. Contact Creation Networks for support and integration guidance.
