Extron TLP Pro 835C 8" Cable Cubby TouchLink Pro Touchpanel

Product Description

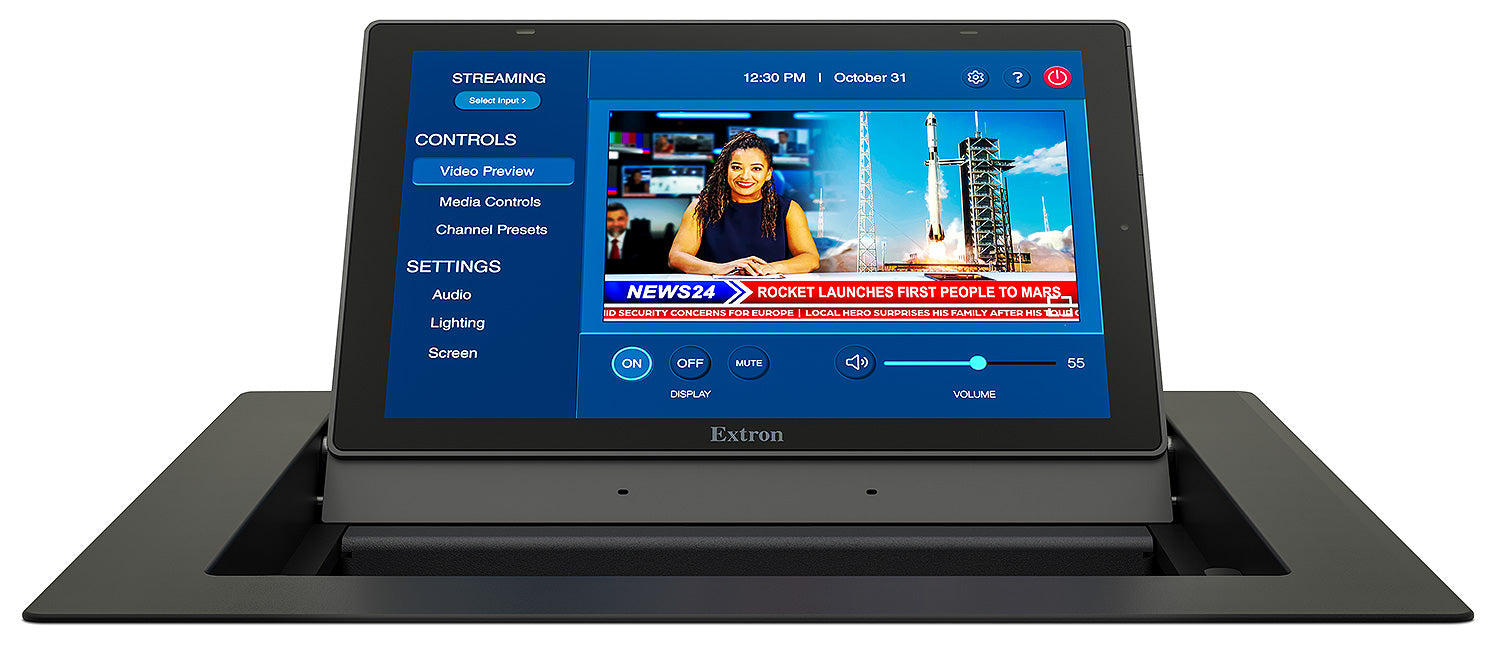

The Extron TLP Pro 835C is an 8-inch Cable Cubby TouchLink Pro touchpanel with a flip-up IPS touchscreen at 1280x800 resolution and 24-bit color depth, delivering sharp images, high contrast, and wide viewing angles. The touch surface uses optically bonded Gorilla Glass for durability, scratch resistance, and reduced smudging while maintaining accurate touch response. Built into a Cable Cubby Cable Access Enclosure, the panel flips up from a conference table or other furniture and stows out of sight, giving collaboration spaces a clean look with cable access kept underneath the surface.

This Cable Cubby TouchLink Pro touchpanel is designed for conference rooms, huddle spaces, and boardrooms that need accessible AV control without a fixed panel on the table. A motion detector wakes the panel on approach, an ambient light sensor adjusts brightness to room conditions, and multi-color status indicators show system state or room availability. Integrated speakers provide button feedback and audio playback, and native H.264 streaming preview lets operators monitor live IP camera or encoder feeds directly on the display. Single-cable Power over Ethernet handles power, network connectivity, and video streaming, simplifying installation in furniture. The panel works with any Extron IP Link Pro xi Series control processor and supports standalone operation with the optional LinkLicense for TLP Control Processor and TLCA 2 adapter.

For a tabletop version of the same 8-inch panel, compare the Extron TLP Pro 835T (tabletop), or browse the full Extron collection at Creation Networks.

Key Features

• 8-inch IPS touchscreen — Provides 1280x800 resolution with 24-bit color, high contrast, and wide viewing angles for clear, responsive control.
• Optically bonded Gorilla Glass — Delivers a tough, scratch-resistant, smudge-resistant touch surface for frequent professional use.
• Cable Cubby enclosure mounting — Flips up from a table or furniture surface and stows away, with side clamps for secure mounting and built-in cable access.
• Integrated lid switch — Ensures reliable operation of the flip-up mechanism in furniture-mounted installations.
• Motion detector and ambient light sensor — Wakes the panel on approach and adjusts screen brightness automatically to the room lighting.
• Multi-color status indicators — Display system status, alerts, or room availability using customizable colors.
• Native H.264 streaming preview — Monitors live video from IP cameras or streaming encoders directly on the panel over the network.
• Integrated speakers — Provide audible button feedback and audio playback built into the panel.
• Single-cable PoE — Supplies power, network connectivity, and video streaming over one Ethernet cable to simplify installation.
• IP Link Pro xi compatibility — Works with any Extron IP Link Pro xi Series control processor, with optional standalone operation via LinkLicense and the TLCA 2 adapter.

Technical Specifications

Frequently Asked Questions

What is unique about the TLP Pro 835C mounting?
It uses a Cable Cubby Cable Access Enclosure for discreet flip-up integration into tables or furniture, providing a clean surface with built-in cable access and side clamps for secure installation.

Does the touchpanel require an external control processor?
It works with any Extron IP Link Pro xi Series control processor. It can also operate as a standalone control system with the optional LinkLicense for TLP Control Processor and the TLCA 2 adapter.

How is the panel powered and connected?
A single Ethernet cable provides PoE (802.3af) power, network connectivity, and H.264 video streaming through the RJ-45 jack, with a USB 2.0 type C port for accessories.

Can it display live video feeds?
Yes. Native H.264 streaming preview lets you view live feeds from IP cameras or streaming encoders directly on the touchscreen.

How durable is the touch surface?
The optically bonded Gorilla Glass surface resists scratches, impacts, and smudges, making it suitable for frequent use in professional AV environments.
