Extron TLP Pro 1025T 10" Tabletop TouchLink Pro Touchpanel
Product Description

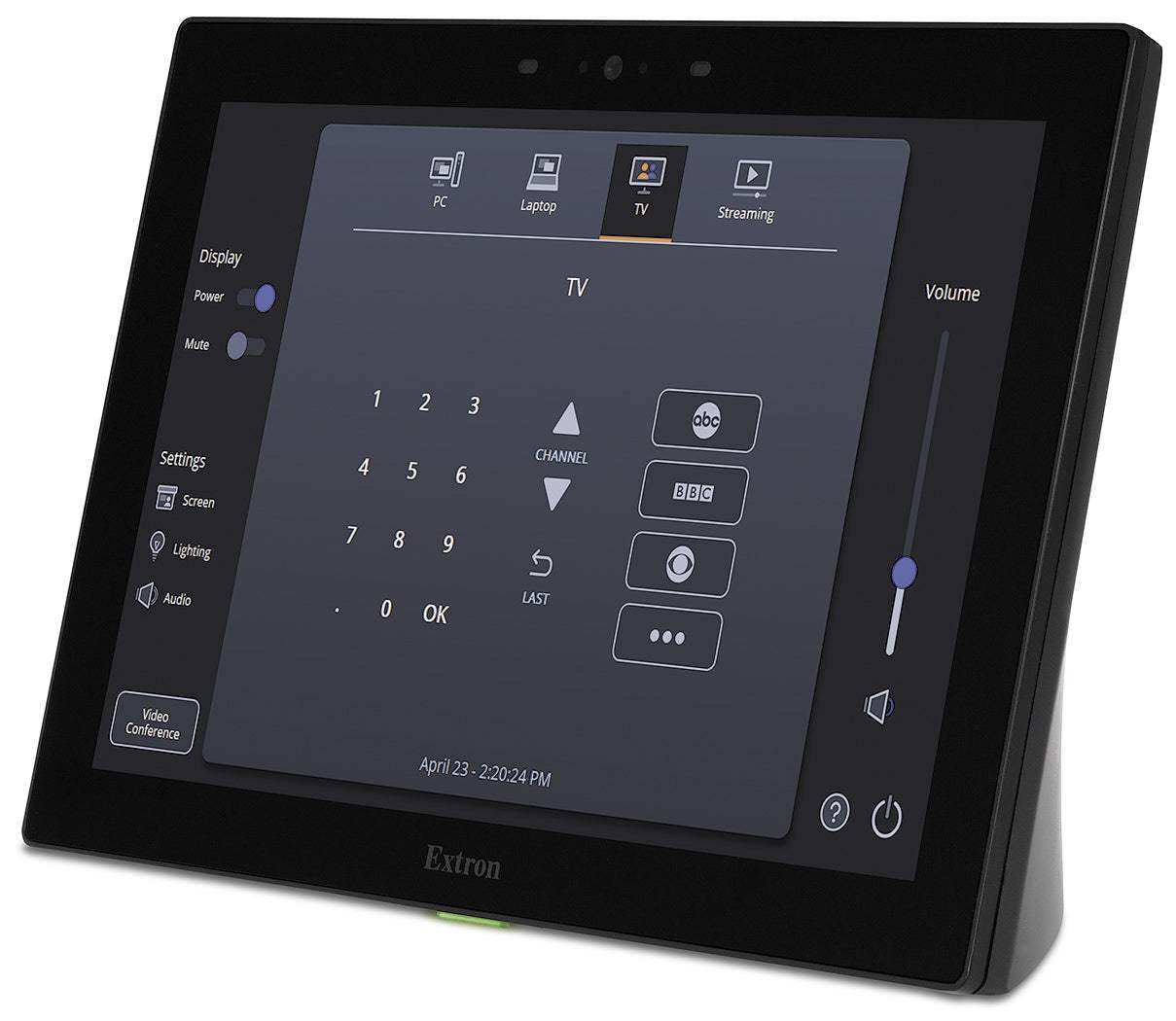

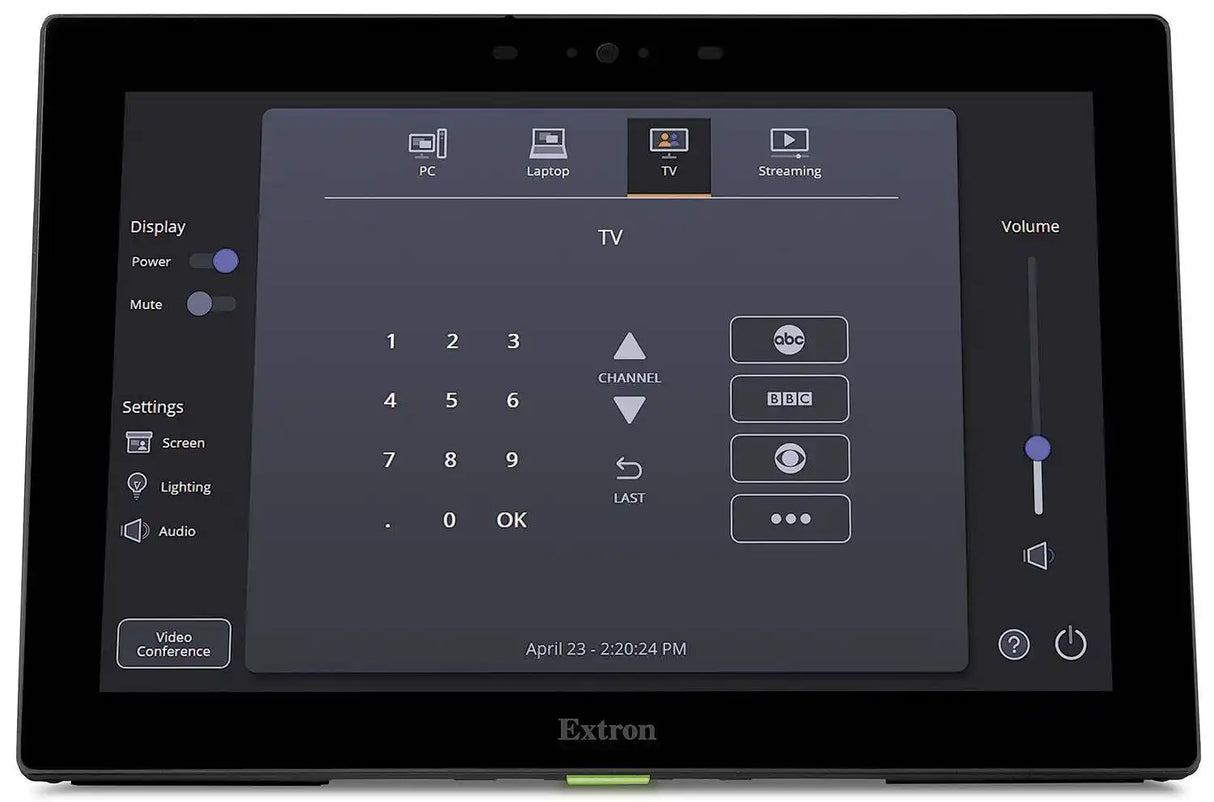

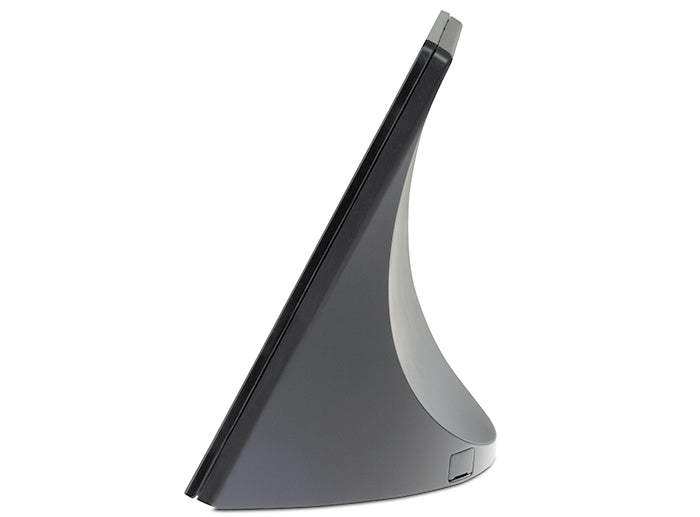

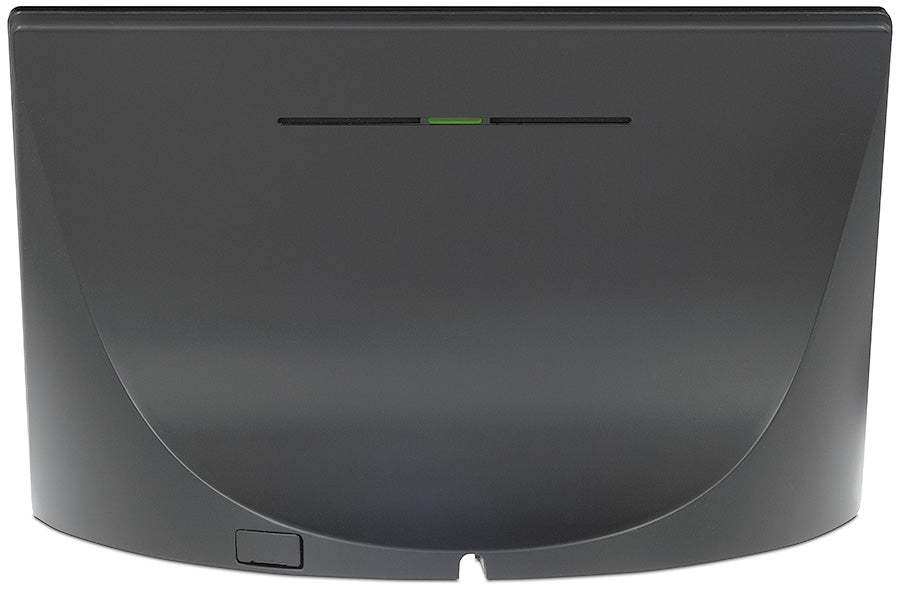

The Extron TLP Pro 1025T is a 10" tabletop TouchLink Pro touchpanel designed for commercial AV control in conference rooms, boardrooms, classrooms, and divisible meeting spaces where a freestanding control point belongs on the table rather than the wall. Its distinctive enclosure with a gracefully sweeping back sets a 1280x800 capacitive touchscreen at a comfortable viewing angle, protected by scratch- and smudge-resistant Corning Gorilla Glass for daily use in shared rooms.
This Extron tabletop touchpanel runs on a high-performance quad-core processor with 2 GB of memory and uses Power over Ethernet, drawing power and communication over a single Ethernet cable. That simplifies AV system integration on a tabletop, where running a single low-voltage cable through a grommet is far easier than supplying separate power. It works with any Extron control processor and the HC 400 Series for complete, interactive control of displays, sources, and room functions, and is JITC certified for government and mission-critical applications.
Interfaces are built in Extron GUI Designer using ready-made room templates and configured with Global Configurator or ControlScript. With the optional LinkLicense for TLP Control Processor and the TLCA 1 adapter, this conference room touchpanel becomes a standalone Pro xi Series control system, and the optional SMA-2 Swivel Mount Adapter adds rotation for shared tables. Compare the wall-mount TLP Pro 1025M or the larger TLP Pro 1035M, and browse the full Extron collection.
Key Features
- Tabletop Form Factor — The sweeping enclosure sets the screen at an ergonomic angle for freestanding placement on conference and meeting tables.
- 10" Capacitive Touchscreen — The 1280x800 WXGA display with 24-bit color and Gorilla Glass gives operators a bright, durable control surface.
- Quad-Core Performance — A quad-core processor with 2 GB RAM and 8 GB storage delivers fast, responsive control of complex AV systems.
- Power over Ethernet — PoE (IEEE 802.3af, class 3) carries power and data over one Ethernet cable, ideal for tabletop runs through a single grommet.
- JITC Certified — The panel has completed JITC interoperability and information assurance testing for government and mission-critical environments.
- Broad Control Compatibility — It works with any Extron control processor and the HC 400 Series for full interactive AV control.
- Standalone Control Option — LinkLicense for TLP Control Processor plus the TLCA 1 adapter turn it into a Pro xi Series control system supporting up to eight Ethernet devices.
- Optional Swivel Mount — The optional SMA-2 Swivel Mount Adapter lets users rotate the panel for shared seating around a table.
- Environmental Sensors — A light sensor adjusts brightness to ambient lighting and a motion detector wakes the panel for energy savings.
- Enterprise Management — GlobalViewer Enterprise enables remote management, monitoring, and control across the deployment.
Technical Specifications
| Model | Extron TLP Pro 1025T |
|---|---|
| Type | 10" tabletop TouchLink Pro touchpanel |
| Screen Type | TFT active matrix color LCD, capacitive touch |
| Display Size | 10.1" (25.7 cm), measured diagonally |
| Resolution | 1280x800 (WXGA) |
| Pixel Density | 149 PPI |
| Aspect Ratio | 16:10 |
| Color Depth | 24-bit, 16.7 million colors |
| Brightness | 420 nits (cd/m²) |
| Contrast | 800:1 |
| Backlight | LED |
| Viewing Angle | ±85° horizontal, ±85° vertical |
| Memory | 2 GB RAM, 8 GB storage |
| Ethernet | 1 female RJ-45; 10/100/1000Base-T, half/full duplex with autodetect |
| USB | 1 high-speed USB 2.0 device, 1 USB type A receptacle |
| Audio Output | 1 mono speaker, 89 dB max SPL @ 0.1 m |
| Sensors | Motion sensor (on/off), light sensor (auto/manual) |
| Power Input | Power over Ethernet (PoE 802.3af, class 3) |
| Power Consumption | 11.5 watts (device) |
| Mounting | Tabletop; optional SMA-2 Swivel Mount Adapter |
| Enclosure | Plastic |
| Dimensions | 6.40" H x 10.10" W x 4.15" D (163 x 257 x 105 mm) |
| Weight | 3.00 lbs (1.36 kg) |
| Regulatory Compliance | BIS, CE, c-UL, UL, C-Tick, FCC Class A, ICES, KC, VCCI, RoHS, WEEE |
| Warranty | 3 years parts and labor; display and overlay components covered for 1 year |
Frequently Asked Questions
How does the tabletop 1025T differ from the wall-mount 1025M?
The 1025T shares the same 10" display, quad-core processing, and control features as the 1025M, but ships in a freestanding tabletop enclosure with a sweeping back instead of a flat wall-mount body. It is intended to sit on a conference or meeting table.
What control processors is it compatible with?
It works with any Extron control processor and the HC 400 Series. With the LinkLicense for TLP Control Processor it can run standalone as a Pro xi Series control system.
Is it suitable for government installations?
Yes. The TLP Pro 1025T is JITC certified, having completed interoperability and information assurance testing for government and mission-critical applications. A TAA-compliant version is also available on request.
How is it powered and cabled on a table?
It uses Power over Ethernet (IEEE 802.3af, class 3), so a single Ethernet cable supplies power and communication, typically routed through a table grommet to a PoE switch or injector.
What warranty applies?
Extron provides a 3-year parts and labor warranty, with the display and overlay components covered for 1 year.
