Extron NAV E 201 D 1G HDMI Encoder - Decorator Black

Product Description

The Extron NAV E 201 D is a 1G HDMI encoder in a decorator-style wallplate that streams ultra-low latency video and audio over standard 1 Gbps Ethernet networks. This black-faceplate model is a compact AV-over-IP encoder built for installations where the HDMI source sits at the wall and a discreet, in-wall enclosure is needed. Using Extron's patented PURE3 codec, the NAV E 201 D delivers visually lossless video at resolutions up to 4K/60 (4096 x 2160) with 4:4:4 chroma sampling and sub-frame latency over commercial-grade 1000Base-T copper infrastructure.

As a NAV 1G HDMI encoder, the NAV E 201 D is designed for corporate video distribution, command and control rooms, higher education, and training environments. It is fully interoperable with 10 Gbps NAV endpoints, so 1 Gbps streams can be decoded by 10 Gbps decoders in a mixed deployment. The encoder can be powered over the network with PoE+ from a compliant switch or injector, eliminating the local power supply at the wall, and it mounts directly into a standard US three-gang junction box or mud ring.

This page covers the Decorator Black finish. A matching NAV E 201 D in Decorator White is also available. If your installation requires a built-in Ethernet LAN expansion port to share the cable with IP-enabled devices, see the NAV E 401 D in Decorator Black or Decorator White. Browse the full Extron collection for related NAV encoders, decoders, and AV-over-IP infrastructure.

Key Features

• PURE3 codec encoding — Extron's patented, wavelet-based PURE3 compression streams visually lossless 4K/60 4:4:4 video at bit rates of 250 to 900 Mbps with sub-frame latency and built-in error concealment, tolerating the bursty traffic found on converged networks.
• HDMI 2.0 input and loop-through — Accepts HDMI v1.4 and v2.0 signals at resolutions up to 4K (4096 x 2160) at 60 Hz with 4:4:4 chroma sampling, with a second HDMI type A connector for local loop-through to a display or AV system.
• 10 Gbps NAV interoperability — 1 Gbps streams from this encoder can be decoded by 10 Gbps NAV decoders, supporting scalable mixed 1 Gbps and 10 Gbps deployments across an enterprise or campus.
• PoE+ powered — Complies with IEEE 802.3at Type 2 (PoE+) class 4, drawing power directly from a compliant switch and eliminating the need for a local power supply at the wallplate.
• AES67 audio over IP — Streams LPCM and AES67 audio over IP for integration with Extron DSPs and other IP-enabled audio components.
• HDCP 2.3 compliance — Supports HDCP v1.4 and v2.3 for content-protected UHD media, with Key Minder maintaining continuous HDCP encryption and HDCP visual confirmation for non-compliant displays.
• Enterprise security — Includes 802.1X port-based network access control, AES-256 and SRTP (AES-128) stream encryption, a certified FIPS 140-2 cryptographic module, and Microsoft Active Directory authentication.

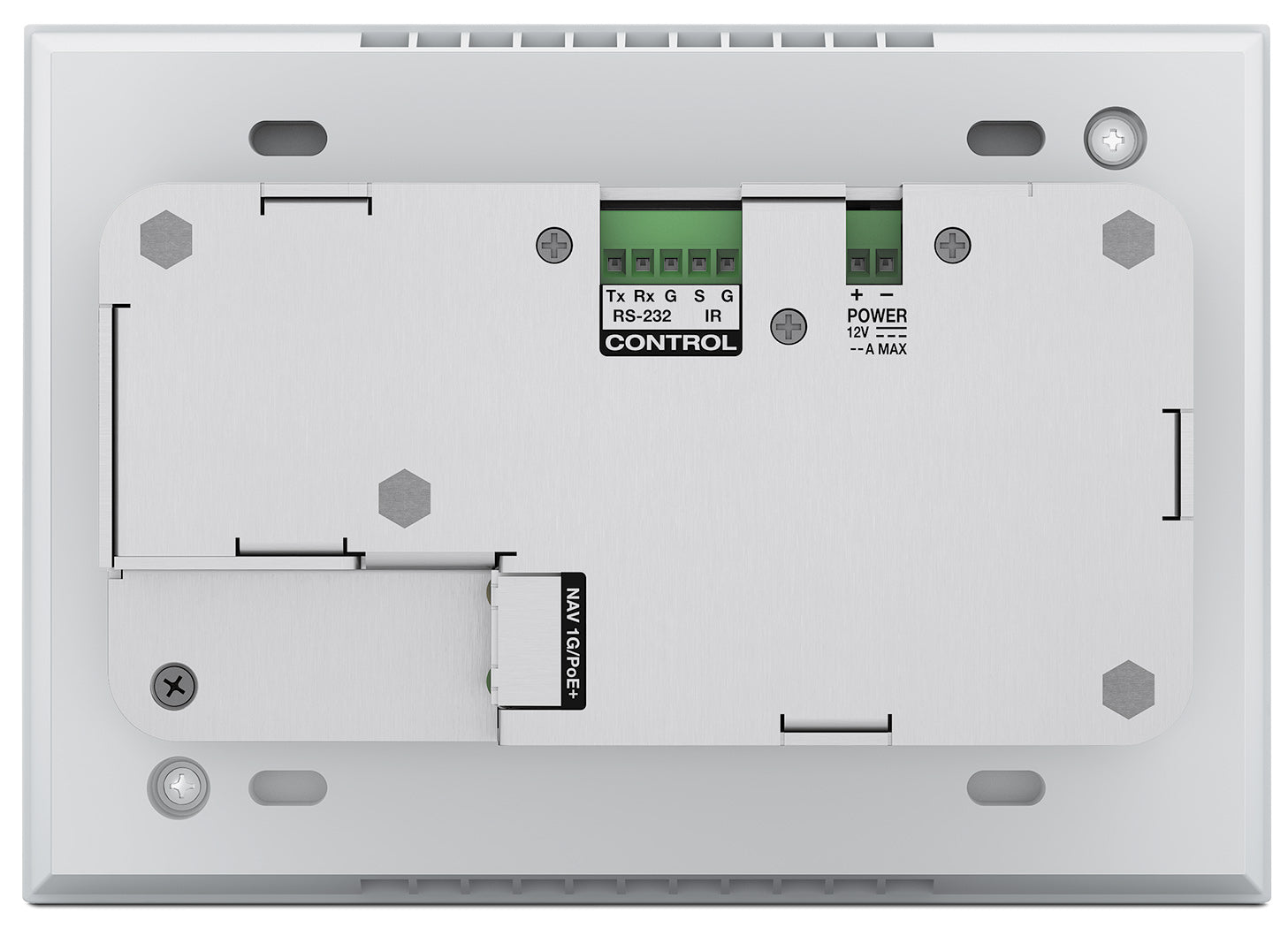

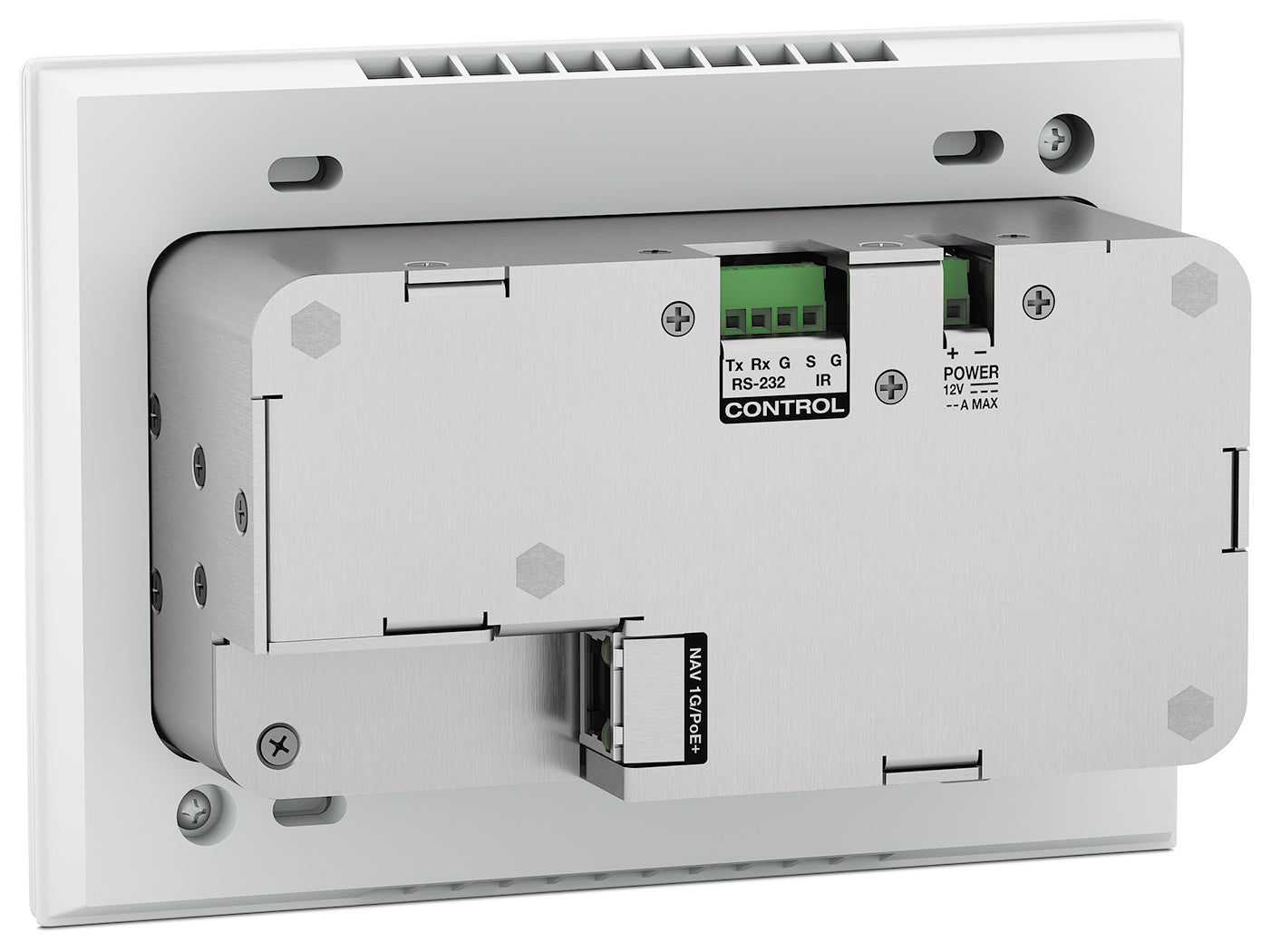

• Pro Series control — A built-in bidirectional RS-232 and IR control port on a 3.5 mm 5-pole captive screw connector extends Extron Pro Series control beyond the control processor.

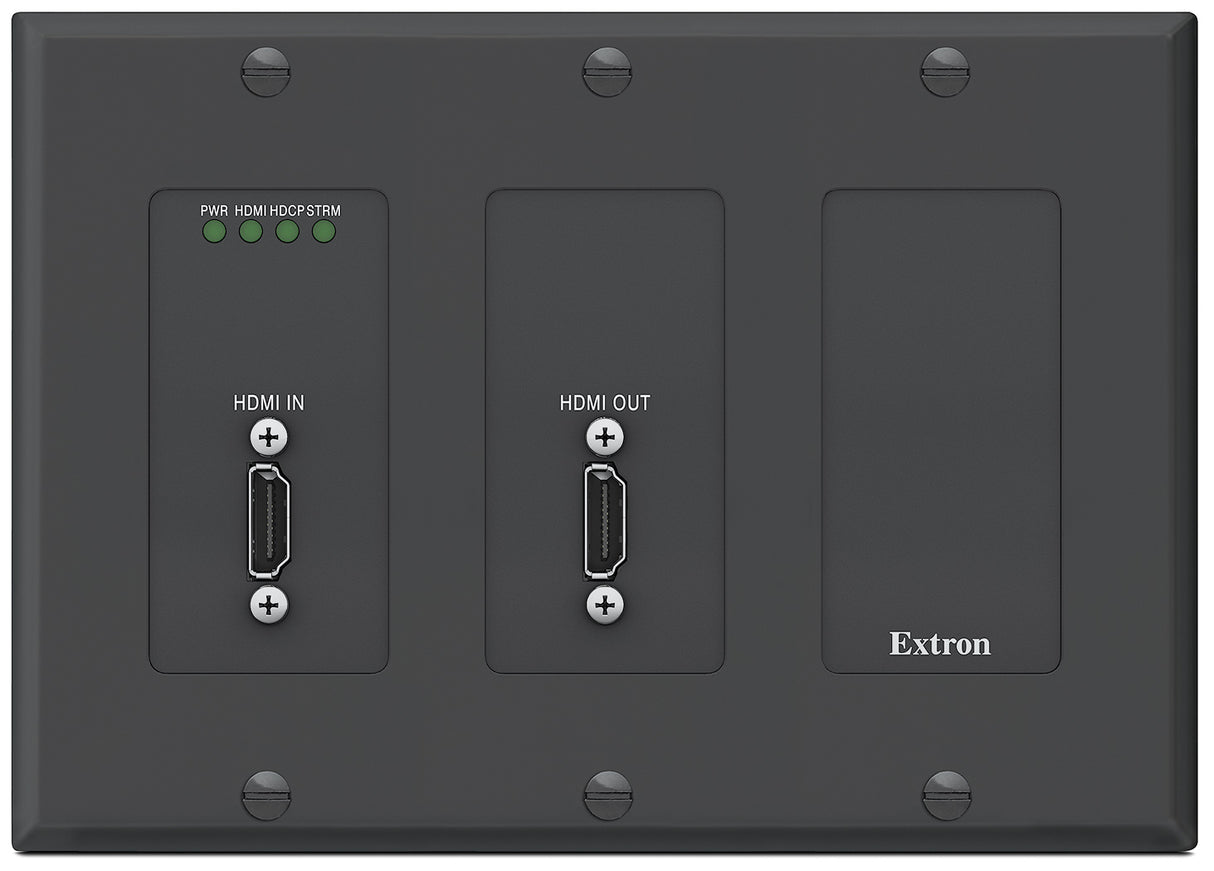

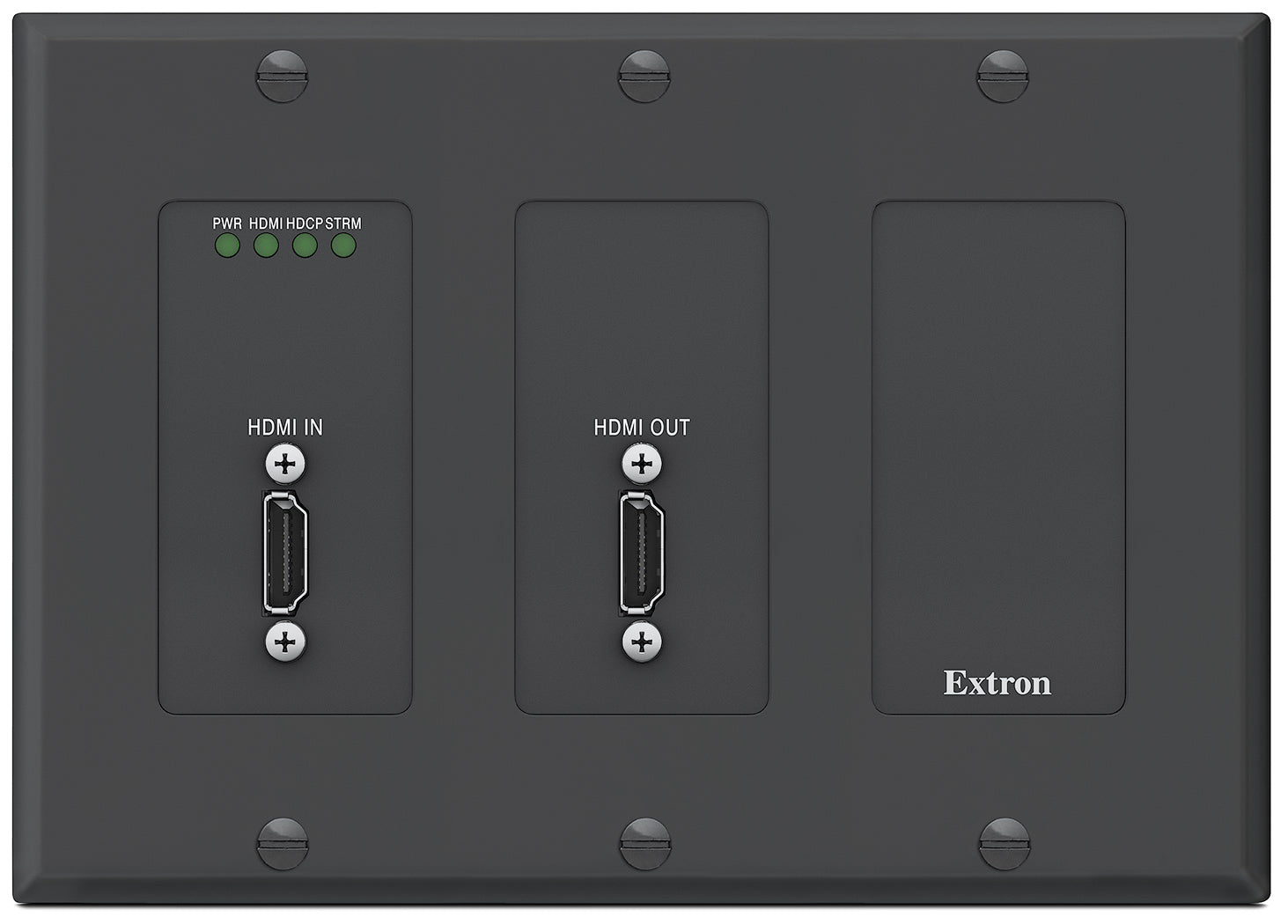

• Decorator-style wallplate — Mounts in an included three-gang in-wall metal enclosure with a black decorator faceplate, fitting a standard US 3-gang junction box or mud ring.
• Centralized management — Works with the required NAVigator System Manager for centralized configuration, monitoring, diagnostics, and bulk firmware updates of NAV deployments.

Technical Specifications

Frequently Asked Questions

What is the difference between the NAV E 201 D and the NAV E 401 D?
Both are 1G PURE3 HDMI encoders in a decorator wallplate. The NAV E 201 D streams HDMI video and audio over IP. The NAV E 401 D adds a built-in Ethernet LAN expansion port, allowing IP-enabled devices to share the AV cable.

Does the NAV E 201 D work with 10 Gbps NAV decoders?
Yes. The NAV platform is interoperable across 1 Gbps and 10 Gbps endpoints, so streams from this 1 Gbps encoder can be decoded by 10 Gbps NAV decoders in a mixed system.

How is the encoder powered and mounted?
It can be powered over the network with PoE+ (IEEE 802.3at Type 2, class 4) or with the included external 100-240 VAC power supply. It mounts in a standard US 3-gang junction box or mud ring.

What resolutions and cabling does it support?
It supports HDMI up to 4K (4096 x 2160) at 60 Hz with 4:4:4 chroma sampling, transmitted up to 330 ft (100 m) over CAT 5e/6/6a/7 cable. A NAVigator System Manager is required for centralized management.

Is the NAV E 201 D suitable for secure environments?
Yes. It supports 802.1X network access control, AES-256 and SRTP (AES-128) encryption, a certified FIPS 140-2 module, and Active Directory authentication. A DoDIN APL approved version and a TAA compliant version are available from Extron on request.
