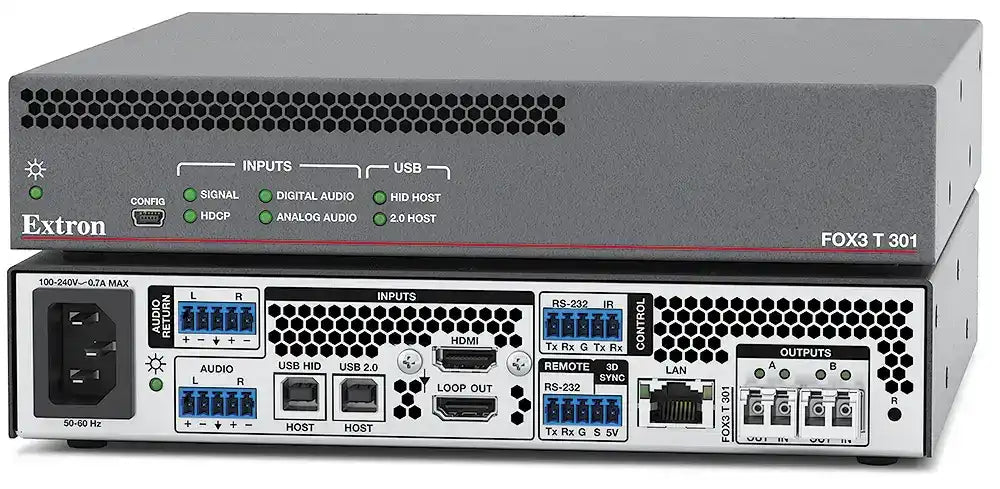

Extron 60-1522-11 FOX3 T 301 MM Fiber Optic Transmitter for HDMI, USB, Audio, Control, and 3D Sync

Lossless 4K/60 Scaling Receiver - Multimode

The Extron FOX3 T 301 Fiber Optic Transmitter provides long haul transmission of HDCP-compliant HDMI video, USB, audio, control, and 3D sync signals over fiber optic cable. Engineered for exceptional high-resolution image performance, it uses Extron all‑digital technology to deliver perfect pixel-for-pixel, uncompressed transmission of images up to 4K/60 @ 4:4:4 over two fibers or mathematically lossless 4K/60 @ 4:4:4 video over one fiber. The USB port supports USB 3.0 to 1.0 devices while the USB HID port applies device class filtering to restrict the device types to HID. Designed specifically for AV and KVM systems, the transmitter also includes many integrator-friendly features such as Key Minder^®, EDID Minder^®, audio embedding, Ethernet monitoring and control, audio gain and attenuation, and real-time system monitoring.

Uncompromised Image Quality

Supporting data rates up to 18 Gbps, the FOX3 T 301 is designed to extend uncompressed video images up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over two fibers or mathematically lossless video images over one fiber, making it ideal for mission-critical applications or any environment that requires the transmission of very high-resolution imagery. Maintaining a 60 Hz frame rate with a 4:4:4 color space provides smooth frame transitions in full-motion video and ensures the details of high-quality computer images, such as CAD drawings, are preserved.

USB Signal Extension

The FOX3 T 301 Transmitter also supports USB 3.0, 2.0, 1.1, 1.0, and HID signal extension, eliminating the need for additional IP network drops, equipment, software, drivers, or USB extenders. Integrated USB signal extension enables connection to peripheral devices over the same fiber optic cable as video and audio, making it ideal for KVM - Keyboard, Video, and Mouse applications. This simplifies integration by avoiding IT-specific design criteria that might conflict with the needs of KVM switching in professional AV installations.

Engineered to Streamline Integration

The FOX3 T 301 Transmitter can be used with a FOX3 R 301 Receiver in point‑to‑point applications or in combination with a FOX3 Series matrix switcher for an enterprise‑wide HDCP‑compliant distribution system of 4K/60 4:4:4 HDMI video, USB, audio, RS‑232 control,  IR control, and 3D sync signals.

To simplify integration with digital sources and displays, the FOX3 T 301 features two Extron technologies: EDID Minder and Key Minder. EDID Minder automatically manages EDID by maintaining continuous EDID communication between connected devices, ensuring that the source powers up properly and maintains optimal video output for display. Key Minder authenticates and maintains continuous HDCP encryption to support quick and reliable switching in professional AV environments while enabling simultaneous distribution of a single source signal to one or more displays. In addition, an input loop-through allows an output signal to drive a local monitor that also supports 4K/60 video, and the built-in internal test patterns present display alignment patterns aiding in setup and configuration.

Control Signal Extension and Device Management

The FOX3 T 301 offers convenient local and remote system access for configuration, operation, and monitoring. The front panel USB configuration port enables system configuration without having to access the rear panel. The direct RS-232 and IR insertion ports extend control signals to remote devices over the fiber optic cable. Sources and displays can be controlled from either the transmitter or receiver end using either RS‑232 or IR signals. When used with a FOX3 Series matrix switcher, the remote RS-232 port can receive inserted control data from the matrix switcher over the fiber optic cable for control of the connected device. The transmitter also features a LAN port, enabling the transmitter to be proactively monitored and managed over the network using standard TCP/IP protocols.

Multimode and Singlemode Models for Design Flexibility

The FOX3 T 301 is available in multimode and singlemode models. The FOX3 T 301 MM model supports multimode fiber at 850 nm, which is typically used within buildings or facilities with moderate‑range transmission distances. The FOX3 T 301 SM supports singlemode at 1310 nm, offering long‑range transmission capability over extreme distances. It can be used in very large facilities such as airports and stadiums, and for connecting over very long distances between facilities such as university campuses. Because transmission of content is inherently secure and immune to outside interference, fiber applications are particularly favored in government, military, and medical environments. The transmitter features industry-standard LC‑type connectivity. The 1U, half-rack width metal enclosure is designed for installation in professional AV environments.

Features

• Transmits HDMI video, USB, stereo audio, RS-232 control, IR control, and 3D sync signals over fiber optic cabling
• Supports mathematically lossless 4K video up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over one fiber
• Supports uncompressed 4K video up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over two fibers
• Supported HDMI 2.0 specification features include data rates up to 18 Gbps, Deep Color up to 12‑bit, and 3D
• HDCP 2.3 compliant
• Supports USB 2.0 to 1.0 devices and USB 3.0 devices that can operate at USB 2.0 data rates of up to 480 Mbps — Provides USB extension, allowing connection to peripheral devices over the same fiber optic cable as video and audio.
• Device class filtering on USB HID port restricts the range of device types to HID — Device class filtering prevents unauthorized downloading or uploading of content via the USB port in secure environments. The USB HID port is configured at the factory, such that device class filtering cannot be removed or altered in the field.
• Buffered HDMI input loop-through — Local HDMI output provides signals for a local display, enabling monitoring or sharing of content without the need for a separate distribution amplifier.
• Audio embedding — Analog stereo audio signals are converted to digital HDMI audio.
• User-selectable HDCP authorization — Allows the transmitter to appear HDCP compliant or non‑HDCP compliant to the connected source.
• Key Minder continuously verifies HDCP compliance for quick, reliable switching — Authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments.
• EDID Minder automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
• Audio gain and attenuation adjustment capability — Setting the level of gain or attenuation eliminates noticeable volume differences when switching between sources.
• Analog audio return channel — Provides balanced return analog stereo audio output to support a remote audio source at the receiver.
• Bidirectional RS-232 and IR signal transmission over fiber optic cabling for AV device control — Bidirectional RS-232 and IR control pass-through enables a remote device to be controlled without the need for additional cabling. Two fibers are required for bidirectional communications.
• HDMI Protocol Security — Ensures a secure HDMI connection between the source and destination. Consumer Electronics Control (CEC), Ethernet signal transport and Return Audio Channel (ARC) signal pathways are not supported on secure HDMI connections.
• Peripheral emulation on USB HID port — Offers increased system reliability by emulating a continuous connection between the host and an HID-compliant keyboard and mouse.
• LinkLicense^® Support — Extron LinkLicense unlocks features that add convenience, expand system functionality, and enhance the capabilities of Extron products.
• Front panel USB configuration port — Enables easy system configuration without having to access the rear panel.
• Ethernet monitoring and control — Enables control and proactive monitoring over a LAN, WAN, or the Internet.
• RS-232 control — Features an RS-232 serial port for control and configuration.
• Real-time status LED indicators for troubleshooting and monitoring — Front and rear panel LEDs verify signal presence, HDCP authentication, fiber link status, and power.
• Easy setup and commissioning with Extron’s PCS - Product Configuration Software — Conveniently configures multiple products using a single software application.
• Internal color bars test pattern for calibration and setup — Simplifies setup and installation by providing a video signal when a source is unavailable.
• Compatible with Extron FOX3 Series matrix switchers — Creates HDCP-compliant signal distribution systems.
• New Compatible with Quantum FOX3 series fiber optic input cards — Streamlines Quantum Ultra II videowall integration into FOX3 fiber optic systems.
• JITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
• Industry standard LC connectors provide reliable physical connectivity and precise fiber core alignment
• Available as an 850 nm multimode model for moderate-range transmissions up to 500 m (1640 feet) and a 1310 nm singlemode model for extreme distances up to 20 km (12.4 miles)
• 1U high, half rack width metal enclosure
• Internal Extron Everlast™ power supply — Provides worldwide power compatibility, with high-demonstrated reliability and low power consumption for reduced operating cost.
• Extron Everlast Power Supply is covered by a 7-year parts and labor warranty
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

Specs

Frame rate3	24, 25, 30, 50, or 60 fps
Chroma sampling3	4:4:4, 4:2:2
Color bit depth2,3	8, 10, or 12 bits per color
Signal Type	HDMI 2.0, HDCP 2.3
Max. video data rate	18.0 Gbps
NOTE     1Supports lossless 4K video over one fiber or uncompressed 4K video over two fibers. 2Supports 12-bit color bit depth for uncompressed 4K video over two fibers. When using a FOX3 SR scaling receiver, the scaler must be in bypass mode to pass 4K video with a 12-bit color bit depth. 3Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
NOTE     This product contains Class 1 laser. It meets the safety regulation of IEC 60825-1, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.
Optical fiber interconnection between transmitter and receiver
Number/type	1 or 2 SFPs
Connectors	1, 2, or 3 LC connectors
Operating distance
Singlemode	20 km (12.4 miles) with singlemode (SM) cables
Multimode	500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables
NOTE     The system works with OM1, OM2, and OM3 fiber at reduced distances.
NOTE     Operating distance is approximate. These are typical maximum distances that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
Nominal peak wavelength	850 nm for multimode, 1310 nm for singlemode
Data rate	10.0 Gbps (1 fiber) or 20.0 Gbps (2 fibers)
Transmission power
Singlemode	-5.2 dBm, minimum
Multimode	-2.8 dBm, minimum
Maximum receiver sensitivity
Singlemode	-12.6 dBm, maximum
Multimode	-11.1 dBm, maximum
Optical loss budget
Singlemode	+7.4 dB, maximum
Multimode	+8.3 dB, maximum
Video
Maximum data rate	18.0 Gbps (6.0 Gbps per color)
Maximum pixel clock	594 MHz
Resolution range	640x4808 up to 4096x21601,2,3,4,5,6,7,8, 480p7,8, 576p6, 720p3,4,5,6,7,8,9, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8,9, 2K1,2,3,4,5,6,7,8, 3840x21601,2,3,4,5,6,7,8, 4096x21601,2,3,4,5,6,7,8 123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz, 9120 Hz
Frame rate	24, 25, 30, 50, 60, or 120 fps
Color space	4:4:4, 4:2:2
Color bit depth	8, 10, and, 12 bits per color
Standards	HDMI 2.0, HDCP 2.3
Horizontal frequency	24 kHz to 135 kHz for resolutions up to 18 Gbps
Vertical frequency	24 Hz to 120 Hz for resolutions up to 18 Gbps
Format	RGB and YCbCr digital video
NOTE     HDMI protocol exceptions: Consumer Electronics Control (CEC) signaling across the HDMI interface is not supported. Ethernet signal transport is not supported (HDMI pin 14 is not connected). Return Audio channel (ARC) is not supported (HDMI pin 14 is not connected).
Video input and loop out
Number/signal type	1 HDMI input 1 HDMI loop out
Connectors	1 female HDMI input type A 1 female HDMI loop out type A
Power for active cables	1.1 W max. for the HDMI port
Audio
Gain	Unbalanced output: -6dB; balanced output: 0 dB (default)
Frequency response	20 Hz to 20 kHz, ±0.5 dB
THD + Noise	<0.1% @ 20 Hz to 20 kHz at nominal level
S/N	>90 dB at maximum output (unweighted)
CMRR	65 dB @ 20 Hz to 20 kHz
Stereo channel separation	>80 dB @ 1 kHz
Bit depth	16, 20, 24
Sampling rate	48 kHz
Audio input
Number/signal type	1 digital audio, de-embedded from HDMI or 1 analog stereo, balanced/unbalanced
Connectors	1 female HDMI (shared with video input) (1) 3.5 mm captive screw connector, 5 pole
Impedance	≥10 k ohms unbalanced, ≥20 k ohms balanced
Nominal level	+4 dBu (1.23 Vrms), -10 dBV (316 mVrms)
Maximum level	+21  dBu balanced, +15 dBu unbalanced
Source formats	2 CH LPCM
Gain range	Adjustable, - 18 dB to +24 dB, 1 dB steps
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Audio return output
Number/signal type	1 analog stereo, balanced/unbalanced
Connectors	(1) 3.5 mm captive screw connector, 5 pole
Impedance	50 ohms unbalanced; 100 ohms balanced (analog only)
Maximum level (Hi-Z)	+21 dBu balanced, +15 dBu unbalanced
Gain error	±0.5 dB channel to channel
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Communications
USB configuration port
Number/type	1 front panel mini USB B, female
Standard	Ethernet over USB
Serial host control port
Control	1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins are used), rear panel
Pass-through	1 RS-232, 3.5 mm captive screw connector, 5-pole (3 pins are used), rear panel
Baud rate and protocol
Control	9600 baud, 8 data bits, 1 stop bit, no parity
Pass-through	9600 to 115,200 baud
Serial control pin configuration	Captive screw: 1 = Tx, 2 = Rx, 3 = GND
IR control port	(1) 3.5 mm captive screw connector, 5 pole (connector is shared with RS-232 pass thru) TTL level (0 to 5V) modulated infrared control from 30 kHz to 56 kHz
IR control pin configuration	3 = GND, 4 = IR Tx, 5 = IR Rx
Ethernet control
Ethernet port	1 RJ-45 connector, female
Ethernet data rate	10/100/1000Base-T, half/full duplex with autodetect
Protocols	ARP, ICMP (ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP
Default settings	Link speed and duplex level = autodetected IP address = 192.168.254.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off
Program control	Extron Product Configuration Software Extron Simple Instruction Set (SIS™)
USB extension
Standards	USB 2.0 (FOX3 T 301 models only), USB 1.1
Host support	xHCI (USB 3.2 Gen 1/2, USB 3.1 Gen1/2, USB 3.0) (FOX3 T 301 models only),  EHCI (USB 2.0) (FOX3 T 301 models only), OHCI/UHCI (USB 1.1)
Data rates	Low speed (1.5 Mbps), full speed (12 Mbps),  high speed (480 Mbps) (FOX3 T 301 models only)
Data transfer types	Bulk, control, interrupt, and isochronous
NOTE     Extron strongly recommends compatibility testing while designing, and before installing, any system that includes a USB camera. There are several unique transport methods in use by USB camera manufacturers and the level of support is governed by this. Please contact an Extron Applications Engineering for more information.
USB host ports
FOX3 T 301
Number/signal type	1-port USB HID 1-port USB 2.0
Connectors	2 USB type B, female
Maximum built-in USB hubs	0
Minimum built-in USB hubs	0
FOX3 T 311
Number/signal type	1-port USB HID
Connector	1-port USB type B, female
Maximum built-in USB hubs	0
Minimum built-in USB hubs	0
NOTE     When configured endpoint to endpoint, there are 0 hubs. When configured with a FOX3 Matrix, there is 1 hub.
General
Power supply	Internal Input: 100-240 VAC, 50-60 Hz
Power consumption	23.3 watts
Ambient temperature/humidity	Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing
Cooling	Fan, air flows from front to rear (vented)
Thermal dissipation	78.3 BTU/hr
Mounting
Rack mount	Yes, with optional rack shelf
Furniture mount	Yes, with optional under desk mounting kit
Enclosure type	Metal
Enclosure dimensions	1.7" H x 8.75" W x 8.5" D (half rack wide) (4.4 cm H x 22.2 cm W x 21.6 cm D) (Depth excludes connectors.)
Product weight	2.4 lbs (1.1 kg)
Regulatory compliance	CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE.
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6333-D8)
