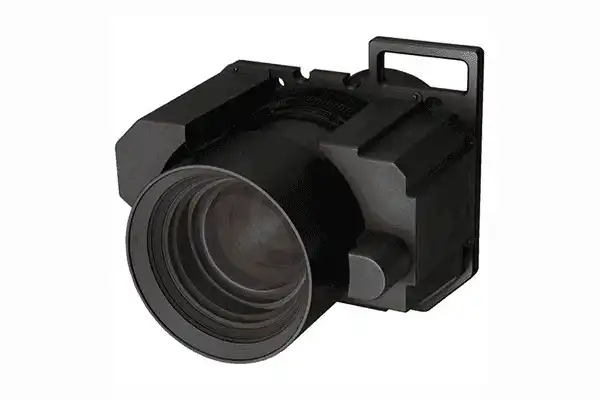

Epson ELPLL09 – Long-Throw Zoom Projector Lens

Product Overview

The Epson ELPLL09 is a long-throw zoom projector lens engineered for Epson Pro L-Series large-venue laser projectors. With a 4.79–7.20 throw ratio, this long-throw zoom lens places sharp, large images on screen from a substantial projector-to-screen distance. It is an interchangeable lens built for the Pro L25000U platform, supporting screen sizes up to 1000 inches in deep auditoriums and rear-of-house booths.

Product Description

The ELPLL09 (Long-Throw Zoom #1) offers a throw ratio of 4.79 to 7.20 referenced to a 200-inch screen, making it suited to installations where the projector is mounted well back from the screen. As an interchangeable lens for the Pro L-Series, it lets a single chassis serve long-throw applications such as rear projection booths and arena catwalks. The lens supports screen sizes up to 1000 inches and provides vertical lens shift of +55% and horizontal lens shift of +/-25% for accurate alignment from extreme mounting positions. Its F-number ranges from 2.1 to 2.6 across the zoom range. This optic is commonly specified for large auditoriums, deep concert halls, houses of worship with balcony mounts, and rental and staging crews covering arena-scale events. It is compatible with the Epson Pro L25000U large-venue laser projector platform. Integrators can review the full Epson projector lineup to match the appropriate chassis, including the Pro L30000UNL, or step down to the Pro L20000UNL platform for lower-output requirements.

Key Features

• Long-throw zoom range — 4.79 to 7.20 throw ratio (200-inch reference) for projection from long distances.
• Interchangeable lens design — Swaps onto a compatible Pro L-Series chassis for long-throw deployments.
• Large screen support — Projects images up to 1000 inches for large-venue applications.
• Vertical lens shift +55% — Supports image positioning from elevated or rear mounting points.
• Horizontal lens shift +/-25% — Allows off-axis placement and precise alignment.
• F-number 2.1 to 2.6 — Defined optical characteristics across the zoom range.
• Large-venue compatibility — Designed for the Epson Pro L25000U laser projector platform.

Typical Applications

• Arenas and large sports venues with rear-of-house projection
• Deep auditoriums and concert halls projecting from a rear booth
• Houses of worship with long throw distances and balcony mounts
• Rental and staging for arena-scale general sessions
• Large lecture halls requiring rear-mounted projection

Technical Specifications

Specifications sourced from Epson's official documentation.

Frequently Asked Questions

Which projectors does the ELPLL09 fit?
It is an interchangeable long-throw lens for the Epson Pro L25000U large-venue laser projector platform.

What is the throw ratio?
The ELPLL09 offers a long-throw zoom range of 4.79 to 7.20, referenced to a 200-inch screen.

What screen size does it support?
It supports screen sizes up to 1000 inches, depending on projector placement and room geometry.

How much lens shift is available?
Vertical lens shift is +55% and horizontal lens shift is +/-25%, supporting alignment from elevated or rear mounts.

Can the lens be swapped on-site?
Yes. It is an interchangeable lens designed for installation on the compatible Pro L-Series projector.

Is it suitable for large-venue installations?
Yes. The long-throw range targets arenas, deep auditoriums, and houses of worship using Epson's Pro L-Series large-venue laser projectors.
