Epson ELPMB59 – Rigging Frame for Pro L1000

Product Overview

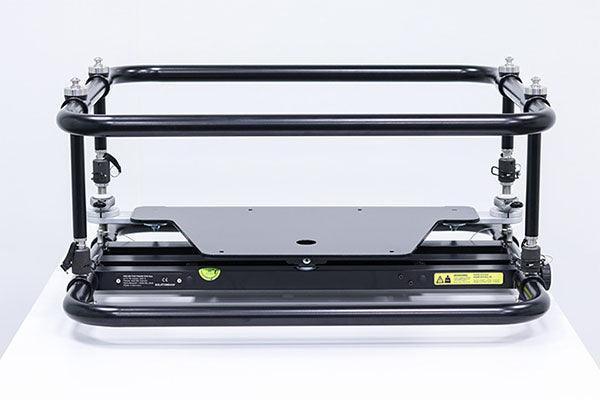

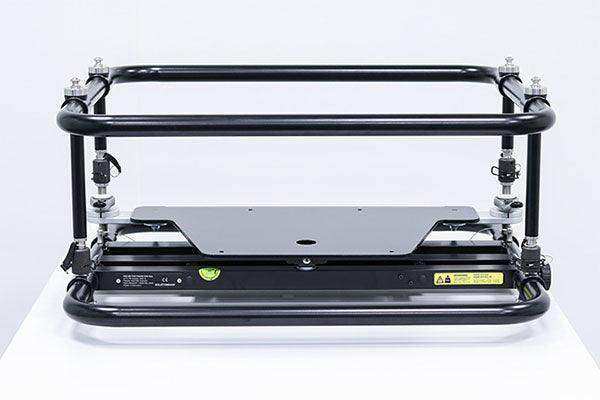

The Epson ELPMB59 stacking and rigging frame, engineered by LANG, is the dedicated rigging frame for the Epson Pro L1000 Series and EB-P Series large-venue projectors. It protects projectors during transport, simplifies handling on the install site, and supports stacking up to three units for high-brightness blended projection. Built-in 3-axis adjustment lets integrators register images precisely when stacking or blending. This Epson rigging frame for Pro L1000 Series projectors is built for both fixed installs and live-event rigging.

Product Description

The ELPMB59 is the factory-matched rigging frame for the Epson Pro L1000 Series, and it is also compatible with the Epson EB-P Series. The frame encloses the projector in a defined structure that makes the chassis easier to handle, position, and secure during a fixed install or a temporary stage rig. Integrators can stack up to three projectors using the frame, a common requirement for super-bright stacking applications such as projection mapping and large auditorium projection. The frame provides tilt, horizontal, and vertical adjustment, allowing fine image registration when blending or stacking multiple units. It includes a cabrio mode for easier setup and supports short-throw lens configurations, with the lower frame ring usable on its own when a full enclosure is not required. The assembly measures 28.6 in by 25.3 in by 13.9 in and weighs 30.4 lb, so installers should plan lifting and rigging hardware accordingly. Venues running Epson's highest-output models can reference the related rigging frame for the Pro L25000. Browse the full Epson projector lineup to confirm the correct projector pairing for this frame.

Key Features

• Pro L1000 Series and EB-P Series compatibility — The frame is engineered for the Epson Pro L1000 Series and is also compatible with the EB-P Series.
• Three-projector stacking — Installers can stack up to three projectors for high-brightness blended and stacked projection.
• Built-in 3-axis adjustment — Tilt, horizontal, and vertical adjustments allow precise image registration during alignment and blending.
• Cabrio mode and short-throw support — A cabrio mode eases setup and the frame supports short-throw lens configurations.
• Lower ring usable on its own — The lower frame ring can be used independently when a full enclosure is not needed.
• Transport protection — The frame protects projectors during transport, reducing handling risk between storage and the install site.
• Engineered by LANG — Produced by LANG to Epson specifications for professional rigging and fixed-install use.

Typical Applications

• Large auditoriums and houses of worship running stacked or blended projection
• Live events and stage productions requiring truss-rigged Pro L1000 Series projectors
• Projection mapping using multiple high-output projectors
• Museum and themed-entertainment fixed installs with stacked or redundant units
• Rental and staging inventories transporting Pro L1000 Series projectors between sites

Technical Specifications

Specifications sourced from Epson's official documentation.

Frequently Asked Questions

Which projectors does the ELPMB59 support?
The frame is engineered for the Epson Pro L1000 Series and is also compatible with the Epson EB-P Series.

How many projectors can I stack with this frame?
The frame supports stacking up to three projectors for high-brightness blended and stacked projection.

What is cabrio mode?
Cabrio mode is a configuration that eases setup; the frame also supports short-throw lens use and allows the lower ring to be used on its own.

Can I align the image after the projector is mounted?
Yes. The frame provides built-in tilt, horizontal, and vertical adjustment for precise image registration during blending and stacking.

Is the frame suitable for truss rigging?
The frame is designed for professional rigging and fixed-install use; follow Epson's installation manual and use rigging hardware rated for the combined load.

Does this listing include the projector?
No. The projector is sold separately; this listing is for the rigging frame accessory only.
