Epson ELPMB52 – Stacking and Rigging Frame

Product Overview

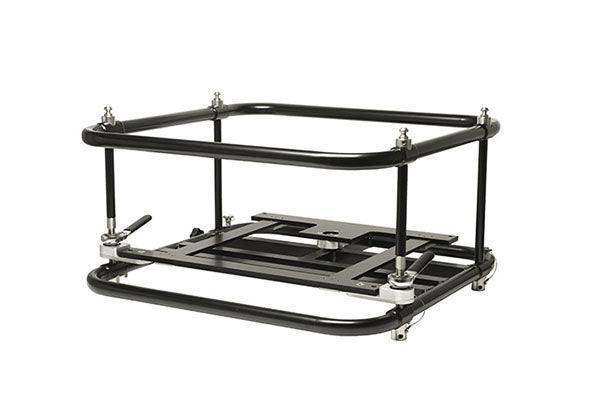

The Epson ELPMB52 stacking and rigging frame, engineered by LANG, is purpose-built for the Epson Pro L25000U large-venue laser projector. This rigging frame protects the projector during transport and simplifies handling throughout the installation process, while supporting projector stacking for high-brightness fixed installs and live event rigging. Built-in 3-axis adjustment lets integrators dial in precise image alignment. It is the dedicated Epson rigging frame for Pro L25000 projector deployments where blended or stacked projection is required.

Product Description

The ELPMB52 is the factory-matched rigging frame for the Epson Pro L25000 series, the platform Epson positions for its highest-output large-venue laser projectors. The frame encloses the projector in a sturdy structure that makes a heavy chassis easier to handle, position, and secure during a fixed install or a temporary stage rig. Integrators can stack up to three projectors using the frame, a common requirement for super-bright stacking applications such as projection mapping and large auditorium projection. The frame provides tilt, horizontal, and vertical adjustment, allowing fine image registration when blending or stacking multiple units. Because the frame carries the projector load through a defined structure, it is well suited to truss-based rigging and ground-stacked configurations alike. The assembly measures 38.2 in by 36.6 in by 20.1 in and weighs 61.7 lb, so installers should plan lifting and rigging hardware accordingly. For venues running the broader Epson large-venue line, the related ELPMB59 rigging frame for the Pro L1000 Series covers lower-output models. Browse the full Epson projector lineup to match the correct projector to this frame. This is an Epson-engineered accessory, so it maintains the mounting interface and load path Epson specifies for the Pro L25000U.

Key Features

• Dedicated Pro L25000U compatibility — The frame is engineered specifically for the Epson Pro L25000U projector, matching its mounting interface and weight distribution.
• Three-projector stacking — Installers can stack up to three projectors in the frame for high-brightness blended and stacked projection applications.
• Built-in 3-axis adjustment — Tilt, horizontal, and vertical adjustments allow precise image registration during alignment and blending.
• Transport protection — The frame protects the projector during transportation, reducing handling risk between storage, staging, and the install site.
• Easier handling — The sturdy frame structure gives installers defined handling points, making a heavy projector chassis easier to lift and position.
• Engineered by LANG — The frame is produced by LANG to Epson specifications for professional rigging and fixed-install use.

Typical Applications

• Large-venue auditoriums and houses of worship running stacked or blended projection
• Live events and stage productions requiring truss-rigged large-venue projectors
• Projection mapping installations using multiple high-output projectors
• Museum and themed-entertainment fixed installs with redundant or stacked units
• Rental and staging inventories that transport Pro L25000U projectors between sites

Technical Specifications

Specifications sourced from Epson's official documentation.

Frequently Asked Questions

Which projector does the ELPMB52 support?
The ELPMB52 is engineered for the Epson Pro L25000U large-venue laser projector and matches that chassis's mounting interface.

How many projectors can I stack with this frame?
The frame supports stacking up to three projectors, which is common for high-brightness blended and stacked projection.

Can I align the image after the projector is in the frame?
Yes. The frame provides built-in tilt, horizontal, and vertical adjustment for precise image registration during blending and stacking.

Is the frame suitable for truss rigging?
The frame is designed for professional rigging and fixed-install use; integrators should follow Epson's installation manual and use appropriate rigging hardware rated for the combined load.

How heavy is the frame itself?
The frame weighs 61.7 lb and measures 38.2 in by 36.6 in by 20.1 in, so plan lifting and rigging accordingly.

Does the frame include the projector?
No. The projector is sold separately; this listing is for the rigging frame accessory only.
