Epson ELPLX02WS – Ultra Short-Throw Lens, White

Product Overview

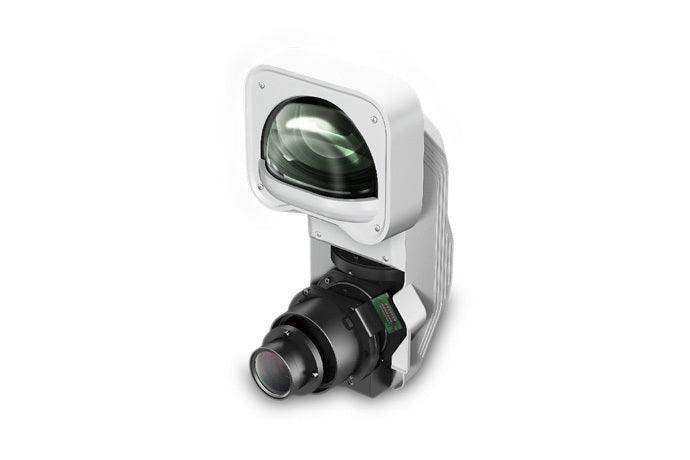

The Epson ELPLX02WS is an ultra short-throw projector lens in a white housing, engineered for Epson Pro Series laser projectors rated 9,000 to 20,000 lumens. With a 0.35 throw ratio and zero-offset design, this UST lens produces very large images from a short projector-to-screen distance. The white finish pairs with white Pro Series chassis for stealth and ceiling installations, making it a strong fit for projection mapping, rear projection, and low-ceiling large-venue installs.

Product Description

The ELPLX02WS delivers a 0.35 throw ratio at WUXGA resolution (0.34 at native 4K), allowing supersized images to be produced from a short distance. It supports a projected image range of 100 inches to 1000 inches, with an F-number of 1.9 and an 8mm focal length. The white housing is matched to white Pro Series projectors so the optic blends into ceiling and stealth mounts where only the lens protrudes. Wide lens shift, with a vertical range of +45% to +70% and a horizontal range of -15% to +15% at WUXGA, supports precise image placement without moving the chassis. The unique zero-offset design maximizes the projected display size in low-ceiling spaces, and the integrated mount point for the optional Epson ELPEC01 external camera enables auto color calibration, screen matching, tiling assist for edge blending, and stacking assist. This lens is compatible with Epson Pro Series laser projectors from 9,000 to 20,000 lumens, including the EB-PU2220B 20,000-lumen laser projector and the EB-PU2010B laser projector. Note that it does not work with the Pro L25000 or Pro L30000 Series. Integrators can compare the full Epson projector lineup to match the appropriate chassis. A black version is also available for darker installations.

Key Features

• White housing for stealth installs — Matches white Pro Series projectors and blends into ceiling mounts with only the lens protruding.
• Ultra short-throw 0.35 throw ratio — 0.35 at WUXGA and 0.34 at native 4K, producing very large images from a short distance.
• Zero-offset design — Maximizes projected display size in low-ceiling applications while minimizing shadows and obstructions.
• Wide lens shift — Vertical +45% to +70% and horizontal -15% to +15% at WUXGA for precise placement.
• Large screen coverage — Projects images from 100 inches up to 1000 inches.
• F-number 1.9, focal length 8mm — Defined optical characteristics for predictable installation planning.

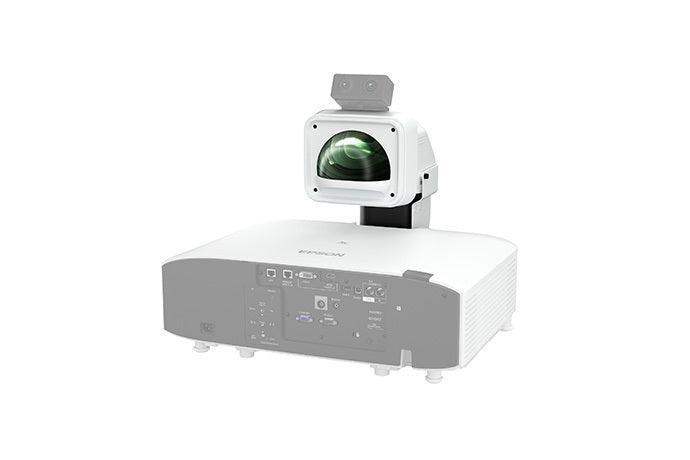

• ELPEC01 camera mount point — Enables auto color calibration, screen matching, tiling assist for edge blending, and stacking assist.
• 9,000 to 20,000 lumen compatibility — Designed for Epson Pro Series laser projectors in that output range.

Typical Applications

• Stealth ceiling installations where only the lens is visible
• Rear-projection cabinets and low-ceiling large-venue rooms
• Projection mapping onto walls and irregular surfaces in tight quarters
• Museum and experiential exhibits with white-finished equipment
• Rental and staging on Epson Pro Series 9k–20k lumen laser platforms
• Houses of worship and corporate atriums with constrained placement

Technical Specifications

Specifications sourced from Epson's official documentation.

Frequently Asked Questions

Which projectors does the ELPLX02WS fit?
It works with Epson Pro Series laser projectors from 9,000 to 20,000 lumens, such as the EB-PU2220B and EB-PU2010B. It does not work with the Pro L25000 or Pro L30000 Series.

What screen size can this lens produce?
The ELPLX02WS supports projected images from 100 inches up to 1000 inches, depending on the projector and installation geometry.

Why choose the white version?
The white housing matches white Pro Series projectors and blends into ceiling and stealth installations where only the lens protrudes.

Can it be used for rear projection?
Yes. The 0.35 throw ratio and zero-offset design make it well suited to rear-projection and low-ceiling applications.

Does it support edge blending and projector stacking?
Yes. With the optional Epson ELPEC01 external camera mounted, you can access tiling assist for edge blending and a stacking assist function.

Is this lens suitable for large-venue installations?
Yes. It is engineered for Epson Pro Series large-venue laser projectors used in auditoriums, houses of worship, and projection-mapping deployments.
