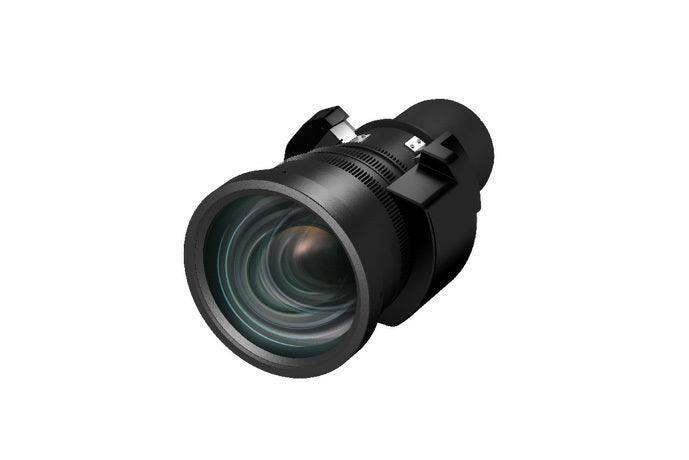

Epson ELPLW08 – Wide Zoom Projector Lens

Product Overview

The Epson ELPLW08 is a wide zoom projector lens engineered for high-lumen Epson Pro L-Series laser projectors. With a 0.86–1.21 throw ratio on 9,000 to 20,000 lumen WUXGA models, this wide zoom lens delivers large images from a short to moderate distance with wide lens shift for positioning flexibility. It is an interchangeable lens supporting screen sizes up to 1000 inches across rental and staging, auditoriums, and large-venue fixed installs.

Product Description

The ELPLW08 is a wide-throw zoom lens with a zoom ratio of 1 to 1.4, designed for 12,000-lumen and higher Epson Pro L projectors while remaining compatible across the broader Pro L line up to 20,000 lumens and the Pro G7000 Series. On 9,000 to 20,000 lumen WUXGA projectors it delivers a 0.86 to 1.21 throw ratio with lens shift of vertical -60% to +60% and horizontal -18% to +18%. On native 4K projectors the throw ratio is 0.83 to 1.17 with vertical shift -58% to +58% and horizontal -16% to +16%, and on projectors up to 8,500 lumens (WUXGA/WXGA) it covers a 1.18 to 1.66 throw ratio with vertical shift -67% to +67% and horizontal -30% to +30%. The lens supports screen sizes up to 1000 inches, with an F-number of 2.0 to 2.2 and a focal length of 19.77mm to 27.5mm. As an interchangeable lens, it lets a single chassis be re-tasked across venues. It is compatible with Epson Pro L large-venue laser projectors such as the EB-PU2220B 20,000-lumen laser projector and the EB-PU2010B laser projector. Integrators can review the full Epson projector lineup to match the appropriate chassis.

Key Features

• Wide zoom range — 0.86 to 1.21 throw ratio on 9k–20k lumen WUXGA models for large images at short to moderate distances.
• Multi-platform throw coverage — 1.18 to 1.66 on up-to-8,500-lumen models and 0.83 to 1.17 on native 4K projectors.
• Wide lens shift — Up to vertical -67% to +67% and horizontal -30% to +30% depending on projector, for positioning flexibility.
• Zoom ratio 1–1.4 — Adjustable image size without moving the projector body.
• F-number 2.0–2.2, focal length 19.77–27.5mm — Defined optical characteristics for predictable planning.
• Large screen support — Projects images up to 1000 inches.
• Broad compatibility — Designed for high-lumen Pro L projectors up to 20,000 lumens and Pro G7000 Series.

Typical Applications

• Rental and staging on high-lumen Epson Pro L laser platforms
• Auditoriums and large lecture halls needing wide coverage
• Houses of worship and corporate general sessions
• Projection mapping requiring wide lens shift
• Large-venue fixed installs across WUXGA and native 4K chassis

Technical Specifications

Specifications sourced from Epson's official documentation.

Frequently Asked Questions

Which projectors does the ELPLW08 fit?
It is an interchangeable lens for Epson Pro L large-venue laser projectors up to 20,000 lumens and the Pro G7000 Series, including models such as the EB-PU2220B and EB-PU2010B.

What is the throw ratio?
It depends on the projector: 0.86 to 1.21 on 9k–20k lumen WUXGA models, 0.83 to 1.17 on native 4K, and 1.18 to 1.66 on models up to 8,500 lumens.

What screen size does it support?
The ELPLW08 supports screen sizes up to 1000 inches, depending on projector placement and room geometry.

How much lens shift is available?
Lens shift varies by projector, reaching as wide as vertical -67% to +67% and horizontal -30% to +30% on up-to-8,500-lumen models.

Can the lens be swapped on-site?
Yes. It is an interchangeable lens designed for installation on compatible Pro L and Pro G7000 Series projectors.

Is it suitable for large-venue installations?
Yes. It is engineered for high-lumen Epson Pro L laser projectors used in auditoriums, houses of worship, and projection-mapping deployments.
