Epson EB-PU2120W – 20,000-Lumen WUXGA Laser Projector

Product Overview

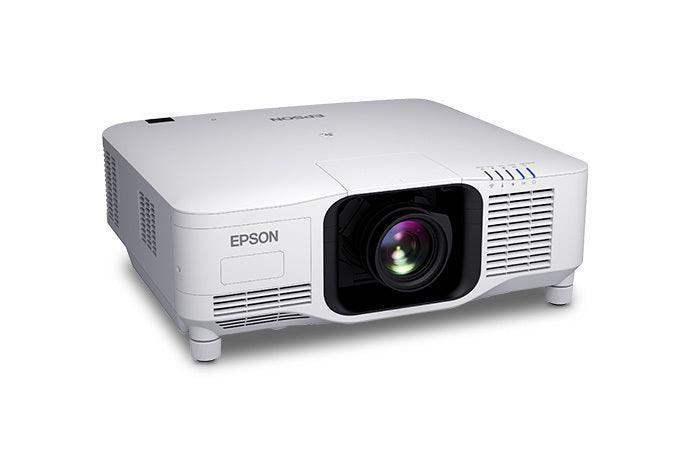

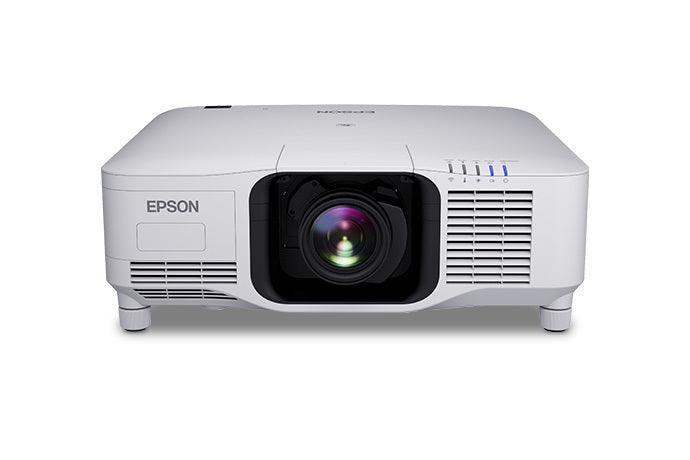

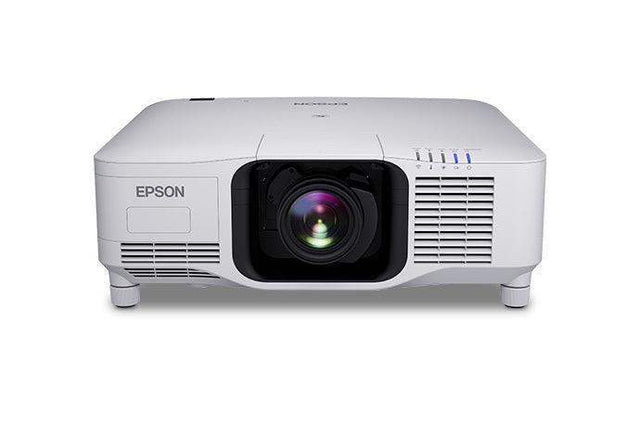

The Epson EB-PU2120W is a compact white-finish large-venue laser projector delivering 20,000 lumens of color and white brightness for auditoriums, arenas, rental and staging, and projection mapping. As a 3-chip 3LCD interchangeable lens laser projector with native WUXGA resolution and 4K Enhancement, it ships without a lens and pairs with nine optional powered lenses. HDBaseT and a 20,000-hour laser light source support demanding commercial deployment.

Product Description

The EB-PU2120W packs 20,000 lumens into one of the smallest and lightest chassis in its class, making it practical to rig where larger 20K projectors will not fit. The no-lens, white-finish design blends into bright venues and exposed ceilings, and powered zoom, focus, and lens shift (vertical ±60%, horizontal ±18%) allow precise placement with optional lenses, including a zero-offset ultra-short-throw option. Edge blending, screen matching, tiling assist, and stacking assist support multi-projector blends for AV system designers.

A 449–461 nm laser light source rated up to 20,000 hours (30,000 hours in Extended mode), a sealed optical engine, and a 2,500,000:1 dynamic contrast ratio hold calibrated output across long duty cycles. Connectivity spans HDMI, DVI-D, and HDBaseT for single-cable signal and control. To reach full 20,000-lumen output, this model uses a 220 V power source; it operates at slightly reduced brightness on 120 V. It supports 360° and portrait installation.

Consider the black-finish EB-PU2220B, the 16,000-lumen EB-PU2116W, add the PixAlign ELPEC01 camera, and browse the full Epson projector lineup.

Note: lens, camera, and mount accessories sold separately; this projector ships without a lens.

Key Features

• 20,000 lumens color and white brightness — Drives large screens and projection-mapping surfaces in bright environments.
• Compact, lightweight chassis — One of the smallest 20,000-lumen 3LCD projectors, easing rigging in tight spaces.
• Native WUXGA with 4K Enhancement — 3-chip 3LCD panels with pixel-shifting render high-detail data and video.
• 20,000-hour laser light source — Sealed engine reduces lamp swaps and service trips across long install lifecycles.
• Nine optional powered lenses — No-lens design lets integrators specify ultra-short-throw to long-throw optics, with ±60% vertical lens shift.
• HDBaseT connectivity — Single-cable signal and control for clean, reliable runs in fixed installs.
• Multi-projector toolset — Edge blending, stacking, tiling, and screen matching for combined displays.

Typical Applications

• Auditoriums and arenas
• Rental and staging / live events
• Projection mapping and themed entertainment
• Houses of worship
• Large commercial meeting spaces and all-hands rooms

Technical Specifications

Specifications sourced from Epson's official EB-PU2220 series specification sheet.

Frequently Asked Questions

Does the EB-PU2120W include a lens?
No. It ships without a lens so you can select from nine optional powered lenses, including a zero-offset ultra-short-throw option, to match your throw distance.

Why does it specify a 220 V power source?
Full 20,000-lumen output requires a 220 V supply; on a 120 V source the projector operates at slightly reduced brightness. Plan circuits accordingly for fixed installs.

Can I blend or stack multiple units?
Yes. Edge blending, screen matching, tiling assist, and stacking assist support multi-projector arrays; add the PixAlign ELPEC01 camera for automated alignment.

What signal and control inputs does it support?
HDMI, DVI-D, and HDBaseT for single-cable video and control, with networked control for AV system integration.

What mounting orientations are supported?
It supports 360° and portrait installation for stage, ceiling, and floor rigging with a compatible Epson mount (sold separately).

Is it covered by a warranty?
Yes. It is backed by Epson's commercial limited warranty; contact us for current coverage and extended service options.
