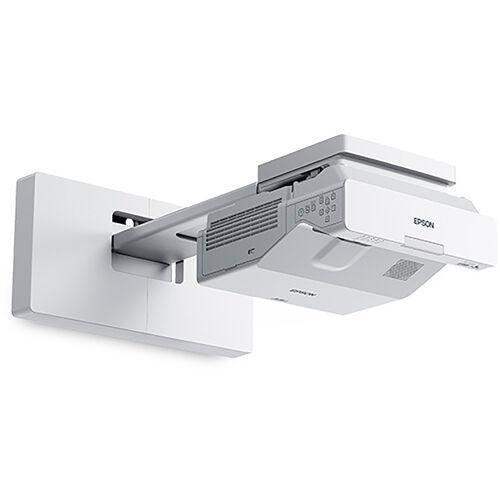

Epson BrightLink 1485Fi – Interactive Laser Display

Product Overview

The Epson BrightLink 1485Fi (V11H919520) is a 1080p 3LCD interactive ultra-short-throw laser display built for classrooms, training rooms, and conference rooms. This interactive laser projector delivers 5,000 lumens of equal color and white brightness and supports finger touch and pen interactivity for up to eight collaborators at once. It projects a 100-inch 16:9 image or a super-wide 120-inch 16:6 image, providing up to 95 percent more interactive whiteboarding space than a 75-inch flat panel. With a maintenance-free laser light source and broad connectivity, it suits AV deployments that need durable, collaborative front-of-room displays.

Product Description

The BrightLink 1485Fi mounts above the writing surface using its ultra-short-throw lens, with a 16:9 throw ratio of 0.27 to 0.37, so presenters work at the board without casting shadows. Interactivity uses infrared technology supporting two pens and six finger touch points across a 65 to 100 inch diagonal interactive area, with automatic or manual calibration to speed installation. The display supports PC-free whiteboarding for drawing, saving, printing, and emailing, and it can host other network-connected BrightLink projectors so up to eight users collaborate on a single canvas from multiple locations. Built-in 5 GHz wireless, Miracast peer-to-peer connectivity, and Epson iProjection software enable multi-device casting in lecture halls and meeting spaces. Connectivity includes three HDMI inputs and an HDBaseT HDMI output for long-distance signal distribution, plus a dual 8 W stereo speaker system. AV integrators frequently compare it with the non-camera Epson BrightLink 1480Fi and the UST interactive Epson BrightLink 770Fi; review the full Epson projector lineup to specify the right interactive display.

Key Features

• Interactive touch and pen — Infrared interactivity supports two pens and six finger touch points for up to eight collaborators at once.
• 5,000-lumen 3LCD output — Equal 5,000 lumens of color and white brightness keep Full HD content readable under classroom and meeting room lighting.
• Ultra-short-throw laser — A 0.27 to 0.37 (16:9) throw ratio mounts close to the board, eliminating presenter shadows.
• Large interactive canvas — Projects up to 100" 16:9 or super-wide 120" 16:6 images, up to 95 percent more interactive space than a 75" flat panel.
• PC-free whiteboarding — Draw, save, print, and email and share whiteboard content across networked BrightLink projectors without a PC.
• Maintenance-free laser — Virtually maintenance-free 20,000-hour laser light source with no lamps to replace.
• Wireless collaboration — Built-in 5 GHz wireless, Miracast, and Epson iProjection enable multi-device content sharing.
• Integration-ready connectivity — Three HDMI inputs plus an HDBaseT HDMI output support long-distance signal distribution and AV control systems.

Typical Applications

• Interactive classroom and lecture hall instruction
• Training room collaboration and whiteboarding
• Conference room and boardroom front-of-room displays
• Huddle room and multi-purpose room collaboration
• Commercial meeting spaces requiring touch interactivity

Technical Specifications

Specifications sourced from Epson's official specification sheet.

Frequently Asked Questions

How many users can interact at once?
Up to eight users can collaborate simultaneously using two pens and six finger touch points, and additional networked BrightLink projectors can share a single interactive canvas.

Does it support finger touch as well as pen?
Yes. Infrared interactive technology supports both pen and finger touch across a 65 to 100 inch diagonal interactive area.

How is it mounted?
It is an ultra-short-throw display with a 16:9 throw ratio of 0.27 to 0.37, designed to mount above the writing surface, typically with the ultra-short-throw wall mount (ELPMB62).

How does it integrate with an AV system?
It offers three HDMI inputs, an HDBaseT HDMI output for long-distance signal runs, LAN, and USB, with built-in 5 GHz wireless and Miracast for casting.

Can it operate without a connected PC?
Yes. It supports PC-free whiteboarding for drawing, saving, printing, and emailing, and can share whiteboard content across networked BrightLink projectors.

Does the laser light source need replacement?
No. The virtually maintenance-free laser light source is rated up to 20,000 hours with no lamps to replace.

Is it suitable for commercial deployment?
Yes. It is designed for education and corporate environments and is backed by Epson's commercial limited warranty.
