Epson BrightLink 1480Fi – Interactive Laser Display

Product Overview

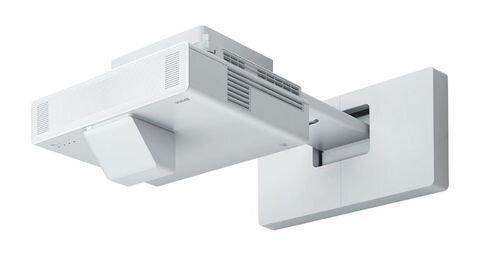

The Epson BrightLink 1480Fi (V11H921520) is a 1080p 3LCD interactive ultra-short-throw laser display for classrooms, training rooms, and conference rooms. This interactive laser projector delivers 5,000 lumens of equal color and white brightness and supports finger touch and pen interactivity for up to eight collaborators with optional touch modules. It projects a 16:9 image up to 100 inches diagonal, providing about 75 percent more interactive whiteboarding space than a 75-inch flat panel. With a maintenance-free laser light source, built-in wireless, and integration-ready connectivity, it suits AV deployments that need durable front-of-room collaboration displays.

Product Description

The BrightLink 1480Fi mounts above the writing surface using its ultra-short-throw lens, with a 16:9 throw ratio of 0.27 to 0.37, keeping presenters out of the light path. Interactivity uses infrared technology supporting two pens and six finger touch points across a 65 to 100 inch diagonal interactive area; optional BrightLink touch modules allow up to eight users to work on a single canvas. The display supports PC-free whiteboarding for drawing, saving, printing, and emailing, and it can share whiteboard content with other network-connected BrightLink 1480Fi and 1485Fi projectors. Built-in wireless LAN (802.11 b/g/n/ac) with free Epson iProjection software lets users connect, display, and share content from multiple devices in lecture halls and meeting spaces. Connectivity includes three HDMI inputs plus an HDMI output for signal distribution, with a dual 8 W stereo speaker system for room audio. AV integrators commonly weigh it against the camera-equipped Epson BrightLink 1485Fi and the UST interactive Epson BrightLink 770Fi; compare interactive options across the full Epson projector lineup.

Key Features

• Interactive touch and pen — Infrared interactivity supports two pens and six finger touch points, with optional touch modules for up to eight collaborators.
• 5,000-lumen 3LCD output — Equal 5,000 lumens of color and white brightness keep Full HD content readable under typical room lighting.
• Ultra-short-throw laser — A 0.27 to 0.37 (16:9) throw ratio mounts close to the board, eliminating presenter shadows.
• Large interactive canvas — Projects a 16:9 image up to 100 inches, about 75 percent more interactive space than a 75-inch flat panel.
• PC-free whiteboarding — Draw, save, print, and email and share whiteboard content across networked BrightLink 1480Fi and 1485Fi projectors without a PC.
• Maintenance-free laser — Virtually maintenance-free 20,000-hour laser light source with no lamps to replace.
• Built-in wireless — Integrated wireless LAN (802.11 b/g/n/ac) with Epson iProjection enables multi-device content sharing.
• Integration-ready connectivity — Three HDMI inputs plus an HDMI output support signal distribution and AV control environments.

Typical Applications

• Interactive classroom and lecture hall instruction
• Training room collaboration and whiteboarding
• Conference room and boardroom front-of-room displays
• Huddle room and multi-purpose room collaboration
• Commercial meeting spaces requiring touch interactivity

Technical Specifications

Specifications sourced from Epson's official specification sheet.

Frequently Asked Questions

How many users can interact at once?
With optional BrightLink touch modules, up to eight users can work on a single interactive canvas using pens and finger touch.

Does it support finger touch as well as pen?
Yes. Infrared interactive technology supports both pen and finger touch across a 65 to 100 inch diagonal interactive area.

How is it mounted?
It is an ultra-short-throw display with a 16:9 throw ratio of 0.27 to 0.37, designed to mount above the writing surface, typically with the ultra-short-throw wall mount.

How does it integrate with an AV system?
It provides three HDMI inputs, an HDMI output for signal distribution, LAN, USB, and integrated wireless LAN (802.11 b/g/n/ac) for networked casting.

Can it operate without a connected PC?
Yes. It supports PC-free whiteboarding for drawing, saving, printing, and emailing, and can share whiteboard content with networked BrightLink 1480Fi and 1485Fi projectors.

Does the laser light source need replacement?
No. The virtually maintenance-free laser light source is rated up to 20,000 hours with no lamps to replace.

Is it suitable for commercial deployment?
Yes. It is designed for education and corporate environments and is backed by Epson's commercial limited warranty.
