Epiphan LiveScrypt

Product Overview

The Epiphan LiveScrypt is a dedicated automatic transcription device that converts live speech to text in real time for display on an in-room confidence monitor or audience-facing display. Built for AV teams that need live event transcription hardware without a human captioner on site, it accepts HDMI, SDI, UVC over USB, and professional analog audio, then returns transcribed text to its 7-inch touchscreen and HDMI output. It is a fast-deploy, network-connected real-time transcription appliance for accessible meetings, lectures, and services.

Product Description

LiveScrypt is a portable, purpose-built appliance that requires only a LAN connection to the internet to operate. The device captures audio from a connected video signal or from its dedicated analog audio inputs, sends that audio to a cloud speech recognition engine over your network, and displays the returned transcript on the built-in 7-inch LCD touchscreen and on any monitor connected to the HDMI output. Operators can choose black-on-white or white-on-black text for readability, enable automatic punctuation, and apply a profanity filter, and the device historically supported a North American Industry Classification System (NAICS) code to improve accuracy for specialized vocabulary.

Note: Epiphan discontinued the LiveScrypt product line and its associated cloud transcription service. Buyers evaluating live transcription should confirm current service availability before purchase. For real-time production, switching, and recording workflows, the device pairs conceptually with Epiphan encoders such as the Pearl-2 and the Pearl Mini, both available in the Epiphan collection.

Key Features

• Real-time transcription — The device transcribes spoken audio as it happens, making it suitable for live events rather than only pre-recorded media.

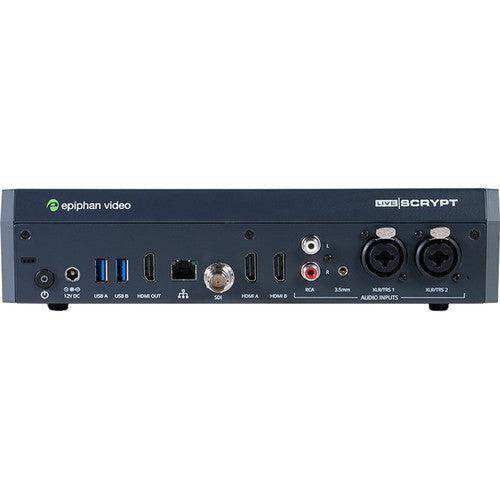

• Professional audio inputs — Balanced XLR/quarter-inch combo, unbalanced RCA, and 3.5mm microphone inputs let you connect directly to a clean feed from the room PA or mixer.
• Flexible video input — HDMI, SDI, and UVC over USB inputs accept embedded audio from a wide range of AV sources.

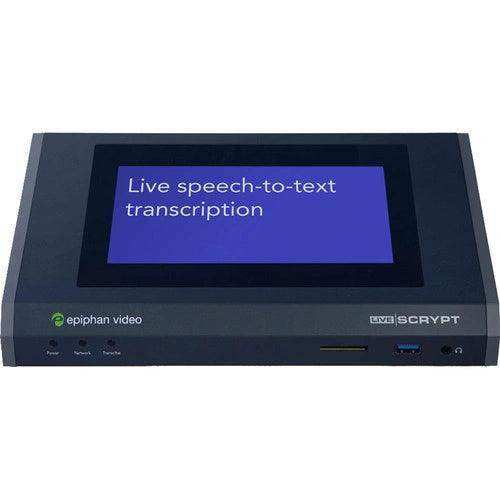

• 7-inch touchscreen control — Operators start, stop, and configure transcription on the built-in LCD without an external computer.
• Audience-facing HDMI output — Transcribed text can be sent to in-room monitors so attendees can read along.
• Readability and filtering controls — Selectable light or dark text display, automatic punctuation, and a profanity filter help tailor output to the venue.
• Fast network setup — A single RJ45 gigabit Ethernet connection and a power source are all that is needed to begin transcribing.
• VESA-mountable form factor — The compact 3.75 lb chassis sits on a desktop or mounts to a VESA bracket for fixed installation.

Typical Applications

• Conference room and boardroom meetings requiring live captions for accessibility
• All-hands and town hall meetings in commercial meeting spaces
• Auditorium presentations and keynote sessions
• House of worship services with live on-screen text
• Training rooms and lecture environments needing real-time speech-to-text
• Government and public meeting spaces with accessibility requirements

Technical Specifications

Frequently Asked Questions

What audio sources can I connect to LiveScrypt?

LiveScrypt accepts embedded audio from HDMI, SDI, and UVC USB video sources, plus dedicated analog audio via balanced XLR/quarter-inch combo jacks, unbalanced RCA, and a 3.5mm microphone input. Feeding it a clean line-level signal from your mixer or PA produces the most accurate results.

How does LiveScrypt fit into an existing AV system?

The device sits between your audio source and your display infrastructure. It takes an audio or video feed in, returns transcribed text on its touchscreen, and outputs that text over HDMI to in-room monitors. It requires a wired gigabit Ethernet connection with internet access to reach the transcription engine.

Does LiveScrypt require a subscription or per-hour service?

LiveScrypt relied on a cloud transcription service that carried a per-hour usage fee. Epiphan has discontinued the LiveScrypt line and its transcription service, so confirm current service availability with the vendor before deploying for live transcription.

How is LiveScrypt installed?

Connect an audio or video source, attach a gigabit Ethernet cable with internet access, apply power, and start transcription from the 7-inch touchscreen. The unit sits on a desktop or mounts to a standard VESA bracket for a fixed install.

What languages and accuracy can I expect?

The device supported a wide range of speech recognition languages and reached approximately 92% real-time accuracy, including for speakers with accents, when supplied with clean audio.

What warranty and support apply?

Warranty and support terms are set by Epiphan and your reseller. Contact Creation Networks for current coverage details and post-discontinuation support options.
