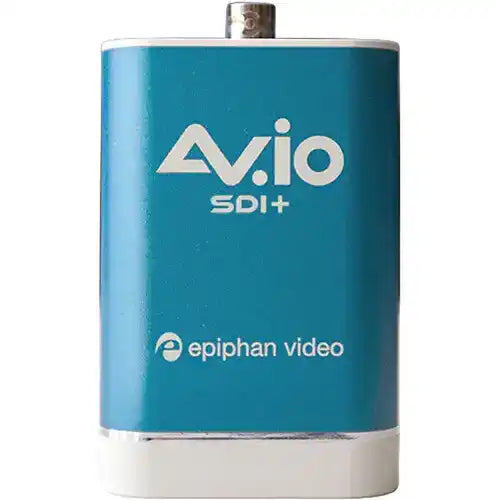

Epiphan AV.IO SDI+ USB Portable Capture Card

Product Overview

The Epiphan AV.io SDI+ is a portable SDI to USB capture card that brings 3G-SDI video and audio into a computer over USB 3.0. Designed for AV professionals and integrators who capture from BNC-equipped cameras, switchers, and audio mixers, it delivers 1080p video to any application that accepts a USB video source. It is a compact, durable SDI USB capture card for live streaming, recording, and conferencing on Windows, macOS, and Linux.

Product Description

The AV.io SDI+ takes video and audio from BNC-compatible SDI cameras and mixers and captures it through a USB 3.0 connection. One BNC input accepts a 3G-SDI signal and one 3.5mm TRS input accepts analog stereo audio from a mixer or external source, while the USB Type-B output delivers up to 1080p video to your computer. The card automatically adjusts the image based on the software in use, maintaining quality even when sources are swapped.

The card is powered over its USB Type-B connection and draws only 250 mA, so no external power supply is needed. It is compatible with Zoom, Microsoft Teams, Wirecast, OBS, and any other program that accepts USB as a video source. Its ultracompact metal housing and single LED status indicator make it well suited to mobile kits and fixed installations alike.

For HDMI sources, compare the AV.io 4K and the AV.io HD+. For internal PCIe SDI and DVI capture, see the DVI2PCIe Duo in the Epiphan collection.

Key Features

• 3G-SDI capture — A single BNC input captures 3G-SDI video for delivery to your computer as a USB source.
• USB 3.0 connection — The USB Type-B output connects to USB 3.0 / 3.1 / 3.2 Gen 1 ports and powers the device, with no external supply required.
• Dual audio paths — Capture embedded SDI audio or connect a 3.5mm TRS analog feed from a mixer or external source.
• Automatic image adjustment — The card adapts its output to the software in use, holding quality steady when switching sources.
• Broad software compatibility — It works with Zoom, Microsoft Teams, Wirecast, OBS, and any application that accepts a USB video source.
• 1080p output — Output reaches 1080p at up to 60 fps across a wide range of supported resolutions.
• Cross-platform support — Compatible with Windows 7 or later, macOS 10.10 or later, and Linux 3.5.0 or later.
• Compact metal housing — A durable, pocketable enclosure with a single LED status indicator suits mobile and fixed use.

Typical Applications

• Broadcast studio SDI capture into streaming and recording PCs
• Conference room and boardroom video conferencing from SDI cameras
• House of worship streaming with SDI camera sources
• Live event production capture for OBS and Wirecast
• Training room and lecture capture from SDI feeds
• Government and commercial meeting space conferencing

Technical Specifications

Frequently Asked Questions

What sources can the AV.io SDI+ capture?

It captures 3G-SDI video through its BNC input and audio either embedded in the SDI signal or through its 3.5mm TRS analog input from a mixer or external source.

Does it need drivers or external power?

No. The card is a USB video source that the operating system detects, and it is powered over its USB Type-B connection, drawing only 250 mA, so no external power supply is needed.

What software is compatible?

Any program that accepts a USB video source works, including Zoom, Microsoft Teams, Wirecast, and OBS.

How does it integrate into an AV system?

Connect an SDI camera or switcher to the BNC input, optionally connect analog audio to the 3.5mm input, and connect the USB Type-B output to a USB 3.0 port on your computer. The card then delivers up to 1080p video to your capture or conferencing software.

What operating systems are supported?

The AV.io SDI+ supports Windows 7 or later, macOS 10.10 or later, and Linux 3.5.0 or later.

What warranty and support apply?

Epiphan AV.io products include a one-year limited warranty with complimentary phone support, with extended SupportPlans available. Contact Creation Networks for current coverage options.
