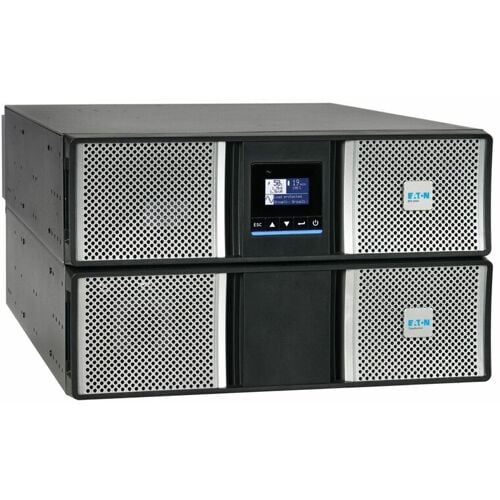

Eaton 9PX3K3UNP1G2 – 3000VA Rack-Mount Online UPS

Product Overview

The Eaton 9PX3K3UNP1G2 is a 3000VA/3000W, 208/120V online double-conversion UPS sized for smaller commercial AV racks, huddle rooms, and network closets. As a 3000VA rack-mount online UPS, it protects video conferencing endpoints, control processors, and switches from blackouts, brownouts, and line noise without the footprint or cost of a larger UPS. It functions as a double-conversion UPS for AV rack installations and a practical 3kVA UPS for huddle room or small conference room deployments where a compact, code-compliant backup power source is needed.

Product Description

Built on Eaton's 9PX G2 online double-conversion platform, the 9PX3K3UNP1G2 continuously regenerates output power so connected loads never experience a transfer gap when utility power fails, the same protection level as the larger units in the 9PX G2 family but scaled for smaller commercial spaces. The unit ships with a 6.5-foot L6-30P input cord and (1) L14-30R, (1) L6-30R, and (6) 5-20R hardwired-style outlets, giving integrators flexibility to power a mix of AV endpoints, small switches, and control processors from one compact 6U rack/tower chassis. This rack-mount UPS for small conference room use is a common fit for huddle rooms, small boardrooms, and network closets that need reliable backup power without the capacity of an 8kVA or 11kVA unit. Hot-swappable, maintenance-free sealed lead-acid batteries and support for up to 12 external battery modules mean the same base unit can be scaled for extended runtime as needs grow, and it is also compatible with Eaton's PowerPass distribution module for facilities that need a dedicated downstream 120V distribution point.

Key Features

• Online Double-Conversion Protection — Delivers continuous, regenerated power with zero transfer time during outages.
• 3000VA/3000W Capacity — Right-sized for smaller AV racks, huddle rooms, and network closets.
• 6.5-Foot L6-30P Input Cord — Simplifies installation into a dedicated 30A circuit without full hardwiring.
• Mixed Outlet Configuration — (1) L14-30R, (1) L6-30R, and (6) 5-20R outlets support a range of AV and networking equipment.
• Hot-Swappable, Maintenance-Free Batteries — Sealed lead-acid batteries can be replaced without powering down the rack.
• 96.4% Online Efficiency, Up to 98.3% High-Efficiency Mode — Reduces heat and operating cost in the equipment rack.
• 6U Rack/Tower Form Factor — Fits standard 19-inch AV rack enclosures.
• Expandable Runtime — Supports up to 12 external battery modules for extended backup time.
• 3-Year Manufacturer Warranty — Backed by Eaton's standard commercial coverage.

Typical Applications

• Huddle room
• Boardroom
• Conference room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Is the 9PX3K3UNP1G2 sized for a huddle room or small conference room?

Yes, at 3000VA/3000W this unit is commonly specified for huddle rooms, small boardrooms, and network closets rather than large consolidated racks.

How is this UPS installed?

It uses a 6.5-foot L6-30P input cord that plugs into a matching 30A receptacle on a dedicated circuit; a licensed electrician should install the receptacle per local code.

Can this UPS support a video conferencing codec and network switch together?

Yes, the mix of L14-30R, L6-30R, and 5-20R outlets supports a range of AV endpoints and networking equipment from a single unit.

Is the 9PXPPDM2G2 PowerPass module compatible with this UPS?

Yes, this UPS is compatible with Eaton's 9PX G2 PowerPass distribution module, available at creationnetworks.net, for dedicated downstream 120V distribution.

What warranty coverage does this UPS carry?

Eaton provides a standard 3-year manufacturer warranty; contact Creation Networks for extended warranty options.

Can runtime be extended beyond the internal battery?

Yes, the platform supports up to 12 external battery modules for facilities that need longer ride-through than the internal battery alone provides.

Does this UPS support remote monitoring integration?

Yes, optional network management cards enable SNMP-based remote monitoring alongside other networked AV and IT equipment.
