Dynacord V600:2-US – 2-Channel 600W Install Power Amplifier

Product Overview

The Dynacord V600:2-US is a 2-channel, 600 W commercial install power amplifier built for background music and clear voice announcements in distributed audio systems. Designed as a compact half-rack 1U amplifier, it suits integrators deploying paging and BGM across retail, hospitality, and education spaces. Its powerTANK technology and Variable Load Drive deliver flexible power into 4 ohm, 8 ohm, 70 V, or 100 V loads on any channel, making it an efficient 70V/100V commercial amplifier for mixed loudspeaker systems. It pairs power sharing with low standby consumption for cost-effective commercial deployment.

Product Description

The V600:2 provides 600 W of total powerTANK capacity distributed flexibly across its two channels, eliminating the need to manually allocate power per zone. Variable Load Drive lets each channel run 4 ohm, 8 ohm, 70 V, or 100 V simultaneously, simplifying high-Z and low-Z distributed audio design without external transformers. ecoRAIL keeps idle power consumption near standby levels while still producing background music output, and Auto Power Down reduces consumption to less than a watt when no signal is present. The dualCOOL thermal design operates convection-cooled in most conditions, engaging an intelligent multi-speed fan only under extreme thermal load for quiet operation in occupied rooms. A single-cable AES72-1E (RJ45) line input simplifies installation by carrying both channels without wiring each connection individually, alongside a 6-pin Euroblock analog input. Onboard signal processing includes input routing, selectable high-pass and low-pass filters, and a peak limiter. A comprehensive protection package and PFC power supply support reliable operation in commercial environments. The V600:2 is part of the broader Dynacord amplifier collection; for higher channel counts, the comparable 4-channel Dynacord V600:4 extends the same platform.

Key Features

• powerTANK Technology — A 600 W reservoir of amplification power deploys flexibly across both channels with no manual per-channel power configuration.
• Variable Load Drive (VLD) — Delivers consistent power into 4 ohm, 8 ohm, 70 V, or 100 V on any channel simultaneously for mixed loudspeaker systems.
• ecoRAIL and Auto Power Down — Maintains background music output at near-standby consumption and drops to less than a watt when no signal is present.
• dualCOOL Thermal Design — Operates convection-cooled in typical use and engages an intelligent multi-speed fan only under extreme thermal conditions.
• AES72-1E Single-Cable Line Input — RJ45 wiring carries both channels for simplified installation without individually wiring each connection.
• Selectable Onboard Filtering — Input routing with 24 dB/Oct high-pass and low-pass filters and a peak limiter tailors output per application.
• Comprehensive Protection Package — High frequency, DC, short circuit, over temperature, over voltage, and current limiters support reliable operation.
• Compact Half-Rack 1U Chassis — At 1.74 x 8.6 x 10.6 in and 4.6 lb, two units mount side by side in a single rack space.

Typical Applications

• Conference rooms and huddle rooms
• Houses of worship
• Multi-purpose rooms
• Commercial meeting spaces
• Training rooms

Technical Specifications

Specifications sourced from the Dynacord V600:2 datasheet. Data subject to change without notice.

Frequently Asked Questions

Can the V600:2 drive 70V and 100V distributed loudspeaker lines?
Yes. Variable Load Drive delivers the same power into 4 ohm, 8 ohm, 70 V, or 100 V on any channel simultaneously, supporting both high-Z and low-Z loudspeaker systems without external transformers.

How does powerTANK distribute power between the two channels?
powerTANK is a 600 W reservoir of amplification power shared flexibly across both channels based on the demand of each zone, with no manual per-channel power setup required.

What input connections does it use for AV system integration?

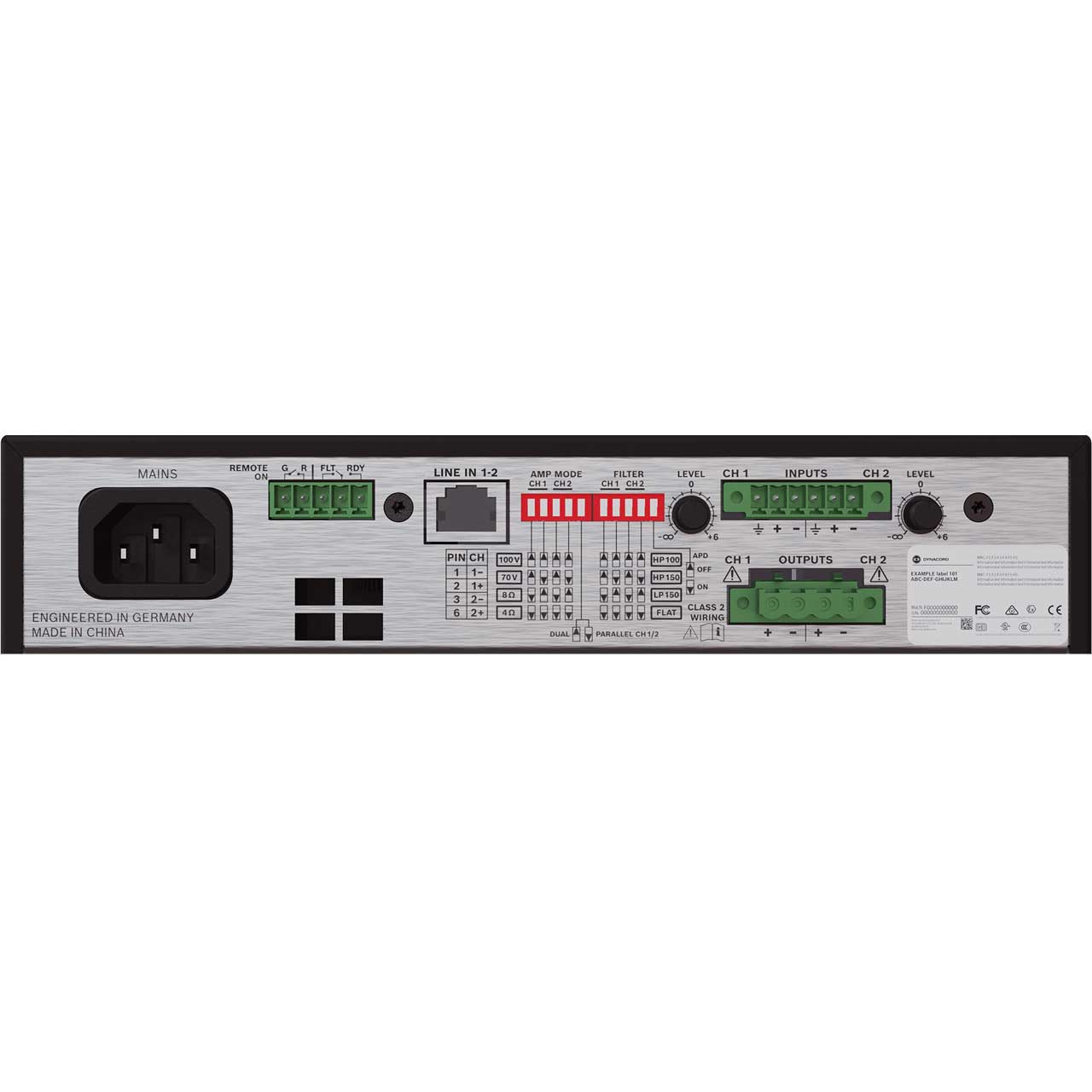

The V600:2 accepts a 6-pin Euroblock analog input and a parallel RJ45 AES72-1E line input, allowing single-cable installation that carries both channels.

Is the V600:2 quiet enough for occupied rooms?
Yes. The dualCOOL design runs convection-cooled in typical conditions and only engages its intelligent multi-speed fan under extreme thermal load, keeping operation quiet in meeting spaces and houses of worship.

How does it reduce power consumption during quiet periods?
ecoRAIL keeps idle consumption below 12 W while still producing background music output, and Auto Power Down lowers standby consumption to less than 1 W when no signal is present.

How much rack space does it require?
The V600:2 is a half-rack 1U chassis measuring 1.74 x 8.6 x 10.6 in and weighing 4.6 lb, so two units fit side by side in a single rack space.

Is there a 4-channel version available?
Yes. For installations needing more channels, the comparable 4-channel Dynacord V600:4 extends the same V600 platform. Browse the full Dynacord collection to compare models.
