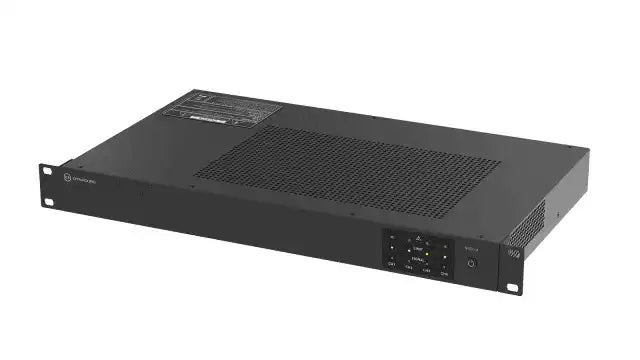

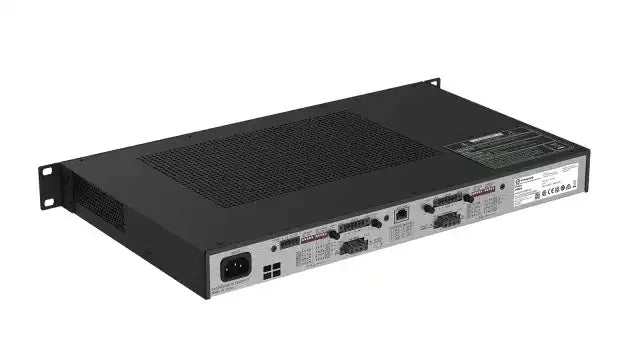

Dynacord V600:4-US – 4-Channel 600W Install Amplifier
Dynacord V600:4-US – 4-Channel 600W Install Amplifier is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Dynacord V600:4-US – 4-Channel 600W Install Amplifier
Product Overview
The Dynacord V600:4-US is a 4-channel, 600W power amplifier for commercial installations running background music and clear voice announcements. Its powerTANK design shares 600 W flexibly across all four channels, while Variable Load Drive (VLD) delivers the same power into 4 Ω, 8 Ω, 70 V, or 100 V loads. In a compact 1RU chassis, this multi-channel install amplifier suits multi-zone commercial audio in houses of worship, conference centers, and government spaces.
Product Description
The Dynacord V600:4 is a 600 W power amplifier with powerTANK technology that flexibly delivers the total power across its four channels, with no per-channel configuration required. Variable Load Drive (VLD) lets each channel run in 4 Ω, 8 Ω, 70 V, or 100 V without compromising available output, so a single 70V/100V power amplifier can serve mixed loudspeaker zones. The amp-LINK single-cable approach is compatible with AES72-1E (RJ45) wiring, simplifying installation across all four channels. dualCOOL thermal design runs the amplifier as a convection-cooled device under normal conditions and engages an intelligent multi-speed fan only in extreme thermal situations. ecoRAIL keeps power consumption near standby levels while still producing background-music output, and Auto Power Down (APD) drops consumption below one watt when no signal is present. A PFC switching power supply and a comprehensive protection package support reliable, continuous operation. Onboard processing includes input routing, selectable high-pass and low-pass filters, and a peak limiter. The Class D output stage and 1RU form factor make the V600:4-US an efficient choice for distributed commercial audio. For DSP-based fixed-install amplifiers, compare the Dynacord C1300FDi and Dynacord C1800FDi, or browse the full Dynacord amplifier collection.
Key Features
- 4-channel, 600 W powerTANK — Shares total power flexibly across channels so each zone draws what it needs without manual setup.
- Variable Load Drive (VLD) — Delivers the same power into 4 Ω, 8 Ω, 70 V, or 100 V on any channel for mixed loudspeaker systems.
- amp-LINK single-cable wiring — AES72-1E (RJ45) input simplifies installation of all four channels without wiring each connection individually.
- dualCOOL cooling — Runs convection-cooled in normal use, engaging an intelligent fan only under extreme thermal conditions.
- ecoRAIL and APD efficiency — Cuts idle draw to under 20 W and standby to under 1 W for low operating cost.
- Class D output stage — High-efficiency amplification in a compact 1RU chassis weighing just 3.6 kg (7.9 lb).
- Onboard processing — Input routing, selectable HPF/LPF filters, and a peak limiter for tuned, protected output.
Typical Applications
- Houses of worship
- Conference rooms and conference centers
- Commercial meeting spaces
- Multi-purpose rooms
- Government and civic spaces
Technical Specifications
| Output Power | 4 Ω | 8 Ω | 70 V | 100 V |
|---|---|---|---|---|
| Rated Output Power | 4 x 150 W | |||
| Max Output per Channel (power sharing, at min. impedance) | 500 W | 600 W | 500 W | 600 W |
| Total Rated Output Power | 600 W | |||
| Number of Channels | 4 |
| Output Stage Topology | Class D, fixed frequency |
| THD+N (1/8 rated output, 1 kHz) | < 0.1% |
| Signal-to-Noise Ratio (A-weighted, ref. rated output) | > 98 dB (4 Ω) to > 103 dB (100 V) |
| Maximum Input Level | +18 dBu |
| Input Impedance (active balanced) | 20 kΩ |
| Analog Audio Input | 2 x 6-pin Euroblock (3.81 mm) + 1 x RJ45 (AES72-1E) |
| Loudspeaker Output | 2 x 4-pin Euroblock (5.08 mm) |
| Control Port | 1 x 5-pin Euroblock (3.81 mm); Remote On/Standby, Ready/Fault relay |
| Signal Processing | Input routing, HPF 24 dB/oct (100/150 Hz), LPF 24 dB/oct (150 Hz), Flat, peak limiter |
| Power Requirements | 100 V to 240 V, 50–60 Hz; PFC switching supply |
| Power Consumption | 115 W (1/8 rated); idle < 20 W (ecoRAIL); standby < 1 W (APD) |
| Cooling | dualCOOL: convection cooling with intelligent fan (side-to-rear) under extreme conditions |
| Ambient Temperature Limits | -5°C to +45°C (+23°F to +113°F) |
| Altitude (operating) | -500 m to +5000 m |
| Dimensions (H x W x D, with brackets) | 44.2 x 483 x 269.5 mm (1RU) |
| Weight | 3.6 kg (7.9 lb) |
| Safety Class | Class I |
Specifications sourced from the Dynacord V600:4 datasheet. Data subject to change without notice.
Frequently Asked Questions
Can the V600:4-US drive 70 V and 100 V loudspeaker lines?
Yes. Variable Load Drive (VLD) lets each channel run in 4 Ω, 8 Ω, 70 V, or 100 V with the same available power, so it can serve mixed low-impedance and constant-voltage zones.
How does powerTANK distribute the 600 W?
powerTANK is a shared reservoir of amplification power deployed flexibly across the four channels. It adapts to each zone automatically, with no per-channel power configuration required.
How is it wired in an installation?
The amp-LINK feature supports AES72-1E (RJ45) single-cable wiring for all four channels, and audio can be daisy-chained to other compatible devices. Inputs and outputs use Euroblock connectors.
Is it energy efficient for always-on systems?
Yes. ecoRAIL keeps idle consumption under 20 W while still producing background-music output, and Auto Power Down (APD) reduces standby consumption to under 1 W.
How much rack space and what cooling does it use?
It is a compact 1RU chassis (44.2 x 483 x 269.5 mm, 3.6 kg) with dualCOOL convection cooling that engages a fan only under extreme thermal conditions.
What warranty and support apply?
Units are covered by the Dynacord manufacturer warranty. Contact the Creation Networks team for warranty terms, system design assistance, and project support.
