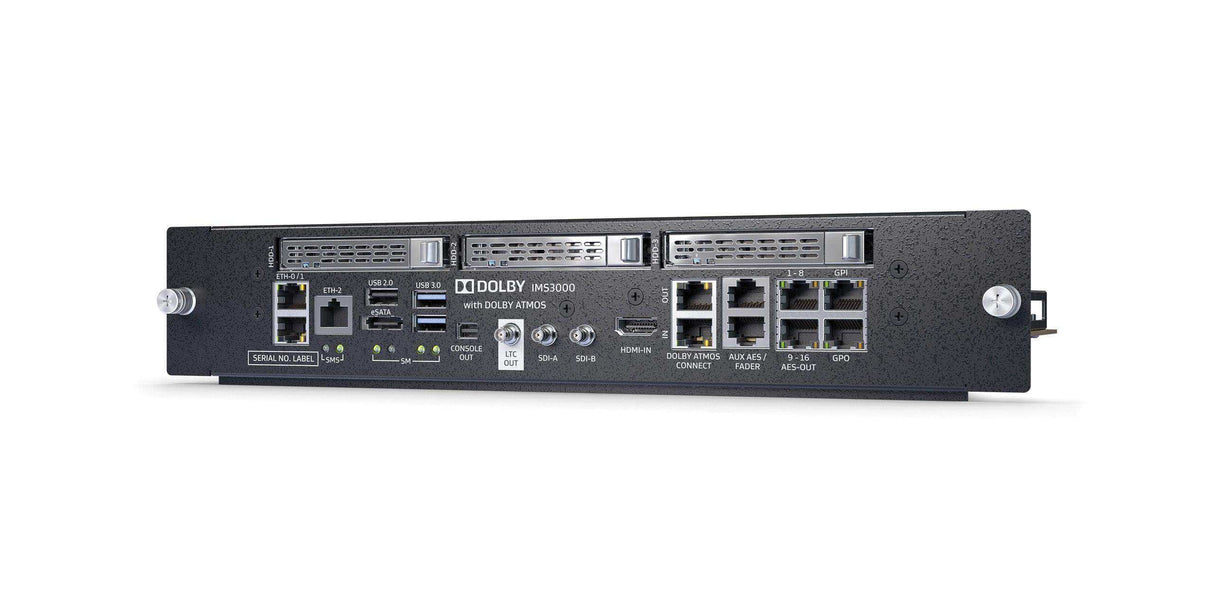

Dolby Professional Integrated Media Server IMS3000

Note: This product is available by quote. Request a quote to discuss configuration and lead time.

Product Overview

The Dolby IMS3000 integrated media server is a DCI-compliant cinema playback server that handles digital cinema package playback in commercial auditoriums. As a single-board digital cinema media server, this integrated media block IMB combines decode, video processing, and optional audio rendering in one cost-effective, scalable unit. It can pair with an external cinema processor up to Dolby Atmos or be field-enabled for standalone internal audio. The IMS3000 is the playback platform for everything from standard auditoriums to cinema LED wall installations.

Product Description

The IMS3000 is an integrated media block IMB built on a single-board design for cost-effective, scalable digital cinema playback. It plays DCI-compliant SMPTE and INTEROP DCPs in JPEG2000, MPEG-2, and H.264 at 2K up to 120 fps and 4K up to 30 fps, with 60 fps on supported projectors and LED displays, at bit rates up to 500 Mbps and 12-bit 4:4:4 XYZ. Onboard video processing covers color-space conversion, deinterlacing, scaling up to 4K, HDMI 2.0 4K60 input with HDCP 2.2, Rec.2020-to-P3 conversion, and 4K-to-2K downscaling. As a cinema playback server, it can pair with an external CP950 or CP950A for audio up to Dolby Atmos, or be field-enabled for standalone internal processing of Dolby Surround 7.1/5.1 and Dolby Atmos rendering up to 64 speakers, including Dolby Digital Plus, Dolby Digital, and TrueHD with a high-resolution multi-rate EQ and internal crossover up to four-way loudspeakers. The server is offered with or without SDI inputs: the IMS3000-NB adds dual 3G-SDI inputs and supports Dual Projector Chase mode, the IMS3000-DS targets single-projector installs, and the IMS3-L-NB serves cinema LED wall applications. Connectivity includes three GbE ports, eSATA, USB 2.0 and 3.0, HDMI 2.0, eight AES-3 audio pairs, a Dolby Atmos Connect output with loopback, GPI/GPO, and LTC output. It is managed through a web-based UI, optional Bluetooth tablet control, and third-party TMS/NOC integration. Security includes DCI-compliant forensic watermarking and FIPS 140-2 Level 3 certification. Hot-swappable drives, play-while-ingest, offline ingest, and a drag-and-drop scheduler support continuous operation in digital cinema auditoriums, premium large-format houses, and screening rooms. Browse the full Dolby Professional collection for matched cinema components.

Key Features

• DCI-compliant DCP playback — The server plays SMPTE and INTEROP DCPs in JPEG2000, MPEG-2, and H.264 at 2K up to 120 fps and 4K up to 30 fps (60 fps on supported displays), at bit rates up to 500 Mbps with 12-bit 4:4:4 XYZ.
• Flexible audio architecture — It pairs with an external CP950 or CP950A up to Dolby Atmos, or can be field-enabled for standalone internal 5.1/7.1 and Atmos rendering up to 64 speakers.
• Onboard 4K video processing — Integrated color-space conversion, deinterlacing, scaling up to 4K, Rec.2020-to-P3 conversion, and 4K-to-2K downscaling handle a range of source formats.
• SDI and LED wall model options — The IMS3000-NB adds dual 3G-SDI inputs and Dual Projector Chase mode, the IMS3000-DS supports single-projector installs, and the IMS3-L-NB targets cinema LED wall applications.
• Comprehensive I/O — Three GbE ports, eSATA, USB 2.0/3.0, HDMI 2.0, eight AES-3 audio pairs, a Dolby Atmos Connect output, GPI/GPO, and LTC output cover integration with projection and automation systems.
• Hot-swappable storage with play-while-ingest — Three hot-swappable drives in RAID 5 and play-while-ingest let staff load content without interrupting scheduled shows.

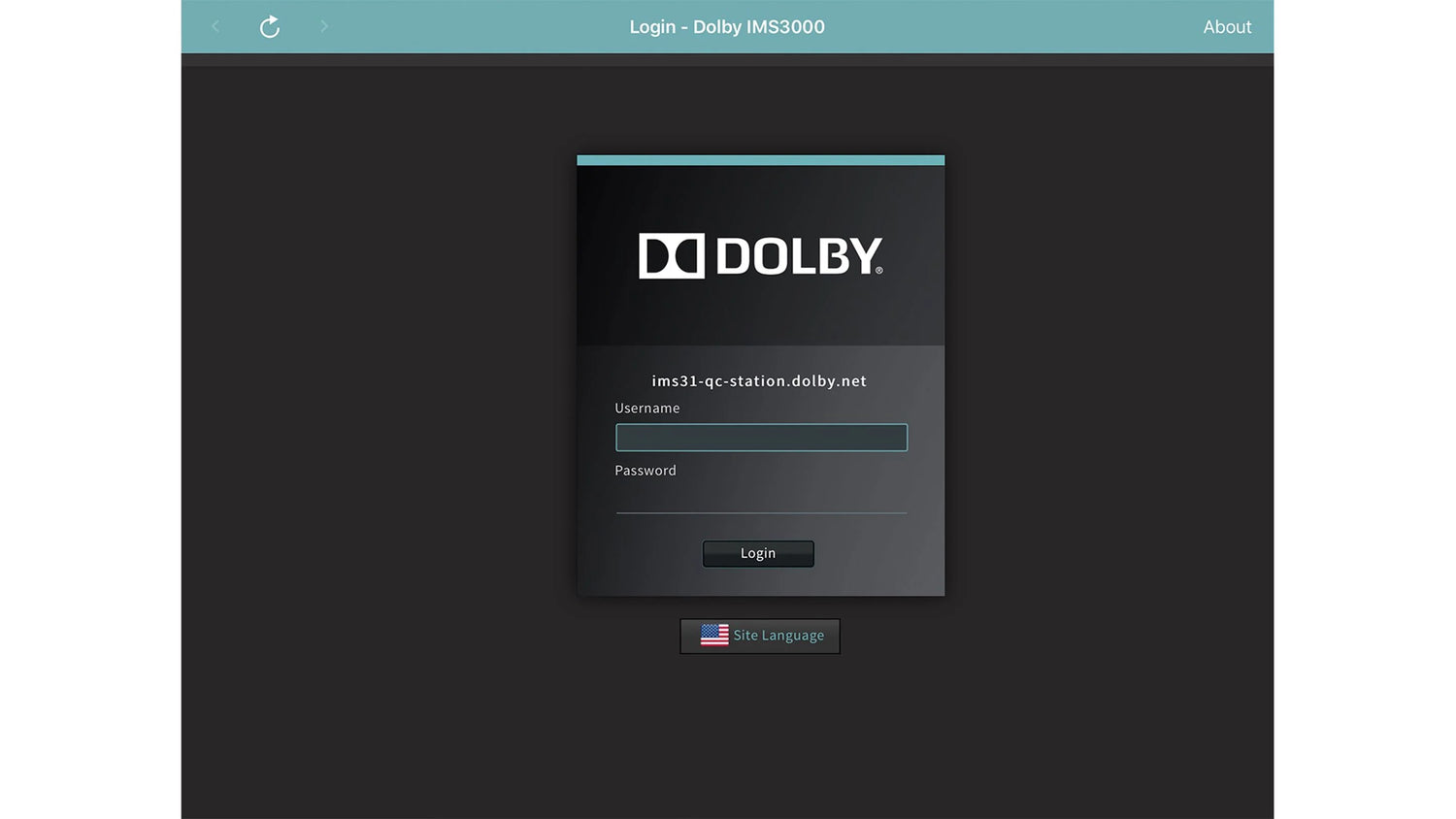

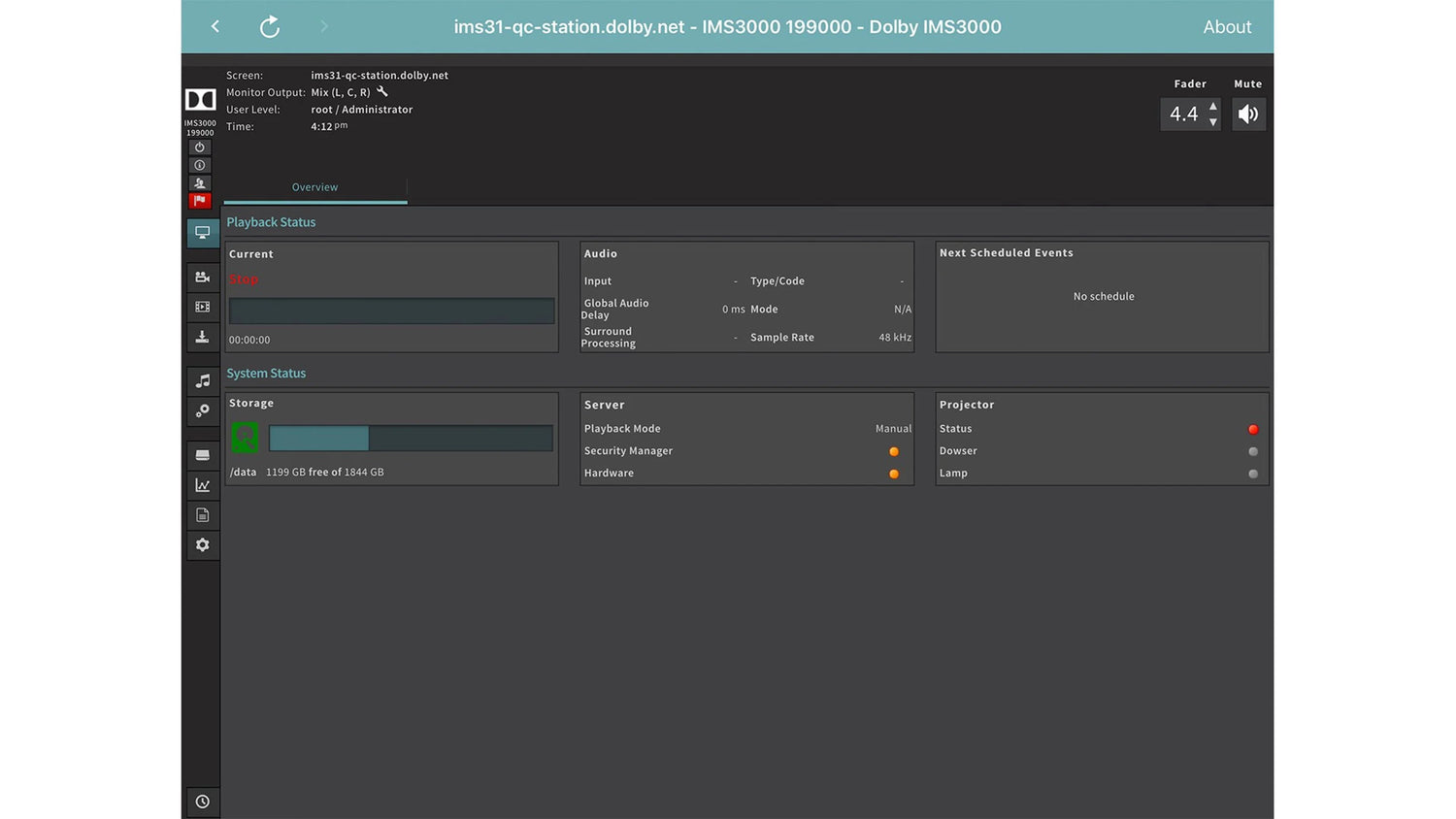

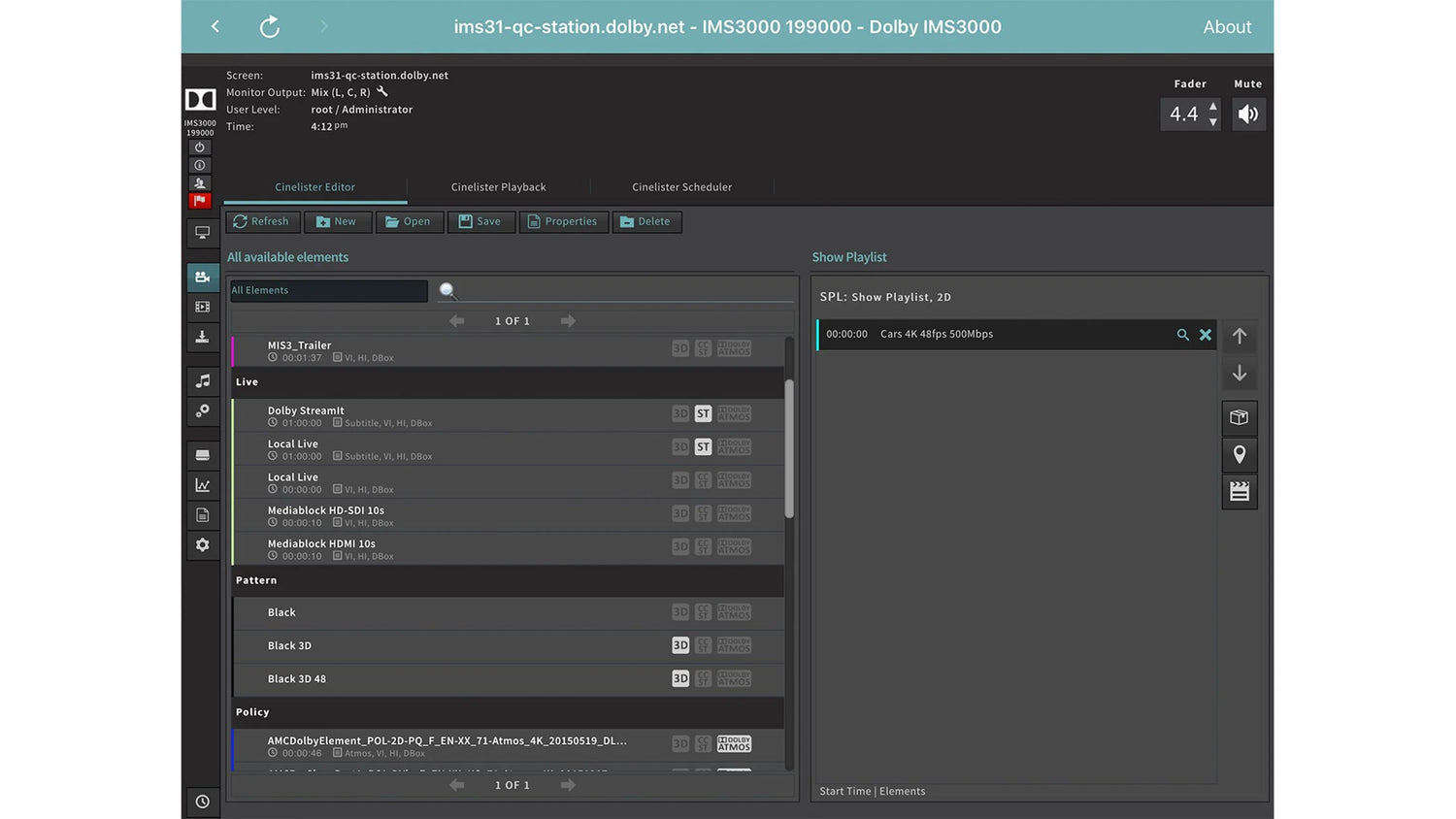

• Web, Bluetooth, and TMS control — A web-based UI, optional Bluetooth tablet control, and third-party TMS/NOC integration give operators flexible management of the server.
• Strong content security — DCI-compliant forensic watermarking and FIPS 140-2 Level 3 certification protect content end to end.
• Low power consumption — The server draws under 70 W, helping reduce operating cost and cooling load in the rack.

Typical Applications

• Digital cinema auditoriums in commercial multiplexes
• Premium large-format and Dolby Cinema auditoriums
• Cinema LED wall installations (IMS3-L-NB model)
• Dual-projector premium houses requiring Chase mode (IMS3000-NB model)
• Screening rooms and post-production review theaters

Technical Specifications

Frequently Asked Questions

Is the IMS3000 DCI-compliant?

Yes. The IMS3000 plays DCI-compliant SMPTE and INTEROP digital cinema packages and includes DCI-compliant forensic watermarking and FIPS 140-2 Level 3 certification.

How does the IMS3000 handle audio?

It can pair with an external CP950 or CP950A for audio up to Dolby Atmos, or be field-enabled for standalone internal processing of Dolby Surround 7.1/5.1 and Dolby Atmos rendering up to 64 speakers.

Which model do I need for SDI or LED wall installs?

The IMS3000-NB includes dual 3G-SDI inputs and supports Dual Projector Chase mode, the IMS3000-DS is for single-projector installs without SDI, and the IMS3-L-NB is offered for cinema LED wall applications.

How does the IMS3000 install and integrate with the AV system?

The server is a rack-mount integrated media block that connects to the projector over HDMI 2.0 and integrates with automation through GPI/GPO and LTC, plus third-party TMS/NOC systems. It is managed from a web-based UI or an optional Bluetooth tablet app.

What are the storage options?

Storage is configurable as three 1TB HDDs in RAID 5 (about 1.8 TB usable), three 2TB SSDs in RAID 5 (about 3.6 TB usable), or with an added main storage NAS of four 4TB HDDs in RAID 5 (about 10.5 TB usable). Drives are hot-swappable and support play-while-ingest.

What warranty and support apply?

The manufacturer warranty applies to this product. For configuration, support, and service questions, contact Creation Networks and our team will support your deployment.

How do I purchase and what is the lead time?

This product is available by quote. Request a quote to confirm model, configuration, pricing, and current lead time for your auditorium.
