Dolby IMS3000 (with 3x1TB HDD RAID) 1.8TB storage
Dolby IMS3000 (with 3x1TB HDD RAID) 1.8TB storage is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Dolby IMS3000 (with 3x1TB HDD RAID) 1.8TB storage
Note: This product is available by quote. Request a quote to discuss configuration and lead time.
Product Overview

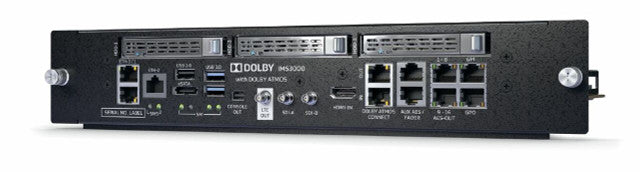

The Dolby IMS3000 1.8TB server is a DCI-compliant digital cinema media server configured with internal 1TB HDDs in RAID 5. This IMS3000 HDD RAID 5 server provides approximately 1.8 TB of usable user storage, the entry-capacity build of the platform. It suits single-screen and lower-turnover auditoriums that need a fully featured integrated media block server without large libraries. Specify this DCI-compliant cinema server where reliable playback matters more than maximum capacity.
Product Description
This configuration is a complete Dolby IMS3000 integrated media server populated with three internal 2.5-inch 1TB hard disk drives in RAID 5. The array provides approximately 1.8 TB of usable user storage, making it the entry-capacity option in the IMS3000 lineup. The drives are hot-swappable, so a failed drive can be exchanged without taking the server offline during a show day. As a digital cinema media server with 1.8TB, it stores ingested Digital Cinema Packages and supports play-while-ingest workflows. The full IMS3000 feature set applies, including DCP playback up to 500 Mbps and 2K up to 120 fps or 4K up to 30 fps. The server is Dolby Atmos-capable with enablement and draws less than 70 W. FIPS 140-2 Level 3 security protects content keys to DCI requirements. For higher capacity, compare the 3.6TB SSD configuration or the 10.5TB NAS configuration, or browse the Dolby professional collection.
Key Features
- 1.8 TB Usable Storage — Three internal 2.5-inch 1TB HDDs in RAID 5 deliver approximately 1.8 TB of usable user storage.
- Entry-Capacity Configuration — This is the entry-capacity build of the IMS3000 for venues that do not require large libraries.
- Hot-Swappable Drives — Internal drives are hot-swappable, allowing replacement without powering the server down.
- RAID 5 Redundancy — RAID 5 provides single-drive fault tolerance so playback continues if one HDD fails.
- DCI-Compliant Playback — The IMS3000 supports DCP playback up to 500 Mbps and 2K up to 120 fps or 4K up to 30 fps.
- Dolby Atmos Capable — With enablement, the server renders Dolby Atmos immersive audio across the auditorium speaker array.
- Low Power Draw — The server operates at less than 70 W for efficient equipment-room operation.
- FIPS 140-2 Level 3 Security — Content keys are protected to DCI security requirements for secure playback.
Typical Applications
- Single-screen digital cinema auditoriums with modest content libraries.
- Multi-screen cinema complexes standardizing on a fully featured media server.
- Premium large-format auditoriums running high-bitrate DCP playback.
- Screening rooms and post-production or broadcast studios needing DCI playback.
Technical Specifications
| Specification | Detail |
|---|---|
| Server Model | Dolby IMS3000 (CID1002) |
| Storage | 3 x 2.5-inch 1TB HDD, internal, RAID 5 |
| Usable Capacity | ~1.8 TB |
| Drives | Hot-swappable |
| Playback | DCP up to 500 Mbps; 2K up to 120 fps; 4K up to 30 fps (60 fps on supported displays) |
| Audio | Dolby Atmos rendering up to 64 speakers (with enablement) |
| Power | <70 W |
| Security | FIPS 140-2 Level 3; DCI-compliant |
| SKU | IMS3-L-NB-H1TB |
Frequently Asked Questions
Which IMS3000 platform is this?
It is a complete Dolby IMS3000 integrated media server (model CID1002) configured with internal 1TB HDDs in RAID 5.
How is the server installed?
The IMS3000 installs in a standard equipment rack. Its three 2.5-inch internal drives seat into the server's hot-swappable bays.
How does RAID redundancy work?
The three 1TB HDDs are configured in RAID 5, which tolerates a single drive failure while keeping the array and playback operational.
What is the usable storage capacity?
The 3 x 1TB RAID 5 array provides approximately 1.8 TB of usable user storage, the entry capacity in this lineup.
Can I move to higher capacity later?
Yes. Compare the 3.6TB SSD configuration or the 10.5TB NAS configuration for larger libraries.
What about warranty, support, and lead time?
The applicable manufacturer warranty applies. For lead time and configuration support, request a quote from Creation Networks.
