Dolby IMS3000 (4x4TB HDD RAID NAS) 10.5TB storage
Note: This product is available by quote. Request a quote to discuss configuration and lead time.
Product Overview
The Dolby IMS3000 10.5TB NAS server is a DCI-compliant digital cinema integrated media server paired with a 1RU rack-mount NAS as main storage. This IMS3000 RAID 5 NAS storage configuration uses four 3.5-inch 4TB HDDs for approximately 10.5 TB of usable user storage, the largest capacity in this lineup. It targets high-throughput auditoriums and complexes that need a digital cinema server with NAS and offline ingest. Deploy it as a 1RU cinema media server NAS where long content retention and ingest while powered off are priorities.
Product Description

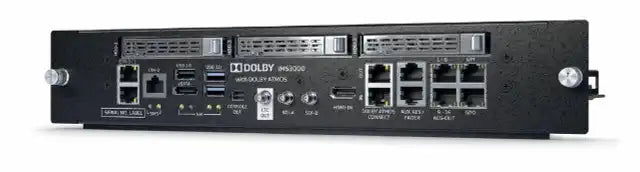

This configuration combines the Dolby IMS3000 integrated media block server with a 1RU rack-mount NAS option used as the server's main storage. The NAS holds four 3.5-inch 4TB hard disk drives in RAID 5, delivering approximately 10.5 TB of usable user storage with single-drive fault tolerance. When the NAS is used as main storage, no internal drives are populated, and the NAS can ingest content while the IMS3000 is powered off, enabling true offline ingest. The full IMS3000 feature set applies, including DCP playback up to 500 Mbps and 2K up to 120 fps or 4K up to 30 fps. The server is Dolby Atmos-capable with enablement, rendering immersive audio across the speaker array in supported auditoriums. FIPS 140-2 Level 3 security protects content keys in line with DCI requirements. This offline ingest cinema server suits venues with heavy content turnover and large simultaneous libraries. As the largest-capacity option here, it pairs well with the lower-capacity internal-drive builds for mixed fleets. Explore the full Dolby professional collection or compare against the base IMS3000 server.
Key Features
- 10.5 TB Usable NAS Storage — Four 3.5-inch 4TB HDDs in RAID 5 deliver approximately 10.5 TB of usable user storage, the largest capacity in this lineup.

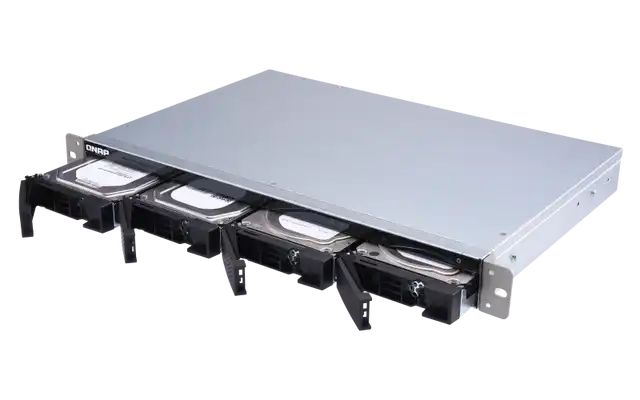

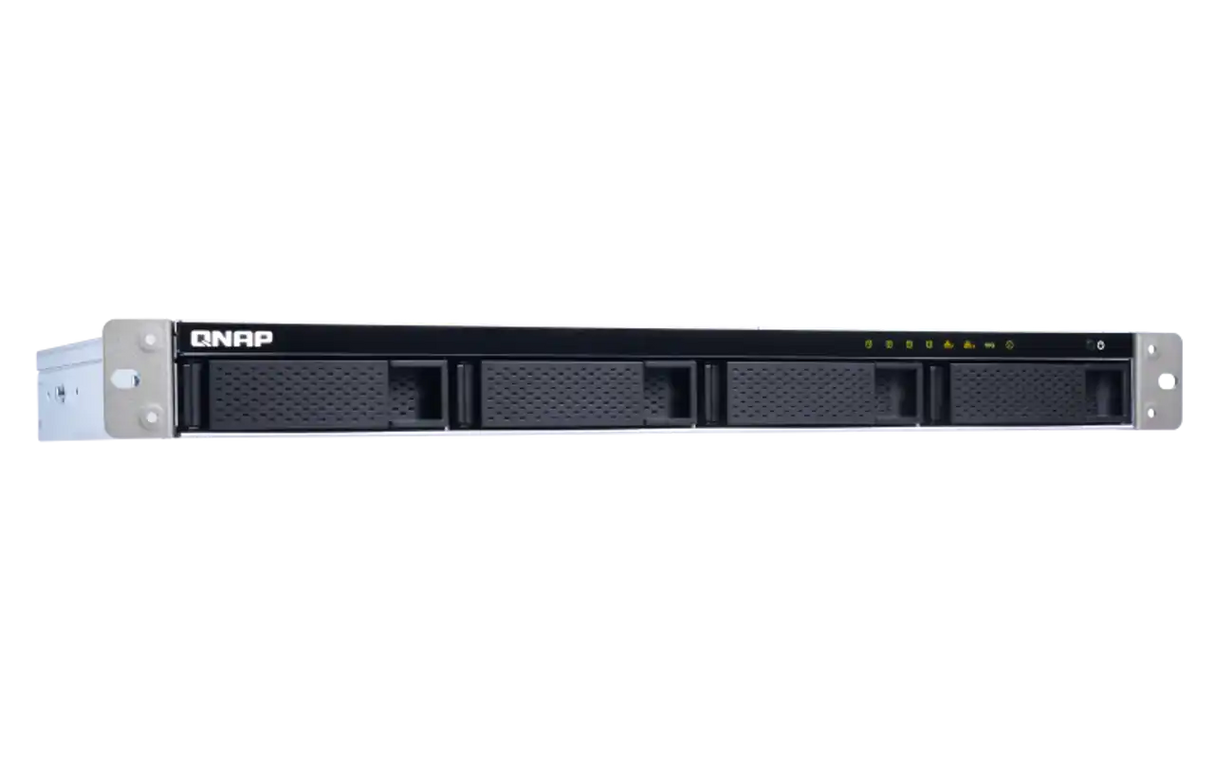

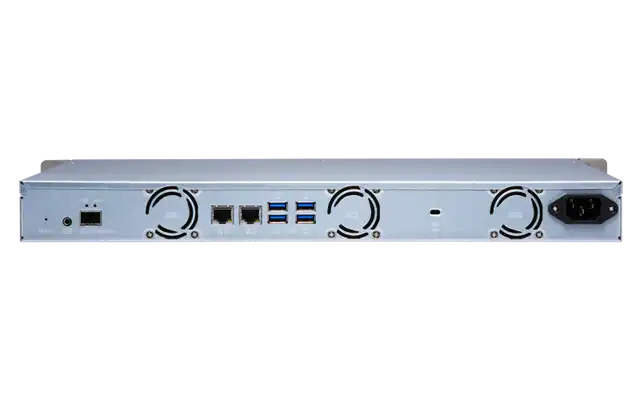

- 1RU Rack-Mount NAS — The main-storage NAS installs in a single rack unit alongside the IMS3000 for efficient equipment-room density.
- Offline Ingest — The NAS can ingest content while the IMS3000 is powered off, separating ingest workflows from playback hardware.
- RAID 5 Redundancy — RAID 5 provides single-drive fault tolerance so playback continues if one HDD fails.
- DCI-Compliant Playback — The IMS3000 supports DCP playback up to 500 Mbps and 2K up to 120 fps or 4K up to 30 fps.
- Dolby Atmos Capable — With enablement, the server renders Dolby Atmos immersive audio across the auditorium speaker array.
- FIPS 140-2 Level 3 Security — Content keys are protected to DCI security requirements for secure digital cinema playback.
Typical Applications
- Digital cinema auditoriums requiring large on-server content libraries.
- Multi-screen cinema complexes with heavy ingest and content turnover.
- Premium large-format auditoriums running high-bitrate DCP playback.
- Screening rooms and post-production or broadcast studios needing offline ingest.
Technical Specifications
| Specification | Detail |
|---|---|
| Server Model | Dolby IMS3000 (CID1002) |
| Storage | 1RU rack-mount NAS, 4 x 3.5-inch 4TB HDD, RAID 5 |
| Usable Capacity | ~10.5 TB |
| Ingest | Offline ingest (NAS ingests while IMS3000 is off) |
| Playback | DCP up to 500 Mbps; 2K up to 120 fps; 4K up to 30 fps (60 fps on supported displays) |
| Audio | Dolby Atmos rendering up to 64 speakers (with enablement) |
| Power | <70 W |
| Security | FIPS 140-2 Level 3; DCI-compliant |
| SKU | IMS3-CL-NB-EN |
Frequently Asked Questions
Which IMS3000 platform does this configuration use?
It is a complete Dolby IMS3000 integrated media server (model CID1002) supplied with the 1RU rack-mount NAS as main storage.
How is the unit installed?
The IMS3000 server and the 1RU rack-mount NAS install in a standard equipment rack. The NAS drives seat into the NAS chassis bays; no internal server drives are used when the NAS is main storage.
How does RAID redundancy work here?
The four 4TB HDDs are configured in RAID 5, which tolerates a single drive failure while keeping the array and playback operational.
What is the usable storage capacity?
The 4 x 4TB RAID 5 NAS provides approximately 10.5 TB of usable user storage, the largest in this lineup.
What does offline ingest mean?
The NAS can ingest content while the IMS3000 server is powered off, letting you stage content without occupying the playback server.
What about warranty, support, and lead time?
The applicable manufacturer warranty applies. For lead time, configuration, and warranty support, request a quote from Creation Networks.
