Crestron TSW-770/1070-MUMK-B Mullion Mount Kit for TSW-770 and TSW-1070 Series (Black)
Crestron TSW-770/1070-MUMK-B Mullion Mount Kit for TSW-770 and TSW-1070 Series (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron TSW-770/1070-MUMK-B Mullion Mount Kit for TSW-770 and TSW-...
Product Overview

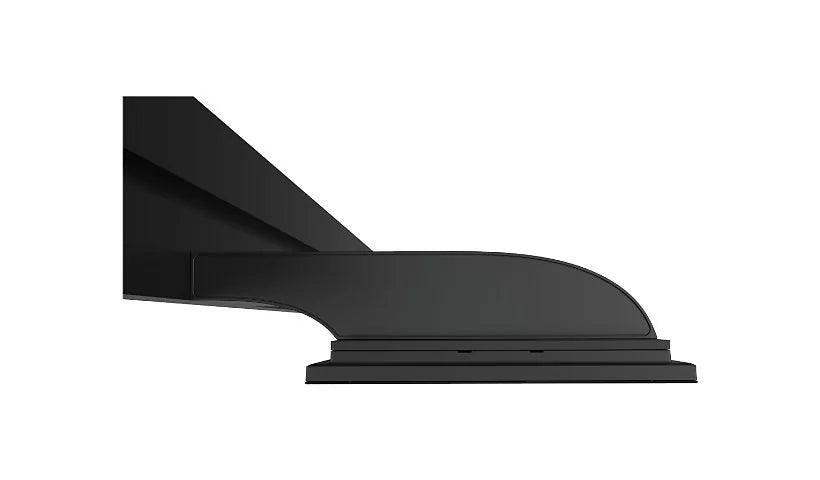

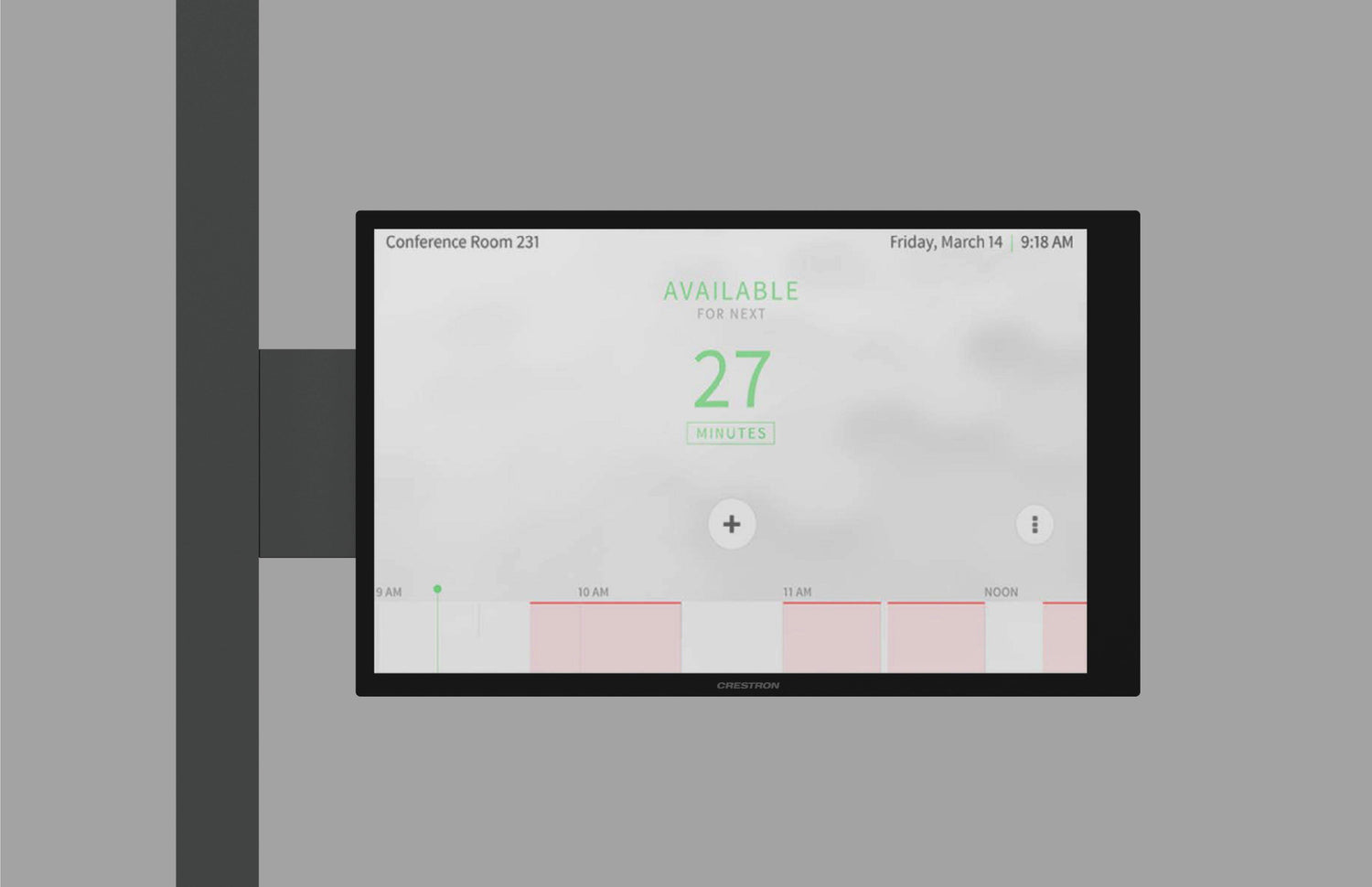

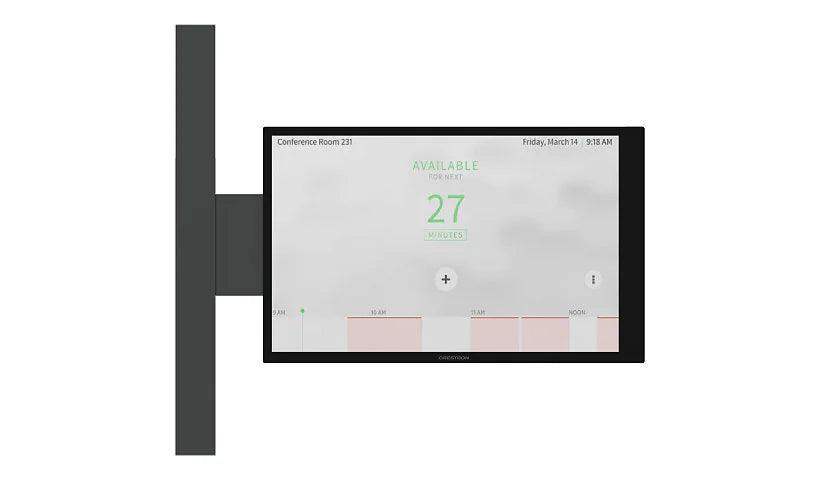

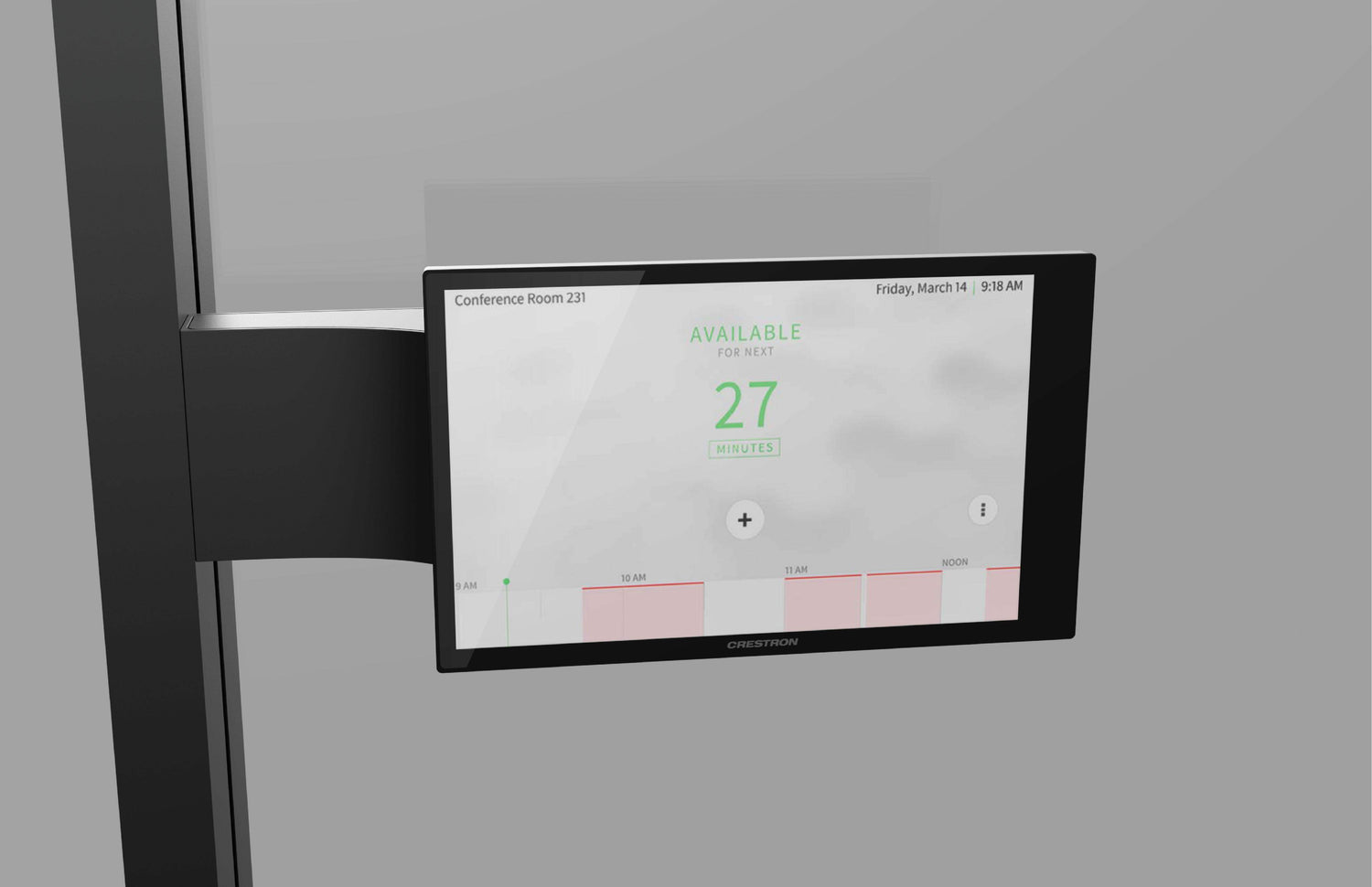

The Crestron TSW-770/1070-MUMK-B is a mullion mount kit in a black finish that permits a TSW-770, TSW-1070, TSS-770, or TSS-1070 series touch screen to be attached to the mullion of an interior glass wall, window, or partition. It is ideal for mounting at the entrance to a meeting space for room scheduling applications. The kit installs in either a side mount or front mount configuration. Wiring is run inside the mullion for a finished appearance.
Product Description
The TSW-770/1070-MUMK-B mounts a compatible TSW-770 series touch screen or TSW-1070 series touch screen to the left or right of any hollow, metallic vertical mullion. This makes it well suited to room scheduling installations at glass-walled conference rooms where there is no solid wall available beside the door. Two mounting brackets are provided that allow the kit to be installed in one of two configurations, side mount or front mount, to suit the mullion and viewing angle.
Wiring is run to the touch screen from inside the mullion, creating a clean, finished appearance without exposed cabling. The aluminum and steel housing supports the touch screen securely, and the kit is compatible with the TSW-770-LB and TSW-1070-LB room availability light bars to provide a clear indication of room status. It is also offered in a white finish as the TSW-770/1070-MUMK-W. For help confirming compatibility, Contact Creation Networks.
Key Features
- Mullion Mounting — Attaches a compatible touch screen to the mullion of a glass wall, window, or partition.
- Wide Compatibility — Supports TSW-770, TSW-1070, TSS-770, and TSS-1070 series touch screens.
- Two Configurations — Installs in either side mount or front mount configuration.
- Concealed Wiring — Wiring runs inside the mullion for a clean, finished appearance.
- Light Bar Compatible — Works with the TSW-770-LB and TSW-1070-LB room availability light bars.
- Durable Housing — Aluminum and steel construction.
- Black Finish — Blends with dark interiors; also available in white.
Technical Specifications
| Housing | Aluminum, steel |
| Mounting | Attaches to the inside surface of a hollow metallic mullion in side or front mount configuration |
| Compatibility | TSW-770, TSW-1070, TSS-770, TSS-1070 series |
| Dimensions (without touch screen) | H 2.52 in. (64 mm), W 8.97 in. (228 mm), D 1.70 in. (43 mm) |
| Dimensions (with TSW-770/TSS-770) | H 4.17 in. (106 mm), W 9.30 in. (236 mm), D 2.44 in. (62 mm) |
| Dimensions (with TSW-1070/TSS-1070) | H 5.87 in. (149 mm), W 10.63 in. (270 mm), D 2.46 in. (62 mm) |
| Weight | 16 oz (454 g) without touch screen or light bar |
| Finish | Black |
