Product Overview

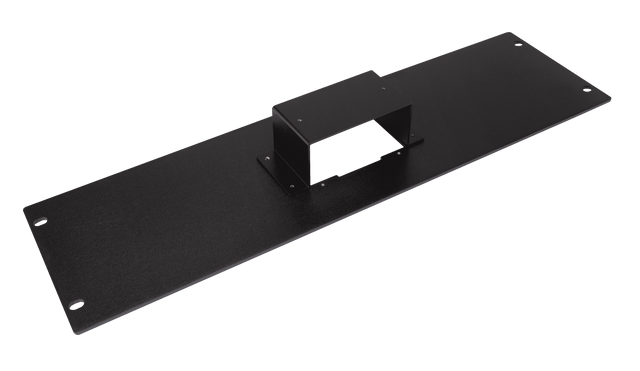

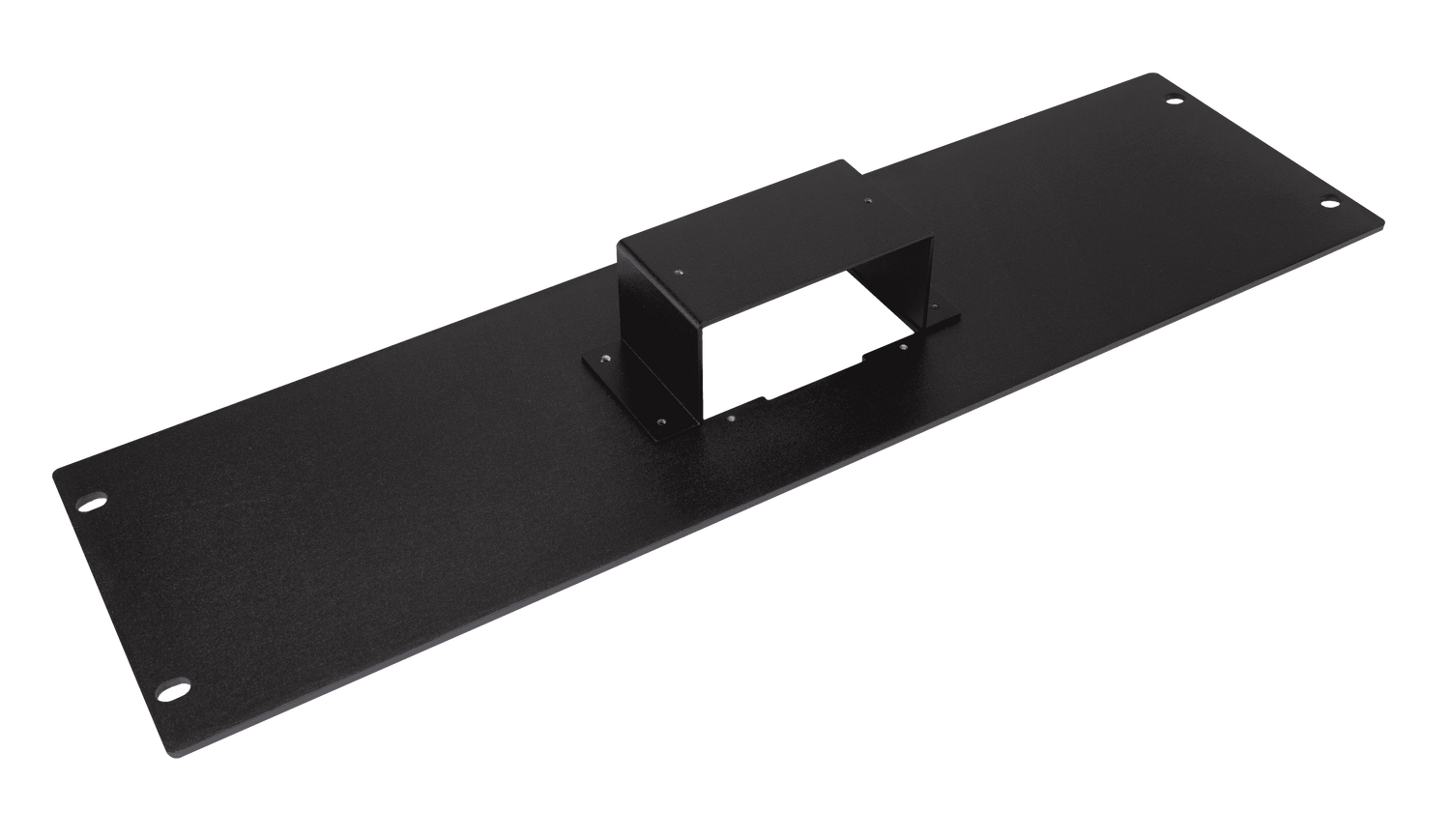

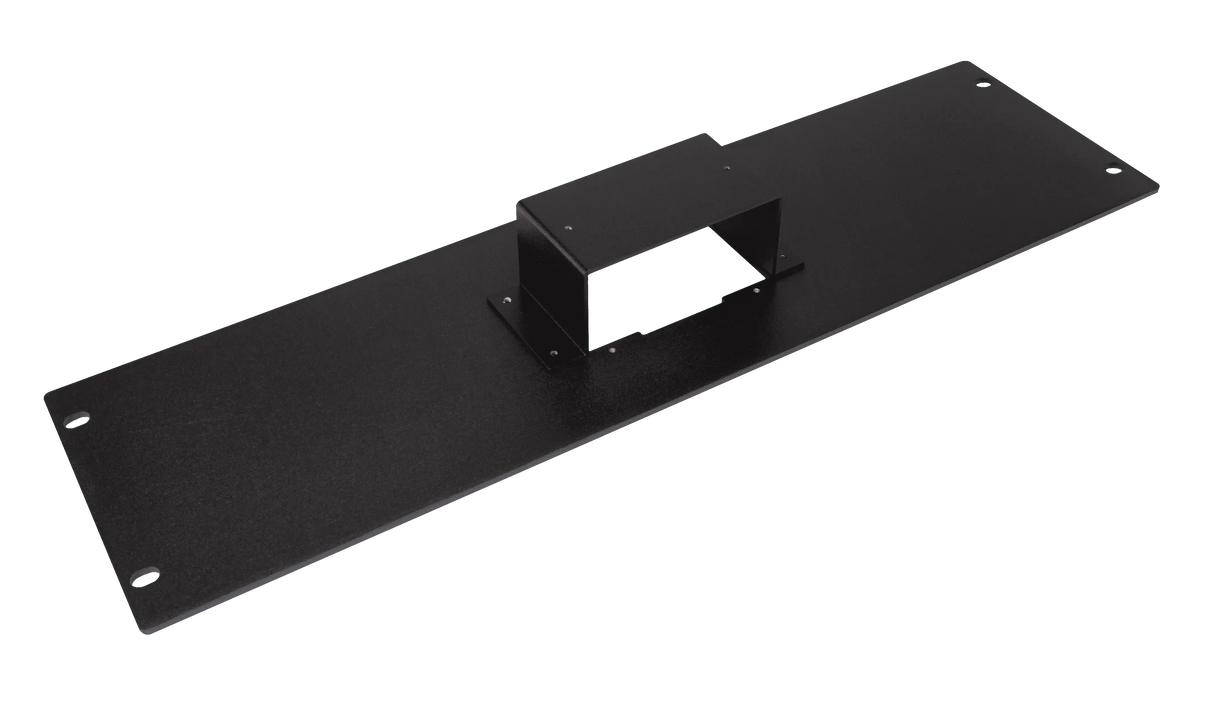

The Crestron TSW-570/770-RMK-1 is a rack mount kit that allows a TSW-570 or TSW-770 series touch screen to be installed into a standard 19 in. EIA equipment rack. The kit occupies 3 units (3U) of rack space. It consists of a metal rack mount plate and the hardware needed to secure a compatible touch screen into the rack. This provides a tidy, rack-integrated location for a control or scheduling touch screen.
Product Description
The TSW-570/770-RMK-1 lets integrators relocate a TSW-770 series touch screen from a wall into an equipment rack, which is useful for control rooms, AV racks, and applications where a rack-mounted interface is preferred over an in-wall installation. The touch screen mounts to the metal rack mount plate, which then fastens into a 19 in. EIA rack using standard rack screws. Standard rack screws are not included with the kit.
Once installed, the assembly occupies three rack units of vertical space. The kit supports both the TSW-570 and TSW-770 series, with overall mounted depth differing slightly between the two panels. For applications that require a 4U solution or a TSW-1070 panel, the separate TSW-1070-RMK-2 kit is available. For help confirming the right rack mount kit for your touch screen, Contact Creation Networks.
Key Features
- Rack Integration — Installs a TSW-570 or TSW-770 series touch screen into a 19 in. EIA equipment rack.
- 3U Footprint — Occupies three units of rack space when installed.
- Metal Construction — Durable metal rack mount plate.
- Dual Series Support — Compatible with both TSW-570 and TSW-770 series touch screens.
- Standard Mounting — Mounts using standard rack screws (not provided).
Technical Specifications
| Material | Metal rack mount plate |
| Mounting | 19 in. EIA equipment rack using standard rack screws (not provided) |
| Rack Space | Occupies 3U |
| Compatibility | TSW-570 and TSW-770 series touch screens |
| Dimensions (with TSW-570) | H 5.23 in. (133 mm), W 19.00 in. (483 mm), D 0.56 in. (14 mm) |
| Dimensions (with TSW-770) | H 5.23 in. (133 mm), W 19.00 in. (483 mm), D 0.58 in. (15 mm) |
