Crestron Rack Mount Kit for TSW-1070 Series - TSW-1070-RMK-2
Product Overview

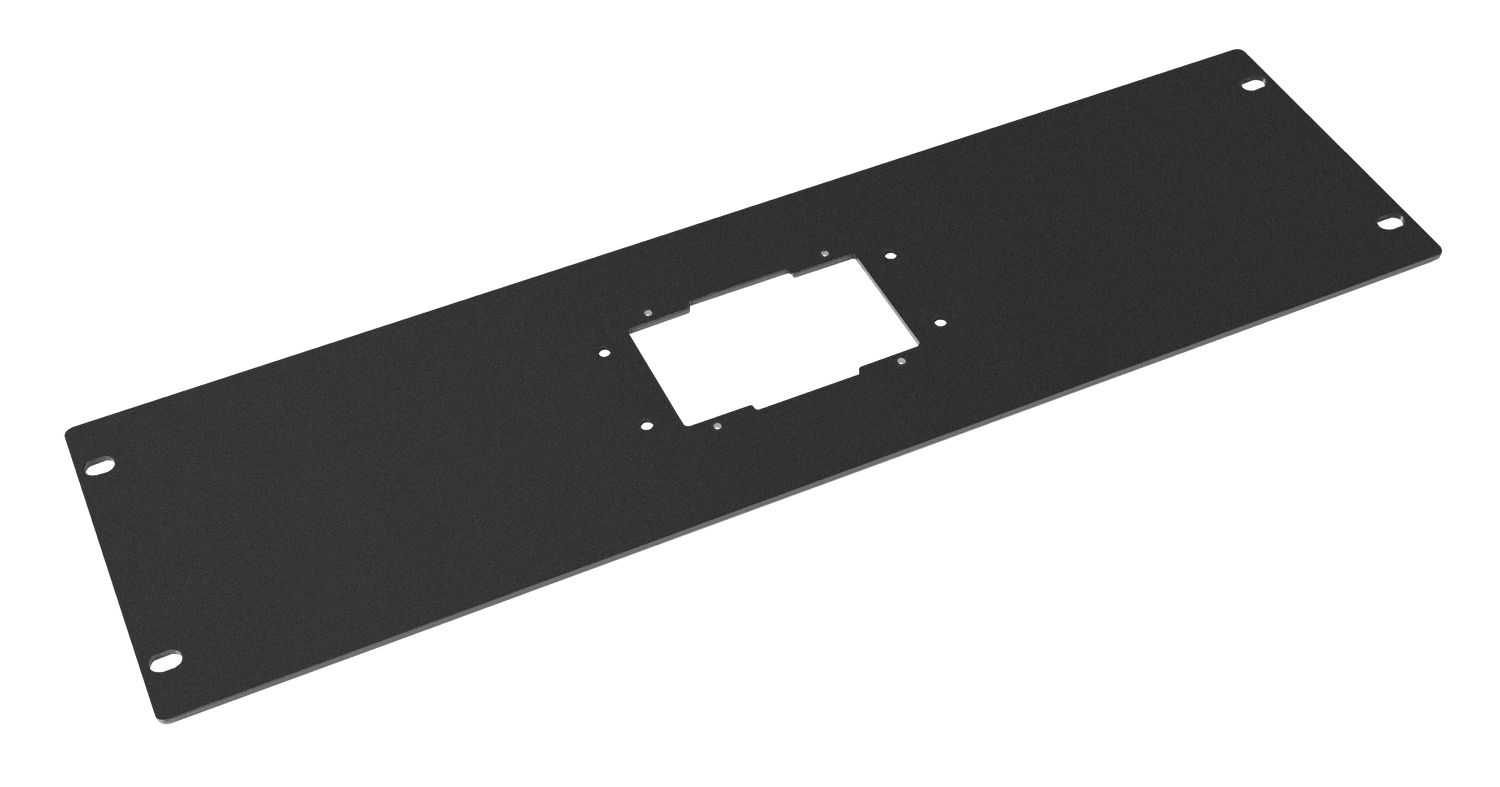

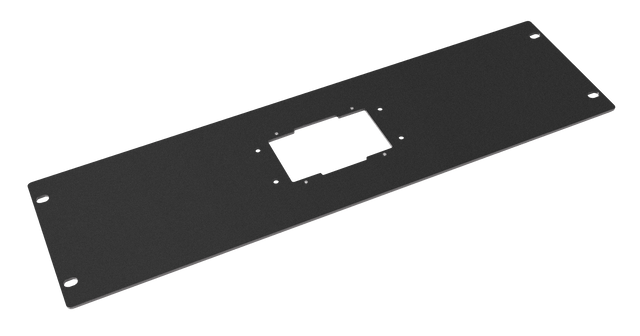

The Crestron TSW-1070-RMK-2 is a rack mount kit that allows a TSW-1070 series touch screen to be installed into a standard 19 in. EIA equipment rack. The kit occupies 4 units (4U) of rack space. It consists of a metal rack mount plate and the hardware required to secure the touch screen into the rack. A TSW-770 series touch screen can also be installed using this kit when a 4U rack space solution is required.
Product Description
The TSW-1070-RMK-2 lets integrators mount a TSW-1070 series touch screen into an equipment rack rather than a wall, making it well suited to control rooms and AV racks where a rack-integrated interface is preferred. The touch screen attaches to the metal rack mount plate, which then fastens into a 19 in. EIA rack using standard rack screws. Standard rack screws are not included with the kit.
Once installed, the assembly occupies four rack units of vertical space. While the kit is designed for the TSW-1070, a TSW-770 series panel can also be installed when a 4U solution is needed; for a 3U TSW-770 installation, the TSW-570/770-RMK-1 is the appropriate kit. For help confirming the correct rack mount kit for your touch screen, Contact Creation Networks.
Key Features
- Rack Integration — Installs a TSW-1070 series touch screen into a 19 in. EIA equipment rack.
- 4U Footprint — Occupies four units of rack space when installed.
- Metal Construction — Durable metal rack mount plate.
- TSW-770 Compatibility — A TSW-770 series touch screen can also be installed when a 4U solution is required.
- Standard Mounting — Mounts using standard rack screws (not provided).
Technical Specifications
| Material | Metal rack mount plate |
| Mounting | 19 in. EIA equipment rack using standard rack screws (not provided) |
| Rack Space | Occupies 4U |
| Compatibility | TSW-1070 series; TSW-770 series for 4U installations |
| Dimensions (with TSW-1070) | H 6.97 in. (177 mm), W 19.00 in. (483 mm), D 0.58 in. (15 mm) |
