Overview
The Crestron® TSW‑1070 series is a stylish and versatile wall mount touch screen that is ideal for residential and enterprise applications. The TSW‑1070 features a 10.1 in. (257 mm) capacitive touch screen display with custom‑programmable control buttons and support for Smart Graphics® software and HTML5‑based custom UI projects. PoE and Wi‑Fi® network connectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.
Features
- Next generation Crestron® wall mount touch screen
- 10.1 in. (257 mm) widescreen active-matrix color display and 1920 x 1200 WUXGA display resolution
- Capacitive touch screen display
- Custom-programmable virtual control buttons
- Supports Crestron HTML5 and Smart Graphics® software custom user projects
- Built-in Rava® SIP intercom
- Built-in speakers and microphone
- H.265, H.264, or MJPEG streaming video display
- Native apps for Crestron Home® OS, Sonos® home sound control, Zoom Rooms™ conferencing control, Microsoft Teams® online meeting solution, and various room scheduling services
- Built-in Bluetooth® communications beacon
- Built-in web browsing
- Single wire Ethernet connection with PoE or PoE+ power
- Wi‑Fi® network connectivity
- Dual USB 2.0 ports for room availability accessories
- Enterprise grade security and authentication
- Web, cloud, or device-based configuration
- Electrical box mounting with provided mounting bracket
Specification
| Touch Screen Display | |
| Display Type | TFT active matrix color LCD |
| Size | 10.1 in. (257 mm) diagonal |
| Aspect Ratio | 16:10 WUXGA |
| Resolution | 1920 x 1200 pixels |
| Brightness | 400 nits (cd/m²) |
| Contrast | 1000:1 |
| Color Depth | 24 bit, 16.7M colors |
| Illumination | Edgelit LED with auto brightness control |
| Viewing Angle | ±80° horizontal, ±80° vertical |
| Touch Screen | Projected capacitive, 5-point multitouch capable |
| Buttons | |
| Hard Keys | (6) Virtual buttons in collapsible universal tool bar, per‑button show/hide, preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone, optional custom programming via control system for additional functions |
| Reset | (1) Pin hole on rear panel for hardware reset |
| Graphics Engine | |
| Crestron HTML5 and Smart Graphics® software technology, multilanguage web browser1, multilanguage onscreen keyboard, screensaver, single scalable streaming video window, native room scheduling applications4,5,6, native Sonos® app1, native Zoom Rooms™ app7, native Crestron Home® OS app, setup and diagnostics via web browser, cloud, or onscreen UI | |

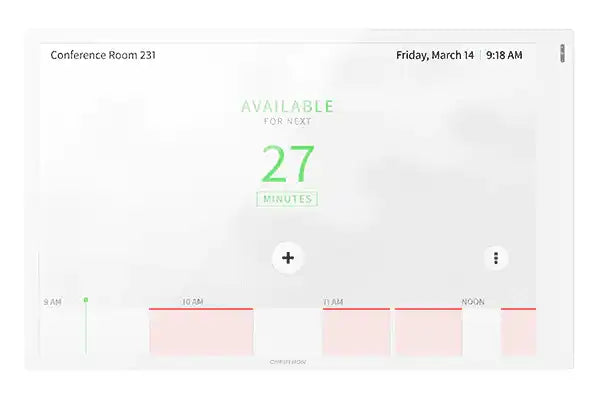

| Room Scheduling Support | |
| Crestron Scheduling App | Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software, Google Calendar™ and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only)4 |
| Third-Party Apps | Includes support for various third-party scheduling applications.5,6 |
| Languages | |
| Smart Graphics | Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai |
| Onscreen Keyboard | Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish |
| Voice Recognition1 | Afrikaans (South Africa); Chinese, Mandarin (China, Simplified); Chinese, Mandarin (Hong Kong, Simplified); Chinese, Mandarin (Taiwan, Traditional); Chinese, Yue (Hong Kong, Traditional); Czech (Czech Republic); Dutch (Netherlands); English (Australia); English (Canada); English (Generic); English (India); English (New Zealand); English (South Africa); English (UK); English (US); French (France); German (Germany); isiZulu (South Africa); Italian (Italy); Japanese (Japan); Korean (South Korea); Polish (Poland); Portuguese (Brazil); Russian (Russia); Spanish (Spain); Turkish (Turkey) |
| Web Browser1 | Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese |
| Room Scheduling4 | Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish |
| Memory | |
| RAM | 2 GB LPDDR3 |
| Storage | Firmware/Application: 16 GB eMMC pSLC |
| Maximum Project Size | 600 MB |
| Wired Communications | |
| Ethernet | 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant |
| USB | USB 2.0 host for room scheduling accessories |
| Wireless Communications | |
| Transceiver | IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP |
| Security | 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES |
| Range | Up to 50 ft (15 m), subject to site-specific conditions |
| Bluetooth® Hardware | Crestron Bluetooth beacon2,8 |
| Streaming Decoder | |
| Video Formats | H.265, H.264 (MPEG‑4 part 10 AVC, MJPEG) |
| Audio Formats | AAC stereo |
| Bitrates | Up to 25 Mbps (20 Mbps maximum recommended) |
| Input Resolutions | Up to 1920x1080@30fps |
| Protocol | RTSP |
| Audio | |
| Features | Built-in microphone and speakers, Rava® SIP Intercom, voice recognition1,2 |
| Audio Feedback Formats | MP3 |
| Connectors | |

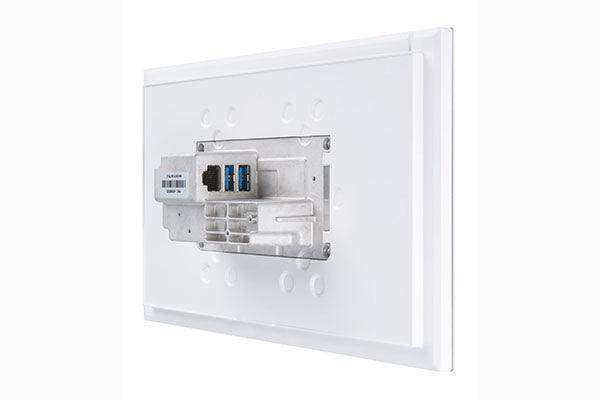

| LAN PoE | (1) 8-pin RJ-45 connector, female, with 2 LED indicators; 100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status |
| USB | (2) USB Type A connectors, female; USB 2.0 host ports; For optional room scheduling accessories3 |
| NOTE: The touch screen supports the use of a single light bar or status indicator accessory. The RFID-USB card reader accessory can be connected to the second USB port. | |
| Power | |
| PoE (Power over Ethernet) | IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE NOTE: Enabling the USB port requires use of an 802.3at Type 2 PoE+ PSE. |
| Environmental | |
| Temperature | 32 to 104°F (0 to 40°C) |
| Humidity | 10% to 95% RH (noncondensing) |
| Heat Dissipation | 44 BTU/hr |
| Construction | |
| Housing | Plastic, smooth black or white finish, edge-to-edge glass with black or white surround |
| Mounting | Surface mount over a 2 or 3‑gang US electrical box, 2‑gang European (DIN 49073) electrical box, or 2‑gang UK (BS 4662) electrical box; Lectern mount over a 2 in. H x 3‑3/4 in. W (51 mm H x 96 mm W) cutout; 1-3/8 in. (35 mm) minimum mounting depth; Wall mount, surface mount, and rack options available separately |
| Dimensions | |
| Height | 5.87 in. (149 mm) |
| Width | 9.46 in. (240 mm) |
| Depth | 2.01 in. (51 mm) |
| Dimensions do not include the mounting bracket or add-on accessories | |
| Weight | |
| 1.61 lb (730 g) | |
