Crestron Tabletop Kit for MPC3-302, MP-B10, & MP-B20 Series (White) - TTK-MP/MPC/IPAC-W

Availability: Call for Availability
Crestron SKU: TTK-MP/MPC/IPAC-W
No reviews
Price:
$110.00

Description

Spec Sheet

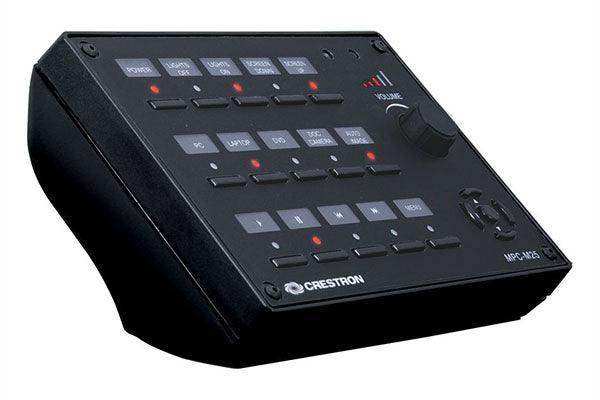

This white TTK-MP/MPC/IPAC-W Series Tabletop Kit is designed to provide a stylish and convenient enclosure for a 3-Series® Media Presentation Controller MPC3-302 Series or a Media Presentation Button Panel MP-B10/B20 Series that is used to present media to the audience. The front panel of the device when installed in the enclosure is angled at a 45 degree angle. This complete assembly is suitable for placement on any flat, level surface, witto fix it to securing it to the surface with screws if the surface is not flat and level.

An optional swivel mount accessory is also available separately to provide a means for permanently mounting the enclosure while retaining the ability to rotate it for optimal positioning. The swivel range can be customized using optional limit screws, with a maximum of 330-degree rotation allowed. The swivel mount may be installed on any flat table, desk, or counter top surface with a thickness of 1 inch (25 mm) minimum to 1 3/8 inch (35 mm) maximum.

Wiring may be passed out the rear of the enclosure through a grommet and strain relief, or routed through the bottom for a very clean, cordless appearance. The rear wire opening can accommodate a single cable up to 1/4 inch (6.4 mm) diameter such as Crestron Cresnet® or CAT5e. The bottom opening measures 29/32 inch (23 mm) diameter, while the optional swivel mount can accommodate a bundle of wires up to 11/16 inch (17 mm) diameter.

  • Converts the MPC3-302 Series into a stylish tabletop controller
  • Also compatible with MP-B10 and MP-B20 button panels
  • Provides a 45° fixed operating angle
  • Allows for permanent mounting
  • Optional swivel mount kit enables 330° rotation when mounted
  • Provides the choice of rear or bottom wire exit
Construction
Housing Plastic enclosure, black or white; 45° fixed operating angle
Mounting Freestanding, surface mount, or swivel mount (Swivel Mount Kit sold separately)
Dimensions
Height 3.82 in (97 mm);
3.91 in (100 mm) with swivel mount
Width 6.71 in (171 mm)
Depth 4.96 in (126 mm);
4.44 in (113 mm) without rear wire grommet
