Crestron MPC3-302-W 3-Series® Media Presentation Controller 302 (White)

Product Overview

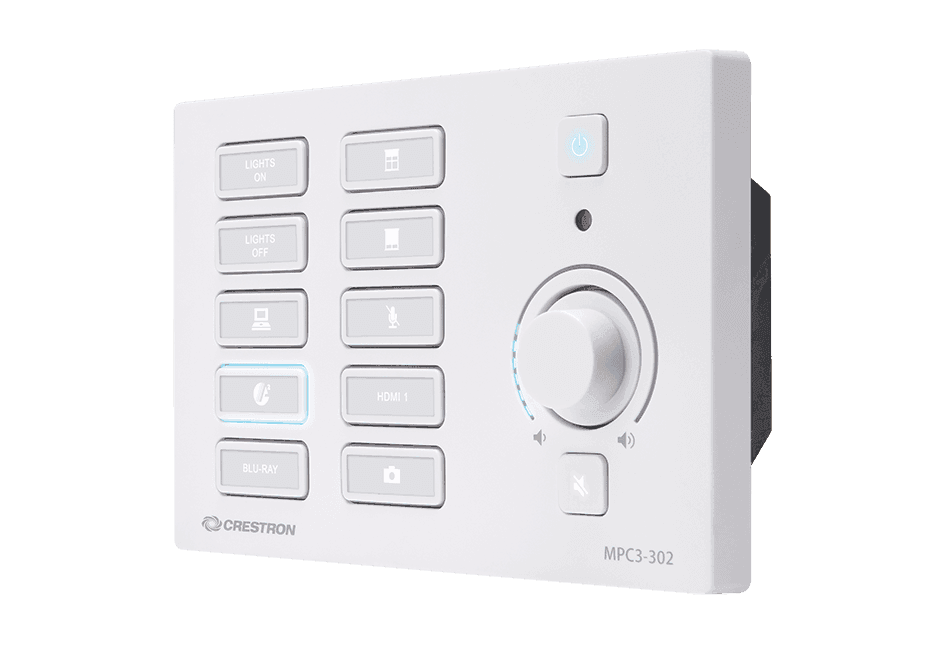

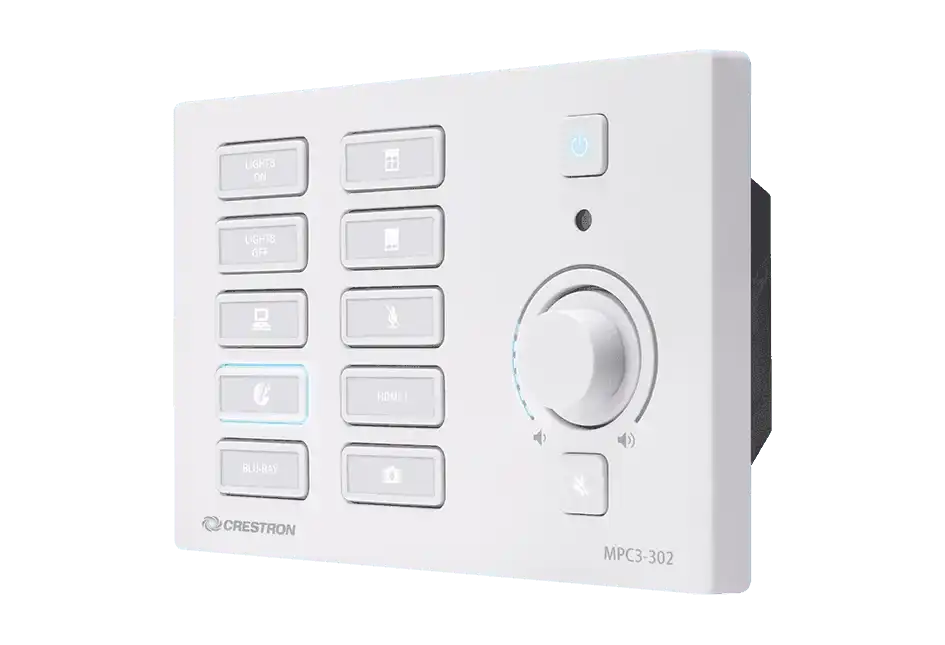

The Crestron MPC3-302-W is a 3-Series Media Presentation Controller that combines a 3-Series control processor and a wall-mounted control panel in a single PoE+-powered device, finished in white. It features ten customizable backlit buttons, a rotary volume knob with circular volume gauge, and dedicated power and mute buttons. With built-in .AV Framework technology plus onboard Ethernet, Cresnet, RS-232, IR, relay, and Versiport ports, it controls AV systems and room functions directly. It mounts flush in a 3-gang US electrical box and suits classrooms, meeting rooms, and lecture halls.

Product Description

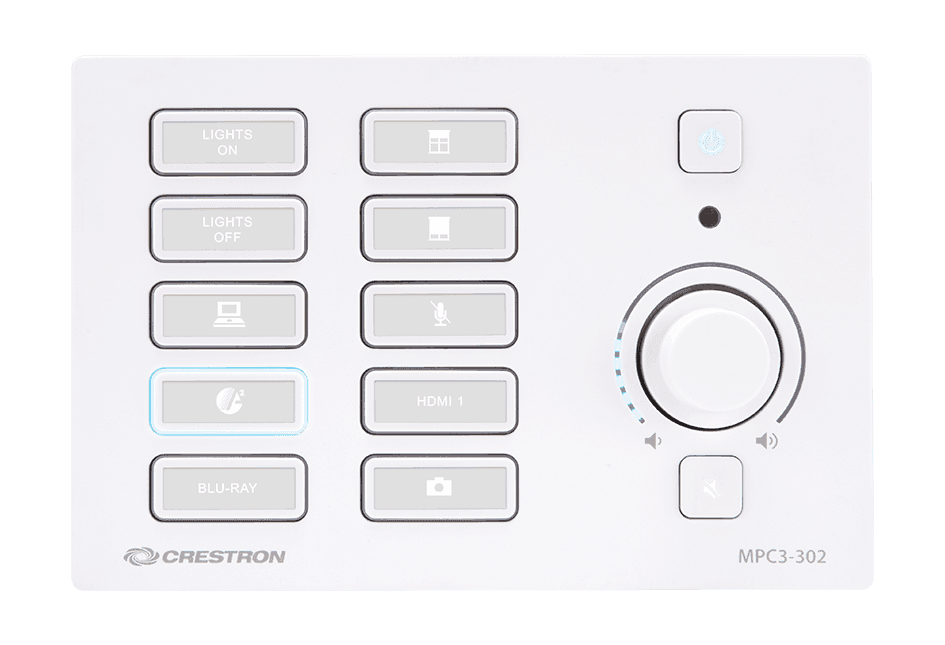

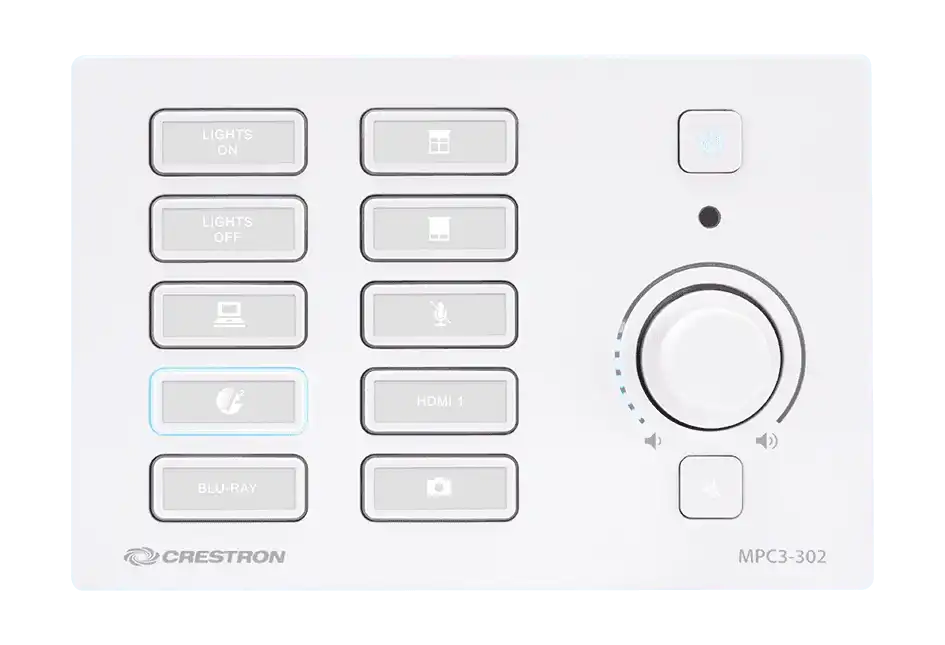

The MPC3-302-W integrates an enterprise-grade 3-Series control processor with a real-time, preemptive multithreaded kernel and a preloaded .AV Framework base program, allowing it to control AV switchers, audio processors, power controllers, and other equipment without a separate rack-mounted processor. It provides ten backlit push buttons that can be labeled with included peel-off labels or custom laser-engravable labels, each backlit white when inactive and blue when active. A rotary volume knob encircled by a blue volume gauge plus dedicated power and mute buttons round out the interface, and all controls are custom programmable. Beyond Ethernet, the controller includes a Cresnet master port for lighting dimmers, shade motors, and sensors, plus onboard bidirectional RS-232, IR/serial, two relay, and two Versiport I/O ports for direct integration with third-party equipment. It supports PoE+ power, enterprise security including 802.1X, Active Directory authentication, SSH, TLS, and HTTPS, native BACnet/IP, and SNMP. The MPC3-302-W integrates with Crestron Fusion software for room monitoring and scheduling and the XiO Cloud service for remote provisioning and management. It fits the same mounting options as previous-generation MPC-M series controllers for easy retrofit. For specifications not listed here, refer to the Crestron data sheet.

Key Features

• Integrated 3-Series Processor — Combines control processor and control panel with a preloaded .AV Framework base program.
• Ten Customizable Buttons — Backlit push buttons with replaceable peel-off labels or optional engravable labels.
• Rotary Volume Control — Continuous-turn volume knob encircled by a blue LED circular volume gauge, plus power and mute buttons.
• Onboard Control Ports — Bidirectional RS-232, IR/serial, two relay, and two Versiport I/O ports for third-party equipment.
• Cresnet Network — Cresnet master port supports lighting dimmers, shade motors, thermostats, and sensors.
• PoE+ Powered — IEEE 802.3at Type 2 PoE+ powered device over a single Ethernet run.
• Enterprise Security — 802.1X, Active Directory authentication, SSH, TLS, HTTPS, and FIPS 140-2 compliant encryption.
• Enterprise Management — Crestron Fusion room monitoring plus XiO Cloud provisioning and management.
• Retrofit Friendly — Fits the same mounting options as MPC-M10, MPC-M20, MPC-M25, and MPC-M50 series products.

Typical Applications

• Classrooms and lecture halls needing self-contained AV control with direct device ports.
• Meeting rooms running .AV Framework for presentation, lighting, and shade control.
• Training facilities integrating Cresnet lighting and shade devices.
• Retrofit upgrades replacing legacy MPC-M series controllers.

Technical Specifications

Frequently Asked Questions

Does the MPC3-302-W need a separate control system?
No. It integrates a 3-Series control processor with a preloaded .AV Framework base program, so it controls AV and room equipment directly.

How is it powered?
It is powered over Ethernet as an IEEE 802.3at Type 2 PoE+ powered device. A PoE+ source or switch is recommended.

What control ports does it include?

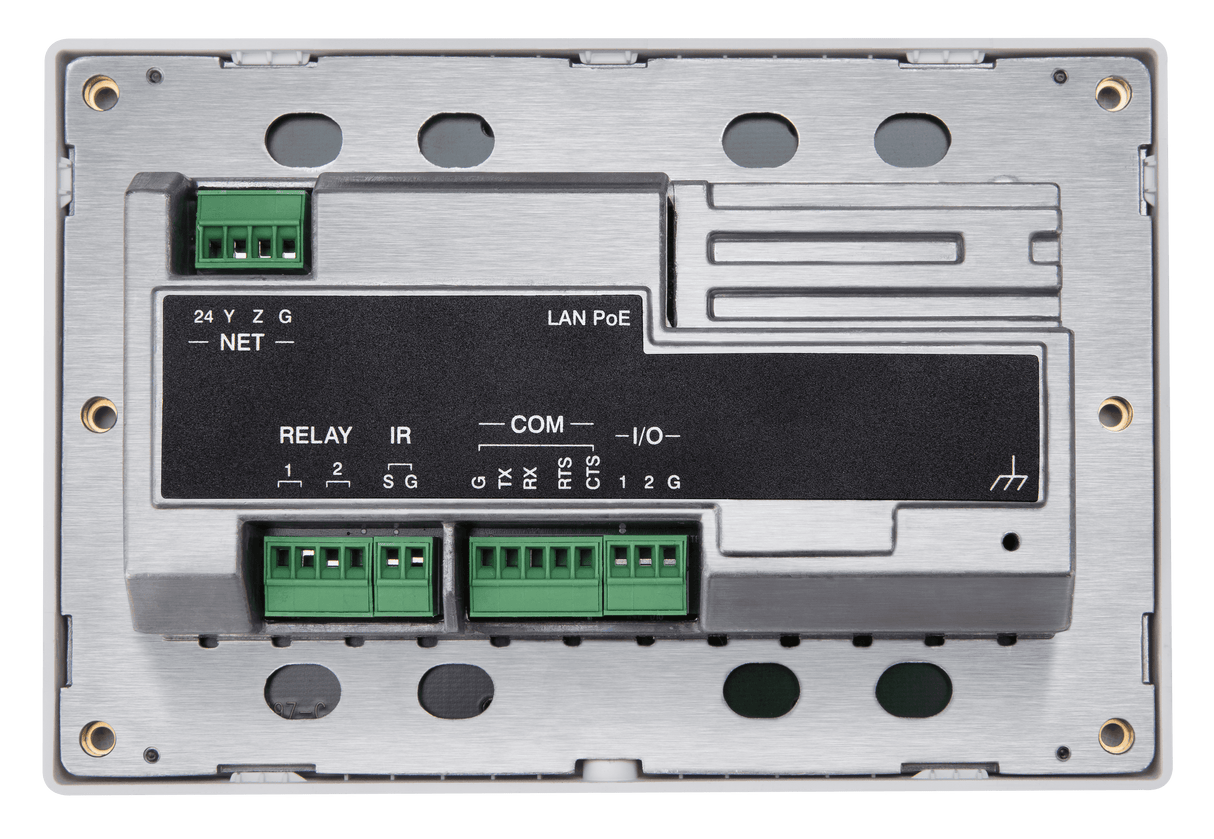

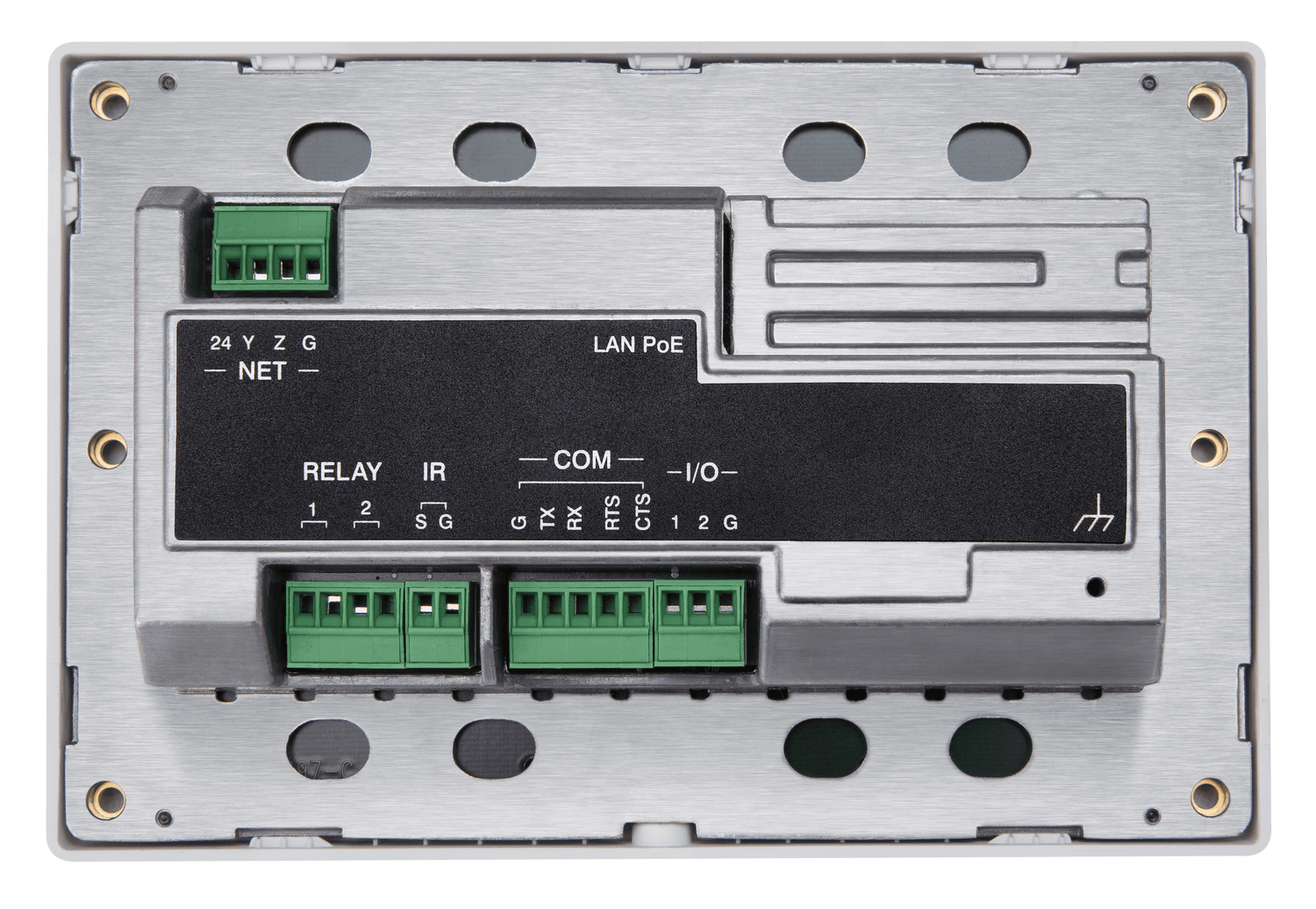

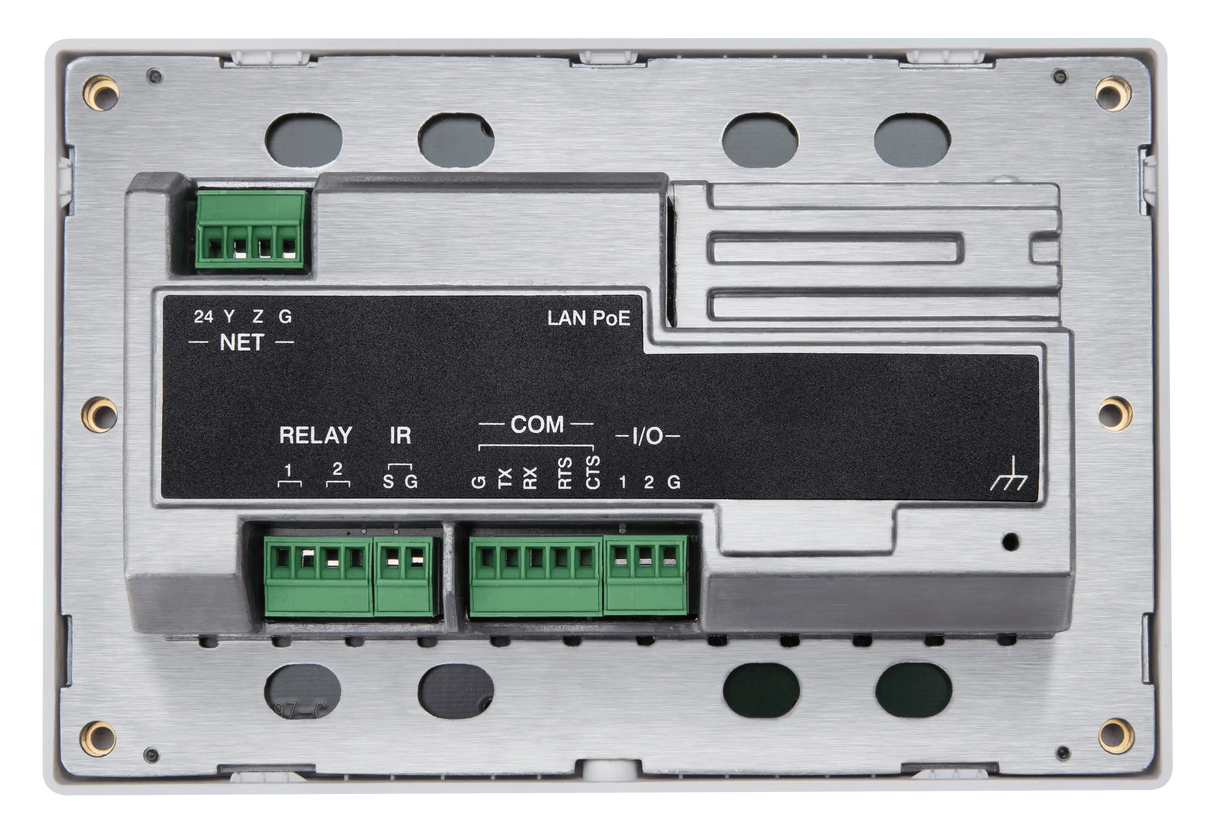

Onboard RS-232 (COM), IR/serial, two relay, and two Versiport I/O ports, plus a Cresnet master port and Ethernet.

How does it mount?
It mounts flush in a 3-gang US electrical box or lectern, or on a tabletop using an optional kit, and fits legacy MPC-M series mounting options.

What is the warranty?
Crestron provides a 3-year limited warranty. For design assistance or ordering, Contact Creation Networks.
