Crestron Room Availability Light Bar for TSW-770 Series (White, Smooth) - TSW-770-LB-W-S

Product Overview

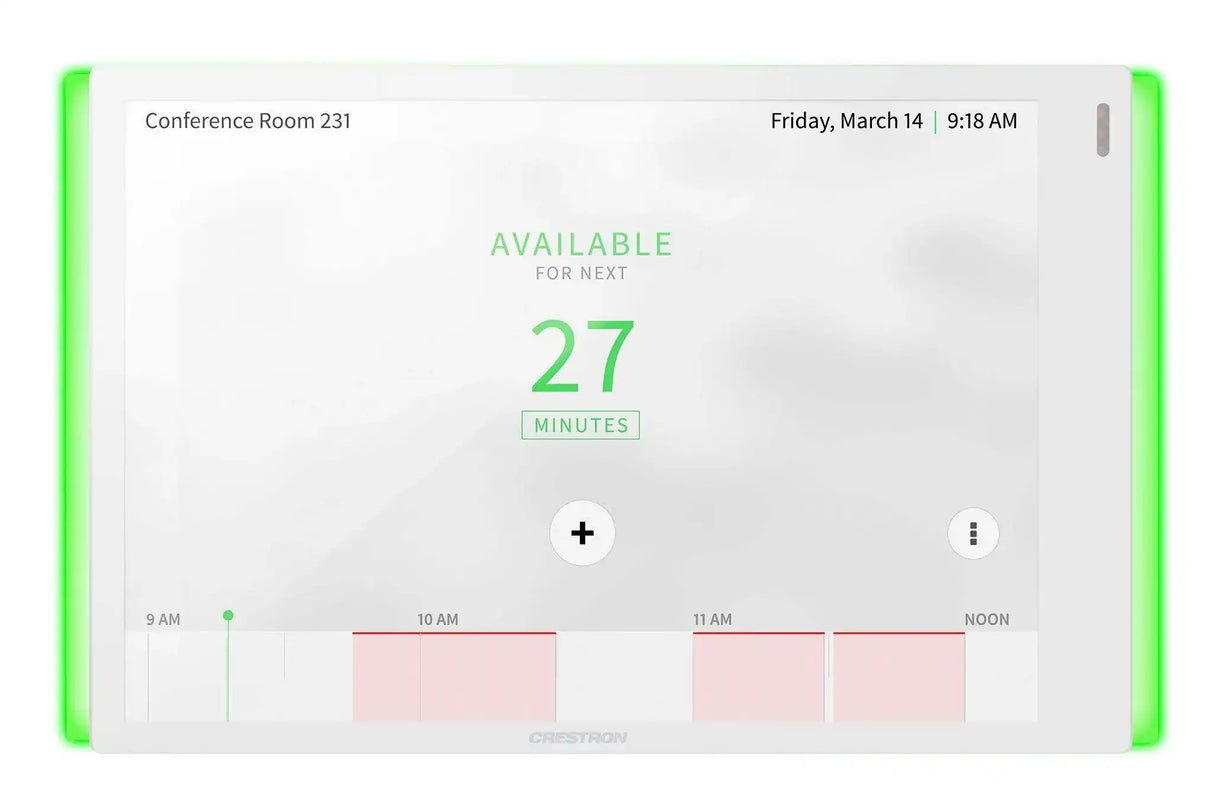

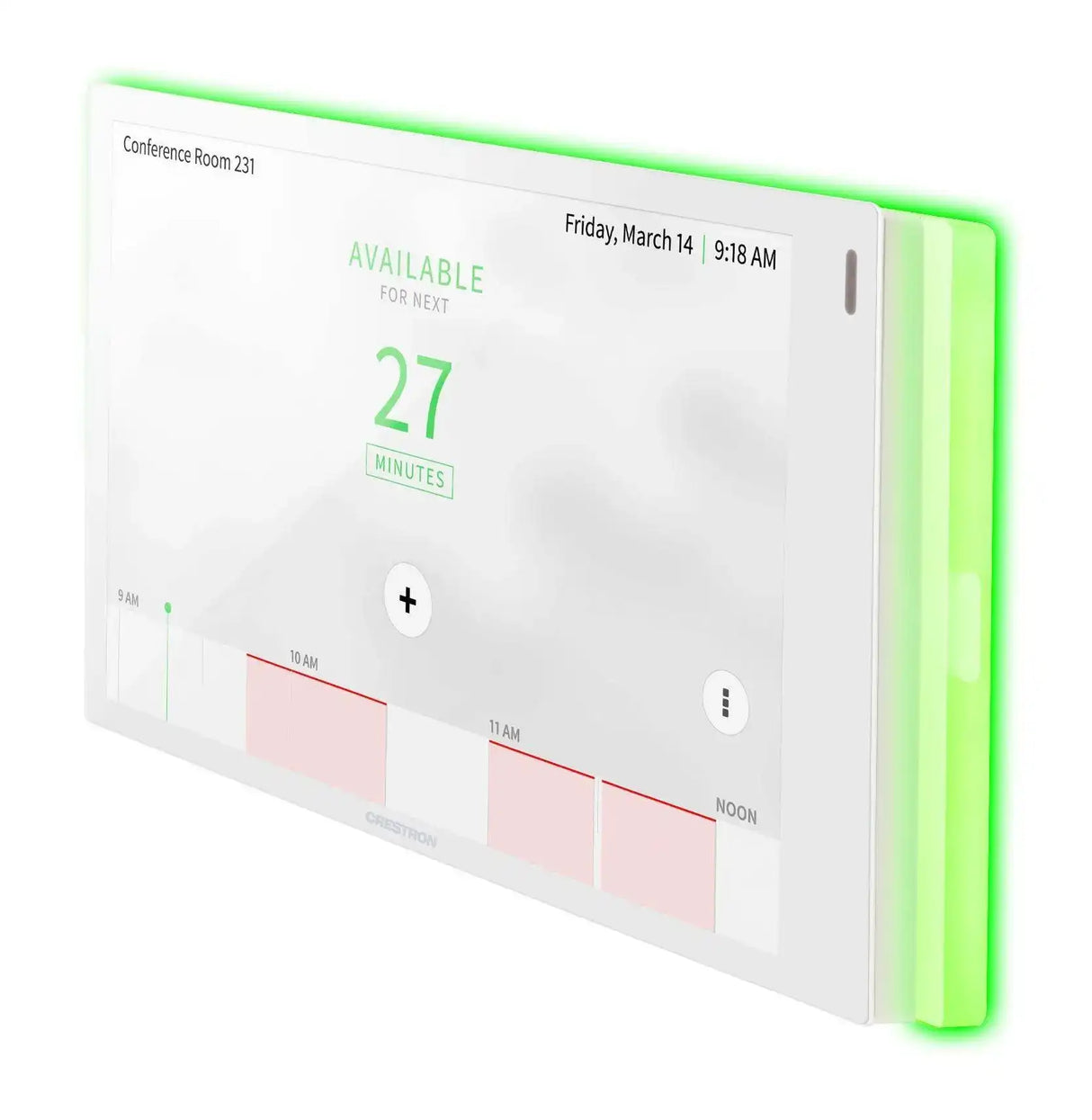

The Crestron TSW-770-LB-W-S is a room availability light bar in a white smooth finish, designed for use with TSW-770 and TSS-770 series touch screens. It provides a 180° visual indication of a meeting room's availability as part of an enterprise room scheduling solution. The light bar mounts to the rear of the touch screen and illuminates green when a room is available and red when it is occupied. It is energy efficient, consuming less than 2 W of power.

Product Description

The TSW-770-LB-W-S connects to a TSW-770 or TSS-770 series touch screen via a single USB lead and requires no special programming or configuration for standard room scheduling use. The illumination color is controlled by the room scheduling application running on the touch screen, which syncs with Crestron Fusion software or another scheduling platform. For custom applications, the light bar uses tricolor RGB LEDs that blend red, green, and blue elements in 1% increments to produce nearly any color. RGB color mixing is performed through the touch screen directly or, when connected to a TSW-770 series panel, through a Crestron control system that can alternate, fade, or blink colors as programmed.

The light bar can also blink to indicate an emergency message broadcast from Crestron Fusion. The two-piece assembly consists of a control module that attaches to the rear of the touch screen and a light-diffusing plastic light bar panel that sits between the touch screen and the mounting surface. It is compatible with TSW-70 series electrical boxes, multisurface mount kits, and mullion mount kits, requiring a minimum mounting depth of 1-5/8 in. (41 mm). For ordering assistance, Contact Creation Networks.

Key Features

• 180° Visual Indication — Provides a wide-angle view of room availability for TSW-770 or TSS-770 series touch screens.
• Green/Red Status Illumination — Illuminates green when a room is available and red when it is occupied for clear at-a-glance status.
• RGB Color Mixing — Tricolor RGB LEDs blend red, green, and blue in 1% increments to support nearly any color.
• USB Connectivity — Connects to the touch screen with a single attached USB Type A lead, no separate power supply required.
• Energy Efficient — Draws 1.1 W typical with a USB power rating of 2.5 W.
• Emergency Blink — Can blink to indicate an emergency message broadcast from Crestron Fusion.
• Versatile Mounting — Compatible with TSW-70 series electrical boxes, multisurface mount kits, and mullion mount kits.
• White Smooth Finish — Complements corporate office environments with a clean, low-profile appearance.
