Crestron Retrofit Mounting Bracket for TSW-770 and TSW-1070 Series - TSW-770/1070-RMB-1
Crestron Retrofit Mounting Bracket for TSW-770 and TSW-1070 Series - TSW-770/1070-RMB-1 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron Retrofit Mounting Bracket for TSW-770 and TSW-1070 Series ...
Product Overview

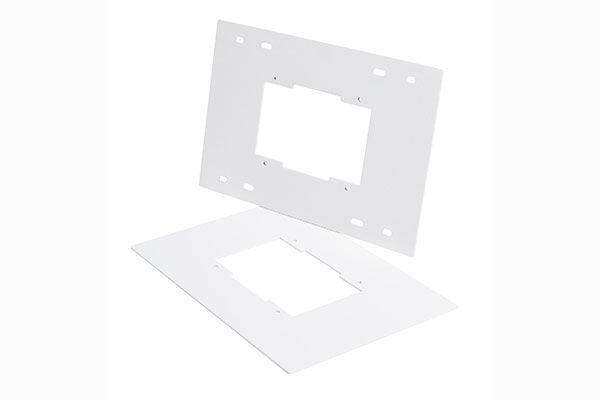

The Crestron TSW-770/1070-RMB-1 is a retrofit mounting bracket that upgrades an older APAD, CT-1000, LC-1000, or TPS-2000L touch screen to a current-generation TSW-770, TSS-770, TSW-1070, or TSS-1070 series touch screen. It installs into the existing back box or wall cutout using the provided mounting hardware, with no patching or tearing of the surrounding surface. Metal mounting brackets and a cover plate deliver a clean, durable result.
Product Description
Swapping a legacy touch screen typically requires demolition and wall repair. The TSW-770/1070-RMB-1 sidesteps that by reusing the wall opening or back box left behind by an APAD, CT-1000, LC-1000, or TPS-2000L touch screen. The metal brackets position the new panel within the original aperture, and the cover plate conceals the transition for a finished appearance. The result is a faster retrofit with minimal disruption to the wall.
This bracket accommodates both the 7-inch TSW-770/TSS-770 models and the 10.1-inch TSW-1070/TSS-1070 models on a single part number, and all required mounting hardware is included. For TPS-4L or TPS-6L conversions, Crestron offers the companion RMB-2 and RMB-3 brackets respectively. To confirm the correct retrofit bracket for your existing panel, Contact Creation Networks.
Key Features
- Legacy panel retrofit — Converts an APAD, CT-1000, LC-1000, or TPS-2000L location to a TSW-770, TSS-770, TSW-1070, or TSS-1070 series panel.
- No wall patching — Mounts over the existing back box or wall cutout, avoiding surface tear-out and repair.
- Metal construction — Metal mounting brackets and cover plate provide a rigid, durable mount.
- Dual panel support — Accommodates both 7-inch and 10.1-inch TSW-70 series touch screens.
- Hardware included — Ships with the mounting hardware required for installation.
Pairs with current TSW-70 series panels such as the Crestron TSW-770 and Crestron TSW-1070.
Technical Specifications
| Model | TSW-770/1070-RMB-1 |
| Function | Retrofit mounting bracket; converts APAD, CT-1000, LC-1000, or TPS-2000L to TSW-770/TSS-770/TSW-1070/TSS-1070 |
| Material | Metal mounting brackets and cover plate |
| Mounting | Mounts over an existing back box or wall cutout using provided hardware |
| Dimensions with TSW-770 | 4.80 in. H x 7.43 in. W x 0.70 in. D (122 x 189 x 18 mm) |
| Dimensions with TSW-1070 | 5.87 in. H x 9.46 in. W x 0.72 in. D (149 x 240 x 18 mm) |
