Crestron Multisurface Mount Kit for TSW-770 Series (Black, Smooth) - TSW-770-MSMK-B-S

Product Overview

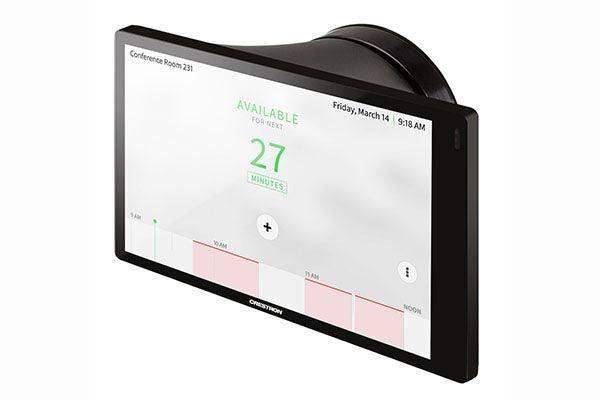

The Crestron TSW-770-MSMK-B-S is a multisurface mount kit in a black smooth finish that lets a TSW-770 or TSS-770 series touch screen be flush mounted to a glass wall or other smooth, flat surface. It is ideal for mounting at the entrance to a meeting space for room scheduling applications and is compatible with the TSW-770-LB light bar for clear room availability indication. The mount attaches without screws using a peel-and-stick adhesive rear housing and includes raceway to conceal cabling.

Product Description

The TSW-770-MSMK-B-S provides a versatile surface-mounting solution for the 7 in. TSW-770 and TSS-770 series touch screens, ideal for placing a scheduling panel at a glass-walled meeting room entrance. Using the kit, the touch screen can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface. It attaches securely without screws via the included peel-and-stick adhesive rear housing, and for a finished appearance on a transparent glass wall, an adhesive molded plastic cap affixes to the opposite side of the glass behind the unit. Templates for both the mount and the cap help ensure a level, properly aligned installation. The kit ships with a self-adhering, paintable plastic raceway to conceal cables running to the touch screen from the floor, ceiling, or an adjacent wall, pillar, or mullion; it includes three 3 ft (0.91 m) straight sections plus an assortment of couplers and elbows. The rear housing provides four cutout holes on its top, bottom, and sides for routing concealed cables, and a rotatable plastic cover conceals any unused cutouts. Compatibility with the TSW-770-LB light bar adds a clear visual indication of room availability. The kit is available in smooth black or white; this model is black smooth.

Key Features

• Flush surface mounting — Mounts a TSW-770 or TSS-770 touch screen to glass or virtually any flat, smooth surface.
• Screwless adhesive install — Secures via a peel-and-stick adhesive rear housing with alignment templates.

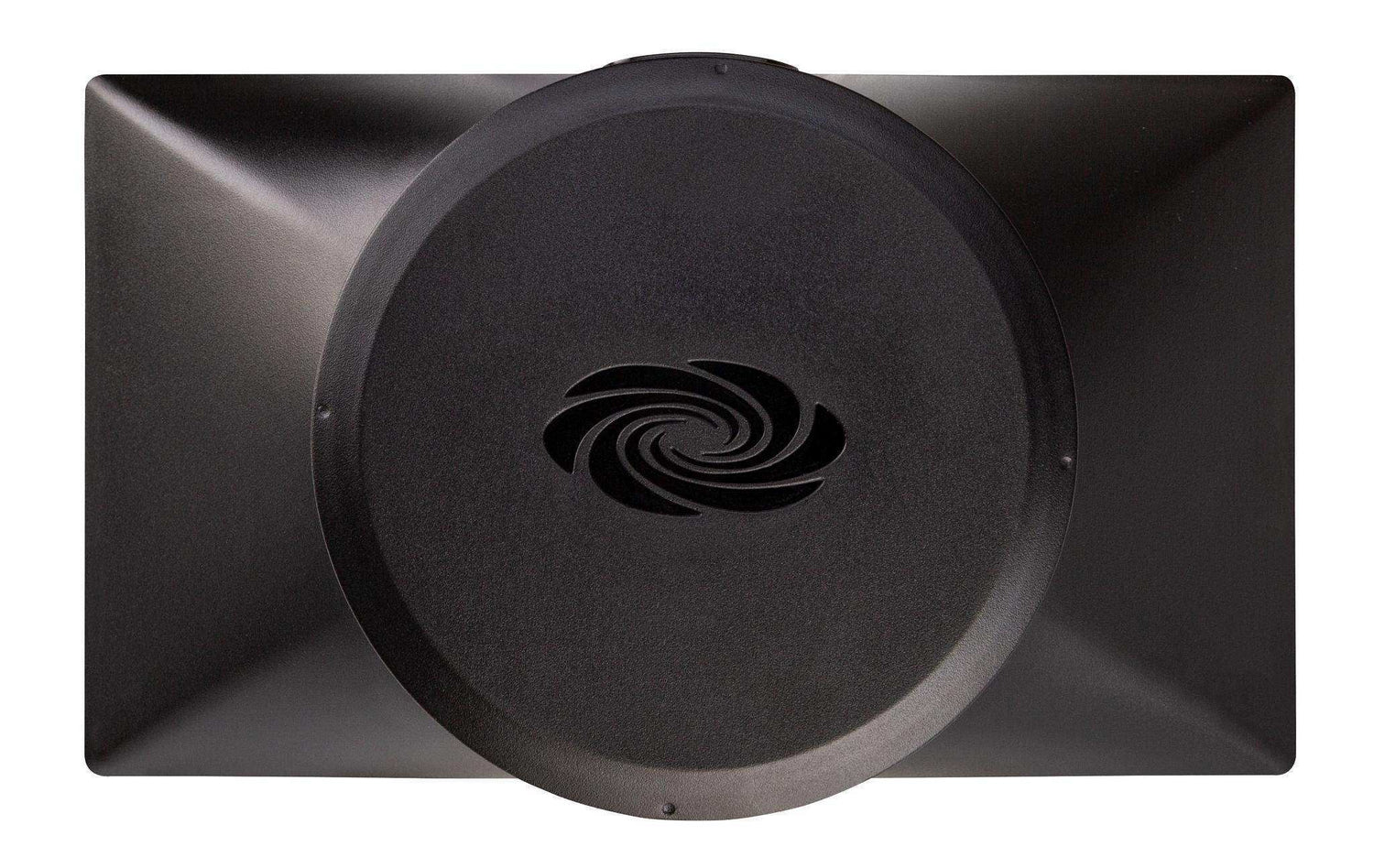

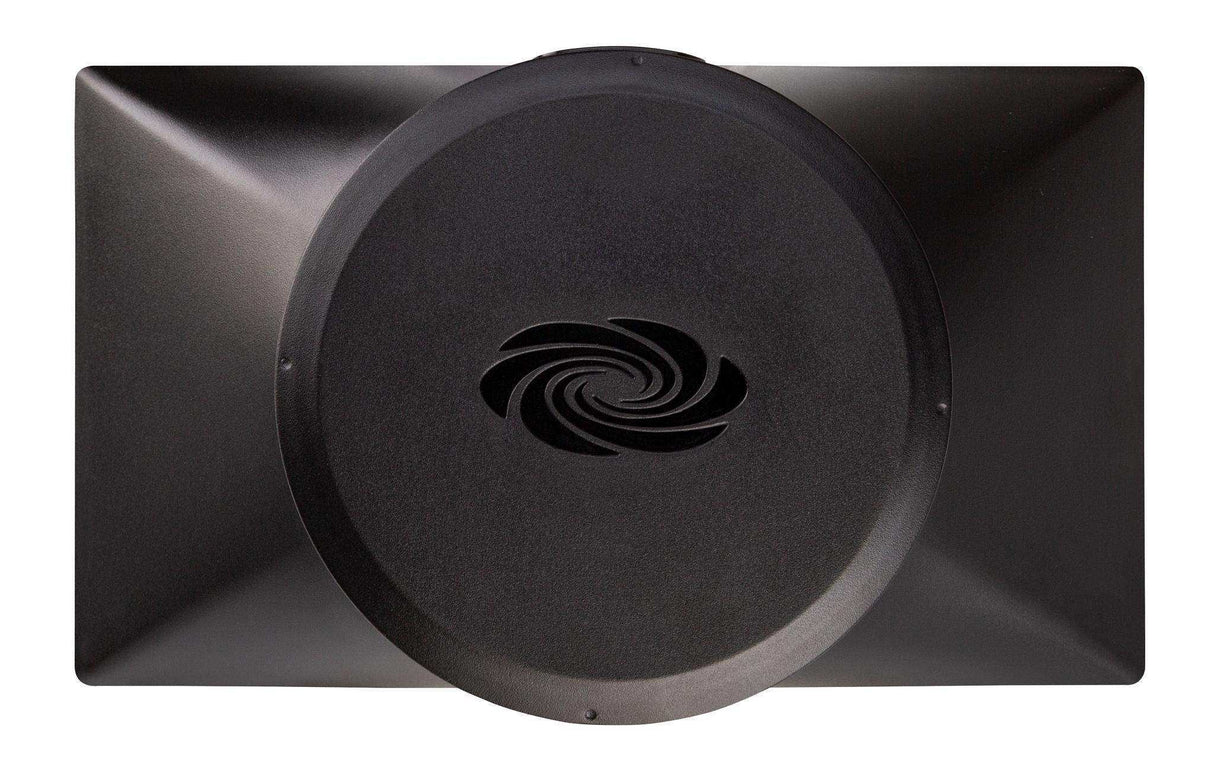

• Glass partition ready — Includes an adhesive molded plastic cap for a finished look behind transparent glass.
• Concealed cabling — Ships with paintable raceway, including three 3 ft sections plus couplers and elbows.
• Light bar compatible — Works with the TSW-770-LB light bar for room availability indication.

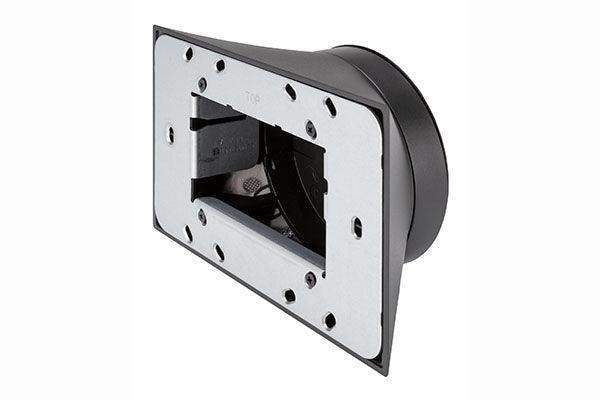

• Tidy cutouts — Four rear cutout holes with a rotatable cover to conceal unused openings.
