Crestron HD-TXU-4KZ-111-2G-W DM Lite® 4K60 4:4:4 Transmitter for USB‑C® DisplayPort™ and USB 2.0

Product Overview

The Crestron HD-TXU-4KZ-111-2G-W is a DM Essentials 4K60 4:4:4 wall plate transmitter that extends USB-C DisplayPort video and USB 2.0 signals over a single CATx cable. It interoperates with a DM Essentials HD-RXU-4KZ Series receiver for point-to-point connectivity from a laptop or USB-C source to a remote display. The transmitter mounts into a standard 2-gang U.S. electrical box and presents a clean USB-C connection at the table or wall. Its white finish suits modern conference rooms, classrooms, and collaboration spaces.

Product Description

This wall plate transmitter accepts a USB-C input with DisplayPort Alt Mode and USB 2.0, then sends video and peripheral data to an HD-RXU-4KZ Series receiver over one twisted-pair cable. It supports resolutions up to 4K60 with 4:4:4 color sampling, along with HDR10, HDR10+, and Dolby Vision formats, and complies with HDCP 2.3. A single USB-C cable from a laptop carries both display video and USB 2.0 data, simplifying user connection in BYOD and huddle environments. DM Essentials transmission distances reach up to 130 ft (40 m) for 4K signals and up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals. EDID pass-through helps the source and remote display negotiate correctly. The transmitter can draw power from a surface-mountable remote receiver; when paired with a wall plate receiver, each device requires its own PW-2407WUL power pack. A decorator-style faceplate (FP-G2-DM Series) is required and sold separately. The unit is designed and warranted for professional commercial AV installations.

Key Features

• DM Essentials transmitter — Interoperates with a DM Essentials HD-RXU-4KZ Series receiver for point-to-point USB-C and USB 2.0 extension.

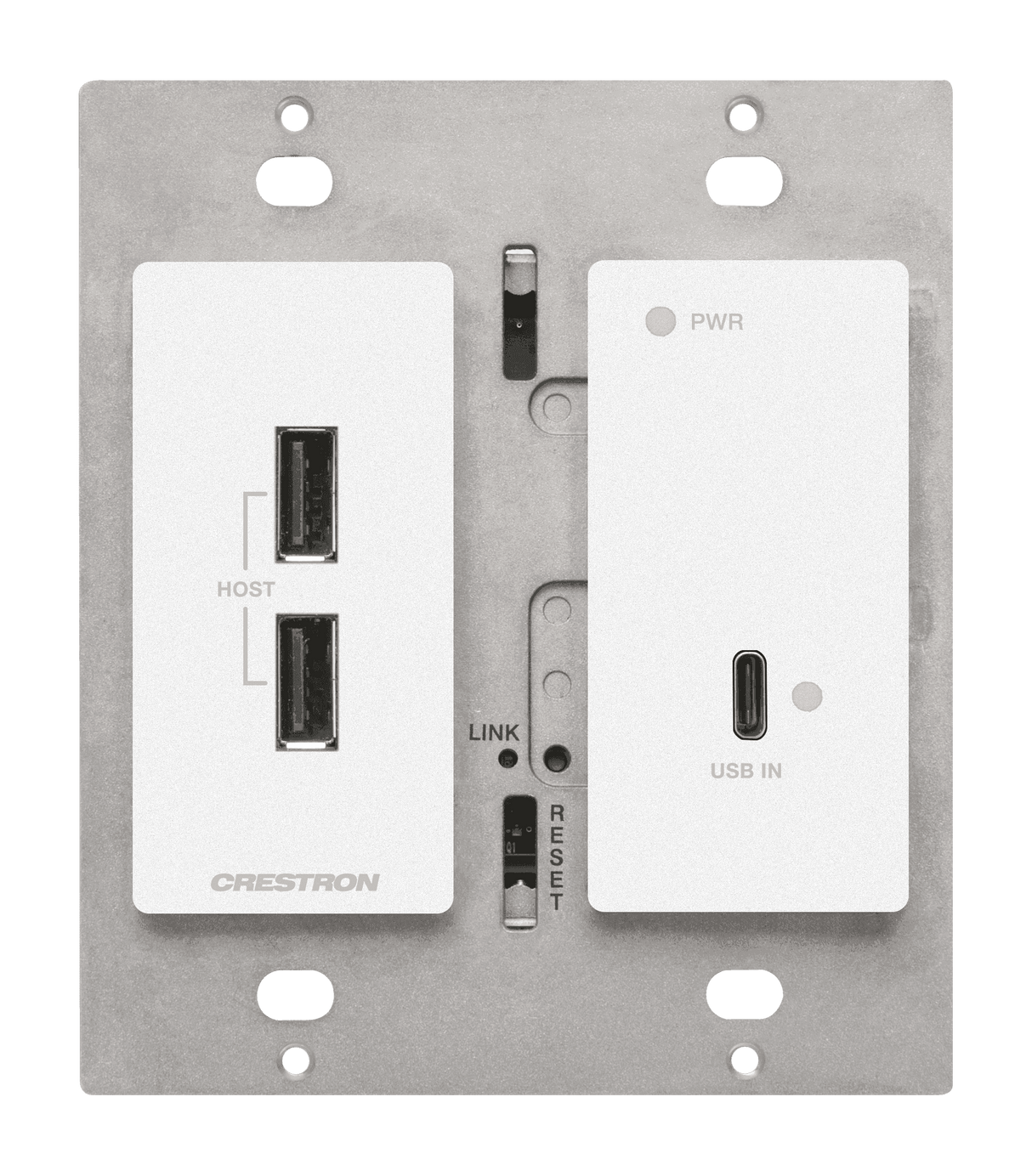

• USB-C DisplayPort input — Accepts a single USB-C connection with DisplayPort Alt Mode and USB 2.0 from a laptop or compatible source.
• 4K60 4:4:4 video — Supports resolutions up to 4K60 with full 4:4:4 color sampling.
• HDR support — Handles HDR10, HDR10+, and Dolby Vision high dynamic range formats.
• HDCP 2.3 compliance — Passes protected content from compatible sources.
• Long reach over CATx — Extends up to 130 ft (40 m) for 4K and up to 230 ft (70 m) for 1080p and 2K signals.
• EDID pass-through — Supports display identification across the link.
• 2-gang wall plate design — Mounts in a 2-gang U.S. electrical box or plaster ring with a white finish.

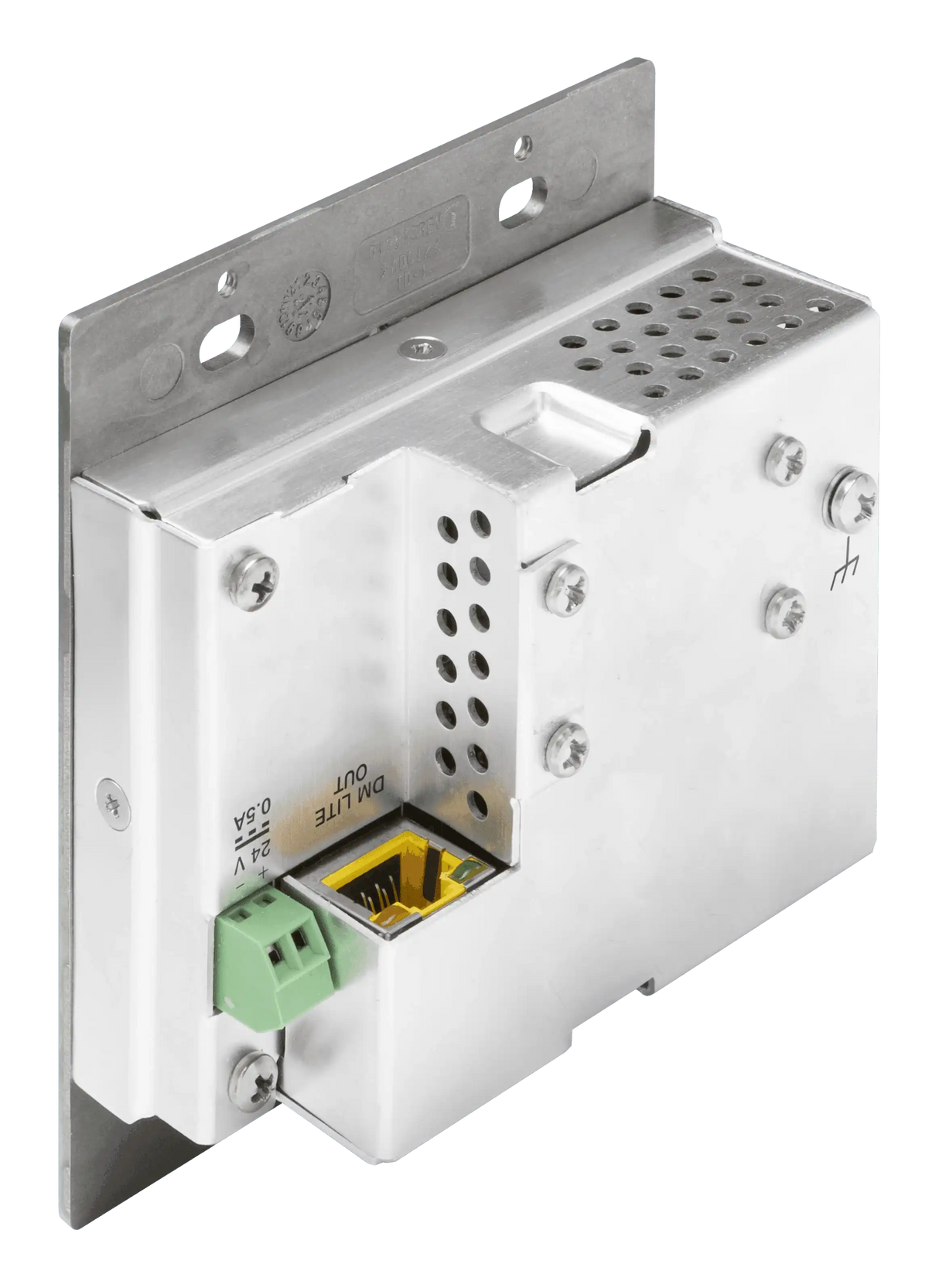

• Flexible powering — Receives power from a surface-mountable remote receiver, or uses a PW-2407WUL power pack when paired with a wall plate receiver.

Typical Applications

• BYOD conference rooms — Provides a single USB-C connection for laptops to drive the room display.
• Classrooms and lecture halls — Extends instructor laptop content to a projector or large display.
• Huddle and collaboration spaces — Offers a clean USB-C table or wall endpoint.
• UC rooms — Carries video and USB data from a host device over structured cable.

Technical Specifications

Frequently Asked Questions

Which receiver does this transmitter pair with?
The HD-TXU-4KZ-111-2G-W is designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver, such as the HD-RXU-4KZ-101-2G-B.

What cable should I use for the link?
Use Crestron DM-CBL-ULTRA or DM-CBL-8G, or third-party CAT5e or higher. Shielded cable and connectors are recommended above 1080p and required when bundling multiple runs.

How is the transmitter powered?
It can draw power from a surface-mountable remote receiver. When paired with a wall plate receiver, each device requires its own PW-2407WUL power pack (sold separately).

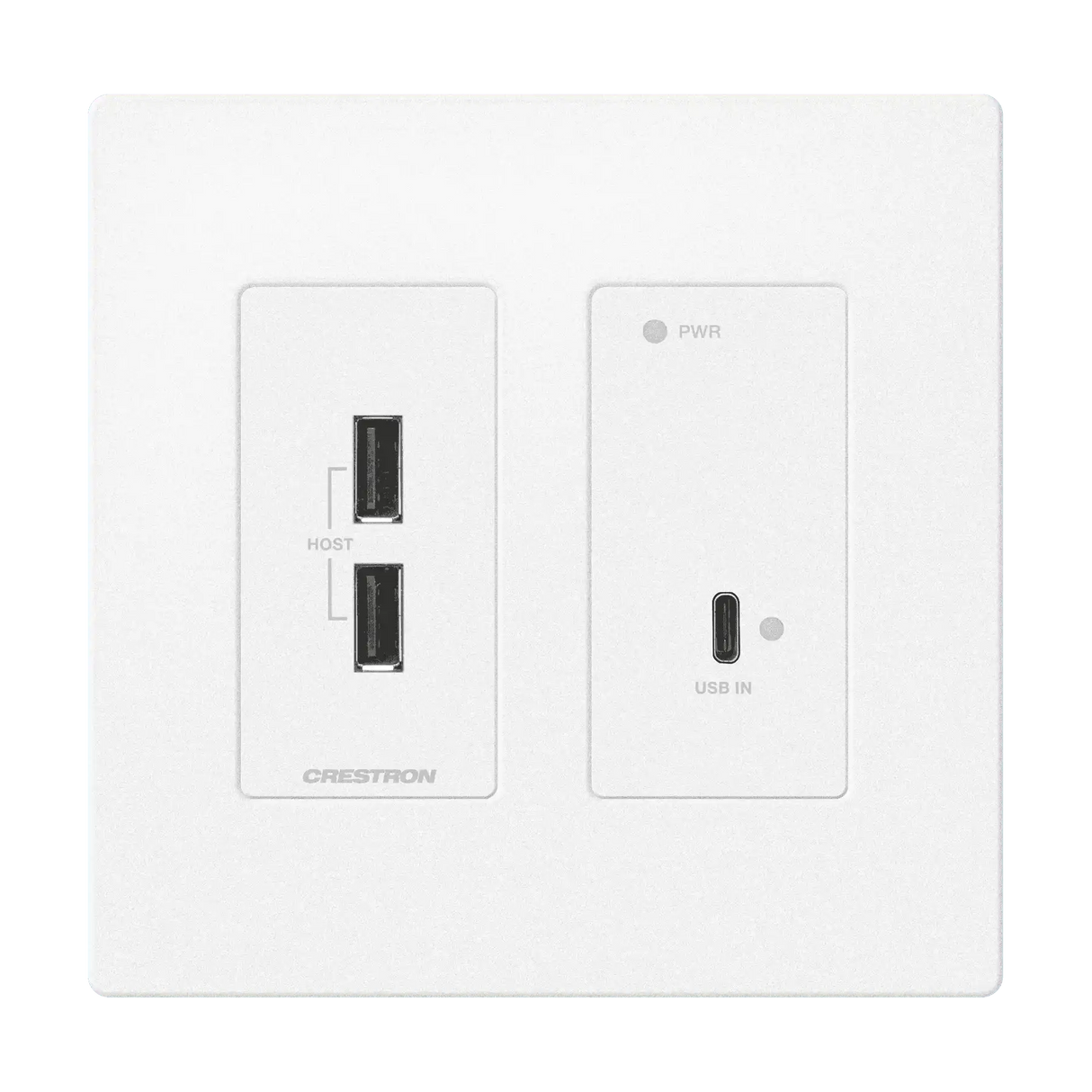

Do I need a faceplate?
Yes. A decorator-style faceplate from the FP-G2-DM Series is required and sold separately.

What warranty and support apply?
This product carries a Crestron 3-year limited warranty. For configuration help or compatibility questions, Contact Creation Networks.
