Crestron HD-RXU-4KZ-101-2G-B DM Lite® 4K60 4:4:4 Receiver for HDMI® and USB 2.0 Signal Extension over CATx Cable, Wall Plate, Black

Product Overview

The Crestron HD-RXU-4KZ-101-2G-B is a DM Essentials 4K60 4:4:4 wall plate receiver that extends HDMI and USB 2.0 signals over a single CATx cable. It is engineered to interoperate with a DM Essentials HD-TXU-4KZ Series transmitter for point-to-point AV and peripheral extension. The receiver mounts into a standard 2-gang U.S. electrical box and delivers video to a display, projector, or codec located away from the source. Its black finish and decorator-style design suit conference rooms, classrooms, and huddle spaces.

Product Description

This wall plate receiver pairs with an HD-TXU-4KZ Series transmitter to move HDMI video and USB 2.0 peripheral data across one twisted-pair cable, simplifying in-wall and in-table connectivity. It supports resolutions up to 4K60 with 4:4:4 color sampling, along with HDR10, HDR10+, and Dolby Vision formats, and complies with HDCP 2.3. Two USB 2.0 host ports allow connection of keyboards, mice, touch screens, cameras, and other peripherals at the display end. DM Essentials transmission distances reach up to 130 ft (40 m) for 4K signals and up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals using Crestron DM-CBL-ULTRA cable. CEC and EDID pass-through help the connected display and source negotiate correctly. The receiver can draw power from a surface-mountable remote transmitter; when paired with a wall plate transmitter, each device requires its own PW-2407WUL power pack. A decorator-style faceplate (FP-G2-DM Series) is required and sold separately. The unit is designed and warranted for professional commercial AV installations.

Key Features

• DM Essentials receiver — Interoperates with a DM Essentials HD-TXU-4KZ Series transmitter for point-to-point HDMI and USB 2.0 extension.
• 4K60 4:4:4 video — Supports resolutions up to 4K60 with full 4:4:4 color sampling for sharp text and detailed imagery.
• HDR support — Handles HDR10, HDR10+, and Dolby Vision high dynamic range formats.
• HDCP 2.3 compliance — Passes protected content from compatible sources to the display.
• USB 2.0 host ports — Two USB Type-A ports connect mice, keyboards, touch screens, cameras, and similar peripherals at the display location.
• Long reach over CATx — Extends up to 130 ft (40 m) for 4K and up to 230 ft (70 m) for 1080p and 2K signals.
• CEC and EDID pass-through — Supports device control and display identification across the link.

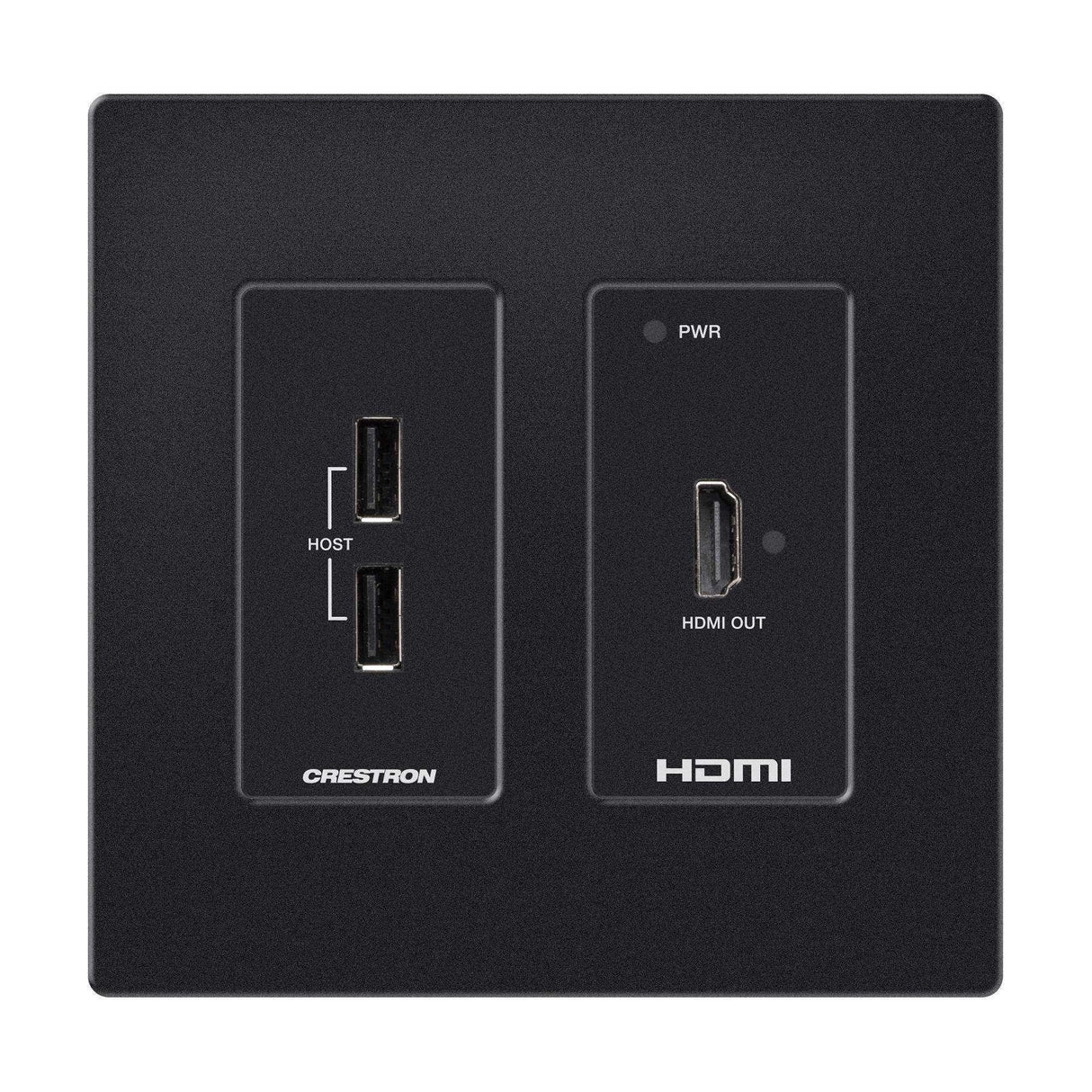

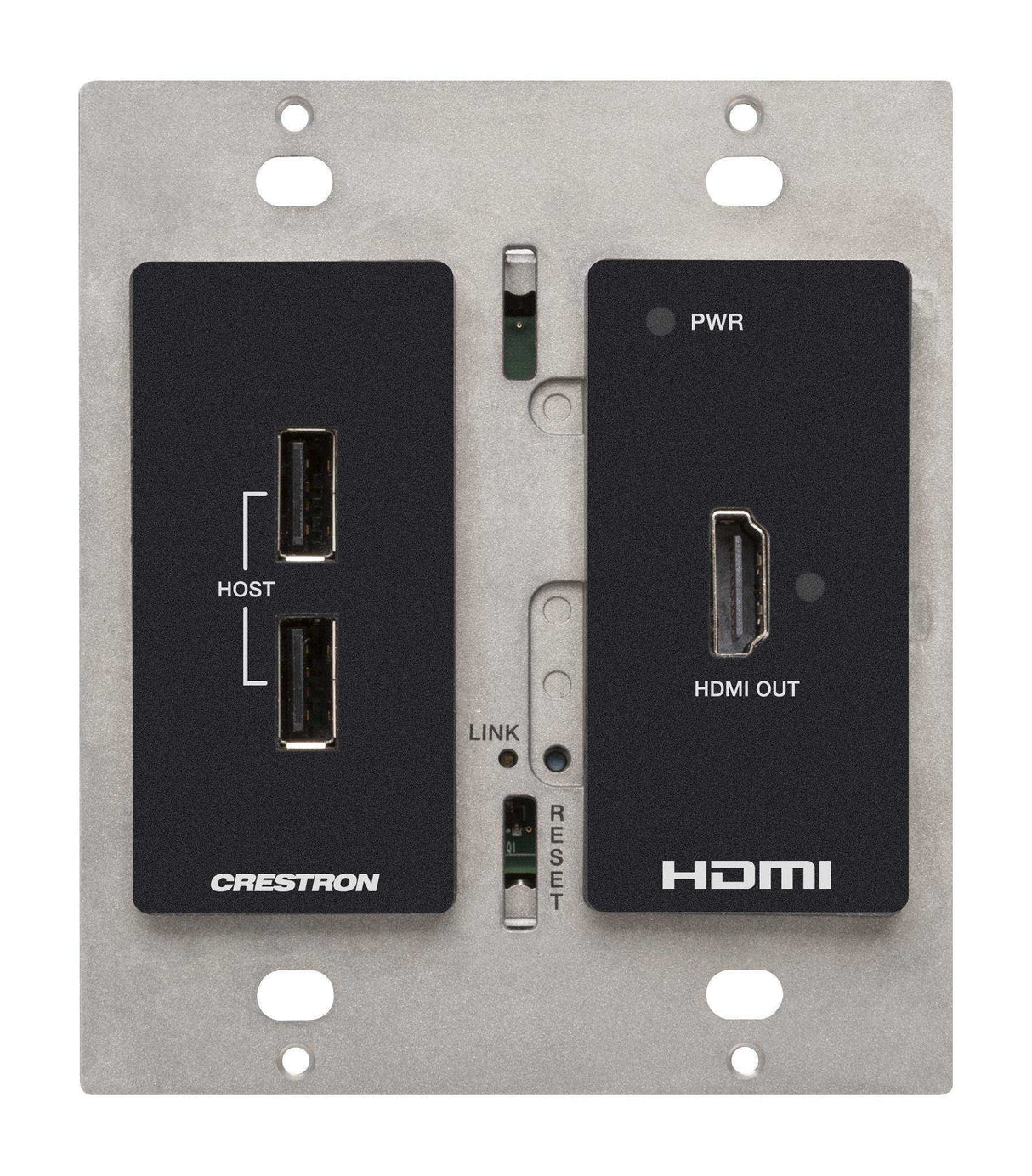

• 2-gang wall plate design — Mounts in a 2-gang U.S. electrical box or plaster ring with a black finish.

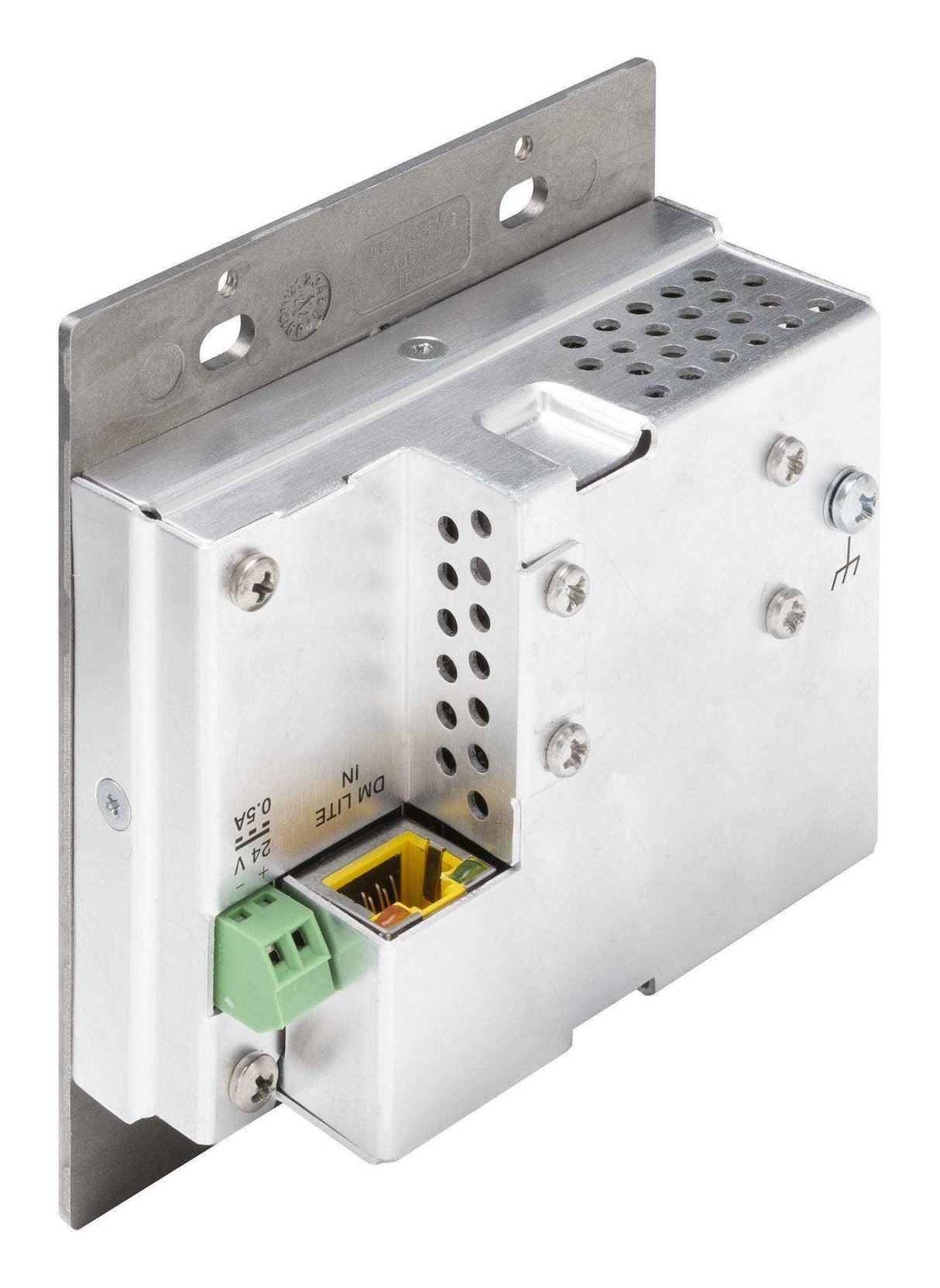

• Flexible powering — Receives power from a surface-mountable remote transmitter, or uses a PW-2407WUL power pack when paired with a wall plate transmitter.

Typical Applications

• Conference rooms — Delivers a remote source to the room display while keeping cabling concealed in the wall.
• Classrooms and lecture halls — Extends instructor content and USB devices to a projector or large display.
• Huddle spaces — Provides a clean wall plate endpoint for HDMI and USB peripherals.
• Codec and UC rooms — Connects cameras and touch peripherals to a unified communications system over structured cable.

Technical Specifications

Frequently Asked Questions

Which transmitter does this receiver pair with?
The HD-RXU-4KZ-101-2G-B is designed to interoperate with a DM Essentials HD-TXU-4KZ Series transmitter, such as the HD-TXU-4KZ-111-2G-B or HD-TXU-4KZ-111-2G-W. USB 2.0 extension is only supported with an HD-TXU-4KZ Series transmitter.

What cable should I use?
Use Crestron DM-CBL-ULTRA or DM-CBL-8G, or third-party CAT5e or higher. Shielded cable and connectors are recommended above 1080p and required when bundling multiple runs.

How is the receiver powered?
It can draw power from a surface-mountable remote transmitter. When paired with a wall plate transmitter, each device requires its own PW-2407WUL power pack (sold separately).

Do I need a faceplate?
Yes. A decorator-style faceplate from the FP-G2-DM Series is required and sold separately.

What warranty and support apply?
This product carries a Crestron 3-year limited warranty. For configuration help or compatibility questions, Contact Creation Networks.
